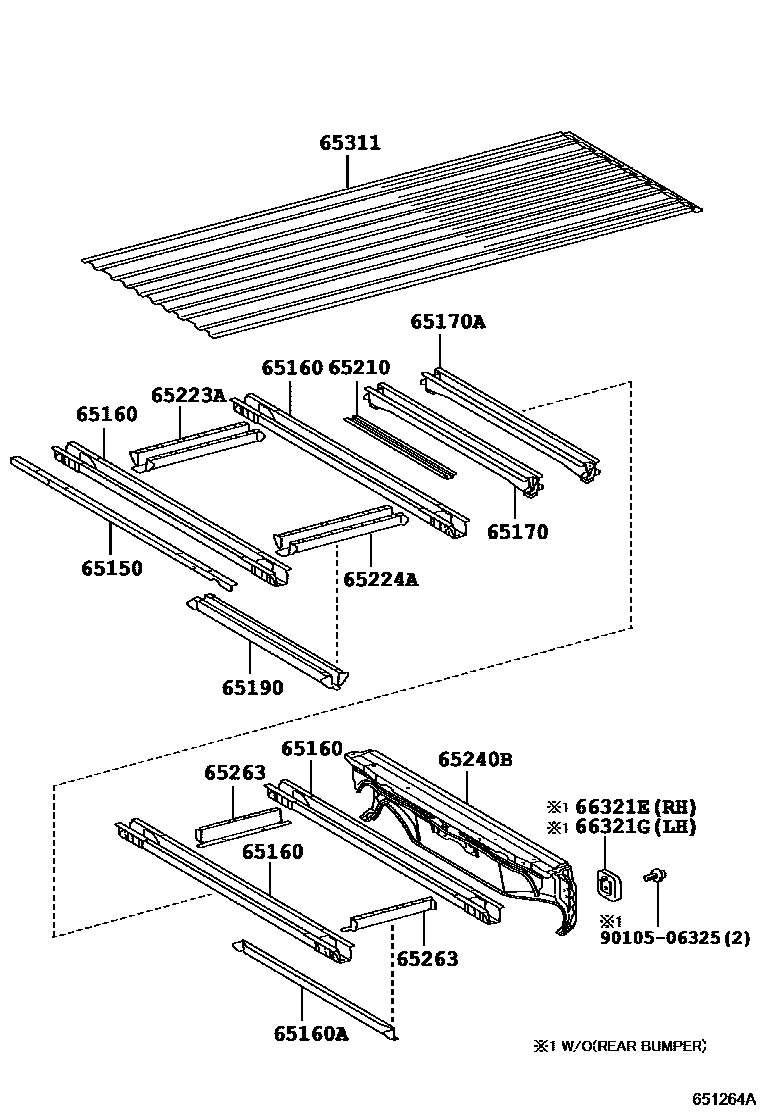

REAR BODY FLOOR & FENDER
65150SILL ASSY, CROSS, NO.1
65160SILL ASSY, CROSS, NO.2
main65160-KK010×4iGUN122..(SDC,TDC,TXT)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,PDC,SDC,SXT,TDC,TXT)..CBU; TGN136..ASC,TSC;GUN122..(TDC,TXT)..6F;GUN122..(PSC,SSC,TSC)..5F..CBU;GUN120,123,KUN126..(PSC,SSC,TDC,TSC,TXT)..(L,M)..(PKN,SA,TH);GUN125,126,13#,KUN122,125,135,LAN125,TGN120,121,126..(ASC,KSC,MSC,PSC,SSC,TSC)..CBU201505-202105
65160ASILL ASSY, CROSS, NO.2
65170SILL ASSY, CROSS, NO.2
65170ASILL ASSY, CROSS, NO.3
65190SILL ASSY, CROSS, NO.5
main65191-0K011iTGN136..ASC,TSC;GUN122..(PSC,SSC,TSC)..5F..CBU;GUN123,125,126,13#,KUN12#,135,LAN125,TGN120,121,126..(ASC,KSC,MSC,PSC,SSC,TSC)..CBU201505-202105
65210SILL ASSY, CROSS, NO.6
65223AREINFORCEMENT, FLOOR PANEL, FRONT RH
65224AREINFORCEMENT, FLOOR PANEL, FRONT LH
main65223-0K011iTGN136..ASC,TSC;GUN122..(PSC,SSC,TSC)..5F..CBU;GUN123,125,126,13#,KUN12#,135,LAN125,TGN120,121,126..(ASC,KSC,MSC,PSC,SSC,TSC)..CBU201505-202105
65240BSILL ASSY, CROSS, NO.9
EXCEPT PLANT TSAM
main65240-KK030iGUN122..LHD..TDC..X;GUN126,KUN126..ATM..S..GEN;GUN122..TDC..(L,S)..(GEN,TH);GUN125,135,KUN125..TDC..L..(IDN,TH);GUN135,KUN122,125..LHD..TDC..(S,X)..(GEN,PH);GUN120,KUN122,136,TGN121,126..RHD..TDC..(L,S); GUN125,KUN122,125,TGN126..LHD..TDC..L..GEN; GUN125..PH; KUN122..TSC..(L,S)..GEN;KUN125..RHD..(TSC,TXT)..(L,S);GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN125,135..(TSC,TXT)..(L,X)..(IDN,TH);GUN122,KUN125..LHD..(TSC,TXT)..S..DCR..GEN;GUN112,120,122,123,126,TGN121..RHD..(TSC,TXT)..(L,S,X)..(GEN,TH)..CBU201505-202005
EXCEPT PLANT TSAM; HIGH MOUNT STOP LAMP-WITH(TAIL GATE),EXCEPT PLANT TSAM; REAR BUMPER-WITHOUT,EXCEPT PLANT TSAM
PLANT TSAM
main65240-KK110iGUN122,125,135,KUN122,125,LAN125,TGN121,126..LHD..SDC..X; GUN125,135,KUN125..RHD..SDC..X201601-202009
PLANT TSAM; REAR BUMPER-WITHOUT,PLANT TSAM
65263REINFORCEMENT, FLOOR SIDE FRAME
65311PANEL, FLOOR, CENTER
main65311-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..(ADC,KDC,MDC,PDC,SDC,TDC)..CBU201505-202105
66321EBUMPER, GATE RUBBER
main66321-0K010iGUN125,135..S..PH;GUN122..LHD..TDC..X;KUN125..TDC..L..IDN;KUN122..RHD..(L,S)..CBU;GUN126,KUN126..ATM..S..GEN;KUN125..RHD..(TSC,TXT)..(L,S);GUN125,126,135..(L,X)..(IDN,TH);GUN122..TDC..(L,S)..(GEN,PH,TH);GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN122,KUN122..LHD..TSC..S..DCR..GEN;KUN122,125..LHD..(TDC,TXT)..(S,X)..GEN;GUN122..RHD..(PSC,TSC,TXT)..(L,S,X)..CBU;GUN112,120,123,KUN112,136,TGN110,121,126..RHD..(GEN,IDN,TH)..CBU201505-202105
66321GBUMPER, GATE RUBBER
main66322-0K010iGUN125,135..S..PH;GUN122..LHD..TDC..X;KUN125..TDC..L..IDN;KUN122..RHD..(L,S)..CBU;GUN126,KUN126..ATM..S..GEN;KUN125..RHD..(TSC,TXT)..(L,S);GUN125,126,135..(L,X)..(IDN,TH);GUN122..TDC..(L,S)..(GEN,PH,TH);GUN125..(TSC,TXT)..6F..(L,S)..GEN;GUN122,KUN122..LHD..TSC..S..DCR..GEN;KUN122,125..LHD..(TDC,TXT)..(S,X)..GEN;GUN122..RHD..(PSC,TSC,TXT)..(L,S,X)..CBU;GUN112,120,123,KUN112,136,TGN110,121,126..RHD..(GEN,IDN,TH)..CBU201505-202105
9010506325
main90105-06325
15 parts on this diagram · 4 diagrams in section
