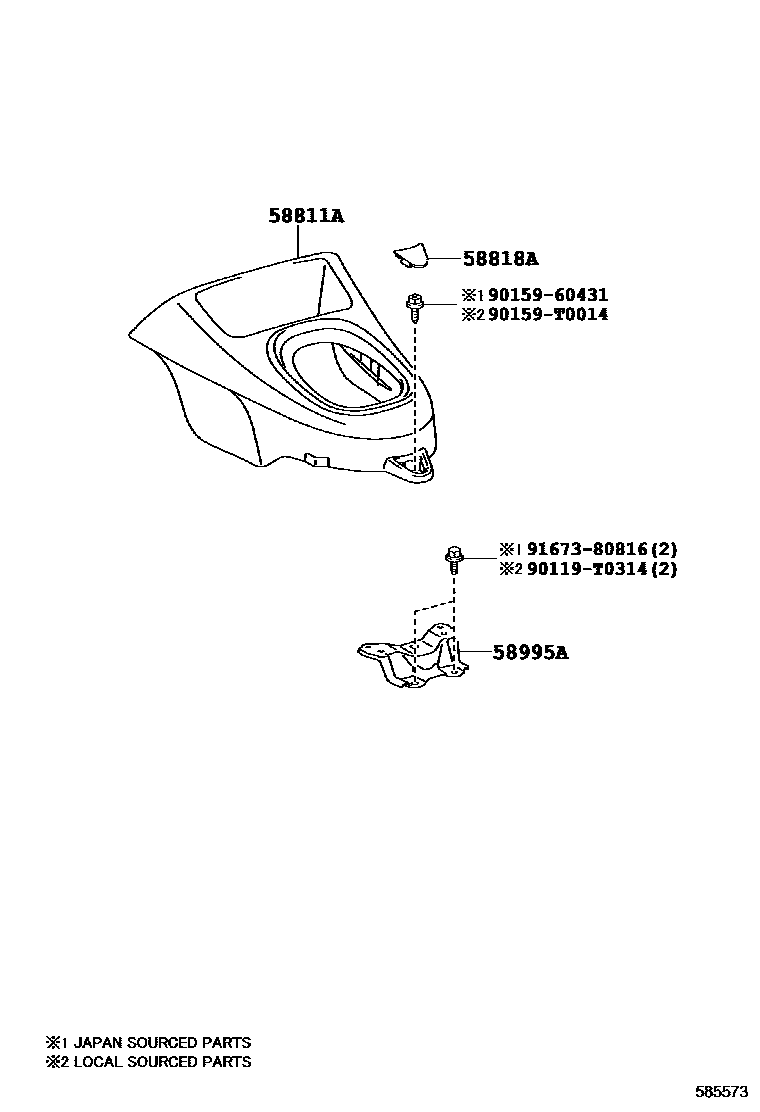

CONSOLE BOX & BRACKET

0001 1FRONT SEAT = BENCH TYPE 0002 1FRONT SEAT = SEPARATE TYPE 0003 1FRONT SEAT = SEPARATE TYPE 0004 1FRONT SEAT = SEPARATE TYPE

58811ABOX, CONSOLE, FRONT

main58802-KK010-C0×2iKUN122..LHD..SA201810-201905

BLACK,TRIM2#

main58802-KK020-C0iGUN122..TXT..6F..X;GUN125..RHD..TDC..6F..L..GEN201608-202005

BLACK,TRIM2#,4#

58818ACOVER, CONSOLE BOX, FR

main58818-KK010-C0iKUN125..TXT..L..GEN;KUN125..RHD..TDC..L..GEN;KUN122,TGN121..LHD..L..GEN201505-201702

BLACK,TRIM2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-KK020iGUN126..L..BZAGT;GUN126..6F..M..GCC;KUN125..6F..(H,M,S);GUN125..LHD..TDC..6F..S;TGN121..RHD..(TDC,TXT)..5F;GUN122..(M,X)..(ARL,GCC)..CBU;TGN126..(ADC,SDC,TDC)..5F..201505-202105

main58995-KK030iGUN122..RHD..(GEN,PKN);GUN122..(L,S)..(GCC,PH);GUN122,135..LHD..TDC..X;TGN121..(SDC,SSC,TSC)..5F;GUN125,TGN126..TSC..S..GCC;TGN121..LHD..TDC..5F..(L,S);GUN122..(SDC201505-202105

90119T0314

main90119-T0314

9015960431

main90159-60431

90159T0014

main90159-T0014

9167380816

main91673-80816

7 parts on this diagram · 4 diagrams in section
