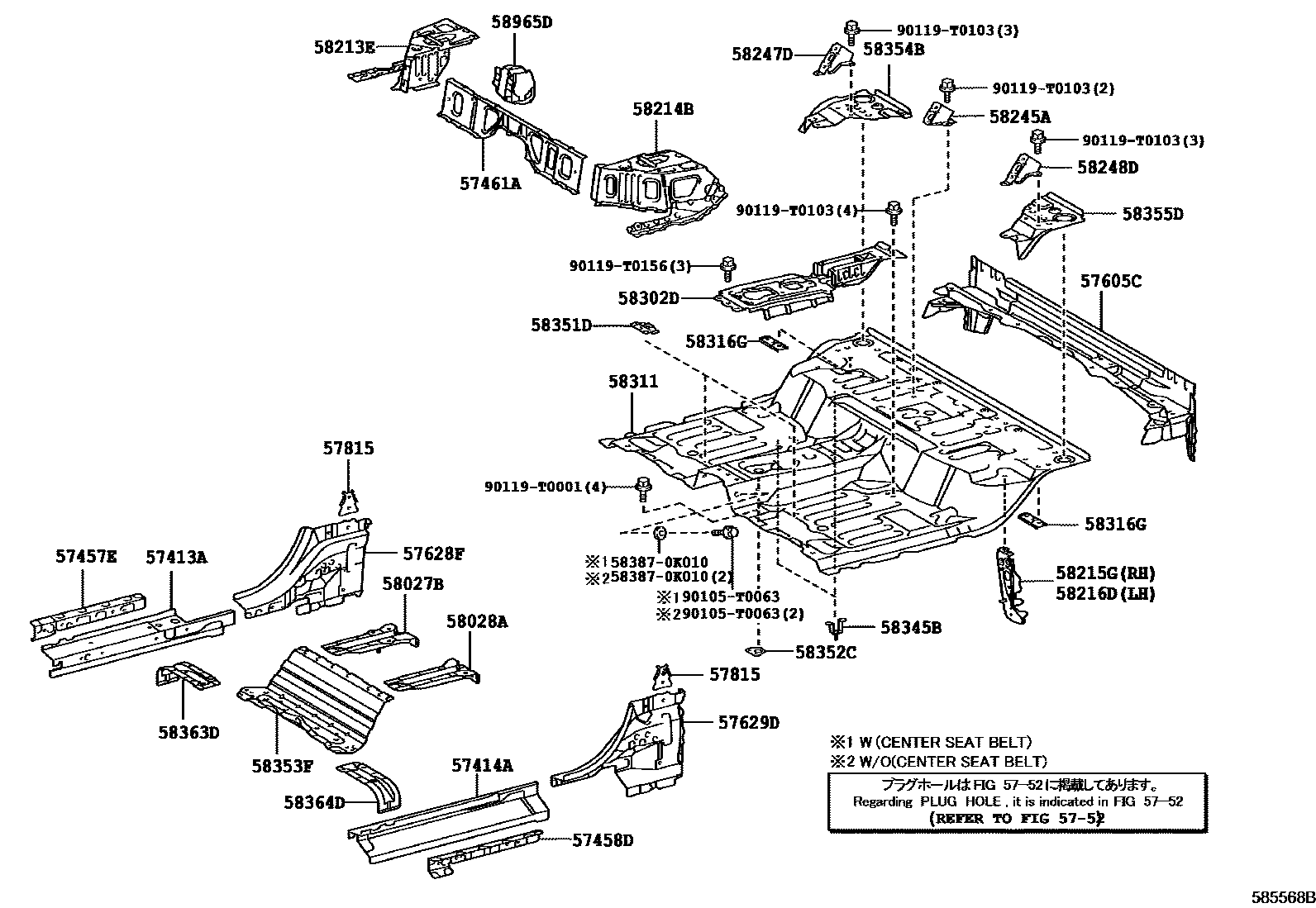

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57403-KK030iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

main57413-KK020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main57413-KK030iTGN136..SSC201906-202105

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57404-KK030iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

main57414-KK020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main57414-KK030iTGN136..SSC201906-202105

57457EPATCH, FLOOR SIDE MEMBER, RR RH

main57457-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

57458DPATCH, FLOOR SIDE MEMBER, REAR LH

main57458-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

57461AMEMBER, CENTER FLOOR CROSS

main57461-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

5752HOLE PLUG

→ Go to FIG 57-52

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0K040iGUN135..(ADC,MDC,SDC,TDC)..(BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,MDC,PDC,SDC,TDC201505-201702

main57605-KK010iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

main57605-KK020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201703-202105

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-KK020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-KK020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

57815REINFORCEMENT, BELT ANCHOR, NO.1

main61665-KK010×2iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2

main58028-0K020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58213EPANEL, SEAT FLOOR SIDE, RH

main58201-KK020iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main58201-KK030iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

58214BPANEL, SEAT FLOOR SIDE, LH

main58202-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main58202-KK020iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

58215GBRACKET, REAR SEAT MOUNTING, NO.1

main58215-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58245ABRACKET, REAR SEAT HINGE, CENTER NO.1

main58248-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58247-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main58302-KK020iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

58311PAN, REAR FLOOR

main58311-KK010supersedes 58311-KK020iGUN125..M..SA;TGN136..(M,S)..LA;GUN126,KUN126..ATM..X;GUN126..RHD..6F..H..GEN;TGN126..(M,S)..(BZAGT,LA);GUN122..(SDC,TDC)..(ARL,SA,TH);GUN125,KUN125,126..RHD..SDC..(M,S);GUN126,KUN126..(L,M)..(BZAGT,LA,TAIW);GUN126,KUN125,126..(H,S)..(BZAGT,LA,PKN);TGN136..(ADC,SDC,TDC)..(BZAGT,GEN,SA,TH);GUN135,KUN135..(ADC,SDC,TDC)..S..(LA,SA);GUN125,TGN121..(ADC,MDC,TDC)..(ARL,BZAGT,MA,TH);GUN126..RHD..(KDC,MDC,SDC,TDC)..(ARL,KEN,MA,SA,TH);GUN122,125..(SDC,TDC)..(5F,6FC)..(L,X)..HDCR..(GEN,SA);GUN135..(ADC,MDC,TDC)..(L,M,S,X)..(ARL,BZAGT,GEN,MA,TH);GUN125,TGN126..LHD..(ADC,TDC)..(6F,6FC)..(M,S)..(GEN,LA);GGN12#,135,GUN120,123,136,KUN136,TGN128,138..(ADC,SDC,TDC)..(ARL,BZAGT,GEN,LA,SA,TH)201505-202105

main58311-KK020iTGN136..TDC..X..LA;KUN125,126,135..(ADC,TDC)..6F..X;GUN125,135,TGN121..LHD..(SDC,TDC)..X..(GEN,SA)201505-202009

main58311-KK030iGUN125,135,KUN125..RHD..(KDC,SDC)..6F..X201601-202102

main58311-KK040iTGN136..SSC201906-202102

main58311-KK050iGUN125,TGN126..ASC..LA201505-201907

main58311-KK060iGUN125..TSC..6F..L..GEN;KUN125..TSC..(L,X)..GEN;GUN122,126,TGN121..RHD..(PSC,SSC,TSC)..(L,X)..(PKN,SA,TH);GUN112,125,135,KUN112,122,126,TGN110,120..RHD..(KSC,MSC,PSC,SSC,TSC)..(L,X)..(IDN,KEN,MA,PKN,SA)201505-202105

main58311-KK080iGUN123,125,126,136..TXT..ARL201506-202005

main58311-KK110iGUN135..S..PH;GUN126..LHD..SA;GUN135..6FC..S..VN;GUN126..M..(PKN,VN);KUN122..LHD..TDC..GEN;TGN126..6FC..(GCC,SA);KUN125..TDC..(GEN,IDN);GUN125..6F..M..(GCC,VN);GUN135..LHD..TDC..(H,L,M);KUN126..(M,S)..(GEN,PKN,VN);GUN125..TDC..6F..L..(GEN,IDN);KUN126,TGN126..(H,L)..(GEN,VN);GUN126..TDC..6F..(M,S)..(GCC,GEN,PH);KUN125..LHD..(SDC,TDC)..(M,S)..(GCC,SA);GUN125,KUN126..LHD..ATM..(L,M)..(GCC,SA);GUN126,TGN121..TDC..6FC..(GCC,GEN,PH,VN);GUN125..LHD..(SDC,TDC)..S..(GCC,PH,SA,VN);TGN126..(SDC,TDC)..5F..(M,S)..(GCC,GEN,SA);GUN125,KUN122..RHD..TDC..(H,M,S)..(GEN,IDN);GUN122,126,TGN121..LHD..TDC..MTM..(H,L,S)..(GEN,PH);GUN122,TGN121..TDC..5F..(M,X)..(DCR,HTWC)..(GCC,GEN);GGN125,KUN135,LAN125..LHD..(SDC,TDC)..(H,M,S)..(GCC,GEN,SA,VN)201505-202105

main58311-KK120iGUN125..TDC..6F..L..GCC;KUN122..(SDC,TDC)..(GCC,SA);GUN122,TGN120,121..TDC..5F..(L,S)..GCC;KUN125,LAN125,TGN126..LHD..(SDC,TDC)..MTM..(L,X)..(GCC,SA)201505-202009

main58311-KK130iKUN122..RHD..TDC..(L,X);GUN122,126,KUN126..(PDC,TDC)..MTM..L..(GEN,PKN)201505-202105

main58311-KK180iGUN120,122,125,126,13#,KUN12#,TGN121,136..(SXT,TXT)..(GEN,IDN,SA,TH)201506-202009

58316GRETAINER, REAR SEAT, NO.1

main58316-KK010×2iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-0K010×2iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58351DREINFORCEMENT, REAR FLOOR PANEL

main57555-KK010×2iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,SXT,TDC,TXT201505-202105

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-KK010iTGN136..SSC201505-201807

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K050iTGN136..SSC201906-202105

main58354-0K060iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5

main58355-0K050iTGN136..SSC201906-202105

main58355-0K060iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0K010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main58363-KK010iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH

main58363-0K010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

main58364-KK010iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

58965DBRACKET, JACK SUPPORT

main58967-KK010iGUN135..(L,M)..VN;GUN135..6FC..S..VN;GUN135..(ADC,MDC,SDC,TDC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH);GGN12#,135,GUN12#,136,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

583870K010PLATE, REAR FLOOR FINISH

main58387-0K010

90105T0063

main90105-T0063

90119T0001

main90119-T0001

90119T0103

main90119-T0103

90119T0156

main90119-T0156

36 parts on this diagram · 3 diagrams in section
