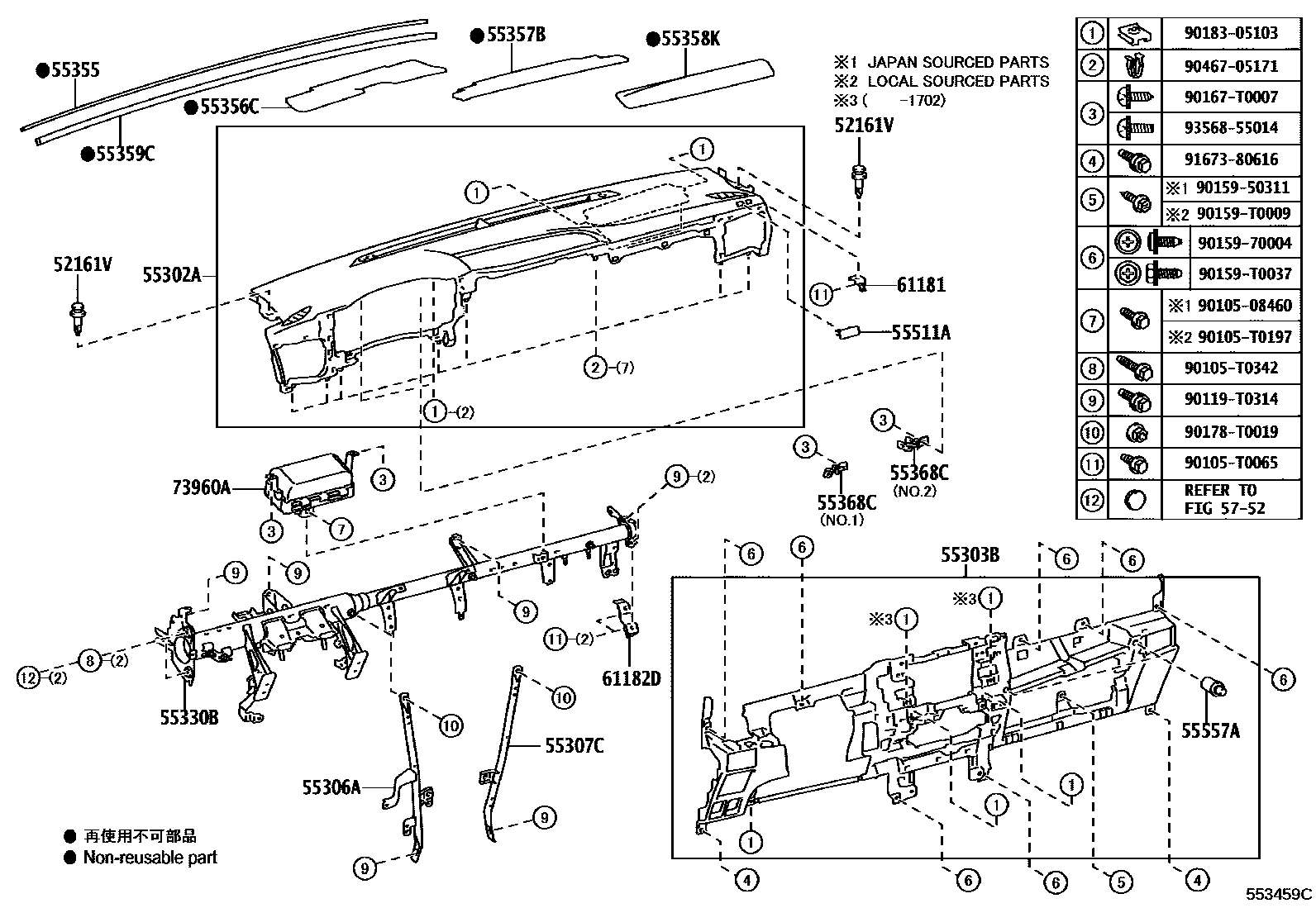

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
(L)
(J)
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
main55302-KK040-C0iGUN126..(H,M)..(PKN,TH);GUN125..RHD..TDC..6F..L..GEN;GUN126..RHD..6FC..(H,M,S)..GEN;GUN120,122,13#,TGN121,136..(TDC,TXT)..TH;GUN126,KUN122..RHD..TDC..MTM..(M,S)..GEN;GUN125,KUN125,126,136..RHD..(PDC,TDC,TXT)..(H,M,S); KUN122..TSC..M;KUN125..RHD..TDC..L;GUN126..RHD..6F..H..GEN;GUN125..TDC..6FC..L..GEN;GUN120,TGN136..RHD..(SDC,TSC);GUN125..TDC..(L,X)..(ARL,IDN);GUN126,136,KUN126..RHD..(ARL,MA,SA);GUN122,TGN121..RHD..(SSC,TDC,TSC)..X;GUN126,KUN126..RHD..(PDC,TDC,TSC)..(L,X);GUN135,KUN122..RHD..(H,L,S,X)..(ARL,GEN,MA,SA);GGN12#,135,GUN112,123,KUN112,135,TGN110,120,126..RHD;GUN125,KUN125..RHD..(MDC,SDC,SSC,SXT,TSC,TXT)..(ARL,GEN,IDN,MA,SA)201505-201904
BLACK,TRIM2#; BLACK,TRIM2#,4#
main55302-KK041-C0iGUN126..H..PKN; GUN126..M..PKN;GUN126..RHD..6FC..GEN;GUN126..RHD..6F..(M,S)..GEN;GUN125..RHD..TDC..6F..L..GEN;GUN125..RHD..(TDC,TXT)..(H,M,S);GUN120,122,126,13#..(TDC,TXT)..TH; GUN126..RHD..6F..H..GEN;GUN126..(PDC,TSC)..(L,X);GUN125..TDC..(L,X)..(ARL,IDN);GUN135..RHD..(ARL,GEN,KEN,SA);TGN121,136..RHD..(SDC,TDC,TSC);GUN122,125..RHD..TDC..(5F,6FC)..(L,X)..GEN;GGN125,GUN112,120,122,123,TGN110,120..RHD..(PSC,SDC,SSC,TSC);GUN126,136..RHD..(KDC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,KEN,MA,PKN,SA);GUN125..RHD..(KDC,KSC,MDC,MSC,SDC,SSC,SXT,TSC,TXT)..(ARL,GEN,IDN,KEN,MA,SA)201905-202105
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
main55302-KK110-C0iGUN135..S..VN;GUN136..H..BZAGT;GUN136..LHD..6F..M;GUN135..LHD..TDC..(H,L,M);GUN125..LHD..TDC..(M,S)..(GEN,VN);KUN125,135,TGN128..LHD..(ADC,TDC)..(H,M,S)..(BZAGT,GEN,VN);GUN126,KUN122,126,136,TGN126,13#..LHD..(ADC,TDC)..(H,M)..(BZAGT,GEN,LA,PH,VN); KUN125..LHD..(LA,SA);GUN136..6FC..M..BZAGT;GUN125,KUN122..TXT..M;GUN126,KUN126..LHD..SA;KUN125..TXT..(L,M)..GEN;KUN125..LHD..TDC..L..GEN;GUN125..TDC..6F..S..(LA,PH);GUN125..LHD..TDC..(L,X)..(GEN,LA);GUN125..LHD..(ADC,ASC,SDC,SSC,SXT,TSC)..(BZAGT,LA,SA);GUN122,126,136,KUN122,TGN121,126,136..LHD..(L,S,X)..(BZAGT,GEN,LA,PH,SA);GGN125,GUN135,KUN126,135,LAN125,TGN138..LHD..(H,L,S,X)..(BZAGT,LA,PH,SA); KUN125..TXT..S;GUN125..TDC..GCC;GUN125..LHD..(TSC,TXT)..(L,S);GGN125,GUN112,122,126,KUN112,122,125,TGN11#,120,121,126..GCC201505-201905
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
main55302-KK111-C0iGGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC; GUN135..S..VN;GUN135..LHD..TDC..(H,L,M);GUN125..LHD..TDC..(M,S)..(GEN,VN);GUN122,126,TGN126..LHD..TDC..(H,M)..(GEN,PH,VN)201905-202005
BLACK,TRIM2#,3#; BLACK,TRIM2#,4#
SRS AIR BAG-WITHOUT,BLACK,TRIM2#
main55302-KK100-C0iKUN122..S..GCC;KUN122..L..GCC..CBU;GUN112,122,125,KUN112,125,TGN11#,120,121,126..(L,S)..GCC; TGN11#,120,121..L..GCC201505-201708
SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#,3#; SRS AIR BAG-WITHOUT,BLACK,TRIM2#,3#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#,3#
main55303-KK040-C0iGUN135..S..VN;GUN136..H..BZAGT;GUN136..LHD..6F..M;GUN135..LHD..TDC..(H,L,M);GUN125..LHD..TDC..(M,S)..(GEN,VN);KUN125,135,TGN128..LHD..(ADC,TDC)..(H,M,S)..(BZAGT,GEN,VN);GUN122,126,KUN122,126,136,TGN126,13#..LHD..(ADC,TDC)..(H,M)..(BZAGT,GEN,LA,PH,VN); KUN125..LHD..(LA,SA);GUN125,KUN122..TXT..M;GUN126..LHD..(SA,TAIW);KUN125..TXT..(L,M)..GEN;KUN125..LHD..TDC..L..GEN;GUN125..TDC..6F..S..(LA,PH);GUN125..LHD..TDC..(L,X)..(GEN,LA);GUN122..LHD..TDC..(L,S,X)..(GEN,PH);KUN122..LHD..(SDC,TDC,TSC,TXT)..(L,S,X)..(GEN,SA);GUN125..LHD..(ADC,ASC,SDC,SSC,SXT,TSC)..(BZAGT,LA,SA);GUN126,136,TGN121,126,136..LHD..(L,S,X)..(BZAGT,GEN,LA,SA);GGN125,GUN135,KUN126,135,LAN125,TGN138..LHD..(H,L,S,X)..(BZAGT,LA,PH,SA);GUN122,136,KUN126..LHD..(ADC,SDC,SSC,TSC,TXT)..(5F,5FC,6FC)..(M,S,X)..(BZAGT,GEN,PH,SA)201505-202010
BLACK,TRIM2#; BLACK,TRIM2#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-KK050supersedes 55306-KK060iKUN122..TSC..L..GCC;GUN112,122,125,KUN112,TGN11#,120,121,126..L..GCC..CBU201505-201808
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-KK050iGGN12#,135,GUN125,126,13#,KUN125,126,TGN121,126,136..RHD..(MDC,SDC,TDC,TSC,TXT)..ATM201505-201705
main55330-KK070iKUN122..TSC..L..GCC;GUN112,122,125,KUN112,TGN11#,120,121,126..MTM..L..GCC; KUN126..LHD..(SDC,TDC)..5FC..(GEN,LA,SA);GUN125,126,135,TGN121,126..LHD..(SDC,TDC)..6FC201505-201705
main55330-KK180iGUN126..LHD..(SDC,TDC,TSC)..6FC;KUN126..LHD..(SDC,TDC)..5FC..(GEN,LA,SA);GGN125,GUN125,135,TGN121,126..LHD..6FC..(H,M,S)..(GCC,GEN,PH,SA,VN)201705-202009
SRS AIR BAG-WITH(*DRS ONLY)
main55330-KK080iGUN125,TGN121,126..LHD..L..GEN;KUN122..LHD..(SSC,TDC,TSC)..(S,X)..(GEN,SA); KUN122..LHD..SSC201505-201808
SRS AIR BAG-WITH(*DRS ONLY); SRS AIR BAG-WITHOUT
SRS AIR BAG-WITH(*DRS ONLY)
SRS AIR BAG-WITH(*DRS ONLY)
SRS AIR BAG-W(*DRP) & W/O(SRS KNEE AIR BAG)
55355CUSHION, INSTRUMENT PANEL, NO.1
main55355-KK020iTGN136..RHD..(SDC,TDC,TXT);GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,TGN110,120,121,126..RHD201505-202105
main55355-KK030iGUN125..TDC..6F..S..LA;GUN125..LHD..TDC..(L,M,X);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN125..LHD..(ADC,ASC,SDC,SSC,SXT,TSC,TXT);GGN125,GUN112,122,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
main55357-KK030iGUN125..TDC..6F..LA;GUN125..(ADC,ASC,TSC)..LA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN;GGN12#,135,GUN112,120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
55358KCUSHION, INSTRUMENT PANEL, NO.4
main55358-KK030iGUN135..6F..S..VN;GUN125..ADC..S..LA;GUN125,135..(L,M)..VN;GUN125..TDC..6F..S..LA;GUN135..(ADC,MDC,SDC,SXT,TDC,TXT)..(H,M,S)..(BZAGT,GEN,LA,MA,PH,SA,TH);GUN125..(ADC,MDC,SDC,SXT,TDC,TXT)..(H,M,S)..(BZAGT,GCC,GEN,IDN,MA,PH,SA,TH);GGN125,135,GUN126,136,KUN125,126,13#,LAN125,TGN126,128,13#..(ADC,KDC,MDC,PDC,SDC,SXT,TDC,TXT)..(H,M,S)201505-202105
55359CCOSHION, INSTRUMENT PANEL, NO.5
main55359-KK030iGGN125,135,GUN125,126,13#,KUN125,126,13#,TGN136..RHD..(KDC,MDC,PDC,SDC,SXT,TDC,TXT)..(H,M,S)201505-202105
main55359-KK040iGUN135..6F..S..VN;GUN125,135..(L,M)..VN;GUN125..TDC..6F..S..LA;GUN135..(H,M,S)..(BZAGT,GEN,LA,PH);GUN125..LHD..(ADC,SDC,SXT,TXT)..(M,S);GUN125..LHD..TDC..(M,S)..(GCC,GEN,PH);GGN125,GUN126,136,KUN125,126,13#,LAN125,TGN126,128,13#..LHD..(ADC,SDC,SXT,TDC,TXT)..(H,M,S)201505-202010
55368CBRACKET, METER MOUNTING
main55368-KK010iGUN125..TDC..6F..LA;GUN125..(ADC,ASC,TSC)..LA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ARL,BZAGT,GCC,GEN,IDN,KEN,MA,PH,SA,TH,VN;GGN12#,135,GUN112,120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
55511APLATE, INSTRUMENT PANEL, NAME
SRS AIR BAG-WITHOUT,BLACK,TRIM2#
main55511-KK020-C0iKUN112..S;KUN125..L..GCC; KUN125..LHD..TDC..L..GEN; KUN125..LHD..TDC..S..GEN201505-201707
SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#; SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#,3#; SRS AIR BAG-WITH(*DRS ONLY),BLACK,TRIM2#,4#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
5752HOLE PLUG
61181BRACKET, INSTRUMENT PANEL SIDE
61182DBRACKET, INSTRUMENT PANEL SIDE
main61125-KK010iGUN125..TDC..6F..S..LA;GUN125..LHD..TDC..(L,M,X);GUN125..LHD..TDC..S..(GCC,GEN,PH,VN);GUN125..LHD..(ADC,ASC,SDC,SSC,SXT,TSC,TXT);GGN125,GUN112,122,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-0K010iGUN126..6FC..ARL;GUN13#,TGN121..ARL;GUN126..6F..ARL..IV3;GUN126..TDC..6F..ARL..CBU;GUN125..(TDC,TSC)..6F..ARL;GUN125..(TDC,TXT)..6FC..ARL201505-201905
main73960-0K080iGUN122,125,126,135,KUN12#,LAN125,TGN121,126..LHD..SA; GUN125,KUN122,125,LAN125,TGN126..LHD..(SDC,SSC)..(S,X)..CBU201601-202009
SRS AIR BAG-WITH(*DRS ONLY)
9010508460
main90105-08460
90105T0065
main90105-T0065
90105T0197
main90105-T0197
90105T0342
main90105-T0342
90119T0314
main90119-T0314
9015950311
main90159-50311
9015970004
main90159-70004
90159T0009
main90159-T0009
90159T0037
main90159-T0037
90167T0007
main90167-T0007
90178T0019
main90178-T0019
9018305103
main90183-05103
9046705171
main90467-05171
9167380616
main91673-80616
9356855014
main93568-55014
33 parts on this diagram · 8 diagrams in section
