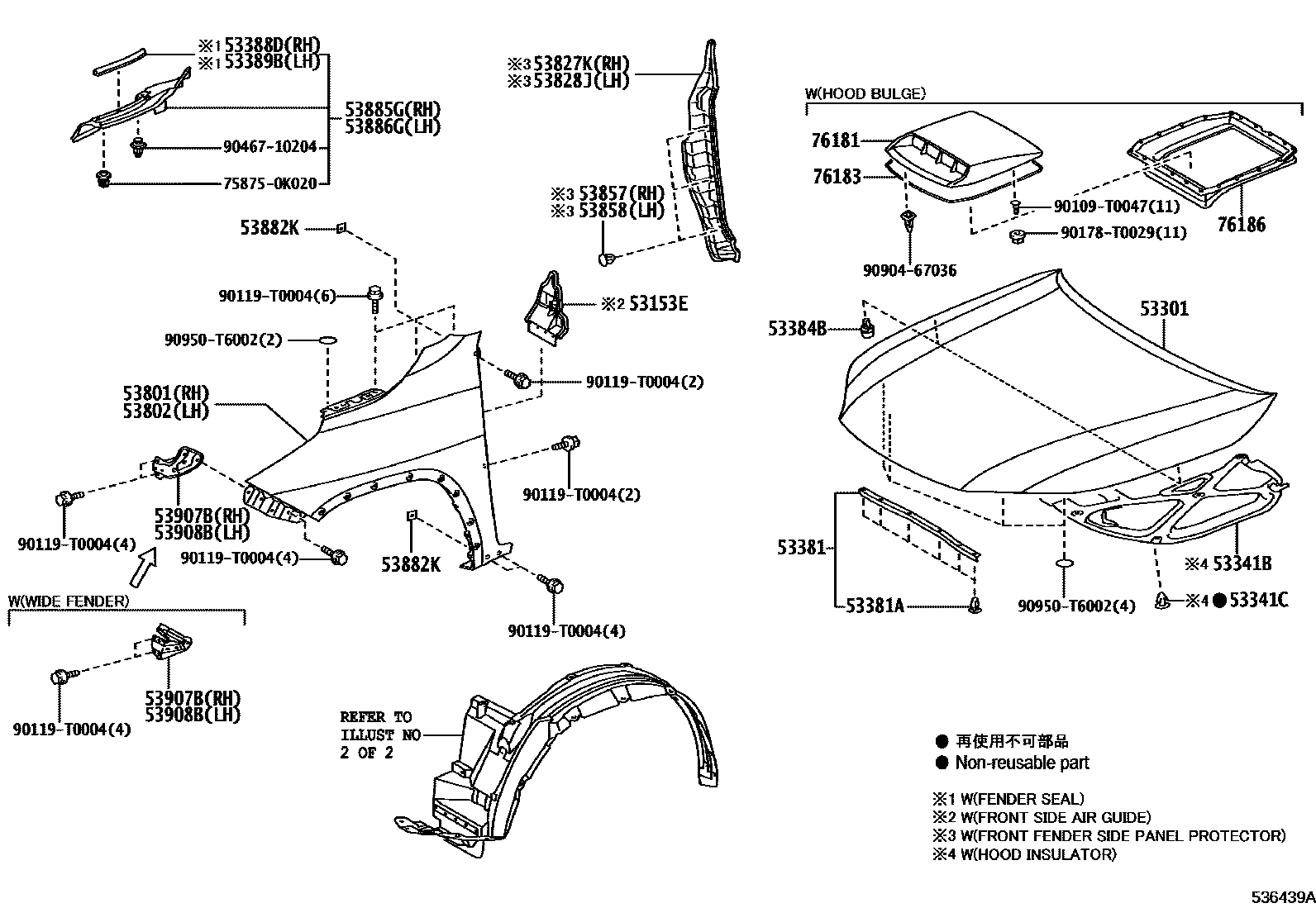

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
main53153-0K010iGUN126..L..BZAGT;GUN125,135..M..(GCC,PH);GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,IDN,MA,TH,VN);GUN126,136,KUN125,126,13#..(ADC,MDC,PDC,TDC,TXT)..(H,M,S)201505-202105
main53153-0K090iKUN126,135..L,X;GUN135..TDC..X..LA;KUN125..RHD..(TSC,TXT);GUN125,136..ASC,MSC,TSC;GUN135..(L,S)..(GEN,PH);GUN135..(ADC,ASC,TSC)..X;GUN125..TDC..S..(GCC,PH);KUN125..(ADC,ASC,TDC)..(L,X);KUN125..LHD..(TSC,TXT)..(L,X);GUN126..(ASC,PDC,PSC,TSC)..(L,S,X);GUN125,126..(ADC,TDC)..(L,X)..(GCC,GEN,LA);GUN112,120,122,123,KUN112,122..PSC,TDC,TSC,TXT201505-202105
53301HOOD SUB-ASSY
main53301-KK010iKUN122..LHD..TSC..S;KUN122..TSC..(L,M,X);KUN125,135..ADC,ASC,SDC,SSC,SXT;GUN126,KUN112..(H,L,X)..(GCC,IDN,VN);KUN122..(PSC,SDC,SSC,TDC,TXT)..(L,M,S,X);GGN12#,135,GUN112,12#,13#,LAN125,TGN11#,12#,13#..ARL,BZAGT,GCC,GEN,IDN,LA,MA,PH,SA,TH201505-201708
53341BINSULATOR, HOOD
main53341-0K250iTGN121..(L,S)..TH;TGN126..M..(GCC,GEN);TGN121..(M,X)..(ARL,GCC,TH);KUN125,135..(TDC,TSC,TXT)..DCR;TGN126,136..(TDC,TSC,TXT)..(LA,TH);GGN12#,GUN112,12#,13#,KUN112,122..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
main53341-0K270iTGN136..SDC;GGN125,135,GUN122,125,126,13#,KUN122,125,135,LAN125,TGN120,121..KEN,SA201601-202102
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
main53388-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53388-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53389BSEAL, HOOD TO FRONT FENDER, LH
main53388-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53388-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
main53812-KK030iGUN125,126,135,KUN125,126,135,TGN126,136..TDC..MTM..X..LA; GUN125,126,135,KUN125,135..TDC..X..LA; GUN125..6FC..S..GCC; GUN125..L..GEN;KUN126..TDC..5FC..(L,X);GUN125,126,KUN135..TDC..X..LA;GUN135,KUN125,TGN126,136..TDC..(L,X)..(GEN,LA); GUN125..TXT;GUN126..H..VN;GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GUN125,135..(M,X)..(ARL,GCC,PH)..CBU;GUN125,KUN126,135..(PDC,TDC)..(H,M,S)..(GEN,LA,PKN,VN);GGN125,GUN126,136,KUN125,136,TGN126,136..(TDC,TXT)..(H,M,S)..(ARL,GCC,GEN,IDN,LA,PH,TH); TGN136..GEN;GUN125,KUN125..RHD..TDC..L..GEN201505-201701
TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP); TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)&W(SIDE TURN LAMP); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURNLAMP); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-MANUAL(*CR)&W(SIDE TURNLAMP); TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)
main53812-KK050iGUN125..TXT;TGN126..M..GCC;GUN135..(ARL,TH)..CBU;GUN135..LHD..TDC..(H,L,M);GUN126,135..6FC..(H,S)..VN;GUN125..LHD..TDC..M..(GCC,GEN);GUN125..TDC..6F..(L,M)..(IDN,VN);GUN125..LHD..TDC..S..(GEN,LA,VN);GUN135,TGN126..TDC..(M,S)..(GEN,LA);GUN125..RHD..TDC..(H,M,S,X)..(ARL,GEN,IDN);GGN125,GUN126,136,KUN125,126,13#,TGN136..(PDC,TDC,TXT)..(H,M,S)..(ARL,GCC,GEN,IDN,LA,PH,PKN,TAIW,TH)201701-202105
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
main53827-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53827-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
main53828-0K010iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53828-0K020iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
main53857-06030×3iGUN125,13#..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);GGN125,GUN125,126,13#,TGN126..TDC..(H,M)201908-202105
(L)
main53857-0K010×3iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)202001-202102
main53857-47011×3iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)201908-202001
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
main53857-06030×3iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)201908-202001
(L)
main53857-0K010×3iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)202001-202102
main53857-47011×3iGUN125,135..SXT..S;GGN125,GUN125,126,136,TGN126,128,138..(ADC,KDC,SDC,SXT)..(H,M)201908-202001
(J)
53882KSEAL, FRONT FENDER
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
main53807-0K100iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53807-0K110iGUN135..TXT..L;GUN125..LHD..TSC;GUN125,KUN125..TDC..(L,S,X);KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,TSC)..(L,S,X);GUN125,KUN125..RHD..(MDC,MSC,TSC,TXT)..(ARL,GEN,IDN,MA);GGN12#,GUN112,120,123,KUN112,126,13#,TGN11#,120,126..(PDC,PSC,TDC,TSC,TXT)..(L,S,X)201505-202105
main53807-0K120iTGN136..SDC;GUN125..RHD..(KEN,SA);GUN126,136,KUN126..SSC..M;GUN125..LHD..(SDC,SSC)..(S,X);GUN122,126,13#,KUN122,125,135,LAN125,TGN120,121,126..(KSC,SDC,SSC)..(S,X)201601-202102
main53807-0K130iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53886GSEAL, FENDER APRON MUDGUARD, LH
main53808-0K100iKUN125..TXT..S;GUN125,13#,TGN136..TXT..(M,S);GUN126..(MDC,PDC,TXT)..(H,M,S);KUN125,126..(PDC,TDC,TXT)..(H,M);GGN125,GUN125,126,13#,KUN13#,TGN126,136..TDC..(H,M)201505-202105
main53808-0K110iGUN135..TXT..L;GUN125..LHD..TSC;GUN125,KUN125..TDC..(L,S,X);KUN125..LHD..(TSC,TXT)..(L,X);GUN122,KUN122,TGN121..PSC,TDC,TSC,TXT;GUN126,13#,TGN136..(MDC,PDC,PSC,TDC,TSC)..(L,S,X);GUN125,KUN125..RHD..(MDC,MSC,TSC,TXT)..(ARL,GEN,IDN,MA);GGN12#,GUN112,120,123,KUN112,126,13#,TGN11#,120,126..(PDC,PSC,TDC,TSC,TXT)..(L,S,X)201505-202105
main53808-0K130iGUN125,135,KUN125..SXT..S;GGN125,135,GUN125,126,136,KUN125,126..(KDC,SDC,SXT)..M201601-202102
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
main53907-KK020supersedes 53907-KK010iGUN136..H,M;GUN126,KUN125..(SDC,SSC)..M;GUN136..S..(ARL,BZAGT)..CBU;GGN125,135,KUN136,TGN128,138;TGN126..(M,S)..(BZAGT,GEN,LA);KUN126..(H,M,S)..(GEN,LA,PKN,SA);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125,135,TGN126..M..(GCC,PH,SA);GUN125,135,KUN135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN126,KUN125,TGN136..(ADC,KDC,MDC,PDC,SXT,TDC,TXT)..(H,M,S);GUN125,135..(ADC,MDC,SXT,TDC,TXT)..(ARL,BZAGT,IDN,MA,SA,TH,VN)201505-202105
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
76181BULGE, HOOD
76183PROTECTOR, HOOD BULGE, NO.1
76186SEAL, HOOD AIR INTAKE
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90109T0047
main90109-T0047
90119T0004
main90119-T0004
90178T0029
main90178-T0029
9046710204
main90467-10204
9090467036
main90904-67036
90950T6002
main90950-T6002
30 parts on this diagram · 4 diagrams in section
