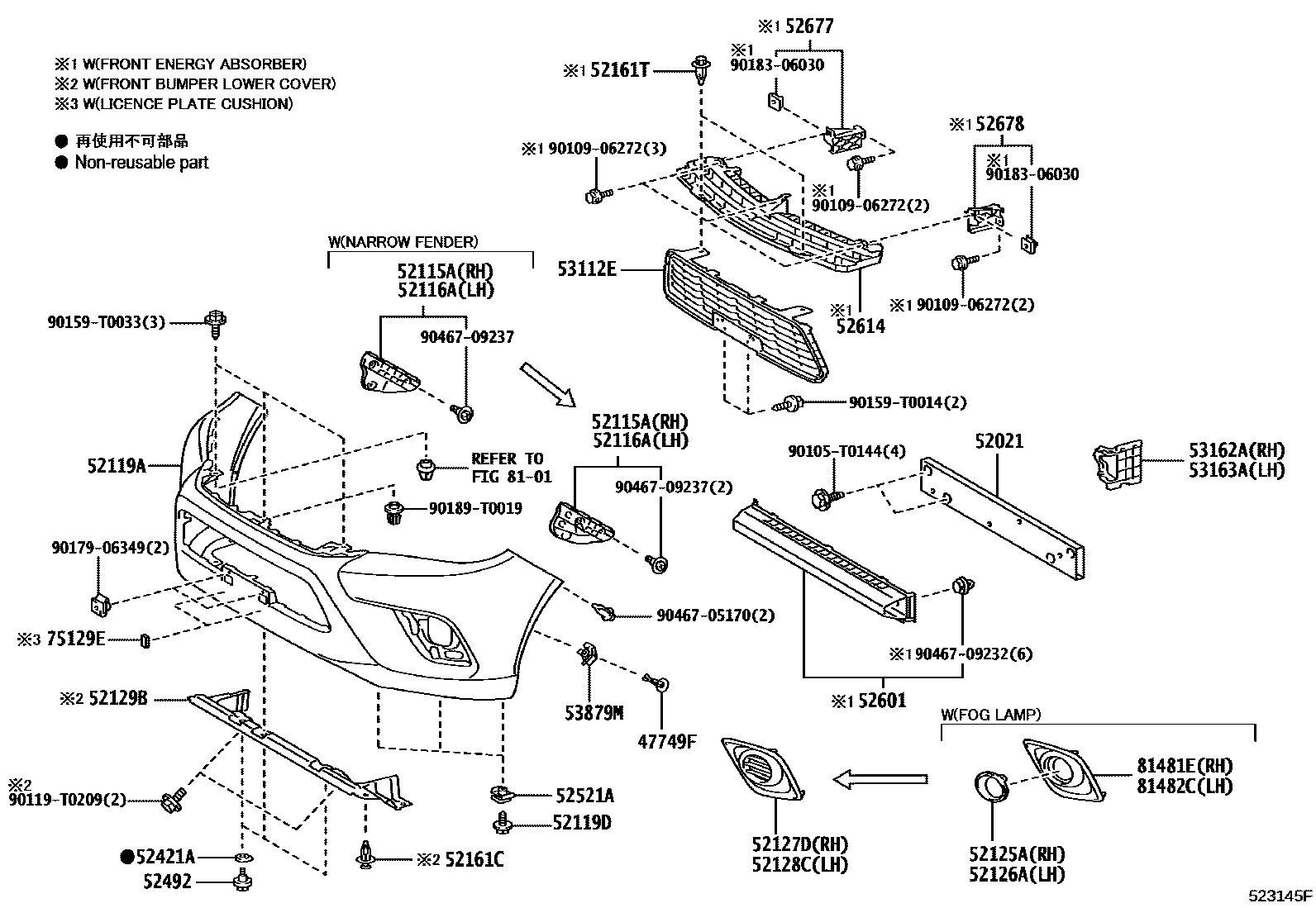

FRONT BUMPER & BUMPER STAY
47749FCLIP, PIN HOLD
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-0K180iTGN126..(M,S)..(BZAGT,GEN,LA);GUN125,135,TGN126..M..(GCC,PH);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN126,KUN125,126..(ADC,MDC,PDC,TDC,TXT)..(H,M,S);GUN125,135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,IDN,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S)201505-202105
main52115-0K190supersedes 52115-0K120iGUN125,135,KUN125..SXT;GGN125,135,GUN125,126,136,KUN125,126..M..(KEN,SA)201601-202102
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-0K180iTGN126..(M,S)..(BZAGT,GEN,LA);GUN125,135,TGN126..M..(GCC,PH);GUN126,TGN136..ADC..(L,X)..BZAGT;GUN125,135..(ADC,TDC,TXT)..(H,M,S)..(GEN,LA);GUN126,KUN125,126..(ADC,MDC,PDC,TDC,TXT)..(H,M,S);GUN125,135..(ADC,MDC,TDC,TXT)..(ARL,BZAGT,IDN,MA,TH,VN);GGN125,GUN136,KUN13#,TGN128,13#..(ADC,TDC,TXT)..(H,L,M,S)201505-202105
main52116-0K190supersedes 52116-0K120iGUN125,135,KUN125..SXT;GGN125,135,GUN125,126,136,KUN125,126..M..(KEN,SA)201601-202102
52119ACOVER, FRONT BUMPER
main52119-0K820iGUN112,122,KUN112,122,TGN11#,120,121..GCC; GUN125..S..GCC;KUN122..TSC..M;TGN136..TDC..X;GUN135..(L,S)..(GEN,PH);GUN125..(L,X)..(GCC,GEN);GUN125,126,135..TDC..X..LA;TGN126..TDC..(L,X)..(GCC,LA);GUN126,TGN126..TSC..(ARL,GCC);KUN122..(TDC,TXT)..(M,S,X)..GEN;KUN122..LHD..(TSC,TXT)..(L,S)..GEN;GGN120,GUN112,122,123,TGN121..(L,M,S)..(ARL,GEN,TH); KUN125,TGN126..LHD..TDC..S..GEN; KUN125..LHD..TDC..S..GEN; KUN125..TXT..M;KUN125..RHD..TDC..M..GEN;KUN125,TGN126..LHD..TDC..S..GEN; KUN125..TXT..M;KUN125..RHD..TDC..M..GEN;KUN125..LHD..TDC..S..GEN; TGN120..GCC;TGN121..TSC..L;GUN112,122,KUN112,122,TGN111,121..(M,S)..GCC..CBU201505-201707
FRONT BUMPER-PAINTED; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-205R16C STEEL; TIRE & DISC WHEEL-205R16C STEEL&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT FOG LAMP-WITH
main52119-0K840iGUN125,KUN125..RHD..TDC..L..GEN;GUN125,126,KUN125,135,TGN126..TDC..X..LA;GUN135,KUN126,TGN136..TDC..(L,X)..(GEN,LA); GUN125,KUN125..RHD..TDC..L..GEN;GUN135,KUN126,TGN136..(L,X)..GEN; GUN135..M..PH;GUN125..(TDC,TXT)..6F..(M,S);GUN125,126..6FC..(H,M)..(GCC,VN);GUN135..(TDC,TXT)..(L,M,S)..(LA,TH);GGN125,GUN126,136,TGN126,136..(TDC,TXT)..(H,M,S)..(ARL,GCC,GEN,LA,PH,TH); TGN126..L..GEN;GUN125..6FC..S..GCC;KUN125..LHD..TDC..L..GEN; TGN136..GEN;GUN125,KUN125..RHD..TDC..6F..L..GEN201505-201707
TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT FOG LAMP-WITH
main52119-0KA00iGUN125,135,TGN126,136..ADC..X..LA; GUN125,135,TGN136..ADC..(L,X)..BZAGT201511-201709
TIRE & DISC WHEEL-225/70R17C STEEL
main52119-0M944iGUN125,135,KUN125,126,135,TGN126,136..ADC..X..LA; TGN136..ADC..X..BZAGT;GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC..(H,L,M,S)201511-201710
PAINT REQ.; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL
main52119-0M951iGUN112,122,KUN112,122,TGN11#,120,121..GCC; TGN126..TSC..S;TGN126..L..GCC..CBU;GUN125,126,KUN125..(L,S)..GCC; TGN126..TSC..S;TGN126..L..GCC..CBU;GUN125,126..TSC..GCC;GUN125..6FC..(L,S)..GCC;GUN125..TDC..6F..S..GCC201505-202005
FRONT BUMPER-WITH(STEEL LOWER COVER); FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH
main52119-0M966iGUN125,135,KUN125,135,LAN125,TGN126,136..(SDC,SSC)..S; GUN125,135,TGN126,136..SDC..S;GUN125,KUN125,LAN125..LHD..(SDC,SSC)..S; GUN125,KUN125,LAN125,TGN126..LHD..(SDC,SSC)..S; GUN135..SXT;GGN125,135,GUN125,126,136..M..SA201601-201710
PAINT REQ.; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT FOG LAMP-WITH; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT FOG LAMP-WITH
main52119-0M972supersedes 52119-0M973iGUN125,126,135,TGN126,136..ADC..X..LA; TGN136..ADC..X..BZAGT;GGN125,GUN125,126,13#,TGN126,128,13#..ADC..(H,L,M,S)201710-202010
TIRE & DISC WHEEL-265/65R17 STEEL
main52119-0M977iGUN125..6FC..L;KUN122..TXT..L;TGN126..TSC..GCC;GUN125..6F..L..GCC;GUN126..TDC..(L,X);GUN125,126..TSC..(M,S);TGN121..(L,S)..(GEN,TH);GUN135..(L,S)..(GEN,PH);GUN125..TDC..S..(GCC,PH);TGN126..TDC..(L,X)..(GCC,LA);GUN125..RHD..TDC..6F..L..GEN;GUN125,135,TGN136..LHD..TDC..X;GUN122,KUN122..(TDC,TXT)..(M,S,X)..GEN;GUN122,136,KUN122..TSC..(M,S)..(ARL,GEN);GGN120,GUN112,120,122,123..(L,M,S)..(ARL,TH); GUN125..LHD..TDC..S..GEN; GUN125..TXT..M; GUN125..TXT..M;GUN125..LHD..TDC..S..GEN; TGN120..GCC;TGN121..TSC..L;GUN125..LHD..L..GEN;GUN125..TSC..6F..L..GEN;GUN122,KUN122,TGN126..(TDC,TSC)..L..GEN;GUN112,122,KUN122,TGN111,121..(M,S)..GCC..CBU; TGN121..L..GCC;GUN122..(M,S)..GCC;GUN125..LHD..L..GEN;GUN122..L..(GCC,GEN);TGN121..(M,S,X)..(GCC,GEN);GUN125..RHD..TSC..6F..(L,X)..CBU;KUN122,TGN126..(TDC,TSC)..L..GEN;GUN112,KUN112,122,TGN11#,120..GCC;GUN122,KUN122,TGN126..LHD..TSC..X..CBU201708-202005
ASEAN GENERAL SPEC&TIRE & DISC WHEEL-205R16C STEEL; ASEAN GENERAL SPEC&TIRE & DISC WHEEL-205R16C STEEL&FRONT FOG LAMP-WITH; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-205R16C STEEL; ASIA COLD COUNTRY SPEC&TIRE & DISC WHEEL-205R16C STEEL&FRONT FOG LAMP-WITH; FRONT BUMPER-PAINTED; FRONT BUMPER-PAINTED&FRONT FOG LAMP-WITH; OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-205R16C STEEL; OCEANIA GENERAL SPEC&TIRE & DISC WHEEL-205R16C STEEL&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-205R16C STEEL; TIRE & DISC WHEEL-205R16C STEEL&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-225/70R17C STEEL; TIRE & DISC WHEEL-225/70R17C STEEL&FRONT FOG LAMP-WITH
main52119-0M978iGUN125,126,TGN126..M..GCC; GUN125,TGN126..M..(GCC,IDN);GUN135,TGN126..TDC..S..(LA,VN);GUN125,126,TGN136..(TDC,TXT)..S..(GEN,IDN,LA); GUN125,TGN136..TH,VN;GUN135..(H,M,S)..(GEN,TH);GUN135,TGN126..TDC..(L,M)..(LA,PH,VN);GUN126..(TDC,TXT)..(H,M)..(ARL,GEN,LA,PH,TAIW,TH,VN);GGN125,GUN125,136,TGN136..(TDC,TXT)..(H,M)..(ARL,GEN,LA,TH); GUN125..RHD..TDC..6F..L..GEN; GUN125..RHD..TDC..L..GEN;GUN125,TGN126..TDC..X..LA;GUN126,135,TGN136..TDC..(L,X)..(GEN,LA); GUN126..TDC..M..ARL; GUN135..L..GEN;GUN125,126,TGN136..TDC..(5F,6FC)..(L,X)..GEN; GUN135..L..TH;GUN125,126..M..GCC;TGN126..M..(GCC,GEN);GUN125..(TDC,TXT)..(L,M,S)..(IDN,LA);GGN125,GUN125,136..(TDC,TXT)..S..(ARL,GEN);GUN126,135,TGN126,136..(TDC,TXT)..S..(ARL,GEN,LA,VN); TGN126..L..GEN;GUN125..LHD..L..GEN;GUN125..TDC..S..GCC; TGN136..GEN; TGN136..GEN;GUN125..RHD..TDC..6F..L..GEN201708-202005
FRONT FOG LAMP-WITH; FRONT FOG LAMP-WITHOUT; HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); TIRE & DISC WHEEL-265/60R18 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM; TIRE & DISC WHEEL-265/65R17 ALUMINUM&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-265/65R17 STEEL; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT FOG LAMP-WITH
main52119-0M979iTGN136..SDC;GUN125,135..X..KEN;GUN122,TGN120..RHD..SA;GUN125,126,13#,LAN125,TGN126..(KSC,SDC,SSC)..S201710-202102
main52119-0M980supersedes 52119-0M979iGUN125,135..SXT..S;GGN125,135,GUN125,126,136..M..SA201710-202009
PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); PAINT REQ.,FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); PAINT REQ.,TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH
main52119-0M973iGUN125,126,135,TGN126,136..ADC..X..LA; TGN126..ASC; TGN136..ADC..X..BZAGT201710-202010
FRONT BUMPER-PAINTED; TIRE & DISC WHEEL-225/70R17C STEEL
main52119-YP904iGUN125,126,13#,TGN136..(H,M,S)..TH; GUN125,126,13#..(M,S)..TH; GUN126,136..H..TH; GUN135..L..TH;GUN125..TDC..6FC..LA201712-202005
PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH; PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
main52119-YP907iGUN125,126,13#,TGN126,138..ADC..S; GUN125,126,135..ADC..6F..X; GUN125,TGN126..ADC..MTM..S..LA; GUN126,136,TGN126,128,138..ADC..(H,M); GUN126,136..ADC..M..LA;GUN126..ADC..6F..S..LA;GUN126,TGN126,128,138..ADC..M..(HTWC,HTWCF,IART); GUN126,136..H..BZAGT; GUN126..ADC..M..LA; GUN126..H..HDCR..BZAGT; GUN126..H..IART; GUN126..H..IART;GUN126..M..HDCR..BZAGT201808-202010
"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM; "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT FOG LAMP-WITH(LED); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-HALOGEN(VALEO); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&FRONT FOG LAMP-WITH(LED); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH; PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT FOG LAMP-WITH; PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT FOG LAMP-WITH(LED); RALLY BASIC PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO); RALLY BASIC PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO)&FRONT FOG LAMP-WITH
PAINT REQ.,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); PAINT REQ.,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT FOG LAMP-WITH(LED)
52119DSCREW, NO.1
52125ABRACKET, FOG LAMP MOUNTING, RH
main52125-0K040iGGN125,135,GUN125,126,136,KUN125,126..M..SA; GUN125..S..IV3;GUN126,136..S..SA;GUN125,KUN125..LHD..6F..S..SA;GUN125,135,LAN125,TGN126..(5F,6FC)..S..SA201601-202009
FRONT FOG LAMP-WITH
KAZAKHSTAN SPEC(EURO 2 REGULATION)&FRONT FOG LAMP-WITH; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT FOG LAMP-WITH
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
FRONT FOG LAMP-WITH
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT FOG LAMP-WITH(LED)
"BLACK RALLY EDITION"*(B)
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
"BLACK RALLY EDITION"*(B); "BLACK RALLY EDITION"*(B)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
52126ABRACKET, FOG LAMP MOUNTING, LH
main52126-0K040iGGN125,135,GUN125,126,136,KUN125,126..M..SA; GUN125..S..IV3;GUN126,136..S..SA;GUN125,KUN125..LHD..6F..S..SA;GUN125,135,LAN125,TGN126..(5F,6FC)..S..SA201601-202009
FRONT FOG LAMP-WITH
KAZAKHSTAN SPEC(EURO 2 REGULATION)&FRONT FOG LAMP-WITH; KAZAKHSTAN SPEC(EURO 4 REGULATION)&FRONT FOG LAMP-WITH
HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
FRONT FOG LAMP-WITH
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT FOG LAMP-WITH(LED)
"BLACK RALLY EDITION"*(B)
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18 ALUMINUM; PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM
"BLACK RALLY EDITION"*(B); "BLACK RALLY EDITION"*(B)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED)
52127DCOVER, FRONT BUMPER HOLE, RH
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); FRONT BUMPER-WITH(STEEL LOWER COVER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
52128CCOVER, FRONT BUMPER HOLE, LH
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); FRONT BUMPER-WITH(STEEL LOWER COVER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)
52129BCOVER, FRONT BUMPER, LOWER
52161CPIECE, FRONT BUMPER
main52161-0K040×3iGUN112,122,KUN112,122,TGN11#,120,121..GCC; GUN125,126,KUN125,TGN126..M..GCC; GUN125,KUN125,TGN126..M..GCC; GUN125..TDC..S..GCC; TGN126..TSC..S;TGN126..L..GCC..CBU;GUN125,126,KUN125..(L,S)..GCC; TGN126..TSC..S;TGN126..L..GCC..CBU;GUN125,126..TSC..GCC;GUN125..6FC..(L,S)..GCC;GUN125..TDC..6F..S..GCC201505-202005
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; FRONT BUMPER-WITH(STEEL LOWER COVER); FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER); TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH
52161TPIECE, FRONT BUMPER
KAZAKHSTAN SPEC(EURO 2 REGULATION); KAZAKHSTAN SPEC(EURO 4 REGULATION)
52421APAD, FRONT BUMPER
52492BOLT, BUMPER PAD, NO.2
52521ACLIP(FOR FRONT BUMPER RETAINER)
52601ABSORBER SUB-ASSY, FRONT BUMPER ENERGY
KAZAKHSTAN SPEC(EURO 2 REGULATION); KAZAKHSTAN SPEC(EURO 4 REGULATION)
52614ABSORBER, FRONT BUMPER ENERGY, NO.2
KAZAKHSTAN SPEC(EURO 2 REGULATION); KAZAKHSTAN SPEC(EURO 4 REGULATION)
52677SUPPORT, FRONT BUMPER SIDE, NO.2, RH
KAZAKHSTAN SPEC(EURO 2 REGULATION); KAZAKHSTAN SPEC(EURO 4 REGULATION)
52678SUPPORT, FRONT BUMPER SIDE, NO.2, LH
KAZAKHSTAN SPEC(EURO 2 REGULATION); KAZAKHSTAN SPEC(EURO 4 REGULATION)
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); NO PAINT REQ.,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT FOG LAMP-WITH(LED)
main53112-YP070iGGN125..BZAGT; GUN126,TGN128,138..(H,M)..(HTWCF,IART); GUN126,TGN128,138..M..(HTWCF,IART); GUN126,TGN138..S..(HTWCF,IART); GUN126..H..IART201808-201901
NO PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK); NO PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH; NO PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH(LED); NO PAINT REQ., PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-HALOGEN(VALEO); NO PAINT REQ.,"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO); NO PAINT REQ.,BRAZIL SPEC&GR SPORT&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM; NO PAINT REQ.,BRAZIL SPEC&GR SPORT&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM&FRONT FOG LAMP-WITH(LED); NO PAINT REQ.,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18,ALUMINUM; NO PAINT REQ.,PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18,ALUMINUM&FRONT FOG LAMP-WITH(LED)
main53112-YP090iGGN125..LA;GUN126..H..HDCR..BZAGT; GUN125,126,13#,TGN126..ADC..S..(HDCR,HTWC); GUN125,126,135..ADC..6F..X; GUN125,TGN126..ADC..MTM..S..LA; GUN126,136,TGN126..ADC..(H,M)..(HDCR,HTWC); GUN126,136..H..HDCR..BZAGT; GUN126..ADC..6F..S..LA;GUN126,136,TGN126..ADC..M..LA; GUN126..ADC..M..LA; GUN126..H..HDCR..BZAGT; GUN126..M..HDCR..BZAGT201902-202010
"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM; "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT FOG LAMP-WITH(LED); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&FRONT FOG LAMP-WITH(LED); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO); GR SPORT&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM); GR SPORT&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&FRONT FOG LAMP-WITH(LED); GR SPORT&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-LED; GR SPORT&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH; PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&TIRE & DISC WHEEL-265/65R17 STEEL&FRONT FOG LAMP-WITH; PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT FOG LAMP-WITH(LED); RALLY BASIC PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO); RALLY BASIC PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO)&FRONT FOG LAMP-WITH
main53112-YP100iGUN126,TGN128,138..(H,M)..(HTWCF,IART); GUN126,TGN128,138..M..(HTWCF,IART); GUN126,TGN138..S..(HTWCF,IART); GUN126..H..IART201902-202004
"BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&HEADLAMP-HALOGEN(VALEO); "BLACK RALLY EDITION"*(B)&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&HEADLAMP-HALOGEN(VALEO); GR SPORT&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM); GR SPORT&TIRE & DISC WHEEL-265/65R17 ALUMINUM(MLM)&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH; PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&FRONT FOG LAMP-WITH(LED); PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)&HEADLAMP-LED&FRONT FOG LAMP-WITH(LED); PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&TIRE & DISC WHEEL-265/60R18, ALUMINUM&FRONT FOG LAMP-WITH(LED)
53162ADEFLECTOR, FRONT BUMPER STONE, RH
53163ADEFLECTOR, FRONT BUMPER STONE, LH
53879MRETAINER, FRONT FENDER LINER
75129ECUSHION, FRONT LICENCE PLATE
8101HEADLAMP
81481ECOVER, FOG LAMP, RH
main52127-0K180iGGN125,135,GUN125,126,136,KUN125,126..M..SA; GUN125..S..IV3;GUN126,136..S..SA;GUN125,KUN125..LHD..6F..S..SA;GUN125,135,LAN125,TGN126..(5F,6FC)..S..SA201601-202009
FRONT FOG LAMP-WITH
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT FOG LAMP-WITH(LED)
81482CCOVER, FOG LAMP, LH
main52128-0K180iGGN125,135,GUN125,126,136,KUN125,126..M..SA; GUN125..S..IV3;GUN126,136..S..SA;GUN125,KUN125..LHD..6F..S..SA;GUN125,135,LAN125,TGN126..(5F,6FC)..S..SA201601-202009
FRONT FOG LAMP-WITH
FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH; FRONT BUMPER-WITH(STEEL LOWER COVER)&FRONT FOG LAMP-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)&FRONT FOG LAMP-WITH
PREMIUM FULL PACKAGE(HOOD MOLD = BLACK); PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)&FRONT FOG LAMP-WITH(LED)
90105T0144
main90105-T0144
9010906272
main90109-06272
90119T0209
main90119-T0209
90159T0014
main90159-T0014
90159T0033
main90159-T0033
9017906349
main90179-06349
9018306030
main90183-06030
90189T0019
main90189-T0019
9046705170
main90467-05170
9046709232
main90467-09232
9046709237
main90467-09237
39 parts on this diagram · 3 diagrams in section
