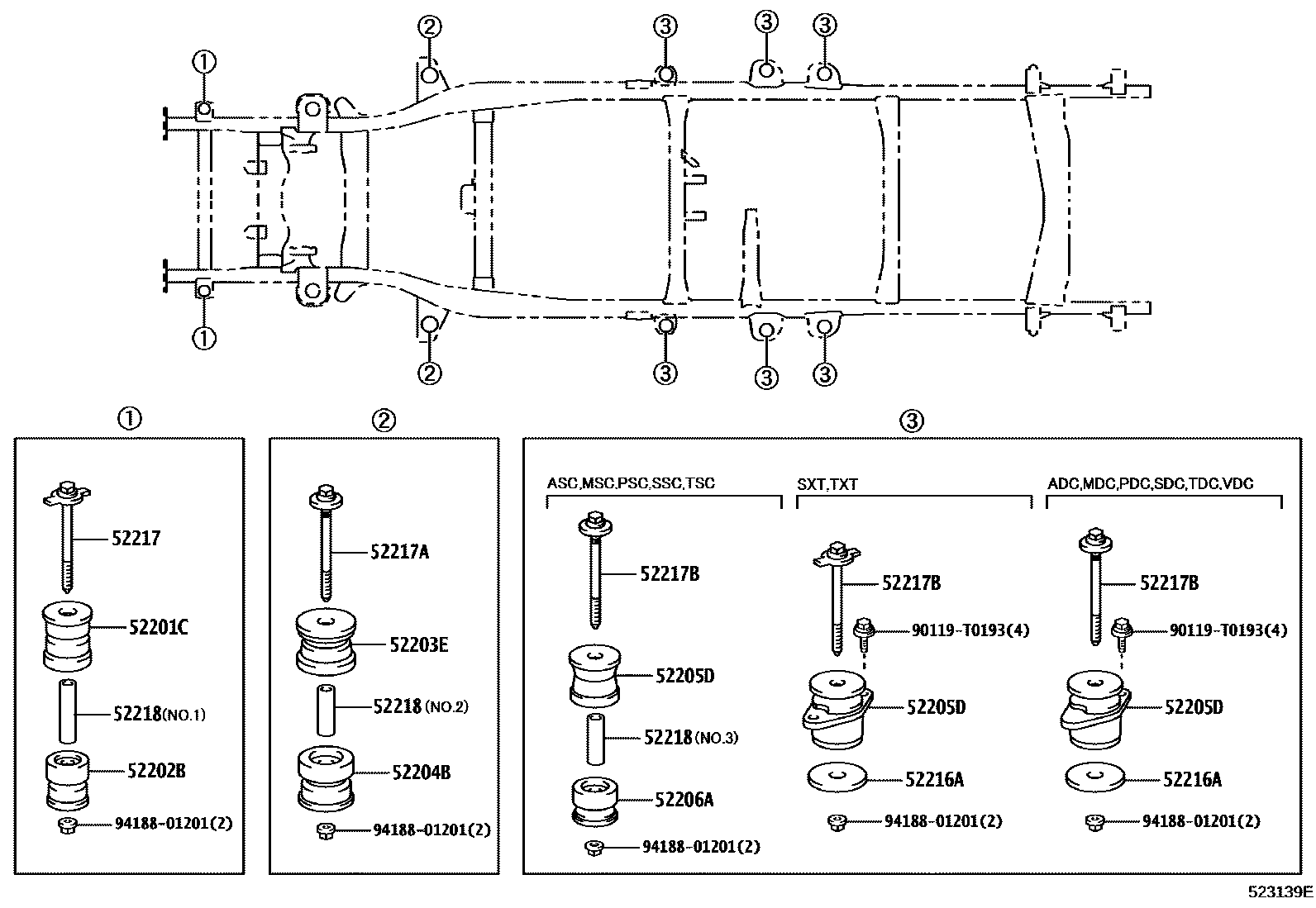

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K080iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52201-0K100iKUN122..PKN201505-202105

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K080iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52202-0K100iGUN125..(ADC,ASC)..6F;GUN126,13#,TGN126,128,13#..ADC,ASC201505-202105

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K100iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52203-0K120iTGN136..SSC201505-202105

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K100iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-201712

main52204-0K120iKUN122..PKN201505-202105

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-0K110iTGN136..SSC201505-202105

main52205-0K140iGUN125,126,135,KUN125,135,TGN126,136..ASC201511-201712

main52205-0K150iGUN125,135..TXT;GUN125,135..SXT..6F..S;GUN120,122,123,126,136,KUN12#,TGN121,136..SXT,TXT201506-202009

main52205-0K160iGGN12#,GUN12#,13#,KUN12#,13#,TGN12#,136..TDC201505-201509

RH

main52205-0K161iGUN136..TDC..S;GUN135..LHD..SA;GUN135..MDC,TDC;GUN135..SDC..6F..S;GUN136..(SDC,TDC)..(H,M);GUN125,126,KUN125,126,13#,TGN126,136..KDC,MDC,PDC,SDC,TDC;GGN12#,135,GUN1201510-202105

RH

main52205-0K171iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-201712

RH

main52206-0K100iGGN12#,GUN12#,13#,KUN12#,13#,TGN12#,136..TDC201505-201509

LH

main52206-0K101iGUN125..ADC..6F;GUN126,13#,TGN126,128,13#..ADC201510-202105

LH

main52206-0K111iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-201712

LH

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-0K080iTGN136..SSC201505-202105

main52206-0K090iGUN125,126,135,KUN125,135,TGN126,136..ASC201511-201712

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-0K010iGUN136..S..SA;GUN125..ADC..6FC;GUN135..RHD..SDC..X;GUN135..(SDC,SXT)..6FC;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201505-202105

52217BOLT, BODY MOUNTING

main52217-0K010iTGN136..SSC201505-202105

52217ABOLT, BODY MOUNTING

main52217-0K020iGUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..TDC..6FC..LA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN13201505-202105

52217BBOLT, BODY MOUNTING

main52217-0K020iGUN136..S..SA;GUN125..ADC..6FC;GUN135..RHD..SDC..X;GGN125,GUN135..(ADC,SDC,SSC)..6FC..(H,S)..(BZAGT,SA)201505-202105

main52217-0K031iGUN125..SXT..X;GUN135..SXT..6FC201506-202009

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201505-202105

NO.1

main52219-0K010iTGN136..ASC,TSC;GUN135,KUN122..(ASC,KSC,SSC,TSC)..MTM;GUN112,12#,136,KUN112,125,126,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

NO.3

main52219-0K010iTGN136..ASC,TSC;GUN135,KUN122..(ASC,KSC,SSC,TSC)..MTM;GUN112,12#,136,KUN112,125,126,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

NO.2

main52219-0K010iTGN136..SSC201505-202105

NO.3,NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

13 parts on this diagram · 1 diagram in section
