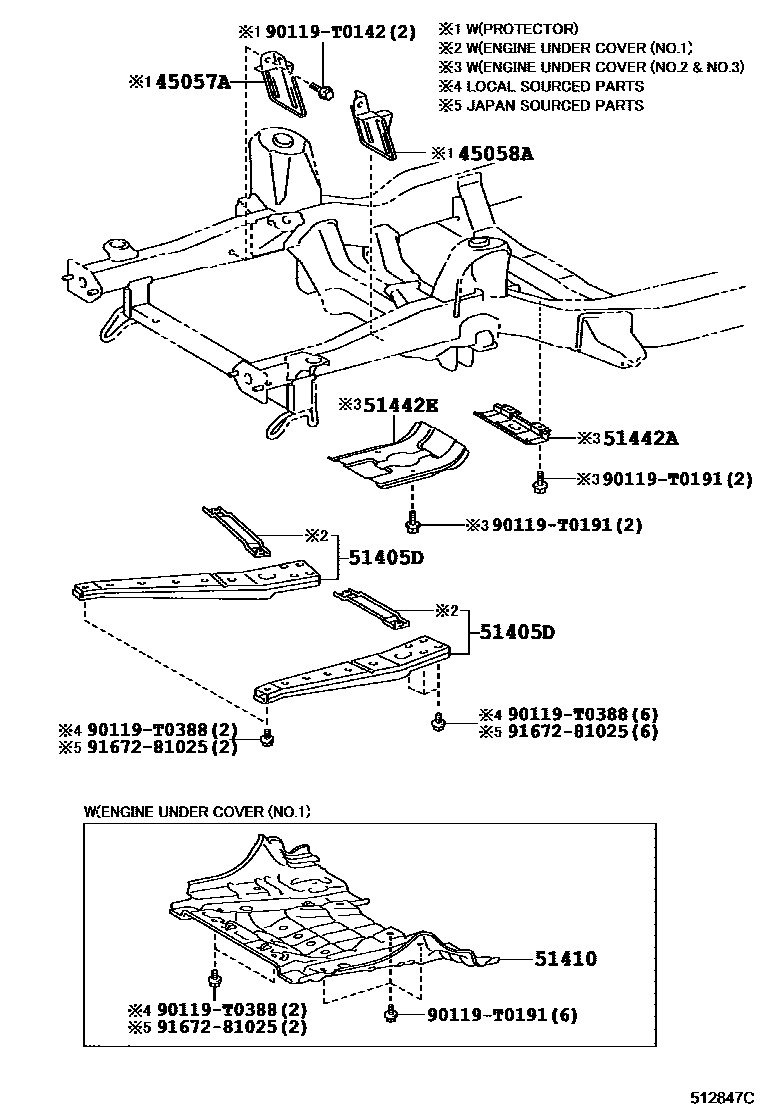

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

45057APROTECTOR SUB-ASSY, RACK BOOT, NO.1 RH

main45057-0K010iKUN122..PKN201505-201905

45058APROTECTOR SUB-ASSY, RACK BOOT, NO.1 LH

main45058-0K010iKUN122..PKN201505-201905

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-KK010×2iKUN122..PKN201505-201905

main51405-KK020×2iGUN112,122,KUN112,122,TGN11#,120,121..GCC201505-202005

main51405-KK030×2iGUN136..S..SA;GUN135..6FC..SA;GUN125..ADC..6FC;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201810-202105

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-KK010iGUN125..M..VN;GUN125..RHD..6FC..(L,M);GUN125..(L,S,X)..(IDN,MA,PH,TH,VN);GUN135..(L,M,S)..(GEN,MA,PH,TH,VN);GUN126,136,KUN125,126,135,TGN136..IDN,MA,PH,PKN,TAIW,TH,VN201505-202105

main51410-KK020iTGN136..SSC201505-201807

main51441-KK030iGUN112,122,KUN112,122,TGN11#,120,121..GCC201505-202005

51442COVER, ENGINE UNDER, NO.2

main51420-KK010iGUN125..M..VN;GUN125..RHD..6FC..(L,M);GUN125..(L,S,X)..(IDN,MA,PH,TH,VN);GUN135..(L,M,S)..(GEN,MA,PH,TH,VN);GUN126,136,KUN125,126,135,TGN136..IDN,MA,PH,PKN,TAIW,TH,VN201505-202105

main51420-KK020iGUN135..L..BZAGT;GUN125..6FC..L..GCC;GUN125..6F..L..(BZAGT,GCC,GEN);TGN136..(ADC,ASC,SDC,TDC,TSC)..5F;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,LA,SA;GUN125,135..(H,M,S,X)..(ARL,BZAGT,GCC,GEN,KEN,LA,SA);GUN126,136,TGN126,128,138..ARL,BZAGT,GCC,GEN,KEN,LA,SA201505-202102

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-0K030iGGN120,GUN112,122,KUN112,122,TGN11#,120,121..(L,M,S)..(ARL,GCC)201505-202005

51442ECOVER, ENGINE UNDER, NO.2

main51441-0K020iGGN120,GUN112,122,KUN112,122,TGN11#,120,121..(L,M,S)..(ARL,GCC)201505-202005

90119T0142

main90119-T0142

90119T0191

main90119-T0191

90119T0388

main90119-T0388

9167281025

main91672-81025

11 parts on this diagram · 2 diagrams in section
