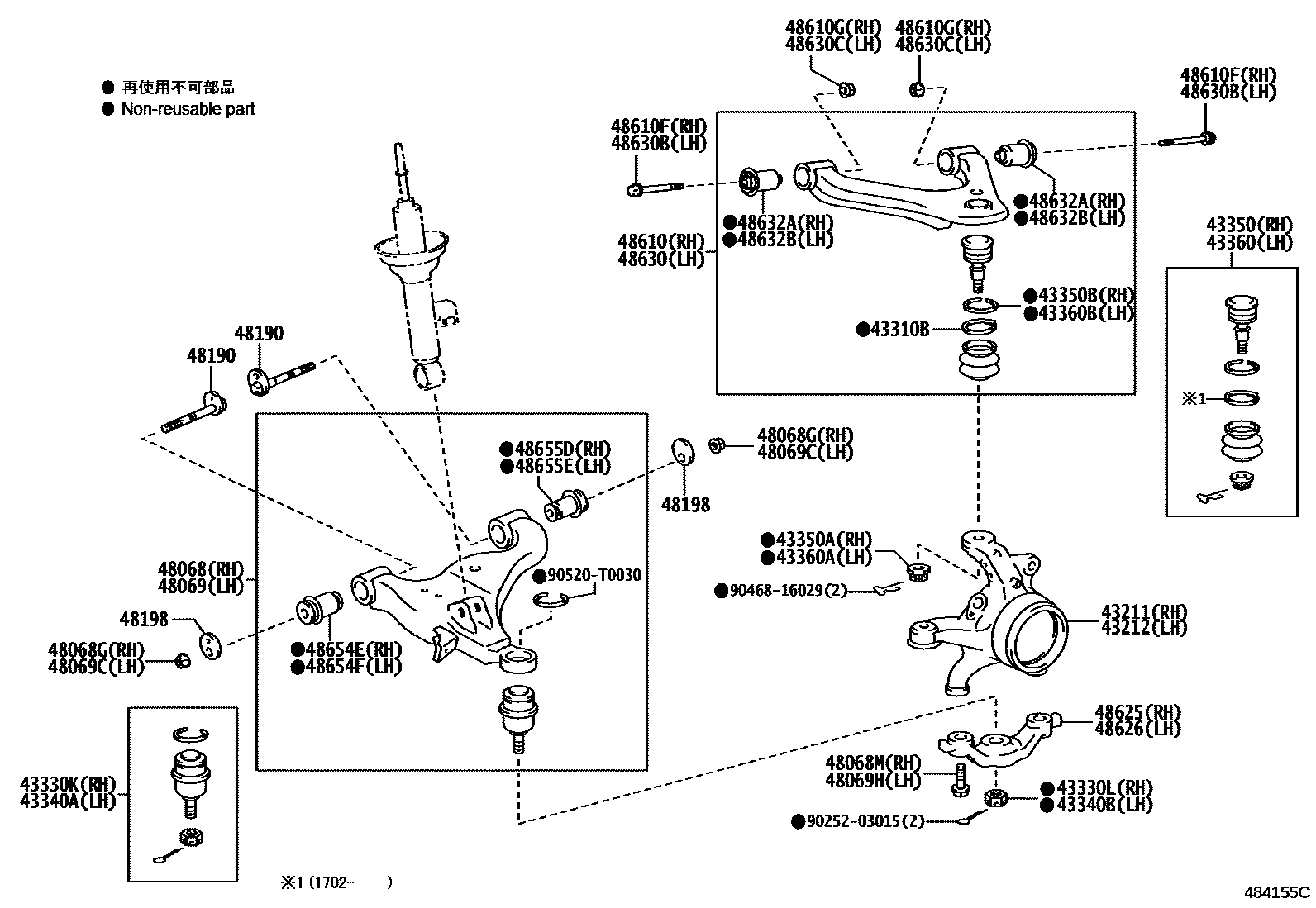

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-KK010iTGN136..SSC201505-201807

main43211-KK030iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main43211-KK040iTGN120..SA201602-201808

EXPORT FROM SOUTH AFRICA&SRS AIR BAG-WITHOUT

43212KNUCKLE, STEERING, LH

main43212-KK010iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN125,135,GUN125,126,13#,KUN125,126,13#,LAN125,TGN126,128,138201505-202105

main43212-KK030iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main43212-KK040iKUN122..PKN201505-201902

SRS AIR BAG-WITHOUT

43310BRING, SET (FOR DUST COVER)

main90580-10001×2iGUN125..SXT..S;GUN126,13#,TGN126,128,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12201505-202105

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09510iTGN136..SSC201906-202105

main43330-09A20iGGN125..BZAGT201810-202010

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-T0003iTGN136..SSC201505-201807

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09510iGUN125..SXT..X201810-202105

main43330-09A20iGGN125..BZAGT201810-202010

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-T0003iTGN136..SSC201505-201807

43350JOINT ASSY, FRONT UPPER BALL, RH

main43310-09015iGGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-201702

main43310-09017iGUN125..SXT..S;GGN12#,135,TGN136..SDC,TDC,TSC,TXT;GUN125..KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GUN112,120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126..K201702-202105

main43310-09030iGGN125..BZAGT201810-202010

43350ANUT (FOR FRONT UPPER BALL JOINT RH)

main90171-T0001iTGN136..SSC201505-201807

43350BRING, SNAP (FOR FRONT UPPER BALL JOINT RH)

main90520-T0029iTGN136..SSC201505-201807

43360JOINT ASSY, FRONT UPPER BALL, LH

main43310-09015iGGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-201702

main43310-09017iGUN125..SXT..S;GGN12#,135,TGN136..SDC,TDC,TSC,TXT;GUN125..KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GUN112,120,122,123,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126..K201702-202105

main43310-09030iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

43360ANUT (FOR FRONT UPPER BALL JOINT LH)

main90171-T0001iTGN136..SSC201906-202105

43360BRING, SNAP (FOR FRONT UPPER BALL JOINT LH)

main90520-T0029iTGN136..SSC201505-201807

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48068-0K090iTGN136..SSC201906-202105

main48068-0K120iGGN125..BZAGT201810-202010

sub48068-0K121

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90178-T0073×2iTGN136..SSC201505-201807

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-T0305×2iTGN136..SSC201505-201807

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48069-0K090iGUN125..SXT..S;TGN136..SDC,TDC,TSC,TXT;GUN125..KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GGN125,135,GUN126,13#,KUN125,126,13#,LAN125,TGN126..KDC,KSC,MDC,PDC,PSC,SDC,SSC,S201505-202105

main48069-0K120iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

sub48069-0K121

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90178-T0073×2iGUN125..SXT..S;GUN126,13#,TGN126,128,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,12201505-202105

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-T0305×2iTGN136..SSC201505-201807

48190CAM ASSY, CAMBER ADJUST

main48190-0K020×4iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48190-0K040×2iTGN136..SSC201906-202105

48198CAM, CAMBER ADJUST, NO.2

main48198-0K020×4iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48198-0K030×4iTGN136..SSC201505-201807

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48610-0K040iTGN136..SSC201505-201807

main48610-0K050iGGN125..BZAGT201810-202010

main48610-0K070iGUN125,126,13#,TGN136..(TDC,TXT)..TH201505-202005

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90105-T0114iTGN136..SSC201505-201807

main90119-T0348×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90178-T0027iGUN125..SXT..S;GUN126,13#,TGN126,128,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,G201505-202105

main90178-T0047×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

48625ATTACHMENT, FRONT LOWER BALL JOINT, RH

main48625-0K011iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT201505-202105

sub48625-0K050

main48625-0K030iGUN122,KUN122,TGN120,121..SA201601-202009

main48625-KK010iTGN136..SSC201906-202105

sub48625-KK040

48626ATTACHMENT, FRONT LOWER BALL JOINT, LH

main48626-0K011iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121..PSC,TDC,TSC,TXT201505-202105

sub48626-0K050

main48626-0K030iGUN122,KUN122,TGN120,121..SA201601-202009

main48626-KK010iTGN136..SSC201906-202105

sub48626-KK040

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48630-0K040iTGN136..SSC201906-202105

main48630-0K050iGGN125..BZAGT201810-202010

main48630-0K070iGUN125,126,13#,TGN136..(TDC,TXT)..TH201505-202005

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90105-T0114iGGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201810-202105

main90119-T0348×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90178-T0027iGGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201810-202105

main90178-T0047×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-0K010×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48632-0K040×2iTGN136..SSC201505-201807

main48632-0K050×2iGGN125..BZAGT201810-202010

sub48632-0K110

main48632-0K070×2iGUN125,126,13#,TGN136..(TDC,TXT)..TH201505-202005

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-0K010×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48632-0K040×2iTGN136..SSC201906-202105

main48632-0K050×2iGGN125..BZAGT201810-202010

sub48632-0K110

main48632-0K070×2iGUN125,126,13#,TGN136..(TDC,TXT)..TH201505-202005

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48654-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48654-0K080iTGN136..SSC201505-201807

main48654-0K110iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

sub48654-0K150

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48654-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48654-0K080iGUN125..SXT..X201810-202105

main48654-0K110iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

sub48654-0K150

48655DBUSH, FRONT LOWER ARM, NO.2 RH

main48655-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48655-0K080iTGN136..SSC201505-201807

main48655-0K110iGGN125..BZAGT201810-202010

sub48655-0K130

48655EBUSH, FRONT LOWER ARM, NO.2 LH

main48655-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main48655-0K080iGUN125..SXT..S;TGN136..SDC,TDC,TSC,TXT;GUN125..KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GGN125,135,GUN126,13#,KUN125,126,13#,LAN125,TGN126..KDC,KSC,MDC,PDC,PSC,SDC,SSC,S201505-202105

main48655-0K110iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010

sub48655-0K130

9025203015

main90252-03015

9046816029

main90468-16029

90520T0030

main90520-T0030

38 parts on this diagram · 2 diagrams in section
