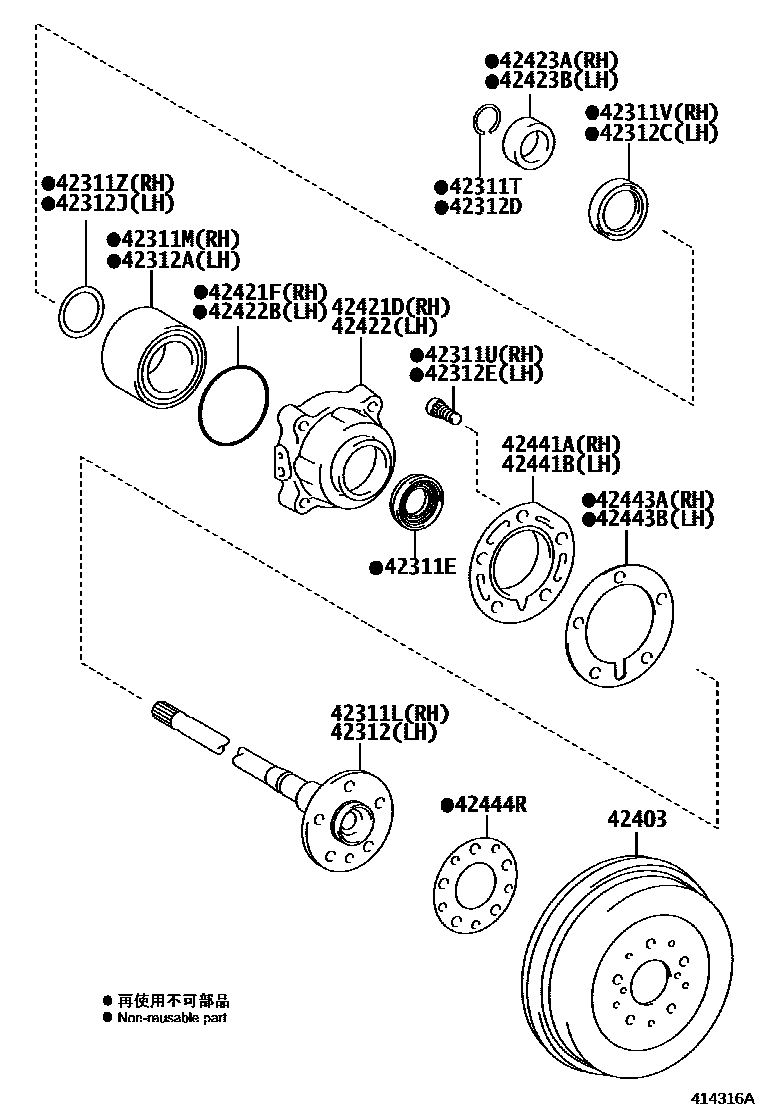

REAR AXLE SHAFT & HUB
42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)
main90313-T0002×2iKUN126..PDC..L;KUN126..5FC..PKN;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;GGN12#,135,GUN112,12#,13#,KUN112,122,125,13#,LAN125,TGN11#,12#,138201505-202105
42311LSHAFT, REAR AXLE, RH
main42311-KK020iGUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA201505-202105
main42311-KK040iKUN126..PDC..L;KUN126..5FC..PKN;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GGN125,135,GUN125,126,13#,KUN125,13#,TGN126,128,138201505-202105
42311MBEARING(FOR REAR AXLE SHAFT RH)
main90366-F0001iTGN136..SDC;GGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN120,126..KEN,SA201601-202102
42311TRING, SNAP(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
main90942-02081×5iGUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA; KUN126..PDC..L;KUN126..5FC..PKN;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;GGN125,135,GUN125,126,13#,KUN125,13#,LAN125,TGN126,128,138201505-202105
42311VSEAL, OIL(FOR REAR AXLE SHAFT RH)
42311ZWASHER(FOR REAR AXLE SHAFT RH)
42312SHAFT, REAR AXLE, LH
main42311-KK020iGUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA201505-202105
main42311-KK040iKUN126..PDC..L;KUN126..5FC..PKN;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;TGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GGN125,135,GUN125,126,13#,KUN125,13#,TGN126,128,138201505-202105
42312ABEARING(FOR REAR AXLE SHAFT LH)
main90366-F0001iTGN136..SDC;GGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN120,126..KEN,SA201601-202102
main90366-T0060iTGN121;KUN126..PDC..L;KUN126..(ADC,PSC,TDC)..6F;KUN126..(ADC,PDC,TDC)..5FC;GGN12#,GUN112,12#,13#,KUN112,122,125,13#,TGN11#,120,126,128,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
42312CSEAL, OIL(FOR REAR AXLE SHAFT LH)
42312DRING, SNAP(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
main90942-02081×6iGUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA; KUN126..PDC..L;KUN126..5FC..PKN;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;GGN125,135,GUN125,126,13#,KUN125,13#,LAN125,TGN126,128,138201505-202105
42312JWASHER(FOR REAR AXLE SHAFT LH)
main90208-T0001iKUN126..PDC..L;KUN126..5FC..PKN;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;GGN12#,135,GUN112,12#,13#,KUN112,122,125,13#,LAN125,TGN11#,12#,138201505-202105
42403DRUM SUB-ASSY, REAR BRAKE
main42431-0K120×2iGUN135..L..MA;GUN135..ADC,ASC,TDC,TSC,TXT;GGN125,GUN125,126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
main42431-0K220×2iTGN121;GGN120,GUN112,120,122,123,KUN112,122,TGN11#,120..PSC,TDC,TSC,TXT201505-202105
42421DCASE, REAR AXLE BEARING, RH
SAUDI ARABIA SPEC&SRS AIR BAG-WITHOUT; SAUDI ARABIA SPEC(EURO4 REGULATION)&SRS AIR BAG-WITHOUT; SRS AIR BAG-WITHOUT
42421FRING, O (FOR REAR AXLE BEARING CASE RH)
42422CASE, REAR AXLE BEARING, LH
SAUDI ARABIA SPEC&SRS AIR BAG-WITHOUT; SAUDI ARABIA SPEC(EURO4 REGULATION)&SRS AIR BAG-WITHOUT; SRS AIR BAG-WITHOUT
42422BRING, O (FOR REAR AXLE BEARING CASE LH)
42423ARETAINER, REAR AXLE BEARING, INNER RH
42423BRETAINER, REAR AXLE BEARING, INNER LH
main42423-KK010iKUN126..PDC..L;KUN126..5FC..PKN;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;GGN12#,135,GUN112,12#,13#,KUN112,122,125,13#,LAN125,TGN11#,12#,138201505-202105
42441ADEFLECTOR, BRAKE DRUM OIL RH
42441BDEFLECTOR, BRAKE DRUM OIL LH
42443AGASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443BGASKET, BRAKE DRUM OIL DEFLECTOR, LH
42444RGASKET, BRAKE DRUM (FOR REAR AXLE)
25 parts on this diagram · 2 diagrams in section
