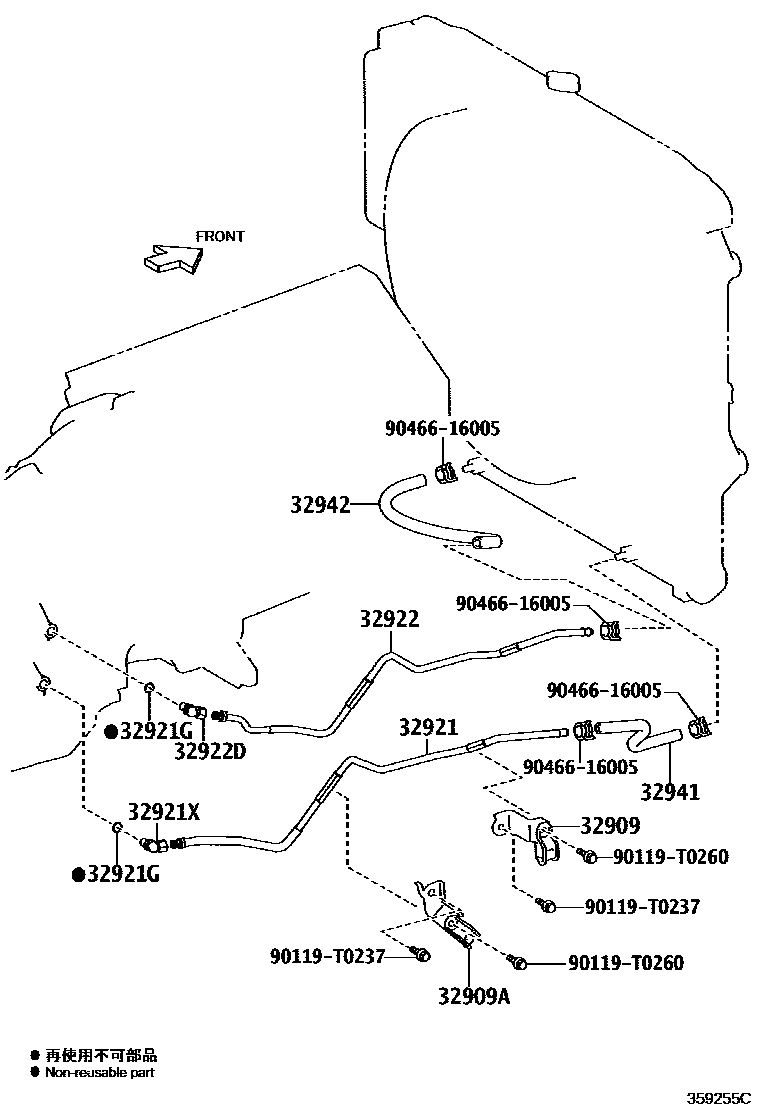

OIL COOLER & TUBE (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F 0003 1AC60E,AC60F 0004 1A750F

32909CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1

main32909-KK030iGUN120,125,126,13#..6FC201505-202105

main32909-KK060iKUN125,126..5FC201505-201801

main32909-KK090iTGN121,126,128,13#..6FC201505-202010

main32909-KK110iGGN12#,135201505-202010

32909ACLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2

main32909-KK020iGUN120,125,126,13#..6FC201505-202105

main32909-KK050iKUN125,126..5FC201505-201801

main32909-KK080iTGN121,126,128,13#..6FC201505-202010

main32909-KK100iGGN12#,135201505-202010

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K090iGUN120,125,126,13#..6FC201505-202105

main32921-0K100iKUN125,126..5FC201505-201801

main32921-0K110iTGN121,126,128,13#..6FC201505-202010

main32921-0K120iGGN12#,135201505-202010

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGUN125,126..6FC..MA201505-202001

main90301-T0069iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN); GUN135..TDC..6FC..M..TH201708-202005

(L); TOYOTA STOP & START SYSTEM-WITH

32921XUNION OR ELBOW, OIL COOLER INLET

main90407-16009iGUN126..6FC..KEN201505-202007

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K090iGUN120,125,126,13#..6FC201505-202105

main32922-0K100iKUN125,126..5FC201505-201801

main32922-0K110iTGN121,126,128,13#..6FC201505-202010

main32922-0K120iGGN12#,135201505-202010

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90407-16009iGUN126..6FC..KEN201505-202007

32941HOSE, OIL COOLER INLET, NO.1

main32941-0K010iGUN120,125,126,13#..6FC201505-202105

main32941-0K020iKUN125,126..5FC201505-201801

main32941-0K030iTGN121,126,128,13#..6FC201505-202010

main32941-0K040iGGN12#,135201505-202010

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0K010iGUN120,125,126,13#..6FC201505-202105

main32942-0K020iKUN125,126..5FC201505-201801

main32942-0K030iTGN121,126,136..(TDC,TSC)..6FC201505-201609

main32942-0K040iGGN12#,135201505-202010

main32942-0K060iTGN121,126,136..(TDC,TSC)..6FC201609-202005

90119T0237

main90119-T0237

90119T0260

main90119-T0260

9046616005

main90466-16005

12 parts on this diagram · 4 diagrams in section
