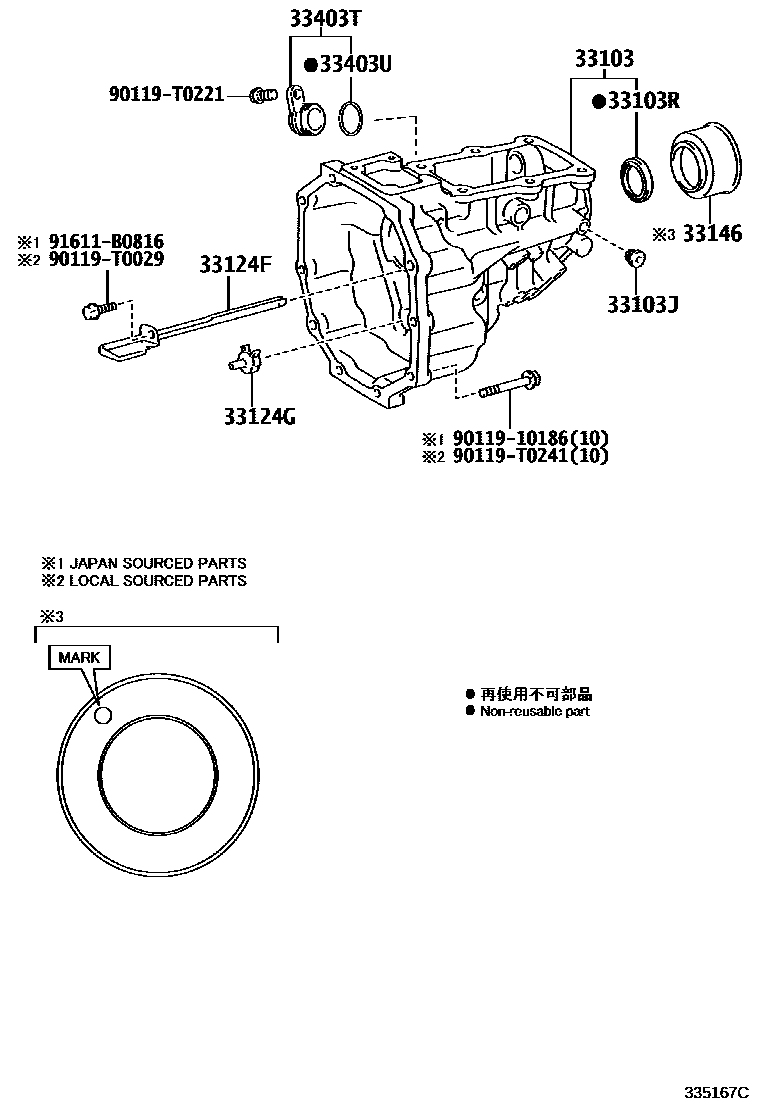

EXTENSION HOUSING (MTM)

0001 1R151 0002 1RC60,RC61

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0K011iTGN136..SSC201505-202105

TYPE A:REFER 33-01

main33103-0K031iTGN136..SSC201505-202105

TYPE C:REFER 33-01

main33103-0K041iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202101

TYPE B:REFER 33-01

main33103-0K090iGUN122,13#,KUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN)201505-202102

TYPE A:REFER 33-01

main33103-0K100iGUN122,13#,KUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN)201505-202102

TYPE B:REFER 33-01

main33103-0K110iGUN13#..6F..ARL201905-202005

TYPE A:REFER 33-01

33103JPLUG, TIGHT(FOR EXTENSION HOUSING)

main90341-10065iTGN136..SSC201505-201807

TYPE B:REFER 33-01,TYPE A:REFER 33-01,TYPE C:REFER 33-01

main90341-10065iTGN136..ADC..(S,X)..LA;TGN120,121,138..5F..(S,X)..(BZAGT,SA);TGN136..(ADC,ASC,SDC)..(S,X)..(BZAGT,SA)201505-202105

TYPE A:REFER 33-01

main90341-10065iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202101

TYPE B:REFER 33-01

main90341-10065iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202105

TYPE C:REFER 33-01

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-40035iGUN112,122,123,KUN112,122,TGN11#,120,121,136..5F201505-201706

TYPE C:SEE 33-01,(J)

main90311-40048iTGN136..SSC201707-202105

TYPE C:SEE 33-01,(J)

main90311-T0051iGUN112,122,123,KUN112,122,TGN11#,120,121,13#..5F201505-201712

TYPE B:REFER 33-01

main90311-T0052iTGN136..SSC201505-201810

TYPE A:REFER 33-01

main90311-T0067iGUN112,122,123,KUN112,122,TGN11#,120,121,13#..5F201505-201802

TYPE C:SEE 33-01,(L)

main90311-T0069iGUN122,13#,KUN13#..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN)201505-202102

TYPE A:REFER 33-01

main90311-T0069iGUN136..6F..ARL201505-202102

TYPE B:REFER 33-01

main90311-T0095iTGN136..SSC201712-202101

TYPE B:REFER 33-01

main90311-T0096iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201803-202105

TYPE C:SEE 33-01,(L)

main90311-T0097iTGN136..ADC,ASC,SDC,TDC;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201810-202105

TYPE A:REFER 33-01

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-0K020iTGN136..SSC201505-202105

TYPE A:REFER 33-01

main33124-0K040iGUN122201505-202105

TYPE C:REFER 33-01

main33124-0K050iTGN136..SSC201505-202101

TYPE B:REFER 33-01

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0K010iTGN136..ADC..(S,X)..LA;TGN120,121,138..5F..(S,X)..(BZAGT,SA);TGN136..(ADC,ASC,SDC)..(S,X)..(BZAGT,SA)201505-202105

TYPE A:REFER 33-01

main33124-0K010iTGN136..SSC201505-201807

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main33124-0K010iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202105

TYPE C:REFER 33-01

main33124-0K060iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202101

TYPE B:SEE 33-01,(L)

main33124-35100iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202101

TYPE B:SEE 33-01,(J)

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-0K020iGUN136..6F..M..ARL201505-202102

(L),NO MARK

main33146-0K020iGUN136..6F..M..ARL201505-202010

(L)

main33146-0K030iGUN122,135..6F..(BZAGT,GEN,KEN,LA,MA,PH,SA,TH,VN)201601-202102

(L),MARK 3

main33146-0K050iTGN136..SSC201505-202010

(L),NO MARK

main33146-0K050iTGN136..X;TGN121..(SDC,SSC,TSC)..5F;TGN121..LHD..TDC..5F..(L,S);GUN112,122,123,KUN112,122,TGN11#,120..5F201505-202105

(L)

main33146-0K060iTGN121..5F..M;TGN136..(ADC,SDC,TDC,TXT)..5F..(M,S);TGN121,138..(ADC,TDC,TXT)..5F..(ARL,BZAGT,TH)201511-202010

(L),MARK 6

main33146-35020iGUN122,13#,KUN13#..6F201505-202102

(J)

main33146-35030iTGN136..(ADC,ASC,SDC,TDC,TSC,TXT)..5F;GUN112,122,123,KUN112,122,TGN11#,120,121,138..5F201505-202105

(J)

33403TCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-0D020iTGN136..SSC201505-202105

(L)

main33403-35230iTGN136..SSC201505-202105

(J)

33403URING, O(FOR MTM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24030iTGN136..SSC201505-202105

9011910186

main90119-10186

90119T0029

main90119-T0029

90119T0221

main90119-T0221

90119T0241

main90119-T0241

91611B0816

main91611-B0816

13 parts on this diagram · 2 diagrams in section
