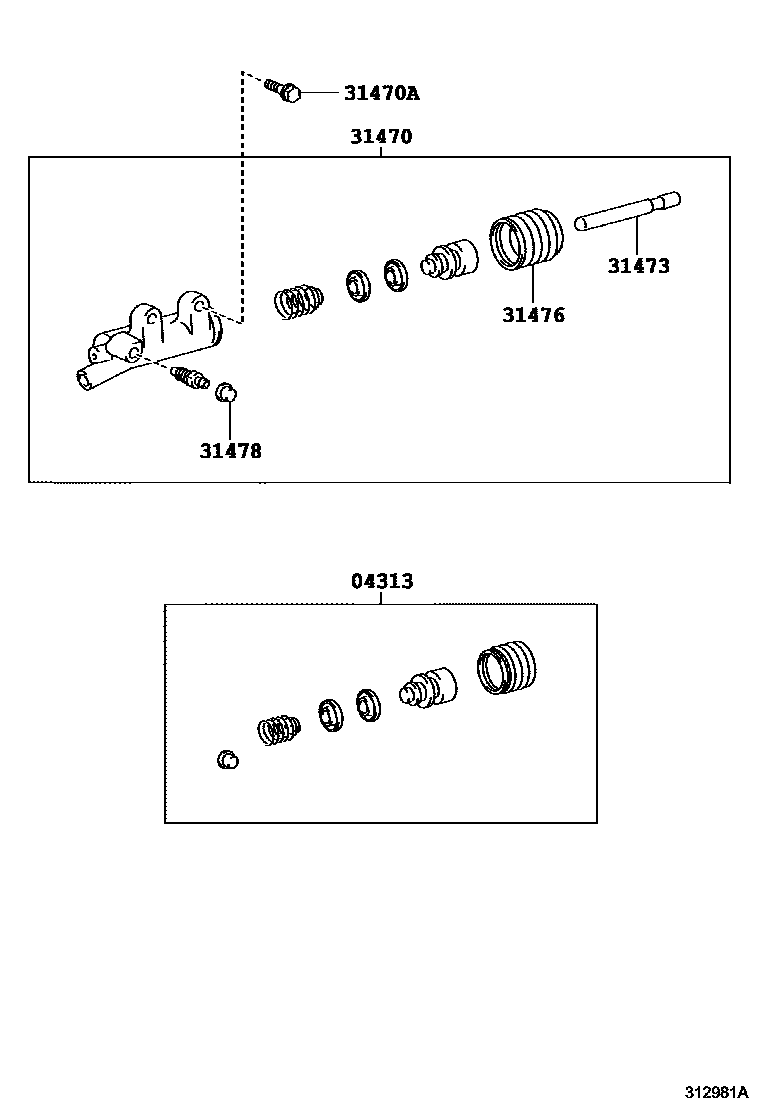

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-0K070iKUN125,126,135..6F;GUN112,122,123,KUN136..ADC,PSC,TDC,TSC,TXT201505-202105

main04313-0K080iGUN125,126,13#..6F..SA201505-202105

main04313-0K090iTGN120,121,126,136..5F..SA201505-202010

main04313-0K100iLAN125201601-202007

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-0K080iKUN125,126,135..6F;GUN112,122,123,KUN136..ADC,PSC,TDC,TSC,TXT201505-202105

main31470-0K090iTGN11#,120,121,126,13#..(ADC,ASC,TDC,TSC,TXT)..5F201505-202010

main31470-0K100iGUN125,126,13#..(ADC,ASC,KDC,KSC,MDC,MSC,PDC,PSC,TDC,TSC,TXT)..6F201505-202105

main31470-0K110iKUN112,122201505-202006

main31470-0K140iLAN125201601-202007

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90119-T0221iLAN125..SDC;LAN125..SSC..X;GUN122,125,126,13#,TGN120,121,126,136..MTM..SA201505-202105

*8-1.25PX25-20.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-0K010iTGN11#,120,121,126,13#..(ADC,ASC,TDC,TSC,TXT)..5F201505-202010

main31473-0K030iKUN112,122;GUN125,126,13#..(ADC,ASC,KDC,KSC,MDC,MSC,PDC,PSC,TDC,TSC,TXT)..6F201505-202105

main31473-0K040iGUN122..SA201505-202105

main31473-0K050iLAN125201601-202007

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-04010iLAN125..SDC;LAN125..SSC..X;GUN122,125,126,13#,TGN120,121,126,136..MTM..SA201505-202105

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLAN125..SDC;LAN125..SSC..X;GUN122,125,126,13#,TGN120,121,126,136..MTM..SA201505-202105

6 parts on this diagram · 3 diagrams in section
