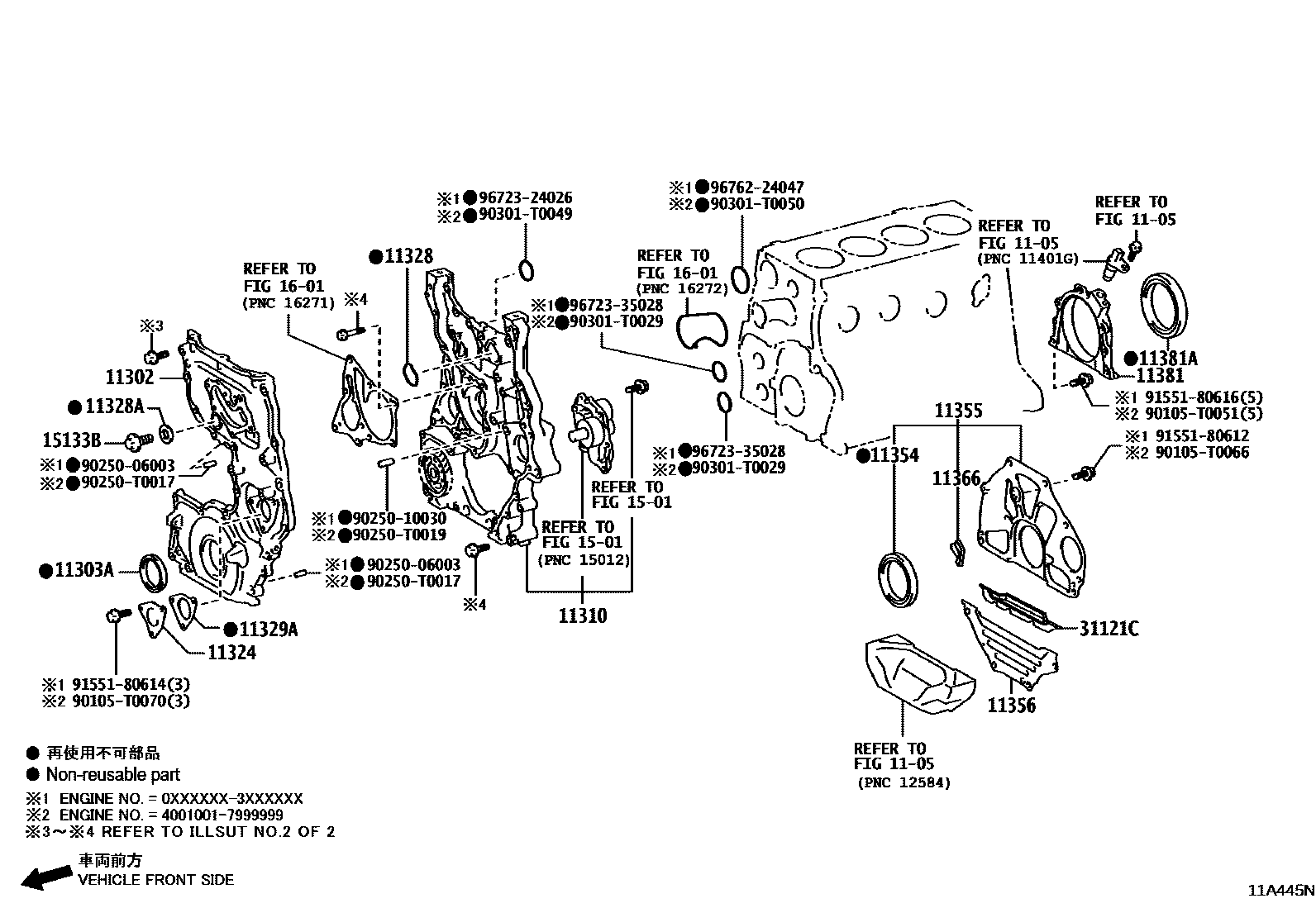

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0C030i1TRFE..TGN110,120201505-202009

main11310-0C040i2TRFE..TGN111,121,126,128,13#201505-202010

main11310-31013i1GRFE..GGN12#201505-201508

main11310-31014i1GRFE..GGN12#,135201509-202010

main11321-0E010i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

BOLIVIA URUGUAY SPEC; PERU SPEC

main11321-0E020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

main11321-11120i2GDFTV..GUN135..GEN201505-201708

*272

main11321-54021i5LE..LAN125201601-202009

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-42031i5LE..LAN125201601-202009

main90311-42048i1GRFE..GGN12#,135201505-202010

main90311-50051i2GDFTV..GUN135..GEN201505-201708

*272

main90311-T0054i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

BOLIVIA URUGUAY SPEC; PERU SPEC

main90311-T0060i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201505-201801

*555

main90311-T0061i2TRFE..TGN126..6FC..GCC;2TRFE..TGN126..6FC..L..GEN;2TRFE..TGN126..(TDC,TSC)..5F;1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-201802

*163:REFER TO ILL.

main90311-T0099i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201802-202010

*555

main90311-T0100i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201803-202005

*163:REFER TO ILL.

11310COVER ASSY, TIMING CHAIN

main11310-0E010i1GDFTV,2GDFTV..GUN125,126,136..TXT..ARL201908-202005

main11310-0E020i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

*468; BOLIVIA URUGUAY SPEC,*468; PERU SPEC,*468

main11310-11030supersedes 11310-0E010i2GDFTV..GUN135..GEN201505-201708

*272

11324PLATE, TIMING CHAIN COVER

main11324-0C010i1TRFE,2TRFE..TGN11#,12#,13#201704-202010

main11324-0E010i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

BOLIVIA URUGUAY SPEC; PERU SPEC

main11324-0E020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

main11324-11010i2GDFTV..GUN135..GEN201505-201708

*272

main11324-31020i1GRFE..GGN12#,135201505-202010

main11324-75010i1TRFE,2TRFE..TGN11#,12#,13#201505-201703

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5LE..LAN125201601-202009

(L)

main11328-0C010i1TRFE,2TRFE..TGN11#,12#,13#201704-202010

main11328-0E010i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

BOLIVIA URUGUAY SPEC; PERU SPEC

main11328-0E020i1GDFTV,2GDFTV..GUN125,126,136..TXT..ARL201908-202005

main11328-11070i2GDFTV..GUN135..GEN201505-201708

*272

main11328-31030i1GRFE..GGN12#,135201505-202010

main11328-54021i5LE..LAN125201601-202009

(J)

main11328-75030i1TRFE,2TRFE..TGN11#,12#,13#201505-201703

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA; 2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(ADC,TDC,TSC,TXT)..(GCC,LA,PH,TH,VN); 2GDFTV..GUN135..ADC..LA;1GDFTV..GUN126..ADC..M..LA;1GDFTV..GUN126..ADC..6F..S..LA;2GDFTV..GUN125..(ADC,TSC)..6FC;2GDFTV..GUN125..(ADC,ASC)..6F..LA;1GDFTV,2GDFTV..GUN125,126,13#..ARL,BZAGT,TAIW201911-202010

*272; BOLIVIA URUGUAY SPEC; MEXICO SPEC; PERU SPEC; PERU SPEC,*272

main11328-30020i1KDFTV,2KDFTV..KUN112,12#,13#201505-202006

main11328-38030i2GDFTV..GUN135..GEN201505-201708

*272

11329GASKET, TIMING GEAR REAR COVER

main11329-05010i5LE..LAN125201601-202009

(L)

main11329-54021i5LE..LAN125201601-202009

(J)

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-0E010i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

BOLIVIA URUGUAY SPEC; PERU SPEC

main11329-0E020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

main11329-11020i2GDFTV..GUN135..GEN201505-201708

*272

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0L020i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

*468; BOLIVIA URUGUAY SPEC,*468; PERU SPEC,*468

main11354-30010i2GDFTV..GUN135..GEN201505-201708

*272

main11354-54010i5LE..LAN125201601-202009

11355PLATE, REAR END

main11355-0C010i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201505-202010

*555

main11355-0C020i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-202005

*163,(L)

main11355-0E010i2GDFTV..GUN135..L..GEN201505-201806

*582

main11355-0E020i2GDFTV..GUN125..(TSC,TXT)..6FC;2GDFTV..GUN125,135..TDC..6FC..ARL;1GDFTV..GUN126,136..6FC..(ARL,TAIW)201807-202005

*502

main11355-0E030supersedes 11355-0E040i1GDFTV..GUN136..6F..H;1GDFTV..GUN126..ADC..6F..(M,S)..LA201706-201802

*468

main11355-0E040i2GDFTV..GUN135..L..GEN201806-202105

*582

main11355-0E050i1GDFTV,2GDFTV..GUN122,123,125,126,13#..MTM..ARL201811-202005

(L),*502

main11355-0L010i1KDFTV,2KDFTV..KUN112,12#,13#201505-202006

main11355-11040supersedes 11355-0E010i2GDFTV..GUN135..GEN201505-201708

*272

main11355-11050i2GDFTV..GUN125..6F..GCC201808-202010

*272

main11355-54120i5LE..LAN125201601-202009

main11355-75021i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-202005

*163,(J)

11356PLATE, REAR END, NO.2

main11356-0L011i1KDFTV,2KDFTV..KUN112,12#,13#..PDC,PSC,TDC,TSC,TXT201505-201802

main11356-0L012i2KDFTV..KUN112,122..GCC,GEN,IDN,PKN201803-202006

main11356-0L021i1KDFTV,2KDFTV..KUN12#,135..SA201601-201802

main11356-0L022i2KDFTV..KUN122..SA201803-201905

main11356-0L031i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main11356-0L032i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201712-202010

11366SEAL, FLYWHEEL HOUSING UNDER COVER DUST

main11366-0E010i2GDFTV..GUN135..L..GEN201806-202105

*582

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0C012i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201505-202010

*555

main11381-0C022i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-202005

*163

main11381-0E010i2GDFTV..GUN125..TSC..6FC;2GDFTV..GUN135..6FC..ARL;1GDFTV..GUN136..ARL..CBU;1GDFTV,2GDFTV..GUN122,123,125,126..ARL201807-202001

main11381-0E030i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

BOLIVIA URUGUAY SPEC; PERU SPEC

main11381-0E040i2GDFTV..GUN125..TDC..6FC..L..GEN;2GDFTV..GUN125..LHD..TDC..S..GEN; 2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN125,126,13#..ARL,TAIW202001-202005

EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)

main11381-0K010i1KDFTV,2KDFTV..KUN112,12#,13#201505-202006

main11381-11010supersedes 11381-0E010i2GDFTV..GUN135..GEN201505-201708

*272

main11381-31010i1GRFE..GGN12#,135201505-202010

main11381-54030i5LE..LAN125201601-202009

11381ASEAL, ENGINE REAR OIL

main90311-85011i5LE..LAN125201601-202009

main90311-95015i2GDFTV..GUN135..GEN201505-201708

*272

main90311-99010i1GRFE..GGN12#,135201505-202010

main90311-T0046i1GDFTV..GUN126..ADC..6F..X; 1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA; 2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..BZAGT201710-202010

BOLIVIA URUGUAY SPEC; PERU SPEC

main90311-T0058i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201505-202010

*555

main90311-T0059i2TRFE..TGN126..6FC..GCC;2TRFE..TGN126..6FC..L..GEN;2TRFE..TGN126..(TDC,TSC)..5F;1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-201712

*163

main90311-T0098i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201801-202005

*163

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV,2GDFTV..GUN112,12#,13#201505-202105

1601WATER PUMP

→ Go to FIG 16-01

31121CCOVER, CLUTCH HOUSING ADAPTER PLATE

main31121-26030iGUN125..M..VN201808-202105

90105T0051

main90105-T0051

90105T0066

main90105-T0066

90105T0070

main90105-T0070

9025006003

main90250-06003

9025010030

main90250-10030

90250T0017

main90250-T0017

90250T0019

main90250-T0019

90301T0029

main90301-T0029

90301T0049

main90301-T0049

90301T0050

main90301-T0050

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

35 parts on this diagram · 7 diagrams in section
