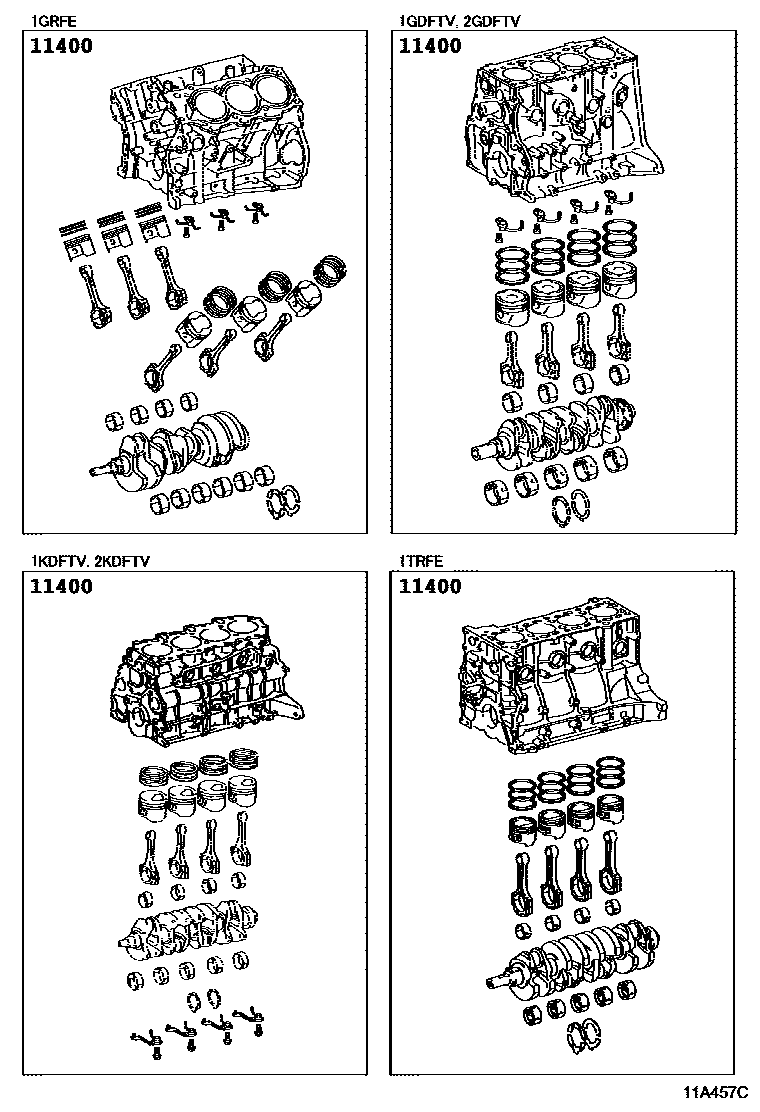

SHORT BLOCK ASSEMBLY
11400BLOCK ASSY, SHORT
main11400-0E010i1GDFTV..GUN123;1GDFTV..GUN126..MA,SA;1GDFTV..GUN126..6FC..(LA,PH,TH,VN);1GDFTV..GUN136..(SDC,SSC,SXT,TDC)..(SA,TH); 1GDFTV..GUN126..6F..(M,X)..LA201505-201703
COLOMBIA SPEC
main11400-0E011supersedes 11400-0E051i1GDFTV..GUN126,136..HDCR..BZAGT; 1GDFTV..GUN126,136..SA201703-201710
ARGENTINA SPEC(EURO 4 REGULATION)
CHILE SPEC
main11400-0E021supersedes 11400-0E051i1GDFTV..GUN126..LHD..SA;1GDFTV..GUN126..6FC..S..LA;1GDFTV..GUN136..(ADC,TDC)..M;1GDFTV..GUN126..ADC..6F..(H,X);1GDFTV..GUN126..(H,S)..(PKN,SA);1GDFTV..GUN126..LHD..6F..H..GEN;1GDFTV..GUN126,136..(SSC,SXT)..6FC;1GDFTV..GUN136..(H,S)..(ARL,BZAGT,SA);1GDFTV..GUN126..6FC..(H,X)..(BZAGT,GEN,LA);1GDFTV..GUN126..(L,M,S,X)..(ARL,BZAGT,GEN,KEN,PKN,TAIW)201703-202105
main11400-0E030i2GDFTV..GUN125,135..(ADC,TDC)..LA; 2GDFTV..GUN125..M..GEN;2GDFTV..GUN125..6F..GCC;2GDFTV..GUN122..RHD..SA;2GDFTV..GUN112,135..MDC,TSC;2GDFTV..GUN125..RHD..6F..(GEN,MA);2GDFTV..GUN122,125..(MDC,TDC,TSC,TXT)..(5F,6FC); 2GDFTV..GUN125..S..GEN201505-201703
COLOMBIA SPEC; ECUADOR SPEC; KAZAKHSTAN SPEC(EURO 2 REGULATION); KAZAKHSTAN SPEC(EURO 4 REGULATION)
CHILE SPEC
main11400-0E051i1GDFTV..GUN136..M..TH;1GDFTV..GUN126..(ADC,TSC)..6F..(M,S)..(GCC,LA);1GDFTV..GUN126..(TDC,TSC,TXT)..6F..(LA,PH,TH,VN)201703-202010
main11400-0E060supersedes 11400-0E061i2GDFTV..GUN125..(ASC,TSC)..LA; 2GDFTV..GUN125..6F..GCC; 2GDFTV..GUN125..6FC..(M,S)..GCC; 2GDFTV..GUN125..6FC..GCC; 2GDFTV..GUN125..TDC..6F..GCC; 2GDFTV..GUN135..6F..(LA,PH,TH,VN);2GDFTV..GUN125..(ADC,TDC,TXT)..(S,X)..(GEN,LA,TH); 2GDFTV..GUN135..6FC;2GDFTV..GUN125,135..RHD..SA201505-201703
GCC SPEC(EURO 4 REGULATION); PERU SPEC; QATAR SPEC(EURO 4 REGULATION); SAUDI ARABIA SPEC(EURO4 REGULATION)
main11400-0E061supersedes 11400-0E031i2GDFTV..GUN125,135..RHD..SA; 2GDFTV..GUN125..ASC..LA201703-201710
PERU SPEC
1 parts on this diagram · 2 diagrams in section
