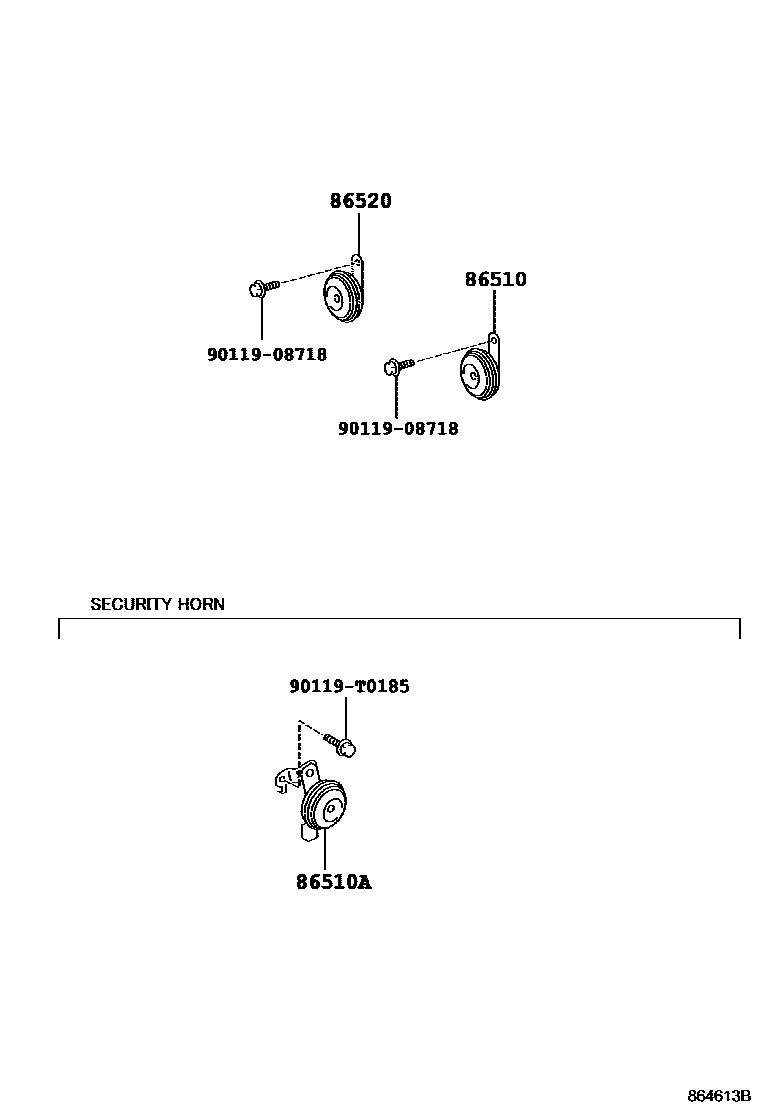

HORN

86510HORN ASSY, HIGH PITCHED

main86510-0K010iKUN35..LHD..GEN;KUN16,TGN36..GEN,TH;TGN16..(SCB,SMT)..(GEN,TH);KUN15,25,35..(IDN,MA,PHL,TH)..CBU;KUN26..SR..(ARL,CO,GEN,MA,PHL,TH);KUN2#,TGN26..(SADCB,THDCB,THSCB,XTR)..DLX..GEN;GGN15,25,KUN15,36,TGN16,26..SR..(DCR,HTWC)..(ANCOM,ARL,CO,GCC,GEN,TH)201107-201507

main86510-0K070iKUN26..SCB..LA;KUN25,35,TGN26,36..LA;KUN26,36..(DCB,XTR)..(LA,SA);GGN25,35,KUN15,35,TGN36..RHD..(DCB,XTR)..SR..SA201108-201507

main86510-0K090iKUN26..CO,GEN,MA;GGN25,KUN25..ANCOM,MA;TGN26..SR..(ANCOM,CO)201508

main86510-0K100iKUN26..SCB..LA;KUN25,35,TGN26,36..LA;KUN26,36..(DCB,XTR)..(LA,SA);GGN25,35,KUN15,35,TGN36..RHD..(DCB,XTR)..SR201508-201512

main86510-12370iKUN15,25..PKN201202-201609

86510AHORN ASSY, SECURITY

main86560-0K010iKUN15..SMT..SR;KUN35..LHD..SR;TGN16..(DCB,SMT)..TH;KUN25,35..RHD..(SA,TH);TGN26..DCB..DLX..ANCOM;TGN36..DCB..DLX..HTWCF;KUN26..(SADCB,THDCB)..SR;KUN15,TGN15..RHD..DLX..SA;KUN2#..LHD..DCB..5F..SR..(GEN,SA);KUN26..(5F,5FC)..SR..(CO,LA,PHL,SA,TH);KUN15,TGN26..(DCB,XTR)..5F..(HDCR,HTWCF)..(LA,SA,TH);KUN26,TGN36..DCB..4FC..(DCR,HTWC)..(ANCOM,CO,GEN,LA,PHL,SA);GGN25,35,KUN15,16,36,TGN26,36..SR..(DCR,HTWC,HTWCF)..(ANCOM,CO,GEN,LA,PHL,SA,TH)201107

86520HORN ASSY, LOW PITCHED

main86520-0K010iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,MA,PHL,TH201107-201507

main86520-0K050iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..LA,SA201108-201507

main86520-0K070iGGN25,KUN2#,35,TGN26,36..ANCOM,CO,GEN,MA201508

main86520-0K080iGGN25,35,KUN15,2#,3#,LAN15,25,TGN1#,26,36..LA,SA201508-201512

main86520-12710iKUN15,25..PKN201202-201609

main86520-12690iKUN35..5F..SR..PHL201208-201504

VIETNAM SPEC

9011908718

main90119-08718

90119T0185

main90119-T0185

5 parts on this diagram · 1 diagram in section
