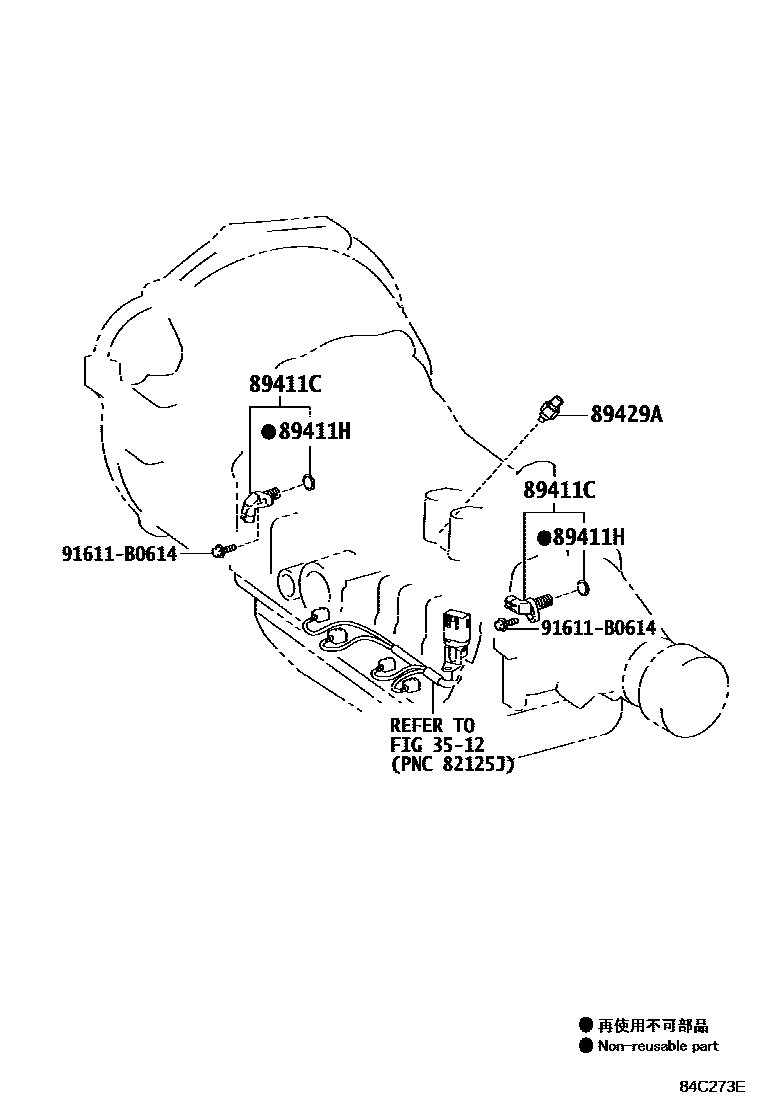

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

89411CSENSOR, SPEED

main89411-50010×2iTGN36..4FC..ANCOM201107-201703

89411HRING, O

main90301-11008×2iTGN36..4FC..ANCOM201107-201703

89429ASENSOR, TEMPERATURE

main89429-34010iKUN16,2#,3#..4FC201107-201609

main89429-35090iTGN36..4FC..ANCOM201107-201703

91611B0614

main91611-B0614

5 parts on this diagram · 3 diagrams in section
