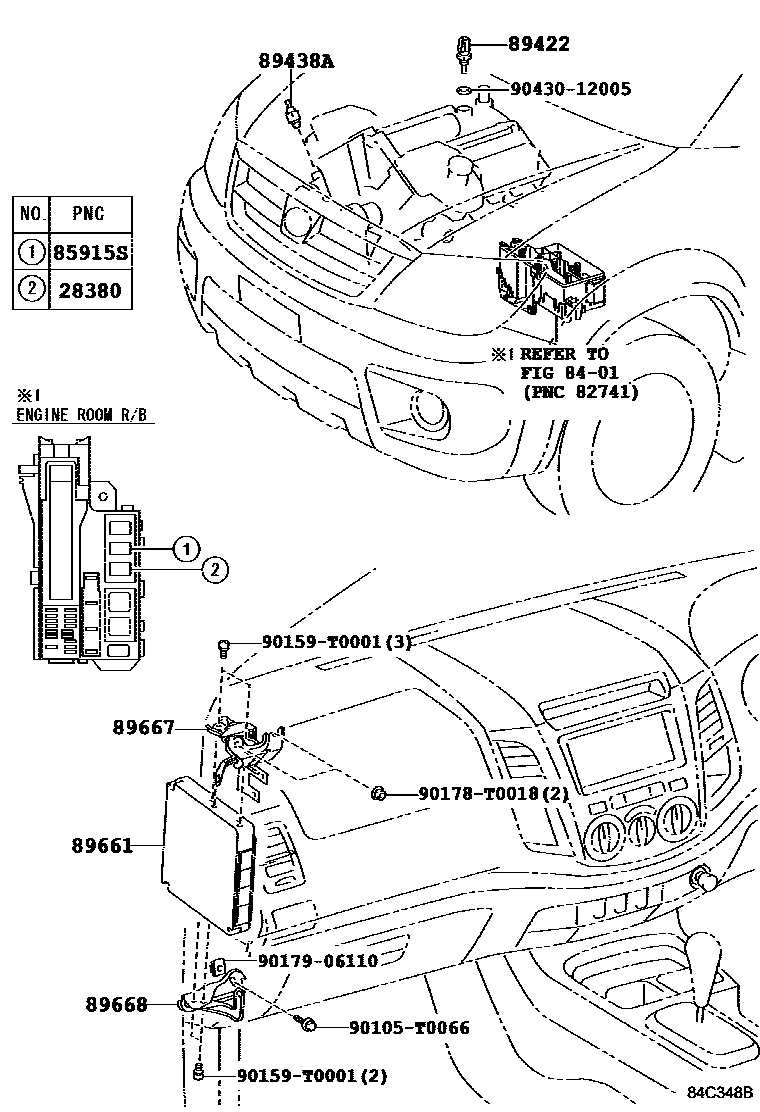

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

28380RELAY ASSY, FUEL PUMP

main90080-87009i1GRFE..GGN15,25..ANCOM,ARL201107

(L)

main90987-04004i1GRFE..GGN15,25..ANCOM,ARL201107

(J)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iTGN26..THDCB..DLX;TGN16,36..(SCB,THDCB)..GEN;GGN15,25,TGN16..ANCOM,ARL,TH201107

(J)

main90987-T2001iTGN26..THDCB..DLX;TGN16,36..(SCB,THDCB)..GEN;GGN15,25,TGN16..ANCOM,ARL,TH201107

(L)

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iTGN26,36..SCB..ANCOM201107-201504

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iTGN26,36..SCB..ANCOM201107-201504

main89438-71010iGGN25,TGN26,36201702

89661COMPUTER, ENGINE CONTROL

main89661-0KV70iGGN25,35..SA201108-201512

main89661-0KY60iGGN25..5F201107-201311

main89661-0KY70iGGN25..5FC..ARL201107-201504

main89661-71300iTGN26..SR..HTWCF201110-201510

main89661-71330iTGN36..5F..HTWCF201110-201510

main89661-71340iTGN36..4FC..LA201110-201510

main89661-71390iTGN26..DLX..HTWCF201210-201510

main89666-0K060iGGN15..5F201107-201311

main89666-0K070iGGN15..5FC201107-201504

main89666-0K090iGGN25..ANCOM201204

main89666-0K130iTGN10,15..RHD201107-201512

P/N LABEL=896660K130

main89666-0K140iTGN10,15..RHD201107-201512

P/N LABEL=896660K140

main89666-0K170iTGN16..5F..ARL201107-201504

main89666-0K180iTGN16..4FC..ARL201107-201504

main89666-0K190iTGN16,36..(SCB,THDCB)..GEN201107-201504

main89666-0K200supersedes 89666-0K510iTGN26..THDCB..DLX;TGN26..DLX..HTWC..LA;TGN36..SCB..HTWC..LA201107-201510

main89666-0K210iTGN26,36..SCB..ANCOM; TGN26..THDCB..DLX201107-201504

COLOMBIA SPEC,P/N LABEL=896660K210; P/N LABEL=896660K210

main89666-0K220iTGN26,36..SCB..ANCOM; TGN26..THDCB..DLX201107-201504

COLOMBIA SPEC,P/N LABEL=896660K220; P/N LABEL=896660K220

main89666-0K230iTGN16,26,36..4FC..(ANCOM,GCC,GEN,SA)201107

main89666-0K240iTGN16..XTR;TGN26..DCB..5F..GEN; TGN26..DCB..5F..GCC;TGN16..5F..DLX..GCC..CBU201107-201504

IRAQ SPEC,P/N LABEL=896660K240; P/N LABEL=896660K240

main89666-0K250iTGN16..XTR;TGN26..DCB..5F..GEN; TGN26..DCB..5F..GCC;TGN16..5F..DLX..GCC..CBU201107-201504

IRAQ SPEC,P/N LABEL=896660K250; P/N LABEL=896660K250

main89666-0K470iTGN16..CNG201205-201504

main89666-0K510iTGN16..HTWC..TH;TGN26,36..SR..HTWC..LA201208-201510

main89661-F0180iTGN26..4FC..SA201410-201512

NIGERIA SPEC

main89666-0KM70iTGN26..DCB..5F..GEN201308-201504

KAZAKHSTAN SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-0K010iGGN15,25,35,TGN10,15,16,26,36..RHD201107-201512

main89667-0K020iTGN26,36..HTWC..(CO,LA)201107-201510

main89667-0K050iTGN26,36..HTWCF201110-201510

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-0K010iGGN15,25,35,TGN10,15,16,26,36..RHD201107-201512

main89668-0K020iTGN26,36..SCB..ANCOM201107-201504

main89668-0K070iTGN26,36..HTWCF201110-201510

90105T0066

main90105-T0066

90159T0001

main90159-T0001

90178T0018

main90178-T0018

9017906110

main90179-06110

9043012005

main90430-12005

13 parts on this diagram · 4 diagrams in section
