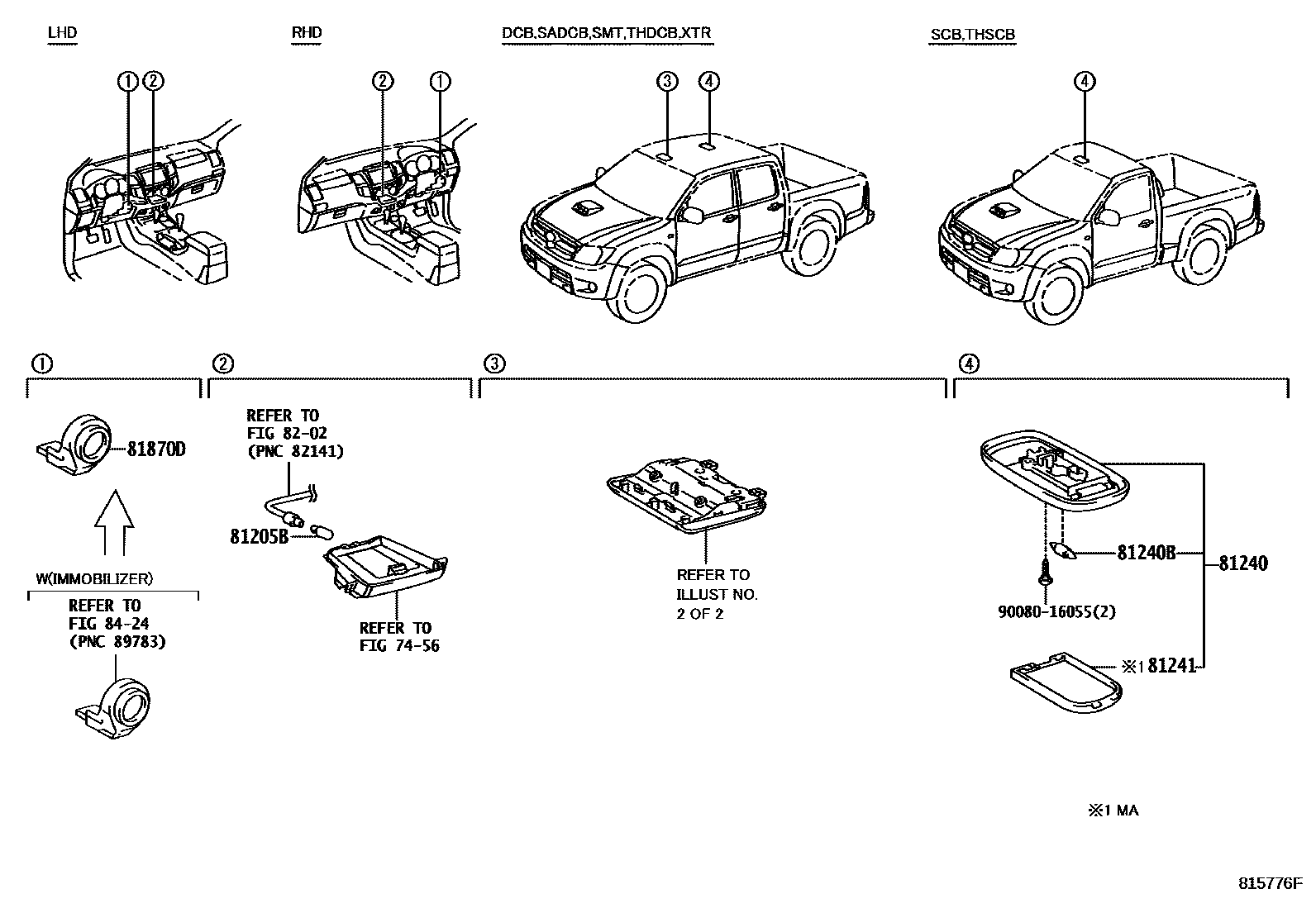

INTERIOR LAMP

0001 1 0002 1

7456ASH RECEPTACLE

→ Go to FIG 74-56

81205BBULB, ASH RECEPTACLE LAMP

main90981-TB001iKUN15..DLX..HDCR201107-201208

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-0K010-B0×2iKUN16..TH201302-201504

LT.GRAY,TRIM1#,2#

main81240-0K010-E0iKUN15..SMT..SR;KUN35..LHD..SR;KUN25..4FC..GEN;KUN36,TGN26..RHD..(GEN,TH);KUN26..(DCB,SMT)..(GEN,PHL,TH);KUN25,35..(DCB,SMT)..(IDN,PKN,TH);KUN15,TGN16..DCB..(HDCR,HTWC)..TH;KUN15,16..(4FC,5F)..SR..DCR..(GEN,PHL,TH)201107-201609

SAND BEIGE,TRIM4#

main81240-12080-B2iKUN2#..DCB..MA; KUN25..SCB..MA201109-201601

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011×2iKUN16..TH201302-201504

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020iKUN2#..MA201109-201601

81870DLAMP ASSY, KEY CYLINDER

main81870-0K010iKUN25..DCB..GEN;KUN15..DCB..SR..TH;KUN15..SMT..DLX..HDCR;KUN16,TGN26..RHD..4FC;KUN15..(DCB,SMT)..DLX..DCR..(GEN,TH); TGN16..SMT;KUN35..LHD..SR;KUN25,35..IDN,TH;KUN15,16..SMT..SR;KUN15..DCB..DLX..HDCR;KUN26..DCB..4FC..(GEN,PHL);KUN26..(DCB,SMT)..5F..(GEN,PHL,TH);KUN15,36,TGN16..SR..(DCR,HTWC)..(GCC,GEN,PHL,TH)201107-201504

ANTI-THEFT SYSTEM-*SEH

8202WIRING & CLAMP

→ Go to FIG 82-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9008016055

main90080-16055

9 parts on this diagram · 2 diagrams in section
