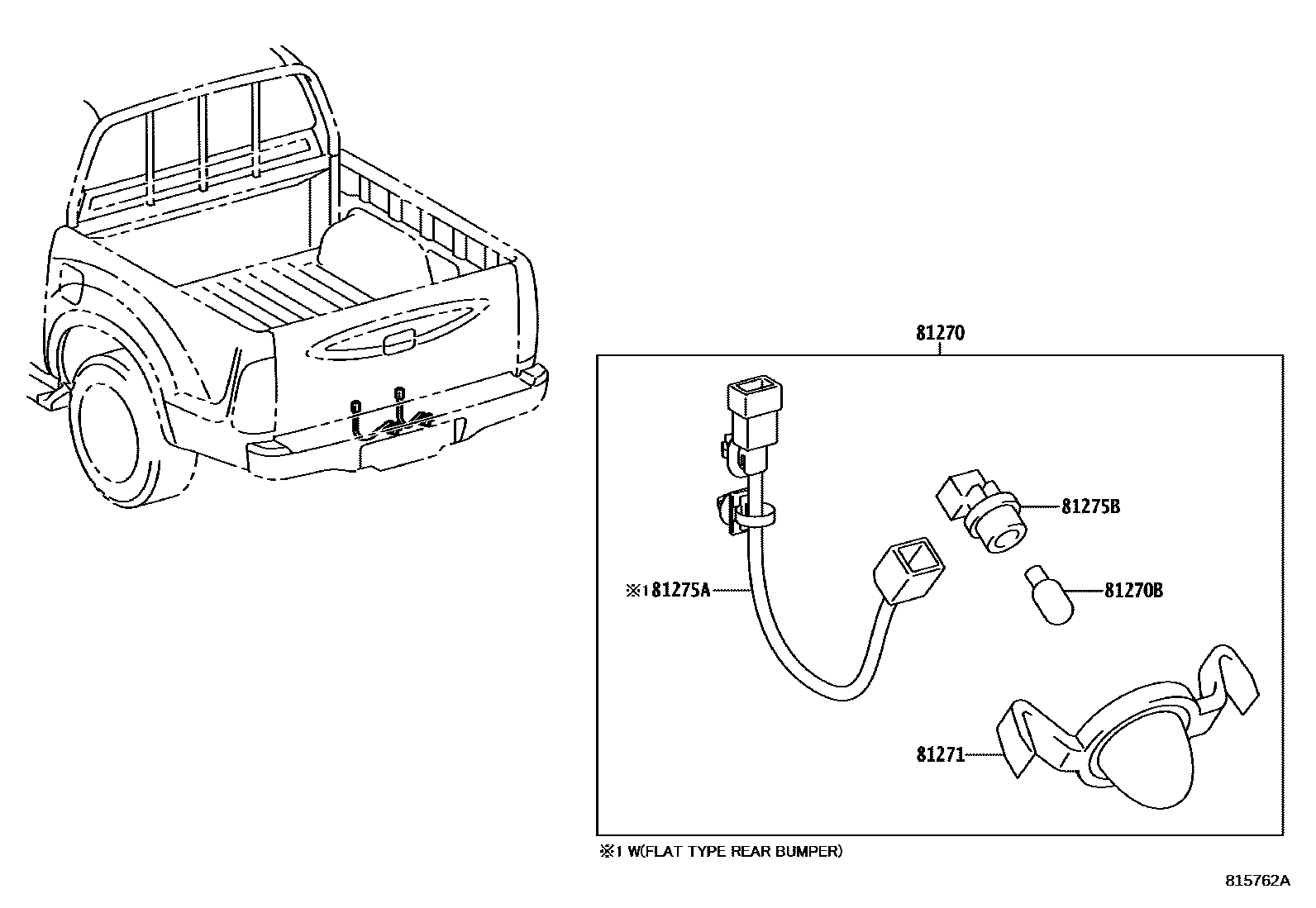

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-04040×2iKUN15..PKN..CBU;KUN25..DCB..PKN201107-201609

main81270-0K010×2iKUN26..(4FC,5F)..CO;KUN26,36,TGN26,36..SR..(DCR,HTWC)..LA;KUN26,TGN26,36..DCB..(5F,5FC)..(HTWCF,IART)201402-201609

main81270-0K050×2iKUN26,36,TGN26,36..SR..(DCR,HTWC)..LA; TGN26..ANCOM,CO;TGN26,36..4FC..(ANCOM,LA);KUN26,TGN36..SCB..DLX..CBU;GGN25,KUN25,35..(ANCOM,CO,LA)..CBU;KUN26,36,TGN26,36..DCB..DLX..(DCR,HTWC)..LA201110-201402

REAR BUMPER-STEP TYPE(STEEL & PLATED)

main81270-0K060×2iTGN26..SR..HTWC..LA;KUN26,36,TGN36..SR..(DCR,HTWC)..(CO,LA);KUN26,TGN26..DCB..(5F,5FC)..(HTWCF,IART); TGN36..4FC..LA;TGN36..ANCOM..CBU;GGN25,TGN26..LHD..(4FC,5FC)..SR;KUN26,36,TGN26,36..DCB..5F..DLX..(DCR,HTWC)..(ANCOM,LA)201110-201402

REAR BUMPER-FLAT TYPE(STEEL & PLATED)

main81270-71011×2iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201609

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12013×2iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201609

12V 10W

main99132-12050×2iKUN15,25..PKN..CBU201107-201609

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-04040×2iKUN26..LA..CBU;KUN26..(4FC,5F)..CO;GGN25,KUN25,3#,TGN26,36..(ANCOM,CO,LA)..CBU201402

main81271-25040×2iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201609

81275ACORD, LICENSE PLATE LAMP

main81275-0K010×2iKUN26..(4FC,5F)..CO;KUN26,36,TGN26,36..SR..(DCR,HTWC)..LA;KUN26,TGN26,36..DCB..(5F,5FC)..(HTWCF,IART)201402-201609

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90075-99012×2iKUN26..LA..CBU;KUN26..(4FC,5F)..CO;GGN25,KUN25,3#,TGN26,36..(ANCOM,CO,LA)..CBU201402

5 parts on this diagram · 2 diagrams in section
