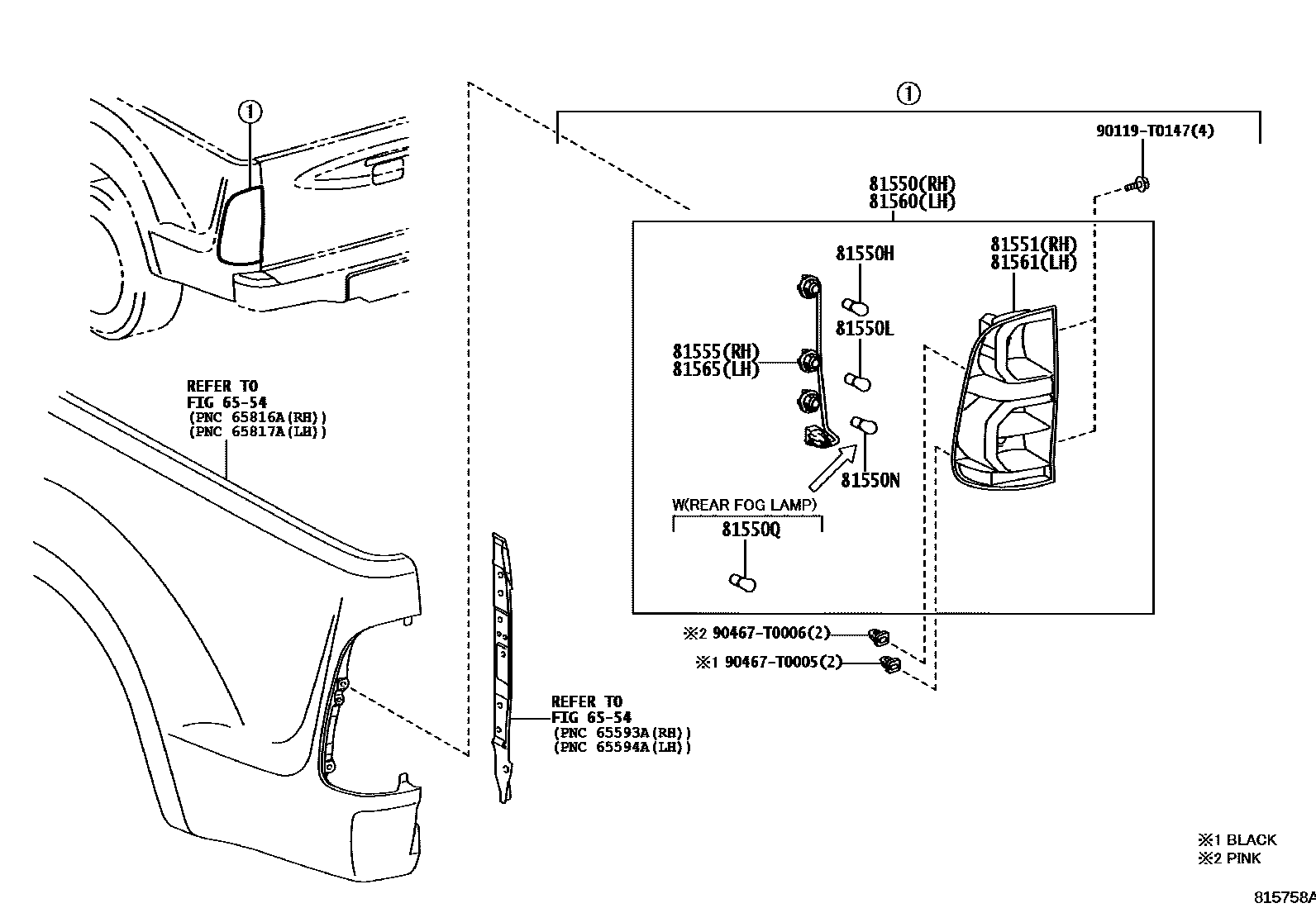

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6554

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K140iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU201107-201609

main81550-0K160iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81550-0K180iGGN25,KUN2#,3#,TGN26,36..(ANCOM,CO,LA)..CBU201110

main81550-0K360iKUN15,16,2#,35,TGN10,16,36..IV3201310-201609

main81550-71010iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201310

81550HBULB, TAIL & STOP LAMP

main90981-TD004iKUN15,16,2#,35,TGN10,16,36..IV3201408-201609

12V 21/5W

main99132-21210iKUN26..(5F,5FC)..IV3;KUN15,16,25,35,TGN10,16,36..IV3201107-201408

12V 21/5W

main99132-21210iKUN15,25..PKN..CBU201107-201609

81550LBULB, REAR TURN SIGNAL LAMP

main90981-TD003iKUN15,16,2#,35,TGN10,16,36..IV3201408-201609

12V 21W

main90981-WF005iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU201205-201609

main90981-WF006iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU201107-201204

12V 21W,AMBER

main90981-WF006iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(ANCOM,CO,LA,SA)..CBU201107

main99132-11210iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201408

12V 21W

81550NBULB, BACK UP LAMP

main90981-TD003iKUN15,16,2#,35,TGN10,16,36..IV3201408-201609

12V 21W

main99132-11210iKUN26..(5F,5FC)..IV3;KUN15,16,25,35,TGN10,16,36..IV3201107-201504

12V 21W

main99132-11210iKUN15,25..PKN..CBU201107-201609

81550QBULB, REAR FOG LAMP, NO.1

main99132-11210iKUN15..SCB..HDCR..GEN201210-201504

81551LENS, REAR COMBINATION LAMP, RH

main81551-0K140iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU201107-201609

main81551-0K160iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81551-0K180iGGN25,KUN2#,3#,TGN26,36..(ANCOM,CO,LA)..CBU201110

main81551-0K360iKUN15,16,2#,35,TGN10,16,36..IV3201310-201609

main81551-60442iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201310

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K140iGGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)..CBU201107-201609

main81555-0K160iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81555-0K180iGGN25,KUN2#,3#,TGN26,36..(ANCOM,CO,LA)..CBU201110

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K150iKUN15..RHD..(GEN,PKN,TH)..CBU;KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN15..LHD..SCB..DCR..(GCC,GEN)..CBU;GGN15,25,KUN10,16,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSC201107-201609

main81560-0K160iKUN15..SCB..HDCR..GEN201210-201504

main81560-0K170iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81560-0K190iGGN25,KUN2#,3#,TGN26,36..(ANCOM,CO,LA)..CBU201110

main81560-0K400iKUN15,16,2#,35,TGN10,16,36..IV3201310-201609

main81560-71010iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201310

81561LENS, REAR COMBINATION LAMP, LH

main81561-0K150iKUN15..RHD..(GEN,PKN,TH)..CBU;KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN15..LHD..SCB..DCR..(GCC,GEN)..CBU;GGN15,25,KUN10,16,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSC201107-201609

main81561-0K160iKUN15..SCB..HDCR..GEN201210-201504

main81561-0K170iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81561-0K190iGGN25,KUN2#,3#,TGN26,36..(ANCOM,CO,LA)..CBU201110

main81561-0K400iKUN15,16,2#,35,TGN10,16,36..IV3201310-201609

main81561-60372iGGN15,KUN15,16,2#,35,TGN10,16,36..IV3201107-201310

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K140iKUN15..RHD..(GEN,PKN,TH)..CBU;KUN15..LHD..(DCB,XTR)..(GCC,GEN,PHL);KUN15..LHD..SCB..DCR..(GCC,GEN)..CBU;GGN15,25,KUN10,16,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSC201107-201609

main81555-0K150iKUN15..SCB..HDCR..GEN201210-201504

main81555-0K160iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

main81555-0K180iGGN25,KUN2#,3#,TGN26,36..(ANCOM,CO,LA)..CBU201110

90119T0147

main90119-T0147

90467T0005

main90467-T0005

90467T0006

main90467-T0006

14 parts on this diagram · 3 diagrams in section
