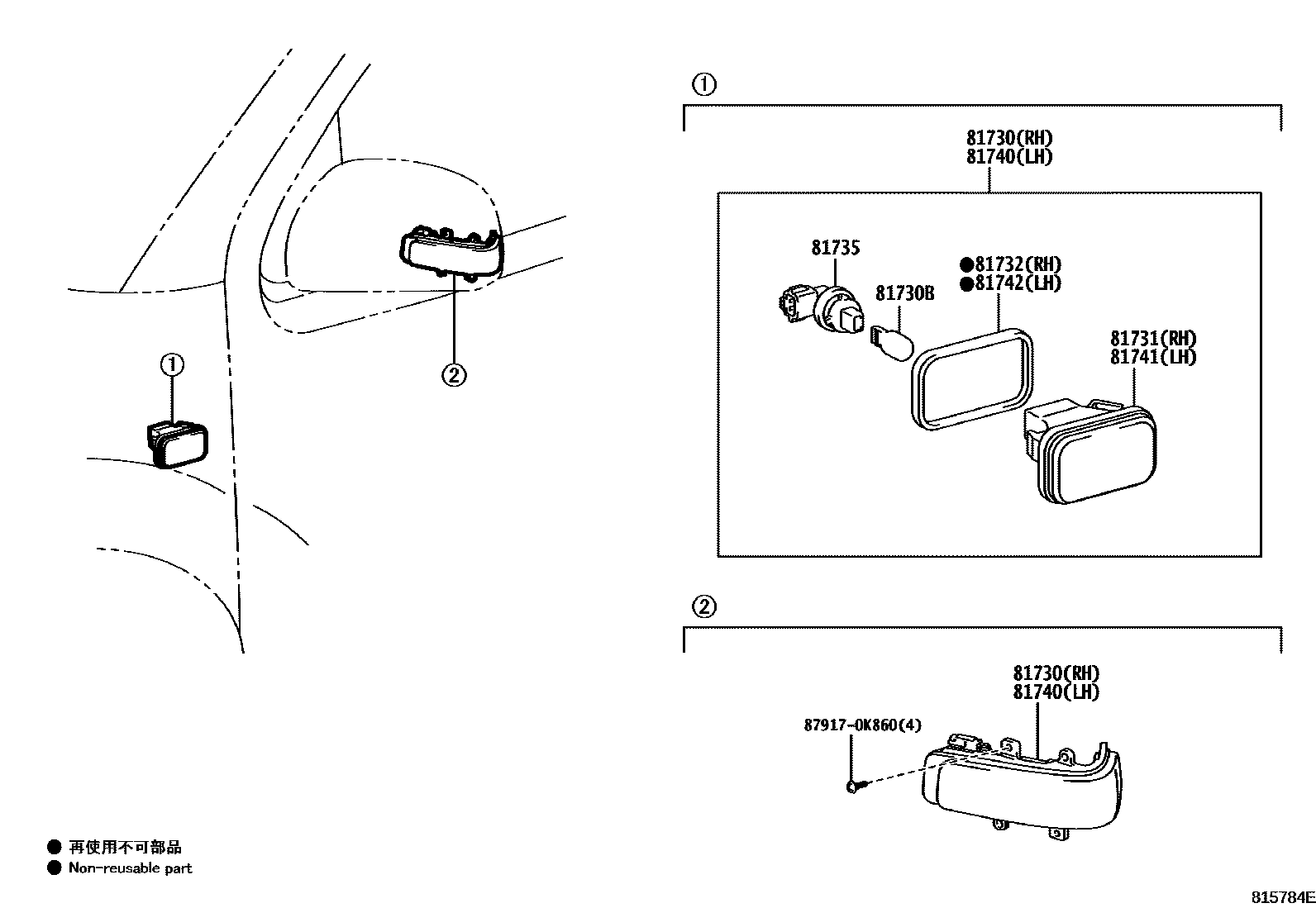

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-0K010iKUN25..4FC..PKN201107-201609

main81730-0K030iKUN25..5F..PKN;KUN25,35,TGN10..DLX..(GCC,GEN,IDN,MA);KUN15..DCB..DLX..DCR..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);GGN15,25,KUN10,16,26,TGN11,15,16,26,36..(DCB,SCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,TH)201107-201609

main81730-0K040iKUN26..SADCB..DLX;KUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA201108-201512

main81730-0K050iKUN2#,3#,TGN26,36..DLX..(ANCOM,CO,LA)201110

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iKUN15..DCB..DLX..DCR;KUN25,35,TGN10..DLX..(CO,GCC,GEN,IDN,LA,MA,SA);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,SA,TH);GGN15,25,KUN10,16,26,36,LAN15,25,35,TGN11,15,16,26,36..(DCB,SADCB,SCB,THDCB,XTR)..DLX..(ANCOM,ARL,GCC,GEN,LA,SA,TH)201107

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-0K030iKUN25..5F..PKN;KUN25,35,TGN10..DLX..(GCC,GEN,IDN,MA);KUN15..DCB..DLX..DCR..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);GGN15,25,KUN10,16,26,TGN11,15,16,26,36..(DCB,SCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,TH)201107-201609

main81731-0K040iKUN26..SADCB..DLX;KUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA201108-201512

main81731-0K050iKUN2#,3#,TGN26,36..DLX..(ANCOM,CO,LA)201110

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-02040iKUN25..5F..PKN;KUN25,35,TGN10..DLX..(GCC,GEN,IDN,MA);KUN15..DCB..DLX..DCR..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);GGN15,25,KUN10,16,26,TGN11,15,16,26,36..(DCB,SCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,TH)201107-201609

main81732-02060iKUN26..SADCB..DLX;KUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA201108-201512

main81732-0K050iKUN2#,3#,TGN26,36..DLX..(ANCOM,CO,LA)201110

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90069-81041×2iKUN26..SADCB..DLX;KUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA201108-201512

main90069-81089×2iKUN2#,3#,TGN26,36..DLX..(ANCOM,CO,LA)201110

main90075-99012×2iKUN25..5F..PKN;KUN25,35,TGN10..DLX..(GCC,GEN,IDN,MA);KUN15..DCB..DLX..DCR..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);GGN15,25,KUN10,16,26,TGN11,15,16,26,36..(DCB,SCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,TH)201107-201609

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-0K030iKUN25..5F..PKN;KUN25,35,TGN10..DLX..(GCC,GEN,IDN,MA);KUN15..DCB..DLX..DCR..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);GGN15,25,KUN10,16,26,TGN11,15,16,26,36..(DCB,SCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,TH)201107-201609

main81730-0K040iKUN26..SADCB..DLX;KUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA201108-201512

main81730-0K050iKUN2#,3#,TGN26,36..DLX..(ANCOM,CO,LA)201110

main81740-0K010iKUN25..4FC..PKN201107-201609

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-0K030iKUN25..5F..PKN;KUN25,35,TGN10..DLX..(GCC,GEN,IDN,MA);KUN15..DCB..DLX..DCR..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);GGN15,25,KUN10,16,26,TGN11,15,16,26,36..(DCB,SCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,TH)201107-201609

main81731-0K040iKUN26..SADCB..DLX;KUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA201108-201512

main81731-0K050iKUN2#,3#,TGN26,36..DLX..(ANCOM,CO,LA)201110

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-02040iKUN25..5F..PKN;KUN25,35,TGN10..DLX..(GCC,GEN,IDN,MA);KUN15..DCB..DLX..DCR..(GCC,GEN,PHL,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GCC,GEN,PHL,PKN,TH);GGN15,25,KUN10,16,26,TGN11,15,16,26,36..(DCB,SCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,TH)201107-201609

main81732-02060iKUN26..SADCB..DLX;KUN15,25,35,LAN15,25,35,TGN15,16,26..DLX..SA201108-201512

main81732-0K050iKUN2#,3#,TGN26,36..DLX..(ANCOM,CO,LA)201110

879170K860ESCUTCHEON

main87917-0K860

9 parts on this diagram · 1 diagram in section
