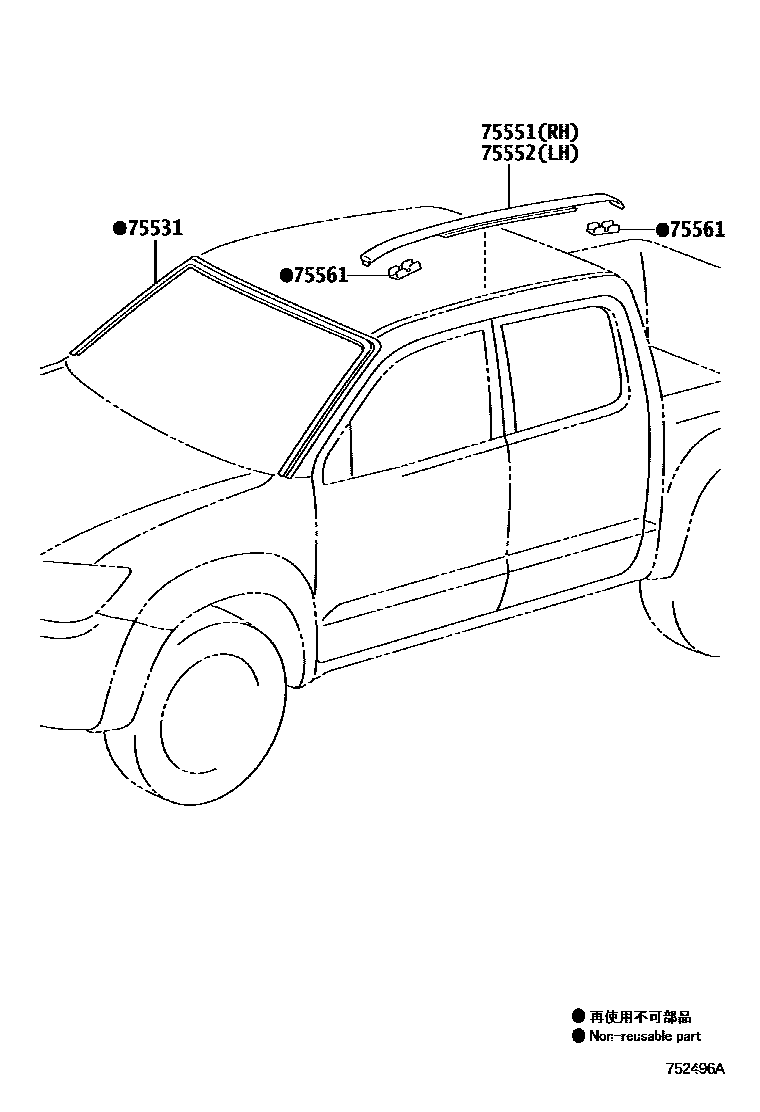

MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-0K010iKUN15,25..PKN201107-201609

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0K011iKUN26..DCB..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);KUN26..(DCB,SADCB,THDCB)..(4FC,5F);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

NO PAINT REQ.

main75551-0K031iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB201107-201609

NO PAINT REQ.

main75551-0K041iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0K011×2iKUN26..5FC..ARL..CBU201311-201504

NO PAINT REQ.

main75552-0K031iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB201107-201609

NO PAINT REQ.

main75552-0K041iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

NO PAINT REQ.

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020×4iKUN26..4FC,5F;KUN26..5FC..IV3;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107

4 parts on this diagram · 1 diagram in section
