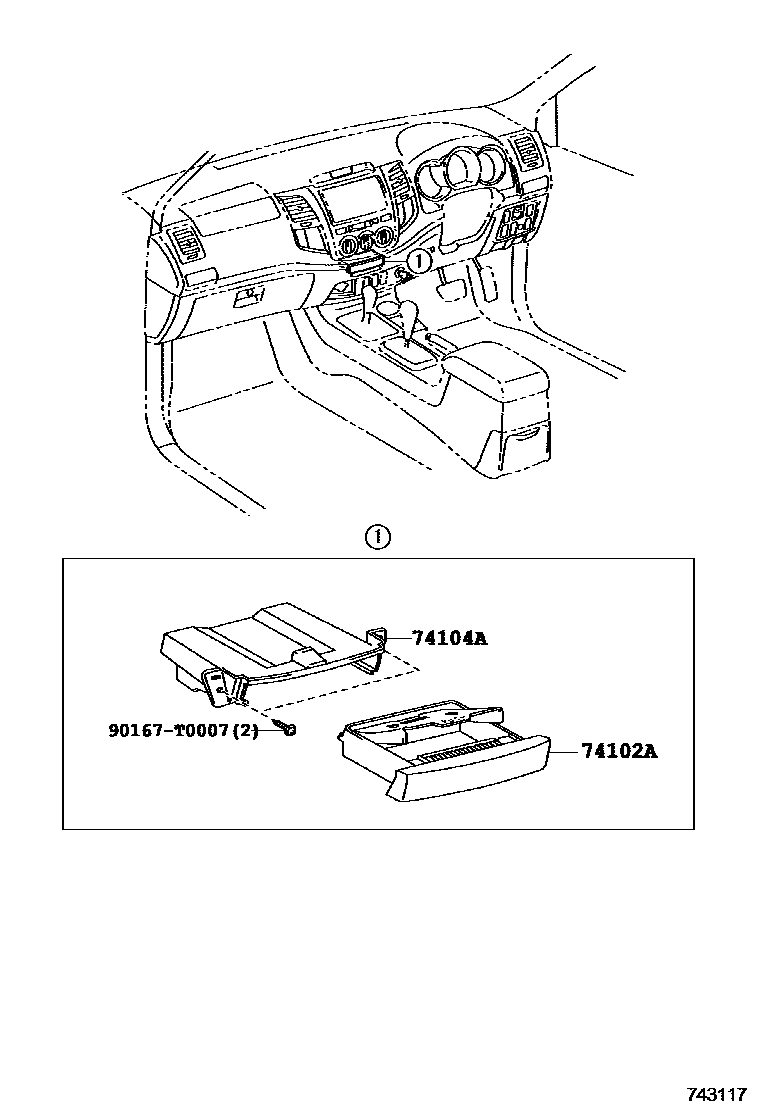

ASH RECEPTACLE
74102ARECEPTACLE ASSY, FRONT ASH
main74102-0K011-B0iKUN16,3#..DCB..5FC; KUN26..CO,LA;GGN15,35..5FC;KUN15..SCB,XTR;GGN25..5FC..SR;TGN16..DLX..TH;KUN15..(DCB,SMT)..DLX;KUN25..RHD..(GEN,MA,SA);KUN26..LHD..(SADCB,THDCB);KUN26..RHD..5F..(ARL,GEN,SA);KUN25..5F..(CO,GCC,IDN,LA,PKN);KUN25,35..LHD..DLX..(GEN,PHL,SA);KUN26..RHD..(4FC,5FC)..(GEN,SA,TH);KUN10,16,3#,LAN15,25,35,TGN11,15..ARL,CO,GCC,LA,SA;TGN10,16,26,36..(DLX,SR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,SA); KUN35..5F..TH;KUN15,2#,36,TGN16..5F..SR..TH201308-201404
DK.GRAY,TRIM10; DK.GRAY,TRIM10,11; DK.GRAY,TRIM11
main74102-0K011-C0iGGN15..5FC;KUN35..LHD..DLX;GGN25..5FC..SR..ARL;KUN25..DCB..(CO,LA,MA);KUN26..(4FC,5FC)..(CO,LA);KUN15..(DCB,SMT)..DLX..TH;KUN25,TGN16..LHD..SCB..(GEN,LA);KUN36,TGN26,36..LHD..(CO,GEN,LA);KUN26..(DCB,XTR)..5F..(ARL,CO,LA);KUN26..(SADCB,SCB,THDCB)..(GEN,LA);TGN16..(DCB,SMT,XTR)..DLX..(ARL,GEN,TH);KUN15,16,25..5F..DLX..(ARL,GEN,PHL)..CBU; KUN15,16,3#..SR..GEN;KUN26..LHD..DCB..GEN; KUN25,TGN26..4FC..GEN; KUN25..DLX..(GCC,SA);TGN16..DCB..(GCC,SA);KUN15..DCB..DLX..(GCC,SA);KUN16,2#,TGN10..SCB..5F..DLX..(ARL,GCC,IDN,MA);KUN15,TGN16..(SCB,XTR)..(ARL,GCC,PHL,PKN,SA,TH);GGN25,35,KUN10,26,3#,LAN15,25,35,TGN11,15,26,36..ANCOM,GCC,SA; KUN35..5F..SR..PHL;KUN15,2#..SR..(IDN,PHL); KUN35..DCB..TH;KUN35..SMT..5F;KUN25..5F..(IDN,TH);KUN15,16,36,TGN16..SR..TH;KUN26..RHD..(DCB,SMT)..(GEN,TH)201308-201404
BLACK,TRIM1#,2#,40; BLACK,TRIM10; BLACK,TRIM10,2#; BLACK,TRIM10,2#,4#; BLACK,TRIM10,2#,40; BLACK,TRIM2#,40
RED,TRIM3#
ASH BROWN,TRIM4#
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
main74104-0K011iKUN25,TGN10..DLX,SR;GGN15,25,35,KUN1#,26,3#,LAN15,25,35,TGN11,15,16,26,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,PKN,SA,TH201107
90167T0007
main90167-T0007
3 parts on this diagram · 1 diagram in section
