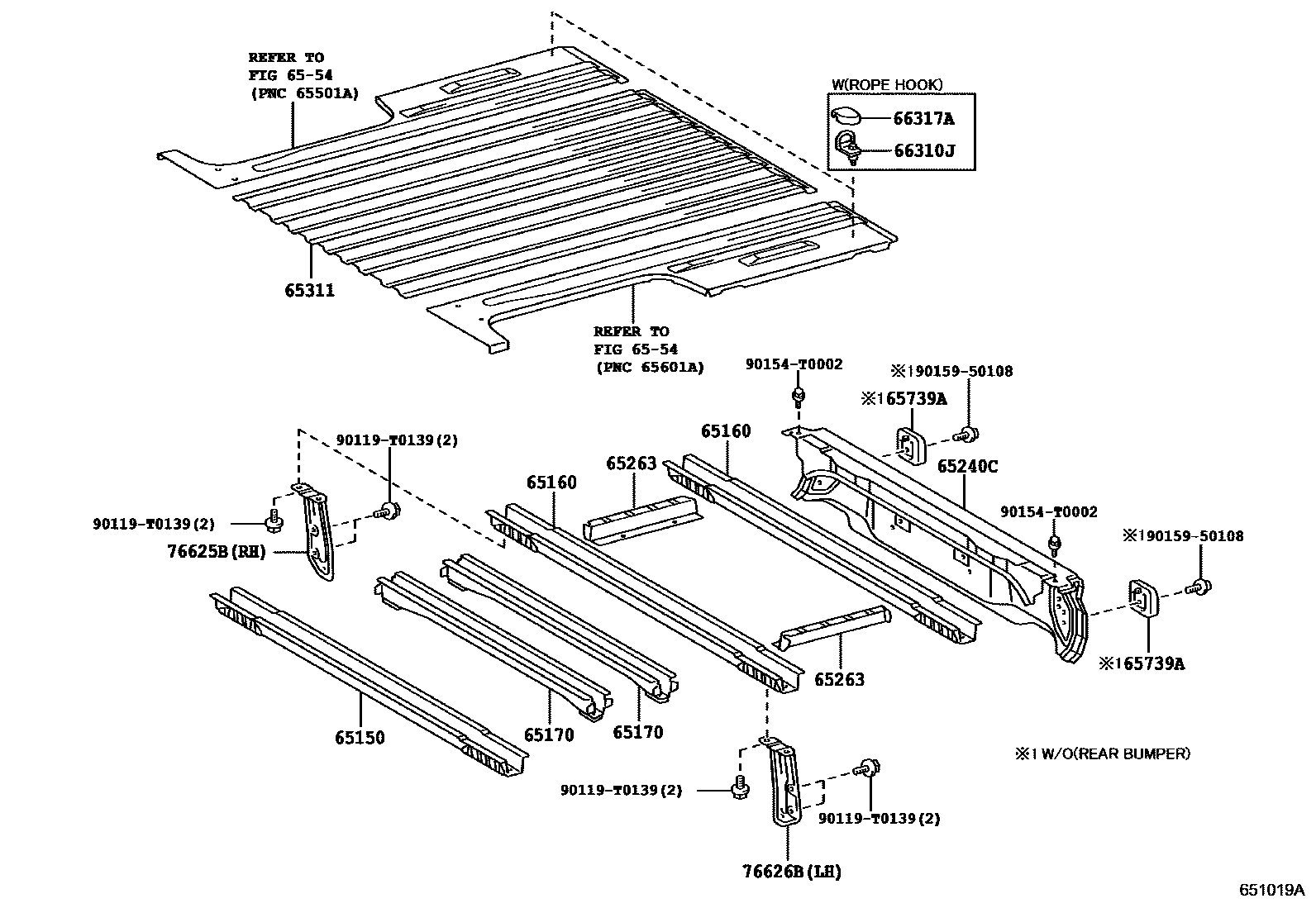

REAR BODY FLOOR & FENDER
65150SILL ASSY, CROSS, NO.1
main65150-0K010iGGN15..DCB;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)..CBU201107
main65151-0K010iGGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..(SCB,SMT,THSCB,XTR)..(ARL,GCC,GEN,MA,SA,TH)..CBU201107-201512
65160SILL ASSY, CROSS, NO.2
main65160-0K010×4iKUN25..DCB..PKN; KUN36,LAN15,25..SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36..(SCB,THSCB)..(DCR,HDCR,HTWC,HTWCF,IART)..(ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH)..CBU201107-201609
65170SILL ASSY, CROSS, NO.2
main65170-0K010×2iKUN26..4FC..CO;GGN15,LAN35,TGN15..CBU;KUN15,LAN25..RHD..(DLX,SR);TGN36..(SCB,THDCB)..(GEN,SA);KUN15..LHD..(GCC,GEN,PHL)..CBU;KUN15,LAN25,TGN16..LHD..SCB..SA;KUN2#,3#,LAN15,TGN16..(SCB,XTR)..(CNG,DCR,DEFI,HDCR)..(MA,SA,TH);GGN25,KUN10,16,2#,3#,TGN10,11,16,26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(DCR,HDCR,HTWC)..(ARL,GCC,GEN,IDN,PHL,TH)..CBU201107-201512
65240CSILL ASSY, CROSS, NO.9
main65240-0K010iKUN15,TGN16..SMT..DLX..(DCR,HDCR,HTWC); KUN15..DLX..PHL; TGN16..GCC..CBU;KUN25..(DCB,SCB)..(GCC,GEN);KUN15,35,TGN16..LHD..(DCB,XTR)..DLX..(HDCR,HTWC)..(GEN,PHL);KUN10,15,TGN10,11,15,26..(DCB,SCB)..DLX..(DCR,HTWC)..(GCC,GEN)..CBU201107-201504
REAR BUMPER-FLAT TYPE(STEEL & PAINTED); REAR BUMPER-FLAT TYPE(STEEL & PLATED)
main65240-0K020supersedes 65240-0K050iKUN15,TGN16..SR..TH;KUN25,LAN25,35..RHD..DCB..DLX..(IDN,SA); TGN26..THDCB;KUN35..SR..PHL;KUN26..5FC..SR;KUN35..LHD..GEN;TGN36..LHD..CBU;KUN26..XTR..SR..ARL;KUN26..5FC..DLX..LA;TGN26..ANCOM,CO,LA,SA;KUN25..(DCB,SMT)..(CO,LA,MA,TH);KUN35..(DCB,SMT,XTR)..(CO,LA,SA,TH);KUN15,25,LAN25,TGN16..LHD..DCB..DLX..SA;GGN15,35,KUN16,TGN36..RHD..(DCB,SMT,XTR)..SR;KUN25..LHD..(SCB,THDCB,THSCB,XTR)..(GEN,LA)..CBU;GGN25,KUN15,25..(4FC,5F)..SR..(ARL,GEN,IDN,PHL,SA);GGN25,KUN36,LAN15..(DCB,SMT,XTR)..(ANCOM,GEN,LA,SA,TH);KUN15,26,35,TGN16..SCB..(HDCR,HTWC,IART)..(GEN,LA)..CBU;KUN26..(DCB,SADCB,SMT,THDCB,XTR)..(4FC,5F)..(CO,GEN,LA,MA,PHL,SA,TH)201107-201506
REAR BUMPER-FLAT TYPE(STEEL & PLATED)
main65240-0K040iKUN25..PKN;KUN15..SMT..DLX..HDCR;KUN10,15,TGN10..(IDN,PKN)..CBU;KUN15,TGN16..(DCB,SMT,XTR)..DLX..(CNG,DCR,HTWC)..(PHL,TH)201107-201506
REAR BUMPER-WITHOUT
main65240-0K070iKUN15,25,LAN15,25,TGN15..SCB..SA; KUN35,TGN16..SCB..SA; LAN25..SCB;KUN25..RHD..SCB..SA201108-201506
REAR BUMPER-FLAT TYPE(STEEL & PAINTED); REAR BUMPER-FLAT TYPE(STEEL & PLATED)
main65240-0K071supersedes 65240-0K081iKUN15,25,LAN15,25,TGN15..SCB..SA; KUN35,TGN16..SCB..SA; LAN25..SCB;KUN25..RHD..SCB..SA201507-201512
REAR BUMPER-FLAT TYPE(STEEL & PAINTED); REAR BUMPER-FLAT TYPE(STEEL & PLATED)
TAIL GATE-WITHOUT
65263REINFORCEMENT, FLOOR SIDE FRAME
main65263-0K010×2iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)..CBU201107
65311PANEL, FLOOR, CENTER
main65311-0K010iKUN36,LAN15,25..SCB;GGN15,KUN15,16,2#,35,TGN15,16,26,36..(SCB,THSCB)..(DCR,HDCR,HTWC,HTWCF,IART)..(ANCOM,ARL,GCC,GEN,LA,PKN,SA,TH)..CBU201107-201609
6554REAR BODY SIDE PANEL
65739ABUMPER, TAIL GATE
main65738-0K020iKUN15..XTR..TH;KUN26..4FC..SR..ARL;KUN35..DCB..DLX..GEN;KUN25,LAN15..SCB..(MA,SA);KUN15,LAN25..LHD..SCB..SA;KUN25..RHD..DCB..DLX..(IDN,PKN,SA);KUN15,26..(4FC,5F)..DLX..(ARL,PHL)..CBU;GGN15,25,KUN10,16,LAN25,35,TGN10,15..RHD..DLX..CBU;KUN15,TGN16..RHD..(DCB,SCB,SMT)..(ARL,PKN,SA,TH)..CBU201107-201609
LH
RH
66310JHOOK ASSY, ROPE
66317ACOVER, ROPE HOOK
76625BMUDGUARD, REAR BODY, RH
76626BMUDGUARD, REAR BODY, LH
90119T0139
main90119-T0139
90154T0002
main90154-T0002
9015950108
main90159-50108
15 parts on this diagram · 6 diagrams in section
