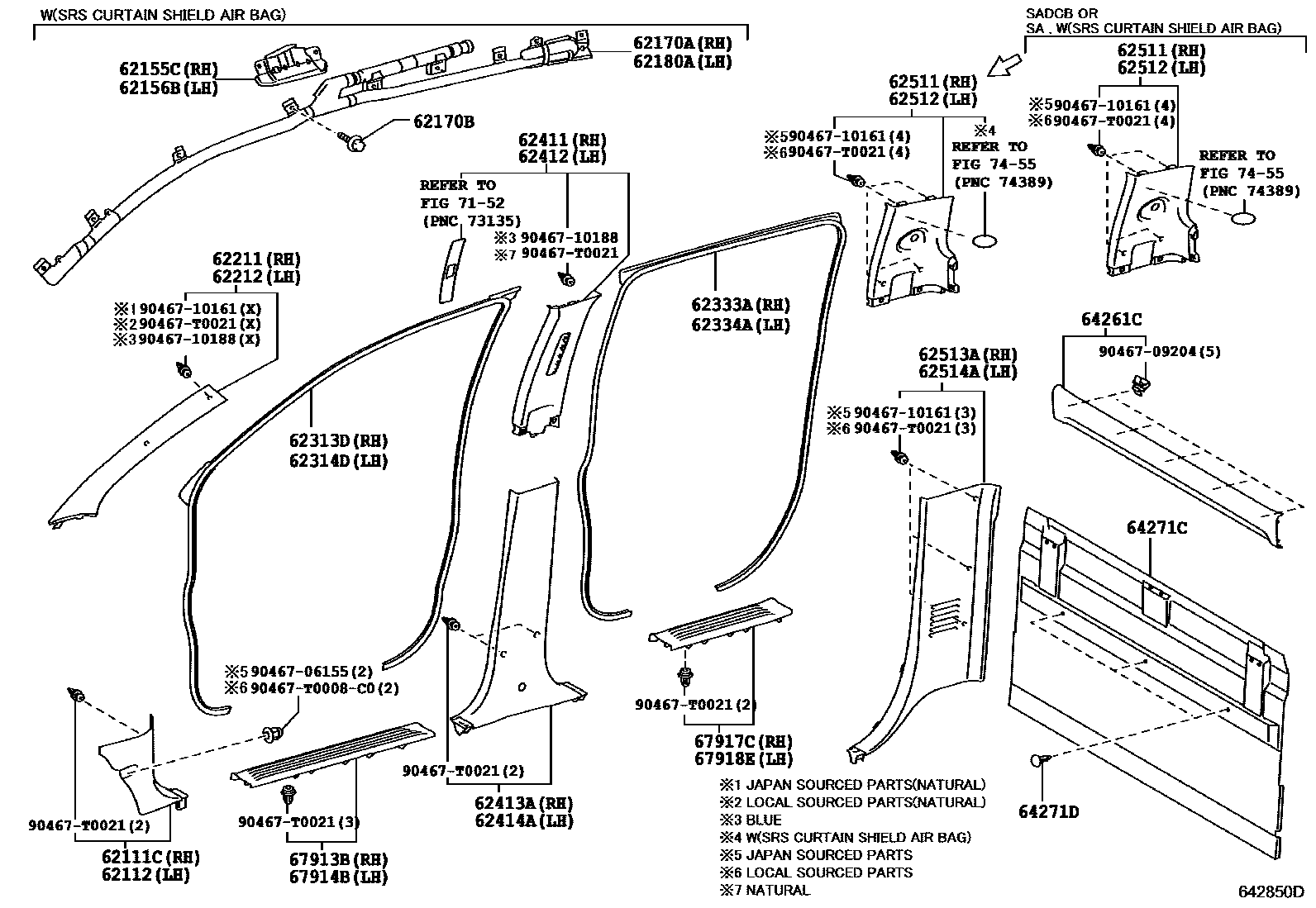

INSIDE TRIM BOARD

0001 1W/O(3-POINT REAR CENTER SEAT 0002 1W(3-POINT REAR CENTER SEAT BE0003 1 0004 1 0005 1

62111CBOARD, COWL SIDE TRIM, RH

main62111-0K010-B1iKUN10,15,25,TGN1#,26..GCC201107-201504

MD.GRAY,TRIM1#,3#

main62111-0K010-B1iTGN16..SR..TH201107-201609

MD.GRAY,TRIM1#

main62111-0K010-B1iKUN15..SR..TH;KUN2#,3#..5F..TH201203-201308

MD.GRAY,TRIM10

main62111-0K010-B2iTGN16..SR..TH;KUN36..4FC..TH201203-201308

DK.GRAY,TRIM11

main62111-0K010-C0iKUN26..4FC..TH;GGN25..5FC..SR..ARL;KUN25,TGN16..SCB..GEN;KUN35..LHD..(GEN,PHL);GGN15,KUN16..(4FC,5FC)..(ARL,GEN);TGN16..(DCB,SMT,XTR)..HTWC..(ARL,GEN,TH);KUN15,25..(DCB,THDCB,THSCB,XTR)..HDCR..(GEN,IDN,MA);KUN15,26,36,TGN26,36..(DCB,SCB,THDCB)..(4FC,5F)..(DCR,HTWC)..(GEN,MA,PHL)..CBU201308-201601

BLACK,TRIM2#

main62111-0K010-E0iTGN16..SR..TH;KUN26..4FC..TH;KUN25..DCB..5F..(IDN,PKN);KUN25,36..4FC..(GEN,IDN,PKN,TH);KUN15,26,3#..DCB..SR..(GEN,PHL);KUN16,TGN26..RHD..(DCB,SMT)..(4FC,5F)..(GEN,TH)201107-201609

SAND BEIGE,TRIM4#

main62111-0K020-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

MD.GRAY,TRIM1#

main62111-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main62111-0K030-B1iKUN2#,35..5F..CO201110-201410

MD.GRAY,TRIM1#

main62111-0K030-C0iKUN2#,35..5F..CO201310-201510

BLACK,TRIM2#

main62111-0K030-C0iTGN26,36..CO,LA;KUN26..4FC..(CO,LA)201310-201510

HIGH ALTITUDE COUNTRY SPEC,BLACK,TRIM2#

main62111-0K030-C0iTGN26,36..CO,LA;KUN26..4FC..(CO,LA)201310-201510

PERU SPEC(HIGH ALTITUDE SPEC),BLACK,TRIM2#

main62111-0K030-C0iTGN26,36..CO,LA;KUN26..4FC..(CO,LA)201310-201510

PERU SPEC,BLACK,TRIM2#

main62111-0K030-C0iTGN26,36..CO,LA;KUN26..4FC..(CO,LA)201310-201510

EXPORT FROM ARGENTINA,BLACK,TRIM2#

main62111-0K090-B1iKUN16..TH201107-201504

MD.GRAY,TRIM1#

main62111-0K090-B1iTGN26..DCB..5F..GEN201308-201504

KAZAKHSTAN SPEC,MD.GRAY,TRIM1#

main62111-0K090-B1iKUN25,3#..TH;KUN15,26..5F..SR..TH201208-201308

MD.GRAY,TRIM10

main62111-0K090-B1iKUN16,26..ARL;KUN35..SMT..5FC;KUN35..DCB..DLX..GEN;KUN26..5FC..(GEN,TH);KUN15,TGN16..(SCB,SMT)..DLX..(CNG,HDCR)201107-201504

CHILE SPEC(EURO 5 REGULATION),MD.GRAY,TRIM1#

main62111-0K090-B2iKUN25,3#..TH;KUN15,26..5F..SR..TH201208-201308

DK.GRAY,TRIM11

main62111-0K090-C0iTGN26..DCB..5F..GEN201308-201504

CHILE SPEC(EURO 5 REGULATION),BLACK,TRIM2#

main62111-0K090-C0iTGN26..DCB..5F..GEN201308-201504

KAZAKHSTAN SPEC,BLACK,TRIM2#

main62111-0K090-C0iTGN26..DCB..5F..GEN201308-201504

BLACK,TRIM2#

main62111-0K090-E0iKUN15..SR..TH;KUN2#,3#..(5F,5FC)..TH201208-201504

SAND BEIGE,TRIM4#

main62111-0K160-B0iKUN2#,35..5F..CO201110-201510

MD.GRAY,TRIM1#

main62111-0K160-C0iKUN26..5FC..CO;KUN2#,3#..(5F,5FC)..LA201310-201510

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-0K010-B1iTGN16..SR..TH;KUN36..4FC..TH201203-201308

MD.GRAY,TRIM10

main62112-0K010-B1iKUN25,3#..TH;KUN15,26,TGN16..5F..SR..TH201107-201609

MD.GRAY,TRIM1#

main62112-0K010-B1iKUN10,15,25,TGN1#,26..GCC201107-201504

MD.GRAY,TRIM1#,3#

main62112-0K010-B2iKUN15..SR..TH;KUN2#,3#..5F..TH201203-201308

DK.GRAY,TRIM11

main62112-0K010-C0iKUN26..4FC..TH;GGN25..5FC..SR..ARL;KUN25,TGN16..SCB..GEN;KUN35..LHD..(GEN,PHL);GGN15,KUN16..(4FC,5FC)..(ARL,GEN);TGN16..(DCB,SMT,XTR)..HTWC..(ARL,GEN,TH);KUN15,25..(DCB,THDCB,THSCB,XTR)..HDCR..(GEN,IDN,MA);KUN15,26,36,TGN26,36..(DCB,SCB,THDCB)..(4FC,5F)..(DCR,HTWC)..(GEN,MA,PHL)..CBU201308-201601

BLACK,TRIM2#

main62112-0K010-E0iTGN16..SR..TH;KUN26..4FC..TH;KUN25..DCB..5F..(IDN,PKN);KUN25,36..4FC..(GEN,IDN,PKN,TH);KUN15,26,3#..DCB..SR..(GEN,PHL);KUN16,TGN26..RHD..(DCB,SMT)..(4FC,5F)..(GEN,TH)201107-201609

SAND BEIGE,TRIM4#

main62112-0K020-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..SA201108-201512

MD.GRAY,TRIM1#

main62112-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main62112-0K030-B1iKUN2#,35..5F..CO201110-201410

MD.GRAY,TRIM1#

main62112-0K030-C0iKUN26..5F..DCR..LA201310-201510

EXPORT FROM ARGENTINA,BLACK,TRIM2#

main62112-0K030-C0iKUN26..5F..DCR..LA201310-201510

PERU SPEC,BLACK,TRIM2#

main62112-0K030-C0iKUN26..5F..DCR..LA201310-201510

PERU SPEC(HIGH ALTITUDE SPEC),BLACK,TRIM2#

main62112-0K030-C0iKUN26..5F..DCR..LA201310-201510

HIGH ALTITUDE COUNTRY SPEC,BLACK,TRIM2#

main62112-0K030-C0iKUN26..5F..DCR..LA201310-201510

BLACK,TRIM2#

main62112-0K090-B1iKUN26..5F..TH;KUN35..DCB..TH;KUN35..SMT..5F;KUN15,25,36..SR..TH201107-201504

MD.GRAY,TRIM1#

main62112-0K090-B1iKUN25,3#..TH;KUN15,26..5F..SR..TH201208-201308

MD.GRAY,TRIM10

main62112-0K090-B1iKUN16,26..ARL;KUN35..SMT..5FC;KUN35..DCB..DLX..GEN;KUN26..5FC..(GEN,TH);KUN15,TGN16..(SCB,SMT)..DLX..(CNG,HDCR)201107-201504

CHILE SPEC(EURO 5 REGULATION),MD.GRAY,TRIM1#

main62112-0K090-B1iKUN16..TH201308-201504

KAZAKHSTAN SPEC,MD.GRAY,TRIM1#

main62112-0K090-B2iKUN25,3#..TH;KUN15,26..5F..SR..TH201208-201308

DK.GRAY,TRIM11

main62112-0K090-C0iTGN26..DCB..5F..GEN201308-201504

CHILE SPEC(EURO 5 REGULATION),BLACK,TRIM2#

main62112-0K090-C0iTGN26..DCB..5F..GEN201308-201504

KAZAKHSTAN SPEC,BLACK,TRIM2#

main62112-0K090-C0iKUN2#,35..THDCB..5F201308-201504

BLACK,TRIM2#

main62112-0K090-E0iKUN15..SR..TH;KUN2#,3#..(5F,5FC)..TH201208-201504

SAND BEIGE,TRIM4#

main62112-0K160-B0iKUN26..5FC..CO;KUN2#,3#..(5F,5FC)..LA201110-201510

MD.GRAY,TRIM1#

main62112-0K160-C0iKUN26..5FC..CO;KUN2#,3#..(5F,5FC)..LA201310-201510

BLACK,TRIM2#

62155CBRACKET, CURTAIN SHIELD AIRBAG, RH

main62155-0K030iGGN25,35..RHD;KUN35..SR..SA;KUN26..DCB..ARL;KUN26,36..4FC..SA201107-201512

main62157-0K010iKUN26..XTR..ARL201107-201504

62156BBRACKET, CURTAIN SHIELD AIRBAG, LH

main62156-0K010iGGN25,35..RHD;KUN35..SR..SA;KUN26..DCB..ARL;KUN26,36..4FC..SA201107-201512

main62158-0K010iKUN26..XTR..ARL201107-201504

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0K010iKUN35..SR..SA;GGN25,35,KUN26,36..(4FC,5FC)..SA201108-201303

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62170-0K011iKUN35..SR..SA;GGN25,35,KUN26,36..(4FC,5FC)..SA201304-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62170-0K030iGGN25,KUN26..DCB..ARL201107-201307

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main62170-0K031iGGN25,KUN26..DCB..ARL201308-201504

main62170-0K040iKUN26..SCB..ARL201107-201504

main62170-0K050iKUN26..XTR..ARL201107-201504

62170BBOLT, W/WASHER

main90119-06869iGGN25..5F;GGN25..5FC..DLX;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU201107-201412

main90119-06869iKUN26..SCB..ARL201107-201411

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main90119-06869iKUN26..SCB..ARL201411-201512

(J)

main90119-06869iKUN35..SR..SA;GGN25,35,KUN26,36..(4FC,5FC)..SA201412-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),(J)

main90119-T0425iKUN26..RHD..SADCB..4FC;KUN26,36,TGN36..DCB..5F..SA201412-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),(L)

main90119-T0425iKUN26..XTR..ARL201411-201512

(L)

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0K010iKUN35..SR..SA;GGN25,35,KUN26,36..(4FC,5FC)..SA201108-201303

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62180-0K011iKUN35..SR..SA;GGN25,35,KUN26,36..(4FC,5FC)..SA201304-201512

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

main62180-0K030iKUN26..DCB..5F..DLX..ARL..CBU201107-201307

SRS AIR BAG-WITH(DRIVER & PASSENGER)

main62180-0K031iGGN25,KUN26..DCB..ARL201308-201504

main62180-0K040iKUN26..SCB..ARL201107-201504

main62180-0K050iKUN26..XTR..ARL201107-201504

62211GARNISH, FRONT PILLAR, RH

main62211-0K010-B0iKUN15..SR..PHL201107-201504

LT.GRAY,TRIM1#,2#

main62211-0K010-B0iKUN10,15,TGN1#..GCC201107-201504

LT.GRAY,TRIM2#

main62211-0K010-B0iKUN10,15,TGN1#..GCC201107-201504

LT.GRAY,TRIM1#,3#

main62211-0K010-B0iKUN16..4FC..TH;GGN15,KUN10,16,TGN10..RHD..(SCB,SMT);KUN15,TGN16..(SCB,XTR)..(ARL,PHL,PKN,TH);GGN15,KUN15..(DCB,SMT)..5F..(DCR,HTWC)..(ARL,TH)201107-201609

LT.GRAY,TRIM1#

main62211-0K010-E0iKUN16..TH201107-201504

SAND BEIGE,TRIM4#

main62211-0K020-B0iKUN35..SR..PHL201107-201504

LT.GRAY,TRIM2#

main62211-0K020-B0iKUN35..SR..PHL201107-201504

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#,2#

main62211-0K020-B0iKUN26..5FC..DLX..ARL..CBU201107-201504

LT.GRAY,TRIM1#,3#

main62211-0K020-B0iKUN35..TH;KUN35..SR..GEN;KUN25..SCB..GEN;KUN36..(5F,5FC)..(GEN,TH);KUN35..LHD..DLX..(GEN,PHL);KUN25..(DCB,SMT,THDCB,THSCB,XTR)..(GEN,IDN,MA,TH);KUN26,TGN26,36..(DCB,SCB,SMT,THDCB)..(GEN,MA,PHL,TH)201107-201601

LT.GRAY,TRIM1#,2#

main62211-0K020-B0iKUN25..PKN;KUN25..SCB..MA;KUN36..4FC..TH201107-201609

LT.GRAY,TRIM1#

main62211-0K020-E0iKUN35..LHD..SR;KUN25..4FC..GEN;KUN36,TGN26..RHD..(GEN,TH);KUN26..(DCB,SMT)..(GEN,PHL,TH);KUN25,35..(DCB,SMT)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62211-0K030-B0iKUN15,LAN15,TGN15,16..(SCB,XTR)..SA201108-201512

LT.GRAY,TRIM1#

main62211-0K040-B0iKUN26..SADCB201204-201512

LT.GRAY,TRIM1#,2#

main62211-0K040-B0iKUN35..DLX..SA;KUN26,36..5F..SA;KUN15,LAN15,TGN16..DCB..SA;KUN25,LAN25,35,TGN26,36..SA201108-201512

LT.GRAY,TRIM1#

main62211-0K050-B0iGGN25,TGN26,36..ANCOM201204

LT.GRAY,TRIM1#

main62211-0K050-B0iKUN2#,3#,TGN26,36..CO,LA201110-201510

LT.GRAY,TRIM1#,2#

main62211-0K080-B0iGGN25..5FC..SR..ARL;KUN26..(DCB,XTR)..(5F,5FC)..ARL201107-201504

LT.GRAY,TRIM1#,2#

main62211-0K080-B0iGGN25..5F;GGN25..5FC..DLX;KUN26..SCB..ARL;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU201107-201512

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-0K010-B0iKUN16..4FC..TH;GGN15,KUN10,16,TGN10..RHD..(SCB,SMT);KUN15,TGN16..(SCB,XTR)..(ARL,PHL,PKN,TH);GGN15,KUN15..(DCB,SMT)..5F..(DCR,HTWC)..(ARL,TH)201107-201609

LT.GRAY,TRIM1#

main62212-0K010-B0iKUN15..SR..PHL201107-201504

LT.GRAY,TRIM2#

main62212-0K010-B0iKUN15..SR..PHL201107-201504

LT.GRAY,TRIM1#,3#

main62212-0K010-B0iKUN15..SR..PHL201107-201504

LT.GRAY,TRIM1#,2#

main62212-0K010-E0iKUN15..SMT..SR;KUN15,TGN16..DCB..(HDCR,HTWC)..TH;KUN15,16..(4FC,5F)..SR..DCR..(GEN,PHL,TH)201107-201504

SAND BEIGE,TRIM4#

main62212-0K020-B0iKUN26..5FC..DLX..ARL..CBU201107-201504

LT.GRAY,TRIM1#,3#

main62212-0K020-B0iKUN25,TGN26..GCC201107-201504

LT.GRAY,TRIM2#

main62212-0K020-B0iKUN25,TGN26..GCC201107-201504

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#,2#

main62212-0K020-B0iKUN35..TH;KUN35..SR..GEN;KUN25..SCB..GEN;KUN36..(5F,5FC)..(GEN,TH);KUN35..LHD..DLX..(GEN,PHL);KUN25..(DCB,SMT,THDCB,THSCB,XTR)..(GEN,IDN,MA,TH);KUN26,TGN26,36..(DCB,SCB,SMT,THDCB)..(GEN,MA,PHL,TH)201107-201601

LT.GRAY,TRIM1#,2#

main62212-0K020-B0iKUN25..PKN;KUN25..SCB..MA;KUN36..4FC..TH201107-201609

LT.GRAY,TRIM1#

main62212-0K020-E0iKUN35..LHD..SR;KUN25..4FC..GEN;KUN36,TGN26..RHD..(GEN,TH);KUN26..(DCB,SMT)..(GEN,PHL,TH);KUN25,35..(DCB,SMT)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62212-0K030-B0iKUN15,LAN15,TGN15,16..(SCB,XTR)..SA201108-201512

LT.GRAY,TRIM1#

main62212-0K040-B0iKUN26..SADCB201204-201512

LT.GRAY,TRIM1#,2#

main62212-0K040-B0iKUN35..DLX..SA;KUN26,36..5F..SA;KUN15,LAN15,TGN16..DCB..SA;KUN25,LAN25,35,TGN26,36..SA201108-201512

LT.GRAY,TRIM1#

main62212-0K050-B0iGGN25,TGN26,36..ANCOM201204

LT.GRAY,TRIM1#

main62212-0K050-B0iKUN2#,3#,TGN26,36..CO,LA201110-201510

LT.GRAY,TRIM1#,2#

main62212-0K080-B0iGGN25..5FC..SR..ARL;KUN26..(DCB,XTR)..(5F,5FC)..ARL201107-201504

LT.GRAY,TRIM1#,2#

main62212-0K080-B0iGGN25..5F;GGN25..5FC..DLX;KUN26..SCB..ARL;GGN25,35,KUN35..SR..SA;KUN26,36..4FC..(ARL,SA)..CBU201107-201512

LT.GRAY,TRIM1#

62313DTRIM, FRONT DOOR OPENING, RH

main62311-0K010iGGN25,TGN26,36201107

main62311-0K020iKUN15,16,2#,3#,TGN16..SMT201107-201504

main62311-0K050iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201803

main62311-0K070iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main62313-0K010iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main62313-0K030iKUN2#,35,TGN26,36..SCB..(ANCOM,LA)201110-201510

62314DTRIM, FRONT DOOR OPENING, LH

main62312-0K010iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107

main62312-0K020iKUN15,16,2#,3#,TGN16..SMT201107-201504

main62312-0K050iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201803

main62312-0K070iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main62314-0K010iGGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..(SCB,THSCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main62314-0K030iKUN2#,35,TGN26,36..SCB..(ANCOM,LA)201110-201510

62333ATRIM, REAR DOOR OPENING, RH

main62331-0K070iKUN26..5FC..(GEN,TH);KUN26..DCB..5FC..IV3;KUN26..(DCB,SADCB,THDCB)..(4FC,5F)..(ARL,GEN,MA,PHL,SA,TH);GGN15,25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,26,36..(DCB,THDCB)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201504

main62331-0K080iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201803

62334ATRIM, REAR DOOR OPENING, LH

main62332-0K070iGGN25,TGN26,36201107-201504

main62332-0K080iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110-201803

62411GARNISH, CENTER PILLAR, RH

main62411-0K060-B1iKUN15,35..SR..PHL201107-201504

LT.GRAY,TRIM1#,3#

main62411-0K060-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

LT.GRAY,TRIM2#

main62411-0K060-B1iKUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(GEN,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(ARL,GEN,IDN,MA,TH)201107-201601

LT.GRAY,TRIM1#,2#

main62411-0K060-B1iGGN25..5FC..DLX;KUN26,TGN16..DCB..SA;KUN26..4FC..ARL..CBU;GGN15,25,KUN25,3#..DCB..(4FC,5F)..(ARL,PKN,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(SA,TH)201107-201609

LT.GRAY,TRIM1#

main62411-0K060-E1iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62411-0K080-B1iGGN25,TGN26,36..DCB..ANCOM201204

LT.GRAY,TRIM1#

main62411-0K080-B1iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

LT.GRAY,TRIM1#,2#

62412GARNISH, CENTER PILLAR, LH

main62412-0K060-B1iKUN15,35..SR..PHL201107-201504

LT.GRAY,TRIM1#,3#

main62412-0K060-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

LT.GRAY,TRIM2#

main62412-0K060-B1iKUN15..DCB..GEN;KUN15,35..DLX..PHL;GGN25..5FC..SR..ARL;KUN26..4FC..(GEN,MA,PHL,TH);GGN15,KUN16..DCB..(4FC,5FC)..(ARL,GEN);KUN16,26,36..(DCB,SADCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(ARL,GEN,IDN,MA,TH)201107-201601

LT.GRAY,TRIM1#,2#

main62412-0K060-B1iGGN25..5FC..DLX;KUN26,TGN16..DCB..SA;KUN26..4FC..ARL..CBU;GGN15,25,KUN25,3#..DCB..(4FC,5F)..(ARL,PKN,SA);GGN25,35,KUN15,LAN15,25,35,TGN26,36..DCB..(DCR,DEFI,HTWC)..(SA,TH)201107-201609

LT.GRAY,TRIM1#

main62412-0K060-E1iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62412-0K080-B1iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

LT.GRAY,TRIM1#,2#

main62412-0K080-B1iGGN25,TGN26,36..DCB..ANCOM201204

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0K011-B1iKUN15,35..SR..GEN;KUN26..(4FC,5FC)..TH;KUN35..DLX..(GEN,PHL);KUN15..DCB..DLX..(GEN,PHL,TH);GGN15,25,KUN16,2#,36,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,PKN)201107-201609

MD.GRAY,TRIM1#

main62413-0K011-B1iKUN35..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,36,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main62413-0K011-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main62413-0K011-B2iKUN36..4FC..TH201203-201208

DK.GRAY,TRIM1#

main62413-0K011-B2iKUN35..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,36,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main62413-0K011-C0iGGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH)201308-201504

BLACK,TRIM2#

main62413-0K011-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62413-0K021-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main62413-0K021-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main62413-0K031-B1iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main62413-0K031-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main62413-0K070-B1iKUN2#..DCB..MA201109-201601

MD.GRAY,TRIM1#

main62413-0K070-C0iKUN2#..DCB..MA201309-201601

BLACK,TRIM2#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0K011-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main62414-0K011-B1iKUN35..DCB..TH;KUN15,2#,36,TGN16..DCB..5F..SR..TH201107-201609

MD.GRAY,TRIM1#

main62414-0K011-B1iKUN35..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,36,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main62414-0K011-B2iKUN35..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,36,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main62414-0K011-B2iKUN36..4FC..TH201203-201208

DK.GRAY,TRIM1#

main62414-0K011-C0iGGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH)201308-201504

BLACK,TRIM2#

main62414-0K011-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62414-0K021-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main62414-0K021-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main62414-0K031-B1iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main62414-0K031-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main62414-0K070-B1iKUN2#..DCB..MA201109-201601

MD.GRAY,TRIM1#

main62414-0K070-C0iKUN2#..DCB..MA201309-201601

BLACK,TRIM2#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-0K010-B1iGGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)201107-201504

MD.GRAY,TRIM1#

main62510-0K010-C0iGGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)201308-201504

BLACK,TRIM2#

main62510-0K090-B1iKUN15,26,3#..XTR..(SA,TH)201107-201512

MD.GRAY,TRIM1#

main62511-0K011-B0iKUN15,35..SR..PHL201107-201504

LT.GRAY,TRIM2#

main62511-0K011-B0iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

LT.GRAY,TRIM1#,3#

main62511-0K011-B0iKUN25..DCB..PKN;KUN16,36..4FC..TH;GGN15,KUN15..DCB..5F..(DCR,HTWC)..(ARL,TH)201107-201609

LT.GRAY,TRIM1#

main62511-0K011-B0iKUN15,16..DCB..GEN;KUN15,35..DLX..PHL;KUN16,36..DCB..(5F,5FC)..(GEN,TH);KUN26..(DCB,THDCB)..(GEN,MA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(GEN,IDN,MA,TH)201107-201601

LT.GRAY,TRIM1#,2#

main62511-0K011-B0iKUN26..DCB..5F..DLX..ARL..CBU201107-201308

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

main62511-0K011-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62511-0K021-B0iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

LT.GRAY,TRIM1#

main62511-0K021-B0iKUN26..SADCB201204-201512

LT.GRAY,TRIM1#,2#

main62511-0K030-B0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

LT.GRAY,TRIM1#,2#

main62511-0K030-B0iGGN25,TGN26,36..DCB..ANCOM201204

LT.GRAY,TRIM1#

main62511-0K040-B0iKUN15,25..SCB..PKN201202-201609

LT.GRAY,TRIM1#

main62511-0K050-B0iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA201108-201512

LT.GRAY,TRIM1#

main62511-0K060-B0iTGN26,36..SCB..ANCOM201204-201509

LT.GRAY,TRIM1#

main62511-0K060-B0iKUN2#,35,TGN36..SCB..LA201110-201510

LT.GRAY,TRIM1#,2#

main62511-0K210-B1iKUN2#,3#..SMT;KUN15..SMT..HDCR201107-201504

MD.GRAY,TRIM1#

main62511-0K210-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main62511-0K210-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main62511-0K210-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main62511-0K210-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

main62511-0K230-B0iGGN25..5F;GGN25..5FC..DLX;KUN26..4FC..ARL..CBU201107-201311

LT.GRAY,TRIM1#

main62511-0K260-B0iKUN15,25,TGN16,26..(SCB,THSCB)..GEN201107-201504

LT.GRAY,TRIM1#,3#

main62511-0K260-B0iKUN10,15,TGN1#,26..SCB..GCC201107-201504

LT.GRAY,TRIM1#,2#

main62511-0K260-B0iKUN10,15,TGN1#,26..SCB..GCC201107-201504

LT.GRAY,TRIM1#

main62511-0K540-B0iKUN26..5FC..DLX..ARL..CBU201308-201504

LT.GRAY,TRIM1#,2#

main62511-0K540-B0iGGN15..DCB..5FC;KUN16,TGN16..DCB..ARL201308-201504

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#,2#

main62511-0K550-B0iGGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL201308-201504

LT.GRAY,TRIM1#,2#

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-0K011-B0iKUN26..DCB..5F..DLX..ARL..CBU201107-201609

LT.GRAY,TRIM1#

main62512-0K011-B0iKUN26..DCB..5F..DLX..ARL..CBU201107-201308

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#

main62512-0K011-B0iKUN15,16..DCB..GEN;KUN15,35..DLX..PHL;KUN16,36..DCB..(5F,5FC)..(GEN,TH);KUN26..(DCB,THDCB)..(GEN,MA,PHL,TH);KUN15,25,35,TGN16,26,36..(DCB,THDCB)..(HDCR,HTWC)..(GEN,IDN,MA,TH)201107-201601

LT.GRAY,TRIM1#,2#

main62512-0K011-B0iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

LT.GRAY,TRIM2#

main62512-0K011-B0iKUN15,35..SR..PHL201107-201504

LT.GRAY,TRIM1#,3#

main62512-0K011-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62512-0K021-B0iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

LT.GRAY,TRIM1#

main62512-0K021-B0iKUN26..SADCB201204-201512

LT.GRAY,TRIM1#,2#

main62512-0K030-B0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

LT.GRAY,TRIM1#,2#

main62512-0K030-B0iGGN25,TGN26,36..DCB..ANCOM201204

LT.GRAY,TRIM1#

main62512-0K040-B0iKUN15,25..SCB..PKN201202-201609

LT.GRAY,TRIM1#

main62512-0K050-B0iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA201108-201512

LT.GRAY,TRIM1#

main62512-0K060-B0iTGN26,36..SCB..ANCOM201204-201509

LT.GRAY,TRIM1#

main62512-0K060-B0iKUN2#,35,TGN36..SCB..LA201110-201510

LT.GRAY,TRIM1#,2#

main62512-0K170-B1iKUN2#,3#..SMT;KUN15..SMT..HDCR201107-201504

MD.GRAY,TRIM1#

main62512-0K170-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main62512-0K170-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main62512-0K170-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main62512-0K170-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

main62512-0K200-B0iGGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL201107-201311

LT.GRAY,TRIM1#

main62512-0K260-B0iKUN15,25,TGN16,26..(SCB,THSCB)..GEN201107-201504

LT.GRAY,TRIM1#,2#

main62512-0K260-B0iKUN15,25,TGN16,26..(SCB,THSCB)..GEN201107-201504

LT.GRAY,TRIM1#

main62512-0K260-B0iGGN15,KUN1#,2#,TGN10,16..SCB..(ARL,IDN,MA,PHL,TH)201107-201504

LT.GRAY,TRIM1#,3#

main62512-0K540-B0iKUN26..5FC..DLX..ARL..CBU201308-201504

SRS AIR BAG-WITH(DRIVER & PASSENGER),LT.GRAY,TRIM1#,2#

main62512-0K540-B0iKUN26..5FC..DLX..ARL..CBU201308-201504

LT.GRAY,TRIM1#,2#

main62512-0K550-B0iGGN25..5FC..SR..ARL;KUN26..DCB..(5F,5FC)..ARL201308-201504

LT.GRAY,TRIM1#,2#

main62520-0K010-B1iGGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)201107-201504

MD.GRAY,TRIM1#

main62520-0K010-C0iGGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)201308-201504

BLACK,TRIM2#

main62520-0K080-B1iKUN15,26,3#..XTR..(SA,TH)201107-201512

MD.GRAY,TRIM1#

62513APANEL, QUARTER TRIM, LOWER RH

main62513-0K010-B2iKUN35..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,36,TGN16..DCB..SR..TH201107-201609

MD.GRAY,TRIM1#

main62513-0K010-B2iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main62513-0K010-B2iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main62513-0K010-B3iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main62513-0K010-C0iKUN15,16,2#,3#,TGN16,26,36..(DCB,THDCB)..(GEN,IDN,MA,PHL,TH)201308-201601

BLACK,TRIM2#

main62513-0K010-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62513-0K020-B2iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main62513-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main62513-0K030-B2iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main62513-0K030-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main62513-0K040-B1iKUN10,15,TGN1#,26..SCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main62513-0K040-B1iKUN25..SCB..MA201107-201609

MD.GRAY,TRIM1#

main62513-0K040-C0iKUN15,25,TGN16,26..(SCB,THSCB)..GEN201308-201504

BLACK,TRIM2#

main62513-0K050-B1iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA201108-201512

MD.GRAY,TRIM1#

main62513-0K070-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main62513-0K070-B1iKUN2#,3#..SMT;KUN15..SMT..HDCR201107-201504

MD.GRAY,TRIM1#

main62513-0K070-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main62513-0K070-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main62513-0K070-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

main62513-0K220-B0iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL201308-201504

MD.GRAY,TRIM1#

main62513-0K220-C0iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL201308-201504

BLACK,TRIM2#

62514APANEL, QUARTER TRIM, LOWER LH

main62514-0K010-B2iGGN25..5FC..DLX;KUN15,35..SR..GEN;KUN26..4FC..ARL..CBU;KUN35..DLX..(GEN,PHL);KUN26..(DCB,THDCB)..5F..(GEN,PHL);KUN15,TGN16..DCB..DLX..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(4FC,5FC)..(GEN,MA,PHL,TH);KUN16,TGN26,36..(DCB,THDCB)..(4FC,5F)..(GEN,TH);GGN15,25,KUN25,36..(DCB,THDCB)..(4FC,5F)..(ARL,GEN,IDN,MA,PKN)201107-201609

MD.GRAY,TRIM1#

main62514-0K010-B2iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main62514-0K010-B2iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main62514-0K010-B3iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main62514-0K010-C0iKUN15,16,2#,3#,TGN16,26,36..(DCB,THDCB)..(GEN,IDN,MA,PHL,TH)201308-201601

BLACK,TRIM2#

main62514-0K010-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main62514-0K020-B2iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main62514-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main62514-0K030-B2iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main62514-0K030-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main62514-0K040-B1iKUN10,15,TGN1#,26..SCB..GCC201107-201609

MD.GRAY,TRIM1#

main62514-0K040-B1iKUN25..SCB..MA201107-201504

MD.GRAY,TRIM1#,3#

main62514-0K040-C0iKUN15,25,TGN16,26..(SCB,THSCB)..GEN201308-201504

BLACK,TRIM2#

main62514-0K050-B1iKUN15,2#,3#,LAN15,25,TGN15,16,36..SCB..SA201108-201512

MD.GRAY,TRIM1#

main62514-0K070-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main62514-0K070-B1iKUN2#,3#..SMT;KUN15..SMT..HDCR201107-201504

MD.GRAY,TRIM1#

main62514-0K070-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main62514-0K070-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main62514-0K070-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

main62514-0K220-B0iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL201308-201504

MD.GRAY,TRIM1#

main62514-0K220-C0iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL201308-201504

BLACK,TRIM2#

64261CGARNISH, BACK PANEL, UPPER

main64261-0K010-B1iKUN15,35..SR..PHL201107-201504

LT.GRAY,TRIM2#

main64261-0K010-B1iKUN25..PKN;GGN25..5FC..DLX;KUN16,36..4FC..TH;KUN26..4FC..ARL..CBU;KUN25,TGN10..SCB..(IDN,MA)..CBU;GGN15,25,KUN15..DCB..5F..(DCR,HTWC)..(ARL,TH);GGN15,KUN15,16,26,TGN16..SCB..(ARL,PHL,PKN,TH)201107-201609

LT.GRAY,TRIM1#

main64261-0K010-B1iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL201107-201601

LT.GRAY,TRIM1#,2#

main64261-0K010-B1iKUN10,15,25,TGN1#,26..GCC201107-201504

LT.GRAY,TRIM1#,3#

main64261-0K010-E0iKUN16..TH201107-201609

SAND BEIGE,TRIM4#

main64261-0K020-B1iKUN26..SADCB201204-201512

LT.GRAY,TRIM1#,2#

main64261-0K020-B1iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA201108-201512

LT.GRAY,TRIM1#

main64261-0K030-B1iGGN25,TGN26,36..ANCOM201204

LT.GRAY,TRIM1#

main64261-0K030-B1iKUN2#,3#,TGN26,36..CO,LA201110-201510

LT.GRAY,TRIM1#,2#

main64261-0K040-B1iKUN15..SMT..DLX;KUN35..SMT..5FC;KUN15,2#,3#..XTR;GGN15,KUN16,TGN16..SMT,XTR201107-201512

MD.GRAY,TRIM1#

main64261-0K040-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main64261-0K040-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main64261-0K040-C0iGGN15,KUN15,16,2#,3#,TGN16..(SMT,XTR)..(ARL,GEN,TH)201308-201504

BLACK,TRIM2#

main64261-0K040-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

64271CTRIM, BACK PANEL

main64271-0K010-C0iGGN25..5F..SR;KUN26..4FC..SR..ARL201107-201311

BLACK,TRIM1#

main64271-0K010-C0iTGN15,16,26..DCB..GCC201107-201504

BLACK,TRIM1#,3#

main64271-0K010-C0iTGN15,16,26..DCB..GCC201107-201504

BLACK,TRIM1#,2#,4#

main64271-0K010-C0iTGN15,16,26..DCB..GCC201107-201504

BLACK,TRIM2#,4#

main64271-0K010-C0iTGN15,16,26..DCB..GCC201107-201504

BLACK,TRIM1#,2#

main64271-0K010-C0iKUN16,36..4FC..TH201107-201208

BLACK,TRIM1#,4#

main64271-0K020-C0iKUN26..SADCB..SR201204-201512

BLACK,TRIM1#,2#

main64271-0K020-C0iGGN25,35,KUN26,3#,TGN36..DCB..SR..SA201108-201512

BLACK,TRIM1#

main64271-0K030-C0iKUN26,36,TGN26,36..SR..(DCR,HTWC,IART)..(CO,LA)201110-201510

BLACK,TRIM1#,2#

main64271-0K030-C0iGGN25,TGN26..SR..ANCOM201204

BLACK,TRIM1#

main64271-0K040-C0iGGN15,KUN26..SCB..(4FC,5FC)201107-201504

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),BLACK,TRIM1#,2#

main64271-0K040-C0iGGN15,KUN26..SCB..(4FC,5FC)201107-201504

BLACK,TRIM1#

main64271-0K040-C0iKUN26,TGN36..SCB..(HTWCF,IART)201310-201510

BLACK,TRIM1#,2#

main64271-0K050-C0iTGN16..SCB..SA;KUN2#,3#,TGN36..RHD..SCB..SA201108-201512

BLACK,TRIM1#

main64271-0K050-C0iTGN16..SCB..SA;KUN2#,3#,TGN36..RHD..SCB..SA201108-201512

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),BLACK,TRIM1#

main64271-0K070-C0iKUN2#..DCB..MA201109-201601

BLACK,TRIM1#,2#

main64271-0K220-B0iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL201308-201504

LT.GRAY,TRIM1#,2#

64271DCLIP(FOR BACK PANEL TRIM)

main90467-08104-B3iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..(5F,5FC)..ARL201308-201504

LT.GRAY,TRIM1#,2#

main90467-T0004-C1iKUN16,35..SR..GEN;KUN25,35..DCB..(IDN,TH);KUN26..DCB..(GEN,PHL,TH);KUN15,16,36..DCB..(5F,5FC)..SR..DCR..(GEN,TH);KUN15,TGN16,26..RHD..DCB..(HDCR,HTWC)..(GEN,TH)201107-201504

BLACK,TRIM1#,3#

main90467-T0004-C1iKUN16,36..4FC..TH201107-201208

BLACK,TRIM1#,4#

main90467-T0004-C1iKUN26..DCB..5F..SR..ARL;GGN15,25..DCB..5FC..SR..ARL201107-201512

BLACK,TRIM1#

main90467-T0004-C1iTGN15,16,26..DCB..GCC201107-201504

BLACK,TRIM1#,2#,4#

main90467-T0004-C1iTGN15,16,26..DCB..GCC201107-201504

BLACK,TRIM2#,4#

main90467-T0004-C1iTGN15,16,26..DCB..GCC201107-201504

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),BLACK,TRIM1#,2#

main90467-T0004-C1iKUN26..4FC..LA;KUN26,36,TGN26,36..(5F,5FC)..SR..(CO,LA)201107-201601

BLACK,TRIM1#,2#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-0K010-B1iKUN35..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,36,TGN16..DCB..SR..TH201107-201609

MD.GRAY,TRIM1#

main67913-0K010-B1iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main67913-0K010-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main67913-0K010-B2iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main67913-0K010-C0iGGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH)201308-201504

BLACK,TRIM2#

main67913-0K010-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main67913-0K020-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main67913-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main67913-0K030-B1iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main67913-0K030-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main67913-0K040-B1iKUN10,15,TGN1#,26..SCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main67913-0K040-B1iGGN15,KUN1#,2#,35,TGN10,16,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GEN,IDN,LA,MA,PHL,PKN,TH)201107-201609

MD.GRAY,TRIM1#

main67913-0K040-C0iKUN26..XTR..ARL;KUN2#,35,TGN16..(SCB,THSCB,XTR)..(GEN,LA);GGN15,KUN15,16,TGN26,36..(SCB,XTR)..(ARL,GEN,LA)..CBU201308-201504

BLACK,TRIM2#

main67913-0K050-B1iKUN15,2#,3#,LAN15,25,TGN15,16,36..(SCB,XTR)..SA201108-201512

MD.GRAY,TRIM1#

main67913-0K090-B1iKUN35..SMT..5F;KUN15,2#,36..SMT..SR201107-201504

MD.GRAY,TRIM1#

main67913-0K090-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main67913-0K090-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main67913-0K090-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main67913-0K090-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

main67913-0K100-B1iKUN2#..DCB..MA201109-201601

MD.GRAY,TRIM1#

main67913-0K100-C0iKUN2#..DCB..MA201309-201601

BLACK,TRIM2#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-0K010-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main67914-0K010-B1iKUN3#..DCB..TH;KUN15,2#,TGN16..DCB..5F..SR..TH201107-201609

MD.GRAY,TRIM1#

main67914-0K010-B1iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main67914-0K010-B2iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main67914-0K010-C0iGGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH)201308-201504

BLACK,TRIM2#

main67914-0K010-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main67914-0K020-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main67914-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main67914-0K030-B1iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main67914-0K030-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main67914-0K040-B1iGGN15,KUN1#,2#,35,TGN10,16,26,36..(SCB,THSCB,XTR)..(ANCOM,ARL,GEN,IDN,LA,MA,PHL,PKN,TH)201107-201609

MD.GRAY,TRIM1#

main67914-0K040-B1iKUN10,15,TGN1#,26..SCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main67914-0K040-C0iKUN26..XTR..ARL;KUN2#,35,TGN16..(SCB,THSCB,XTR)..(GEN,LA);GGN15,KUN15,16,TGN26,36..(SCB,XTR)..(ARL,GEN,LA)..CBU201308-201504

BLACK,TRIM2#

main67914-0K050-B1iKUN15,2#,3#,LAN15,25,TGN15,16,36..(SCB,XTR)..SA201108-201512

MD.GRAY,TRIM1#

main67914-0K090-B1iKUN15..SMT..DLX;KUN35..SMT..5FC;KUN16,TGN16..SMT201107-201504

MD.GRAY,TRIM1#

main67914-0K090-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main67914-0K090-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main67914-0K090-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main67914-0K090-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

main67914-0K100-B1iKUN2#..DCB..MA201109-201601

MD.GRAY,TRIM1#

main67914-0K100-C0iKUN2#..DCB..MA201309-201601

BLACK,TRIM2#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-0K010-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main67917-0K010-B1iKUN3#..DCB..TH;KUN15,2#,TGN16..DCB..5F..SR..TH201107-201609

MD.GRAY,TRIM1#

main67917-0K010-B1iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main67917-0K010-B2iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main67917-0K010-C0iGGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH)201308-201504

BLACK,TRIM2#

main67917-0K010-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main67917-0K020-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main67917-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main67917-0K030-B1iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main67917-0K030-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main67917-0K090-B1iKUN2#..DCB..MA201109-201601

MD.GRAY,TRIM1#

main67917-0K090-C0iKUN2#..DCB..MA201309-201601

BLACK,TRIM2#

main67917-0K120-B1iKUN2#,3#..SMT;KUN15..SMT..HDCR201107-201504

MD.GRAY,TRIM1#

main67917-0K120-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main67917-0K120-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main67917-0K120-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main67917-0K120-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

67918EPLATE, REAR DOOR SCUFF, LH

main67918-0K010-B1iKUN15,25,TGN15,16,26..DCB..GCC201107-201504

MD.GRAY,TRIM1#,3#

main67918-0K010-B1iKUN3#..DCB..TH;KUN15,2#,TGN16..DCB..5F..SR..TH201107-201609

MD.GRAY,TRIM1#

main67918-0K010-B1iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

MD.GRAY,TRIM10

main67918-0K010-B2iKUN3#..DCB..TH;KUN26..DCB..5F..TH;KUN15,16,25,TGN16..DCB..(5F,5FC)..SR..TH201203-201308

DK.GRAY,TRIM11

main67918-0K010-C0iGGN15..DCB..5FC;GGN25..5FC..SR..ARL;KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);KUN26..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,16,25,3#,TGN16,26,36..(DCB,THDCB)..(ARL,GEN,IDN,PHL,TH)201308-201504

BLACK,TRIM2#

main67918-0K010-E0iKUN35..LHD..SR;KUN16,25,TGN26..(4FC,5FC)..(GEN,TH);KUN15,26,36..DCB..SR..DCR..(GEN,PHL,TH);KUN15,25,35,TGN16..DCB..(HDCR,HTWC)..(IDN,PKN,TH)201107-201609

SAND BEIGE,TRIM4#

main67918-0K020-B1iKUN26..SADCB;GGN25,35,KUN15,2#,3#,LAN15,25,35,TGN16,26,36..DCB..SA201108-201512

MD.GRAY,TRIM1#

main67918-0K020-C0iKUN26..SADCB201310-201512

BLACK,TRIM2#

main67918-0K030-B1iGGN25,KUN2#,3#,TGN26,36..DCB..(ANCOM,CO,LA)201110

MD.GRAY,TRIM1#

main67918-0K030-C0iKUN2#,3#,TGN26,36..DCB..(CO,LA)201310-201510

BLACK,TRIM2#

main67918-0K090-B1iKUN2#..DCB..MA201109-201601

MD.GRAY,TRIM1#

main67918-0K090-C0iKUN2#..DCB..MA201309-201601

BLACK,TRIM2#

main67918-0K120-B1iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

MD.GRAY,TRIM10

main67918-0K120-B1iKUN2#,3#..SMT;KUN15..SMT..HDCR201107-201504

MD.GRAY,TRIM1#

main67918-0K120-B2iKUN2#,3#..SMT;KUN15..SMT..SR201203-201308

DK.GRAY,TRIM11

main67918-0K120-C0iKUN15,2#,3#,TGN16..SMT201308-201504

BLACK,TRIM2#

main67918-0K120-E0iKUN15..SMT..SR;KUN16,2#,3#..SMT201107-201504

SAND BEIGE,TRIM4#

7152SEAT BELT

→ Go to FIG 71-52

7455CAUTION PLATE

→ Go to FIG 74-55

9046706155

main90467-06155

9046709204

main90467-09204

9046710161

main90467-10161

9046710188

main90467-10188

90467T0008C0

main90467-T0008C0

90467T0021

main90467-T0021

36 parts on this diagram · 5 diagrams in section
