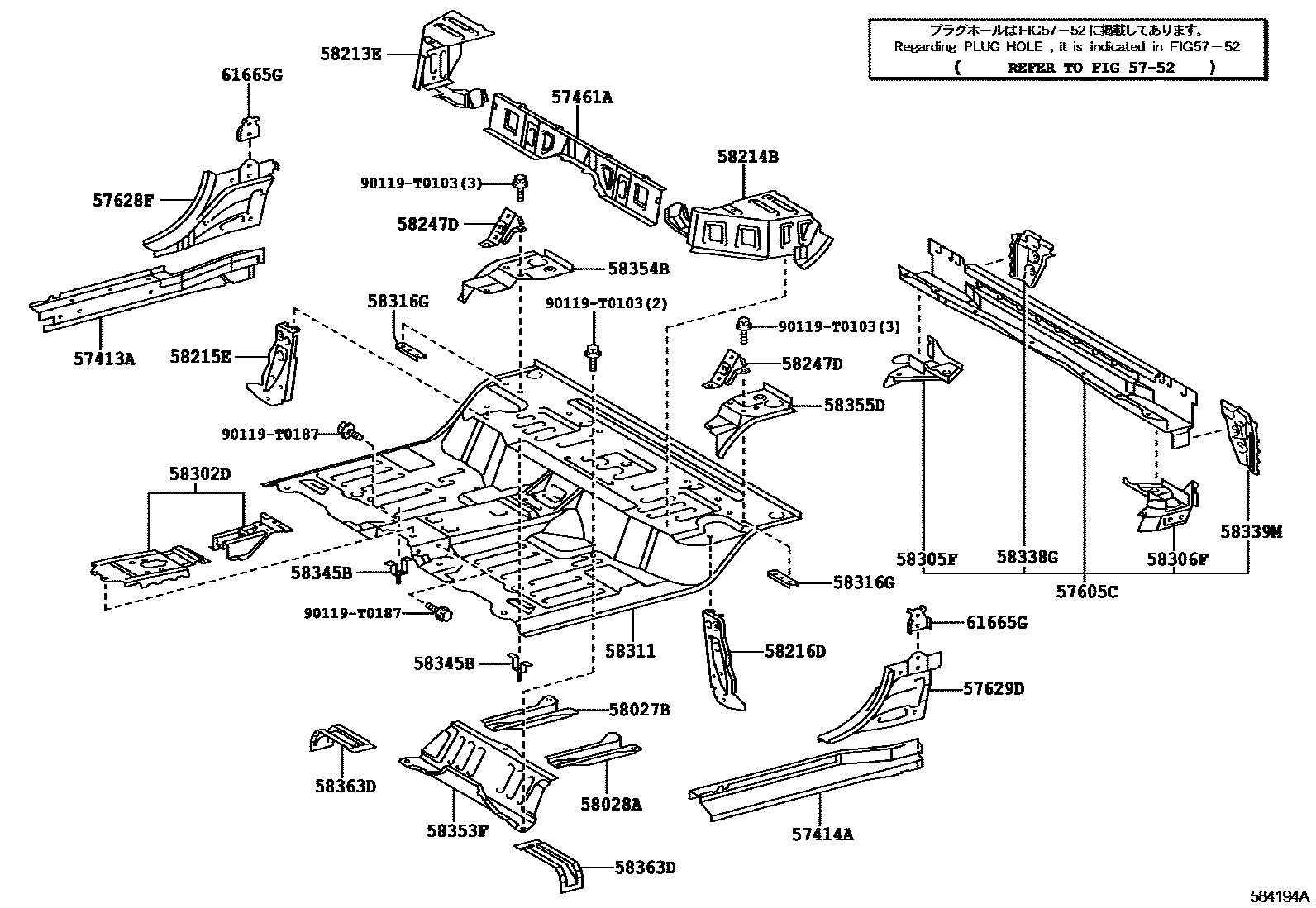

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57403-0K020iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main57403-0K030iKUN15,16,2#,3#,TGN16..SMT201107-201504

main57413-0K010iKUN25..DCB..PKN201107-201609

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57404-0K020iGGN15,KUN15,16,2#,3#,TGN16..XTR201107-201512

main57404-0K030iKUN15,16,2#,3#,TGN16..SMT201107-201504

main57414-0K010iKUN2#..DCB..MA201107-201510

57461AMEMBER, CENTER FLOOR CROSS

main57461-0K010iKUN2#..DCB..MA201107-201510

5752HOLE PLUG

→ Go to FIG 57-52

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57605-0K010iKUN36..DCB..(5F,5FC)..TH;KUN26..(DCB,SADCB,THDCB)..(GEN,PHL,SA,TH);KUN15,25,35,TGN16..(DCB,THDCB)..(HDCR,HTWC)..(GCC,GEN,IDN,MA,PHL,PKN,SA,TH);GGN25,35,KUN15,16,36,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,GCC,GEN,PHL,SA)201107-201302

main57605-0K020iGGN15,25,KUN16,26,TGN16..DCB..ARL201107-201311

main57605-0K030iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201302

main57605-0K040iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

main57605-0K050iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201303-201512

main57605-0K060iGGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,GCC,GEN,IDN,PHL,SA,TH)201303

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0K010iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

main57628-0K060iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,GCC,GEN,IDN,PHL,SA,TH)201107

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0K010iKUN2#,3#,TGN26,36..DCB..(CO,LA)201110-201510

main57629-0K060iKUN2#..DCB..MA201107-201510

58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-0K010iKUN2#..DCB..MA201107-201510

58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2

main58028-0K010iGGN15..DCB..5FC;TGN16..ARL..CBU;GGN25..5FC..SR..ARL;KUN16,26..DCB..5F..ARL201107-201311

main58028-0K020iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

58213EPANEL, SEAT FLOOR SIDE, RH

main58201-0K010iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107

main58201-0K021iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

58214BPANEL, SEAT FLOOR SIDE, LH

main58202-0K010iKUN2#..DCB..MA201107-201510

main58202-0K021iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

58215EBRACKET, REAR SEAT MOUNTING, RH

main58215-0K010iKUN2#..DCB..MA201107-201510

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-0K010iGGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107

main58216-0K020iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-0K010×2iKUN2#..DCB..MA201107-201510

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-0K010iKUN2#..DCB..MA201107-201510

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-0K010iKUN2#..DCB..MA201107-201510

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-0K010iKUN25..DCB..PKN201107-201609

58311PAN, REAR FLOOR

main58311-0K010iKUN15,25..RHD..DCB..5F..GEN201107-201308

main58311-0K020supersedes 58311-0K190iKUN25..DCB..MA201107-201309

main58311-0K030iKUN15,25,LAN15,25,TGN26..LHD..DCB..5F..DLX..SA201107-201512

main58311-0K050supersedes 58311-0K040iTGN16..4FC..ARL..CBU;GGN15,25,KUN16,26..DCB..ARL; TGN16..5F..ARL..CBU201107-201311

FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)

main58311-0K090iKUN15,16,2#,3#,TGN16..(SMT,XTR)..(SA,TH)201107-201512

main58311-0K100iGGN15,KUN15,16,2#,TGN16..XTR..(ARL,GEN)201107-201504

main58311-0K170iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

main58311-0K180supersedes 58311-0K200iKUN15..SR..GEN;KUN25,TGN26..THDCB;KUN25,TGN16,26..4FC..(GCC,GEN);KUN15,25,TGN16..DCB..(IDN,PHL,TH);KUN16,26,3#,TGN36..(DCB,THDCB)..(GEN,PHL,TH)201308-201609

main58311-0K190iKUN15,25..RHD..DCB..5F..GEN201308-201609

main58311-0K200iTGN26..DCB..5F..GCC;TGN16..DCB..5F..(GCC,GEN);KUN15,25,TGN15..LHD..DCB..DLX..(GCC,GEN)201308-201504

main58311-0K040iKUN26..DCB..5F..DLX..ARL..CBU; TGN16..5F..ARL..CBU201107-201311

SRS AIR BAG-WITH(DRIVER & PASSENGER)

58316GRETAINER, REAR SEAT, NO.1

main58316-0K010×2iTGN26..THDCB;GGN25..5FC..SR..ARL;TGN26..DCB..5F..GCC;KUN15..DCB..(GCC,GEN,PHL);KUN26..(DCB,THDCB)..4FC..(GEN,PHL,TH);GGN15,KUN16,TGN26..DCB..(4FC,5FC)..(ARL,GCC,GEN);KUN16,26,36..(DCB,THDCB)..(5F,5FC)..(ARL,GEN,PHL,TH);KUN15,25,35,TGN15,16,36..(DCB,THDCB)..(HDCR,HTWC)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201408

main58316-KK010×2iKUN2#..DCB..MA201409-201510

58338GGUSSET, CAB REAR MOUNTING, RR RH

main58338-0K010iKUN2#..DCB..MA201107-201510

58339MGUSSET, CAB REAR MOUNTING, REAR LH

main58339-0K010iKUN2#..DCB..MA201107-201510

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-0K010iKUN25..DCB..MA201309-201510

58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3

main58353-0K010iKUN2#..DCB..MA201107-201510

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K010iGGN25..5FC..DLX;GGN15,25..DCB..5F;KUN26..4FC..ARL..CBU;GGN25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..(DCB,SADCB,THDCB)..(ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH)201107

main58354-0K020iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

main58354-0K060iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5

main58355-0K010iKUN25..DCB..PKN201107-201609

main58355-0K020iGGN15,KUN15,16,2#,3#,TGN16..SMT,XTR201107-201512

main58355-0K060iGGN15,25,KUN16,26,TGN16..DCB..ARL201311-201504

58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH

main58363-0K010×2iKUN2#..DCB..MA201107-201510

61665GREINFORCEMENT, SEAT BELT ANCHORAGE TO QUATER WHEE HOUSE, RH

main61665-0K010×2iKUN2#..DCB..MA201107-201510

90119T0103

main90119-T0103

90119T0187

main90119-T0187

29 parts on this diagram · 2 diagrams in section
