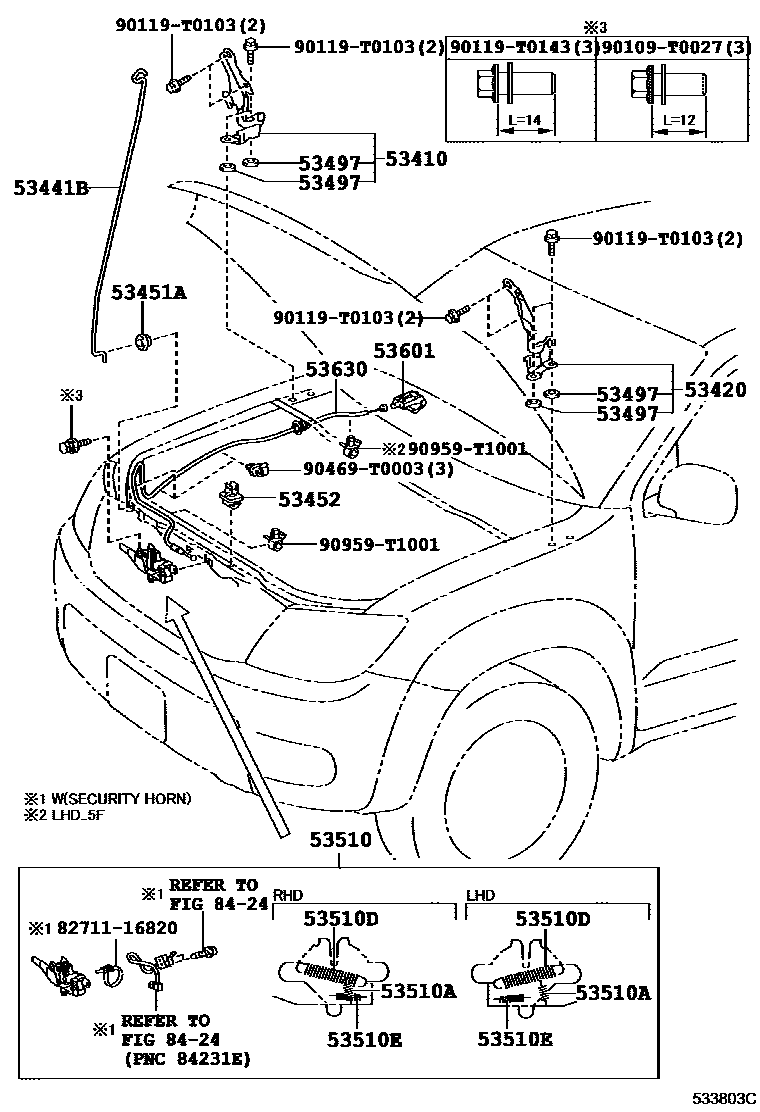

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
main53420-0K100iKUN25..SCB..MA;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH)201107-201609
53441BSUPPORT, HOOD
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
T=1.0
T=2.0
T=0.5
T=2.0
main53497-42010×4iKUN25..SCB..MA;GGN15,25,KUN1#,2#,3#,TGN1#,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,PHL,TH)201107
T=0.5
53510LOCK ASSY, HOOD
main53510-0K270supersedes 53510-0K291iKUN26..4FC..ARL;KUN25..RHD..(GEN,IDN,PKN);TGN16..RHD..(DCB,SCB)..DLX;KUN15,TGN26..RHD..DCB..(DCR,HTWC);KUN26..RHD..(DCB,SCB,XTR)..5F..(ARL,GEN);KUN15..RHD..(SCB,SMT,XTR)..(DLX,STD)..(GEN,PKN,TH);GGN15,25,KUN10,16,TGN10..(DCB,SCB,XTR)..(5F,5FC)..(ARL,IDN,TH)201107-201212
main53510-0K271iKUN26..(4FC,5FC)..IV3;KUN25..RHD..(GEN,IDN,PKN);KUN26..4FC..(ARL,TH)..CBU;KUN15,TGN26..RHD..DCB..GEN;TGN16..RHD..(DCB,SCB)..DLX;KUN26..RHD..(DCB,SCB,XTR)..5F..(ARL,GEN);KUN15..RHD..(SCB,SMT)..(DLX,STD)..(GEN,PKN,TH);GGN15,25,KUN10,16,35,TGN10..RHD..(5F,5FC)..(ARL,GEN,IDN)201301-201609
main53510-0K280iKUN10,25,TGN1#,36..LHD..(GCC,GEN);KUN15,26,35,TGN26..LHD..(DCB,SCB,THDCB,XTR)..(DLX,STD)..(GCC,GEN,PHL)201107-201212
main53510-0K281iKUN10,25,TGN1#,36..LHD..(GCC,GEN);KUN15,26,35,TGN26..LHD..(DCB,SCB,THDCB,XTR)..(DLX,STD)..(GCC,GEN,PHL)201301-201504
main53510-0K290iKUN15..HDCR..TH;KUN26..DCB..4FC..GEN;KUN16,2#,3#,TGN16..(DCB,SMT)..TH; KUN2#..RHD..DCB..5F..GEN;KUN15..RHD..(DCB,SMT)..DCR; KUN26..DCB..5F..GEN201107-201204
ANTI-THEFT SYSTEM-*IM & *SEH; ANTI-THEFT SYSTEM-*SEH
main53510-0K291iKUN15..SMT..SR;KUN15..DCB..HDCR;KUN16,25,36..SR..(GEN,TH);KUN26..RHD..DCB..4FC..GEN;KUN26,35,TGN16..(DCB,SMT)..(5F,5FC)..TH; KUN25..RHD..DCB..GEN;KUN15..SMT..DLX..HDCR;KUN26..RHD..DCB..5F..GEN;KUN15,TGN26..RHD..(DCB,SMT)..(DCR,HTWC); KUN26..RHD..DCB..5F..GEN201205-201212
ANTI-THEFT SYSTEM-*IM & *SEH; ANTI-THEFT SYSTEM-*SEH
main53510-0K292iKUN15..DCB..TH;KUN15..SMT..SR;KUN16,25,36..SR..(GEN,TH);KUN26..RHD..DCB..4FC..GEN;KUN26,35,TGN16..(DCB,SMT)..(5F,5FC)..TH; KUN15..SMT..DLX;KUN26..RHD..DCB..5F..GEN;KUN15,25,TGN26..RHD..DCB..GEN; KUN26..RHD..DCB..5F..GEN201301-201504
ANTI-THEFT SYSTEM-*IM & *SEH; ANTI-THEFT SYSTEM-*SEH
main53510-0K300iKUN15,25,TGN26..LHD..DCB..GEN; KUN15,26,35,TGN26..LHD..SR..(GEN,PHL); KUN26,TGN26..THDCB..DLX201107-201204
ANTI-THEFT SYSTEM-*IM & *SEH; ANTI-THEFT SYSTEM-*SEH
main53510-0K301iKUN15,25..LHD..DCB..DLX..GEN; KUN15,26,35,TGN26..LHD..(DCB,THDCB)..SR..(GEN,PHL); KUN26,TGN26..THDCB..DLX201205-201212
ANTI-THEFT SYSTEM-*IM & *SEH; ANTI-THEFT SYSTEM-*SEH
main53510-0K302iKUN15,25..LHD..DCB..DLX..GEN; KUN15,26,35,TGN26..LHD..(DCB,THDCB)..SR..(GEN,PHL); KUN26,TGN26..THDCB..DLX201301-201504
ANTI-THEFT SYSTEM-*IM & *SEH; ANTI-THEFT SYSTEM-*SEH
WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM)
main53510-0K350iTGN26,36..SCB..(ANCOM,LA);TGN36..DCB..DLX..HTWC..LA;KUN2#,35,TGN26..DLX..(DCR,HDCR,HTWC,IART)..(CO,LA)201110-201510
ANTI-THEFT SYSTEM-*IM & *SEH; ANTI-THEFT SYSTEM-*IM & *SEH & TRACKING & BLOCKING SYSTEM
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
main90506-12063iKUN26..SADCB..DLX;KUN15,25..LHD..DLX..SA;LAN15,25,35,TGN16,26..SA; KUN26..SADCB..SR;KUN15,25..DCB..SR..SA;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA201108-201512
WD=1.2,CW=8.5; WD=1.2,CW=8.5,*307
main90506-T0004iKUN15,25..LHD..SA; KUN26..SADCB..SR;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA201108-201205
WD=1.2,CW=8.5,*299; WD=1.2,CW=8.5,ANTI-THEFT SYSTEM-*IM & *SEH(FOR SOUTH AFRICA),*299
WD=1.2,CW=8.5
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.8,CW=13
main90506-T0003iKUN26..5FC..IV3;KUN26..5FC..(GEN,TH);KUN26..(4FC,5F)..(ARL,GEN,PHL,SA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,PKN,SA,TH201107-201609
WD=1.8,CW=13
WD=1.8,CW=13
53510ESPRING, TENSION(FOR HOOD LOCK)
main90080-50412iKUN26..SADCB..DLX;KUN15,25..LHD..DLX..SA;LAN15,25,35,TGN16,26..SA; KUN26..SADCB..SR;KUN15,25..DCB..SR..SA;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA201108-201512
WD=0.9,CW=21; WD=0.9,CW=21,*307
WD=0.9,CW=21
main90506-T0005iKUN15,25..LHD..SA; KUN26..SADCB..SR;GGN25,35,KUN15,2#,3#,TGN15,36..RHD..SA201108-201205
WD=0.9,CW=21,*299; WD=0.9,CW=21,ANTI-THEFT SYSTEM-*IM & *SEH(FOR SOUTH AFRICA),*299
WD=0.9,CW=21
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
DK.GRAY,TRIM11
MD.GRAY,TRIM1#
main53601-52010-C0iKUN26..DCB..LA;KUN26..(4FC,5F)..CO;KUN25,3#,TGN26,36..CO,LA;KUN26..(SADCB,SCB)..(GEN,LA)201310-201512
BLACK,TRIM2#
main53601-52010-E6iKUN15..SMT..SR;KUN35..LHD..SR;KUN25..4FC..GEN;KUN36,TGN26..RHD..(GEN,TH);KUN26..(DCB,SMT)..(GEN,PHL,TH);KUN25,35..(DCB,SMT)..(IDN,PKN,TH);KUN15,TGN16..DCB..(HDCR,HTWC)..TH;KUN15,16..(4FC,5F)..SR..DCR..(GEN,PHL,TH)201107-201609
SAND BEIGE,TRIM4#
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-0K010iKUN26..SADCB;KUN25..5F..DLX..SA;KUN15..(SCB,XTR)..SA;KUN35..(DCB,SCB)..SA;KUN15,TGN26..DCB..5F..DLX..SA;GGN25,35,KUN26,36,LAN15,25,35,TGN15,16,36..SA201208
8424ANTI-THEFT DEVICE
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
90109T0027
main90109-T0027
90119T0103
main90119-T0103
90119T0143
main90119-T0143
90469T0003
main90469-T0003
90959T1001
main90959-T1001
19 parts on this diagram · 1 diagram in section
