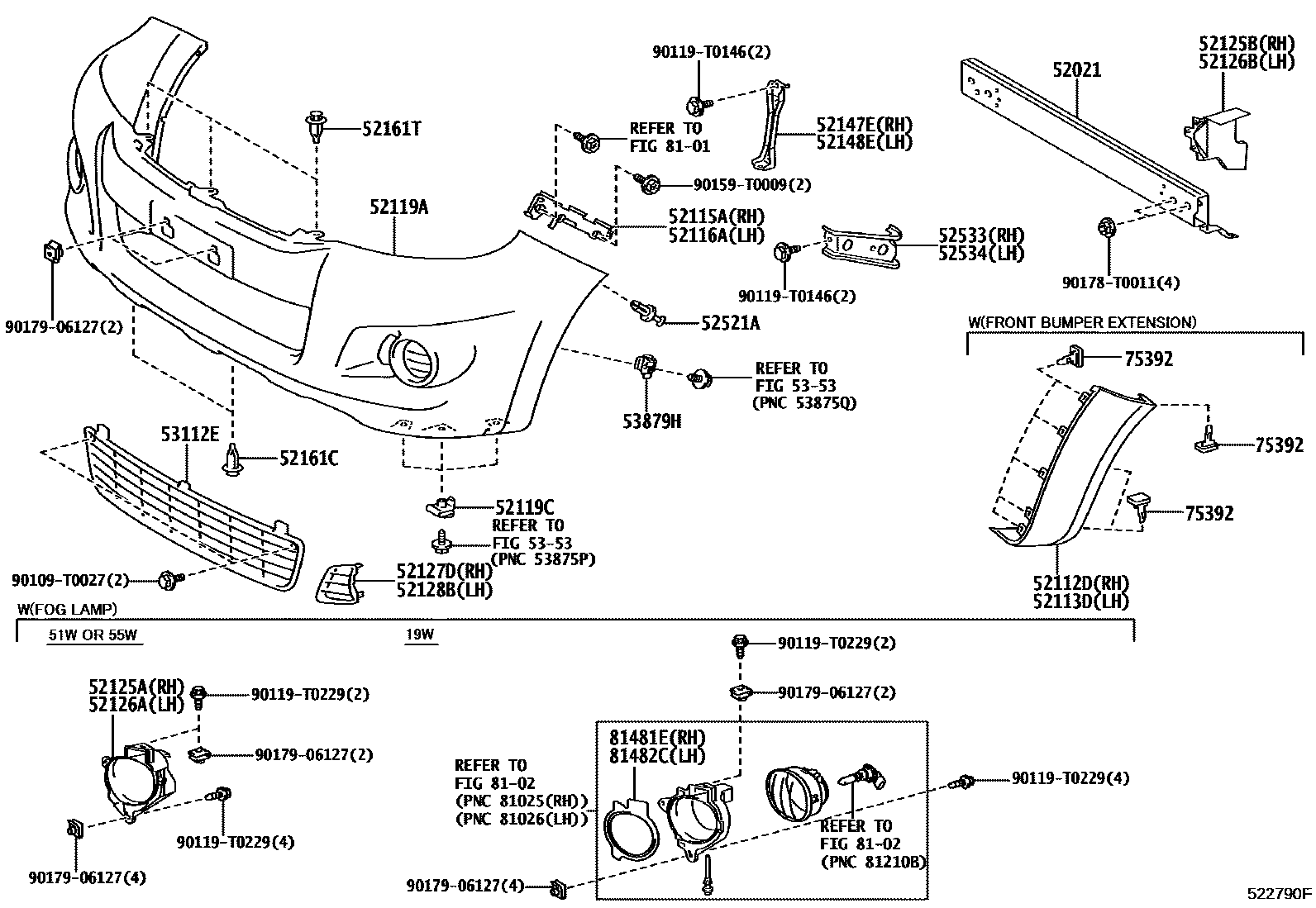

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
main52112-0K150iKUN35..TH;KUN35..LHD..SR;KUN25..DLX..IDN;KUN26..(4FC,5F)..SR..ARL;KUN26..(DCB,SMT,THDCB)..(GEN,MA,PHL,TH);GGN25,KUN25,36,TGN26..SR..(ARL,GEN,IDN,MA,TH); TGN36..GEN;TGN26..4FC..GEN;KUN25..DCB..5F..PKN201107-201609
PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,PAINT REQ.
main52112-0K160iKUN25..LHD..DCB..DLX..SA; KUN26..SADCB;GGN25,35,KUN2#,3#,TGN36..SR..SA; KUN35..SCB..SA; LAN25,35,TGN26..SA;KUN25..LHD..DLX..SA; LAN25,TGN26..DCB..SA;KUN25..LHD..DCB..DLX..SA201108-201512
PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ&WIRELESS DOOR LOCK-WITH,PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ,NO PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ,PAINT REQ.
main52112-0K170iKUN25,35..DCB..LA;TGN26,36..DCB..DLX..ANCOM; TGN26..DCB..SR;TGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ,PAINT REQ.
52113DEXTENSION, FRONT BUMPER, LH
main52113-0K140iKUN35..TH;KUN35..LHD..SR;KUN25..DLX..IDN;KUN26..(4FC,5F)..SR..ARL;KUN26..(DCB,SMT,THDCB)..(GEN,MA,PHL,TH);GGN25,KUN25,36,TGN26..SR..(ARL,GEN,IDN,MA,TH); TGN36..GEN;TGN26..4FC..GEN;KUN25..DCB..5F..PKN201107-201609
PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM,PAINT REQ.
main52113-0K150iKUN25..LHD..DCB..DLX..SA; KUN26..SADCB;GGN25,35,KUN2#,3#,TGN36..SR..SA; KUN35..SCB..SA; LAN25,35,TGN26..SA;KUN25..LHD..DLX..SA; LAN25,TGN26..DCB..SA;KUN25..LHD..DCB..DLX..SA201108-201512
PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ&WIRELESS DOOR LOCK-WITH(WITH/SET IN SECURITY SYSTEM),PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ&WIRELESS DOOR LOCK-WITH,PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ,NO PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ,PAINT REQ.
main52113-0K160iKUN25,35..DCB..LA;TGN26,36..DCB..DLX..ANCOM; TGN26..DCB..SR;TGN26..DLX..HTWCF;TGN36..DCB..HTWCF;TGN36..SR..HTWC..LA;GGN25,KUN26,36..DCB..(ANCOM,CO,LA)201110
PAINT REQ.; TIRE & DISC WHEEL-255/70R15C 7JJ,PAINT REQ.
52115ASUPPORT, FRONT BUMPER SIDE, RH
WIRELESS DOOR LOCK-WITH
52116ASUPPORT, FRONT BUMPER SIDE, LH
WIRELESS DOOR LOCK-WITH
52119ACOVER, FRONT BUMPER
main52119-0K280iKUN25..5F..PKN;TGN16..SCB..GEN;KUN15..SR..DCR..SA;TGN26..DCB..5F..GEN;KUN26..(4FC,5FC)..IV3;TGN36..DCB..DLX..HTWC;KUN15..RHD..(GEN,PKN,SA);KUN26..DCB..DLX..ARL..CBU;KUN15..LHD..(DCB,SCB)..(DLX,STD)..(GEN,PHL,SA);KUN35,TGN16,26..DLX..(HDCR,HTWC)..(ANCOM,ARL,CO,LA,SA);KUN25,LAN15,25,35..(DCB,SCB,THSCB)..DLX..(CO,GEN,LA,MA,SA);KUN10,16,26,TGN10,15,36..SCB..5F..(DLX,STD)..(ANCOM,ARL,IDN,LA,SA)201107
main52119-0K290iKUN26..SADCB;GGN25,35,KUN36..ANCOM,LA,SA;KUN2#,35,TGN26,36..SR..(ANCOM,CO,LA,SA);KUN26,TGN26,36..DCB..DLX..(DCR,HTWCF,IART)..LA201108
NO PAINT REQ.
main52119-0K980iKUN25..GCC;KUN15..SR..(GEN,PHL);KUN26..XTR..DLX..CBU;KUN16,TGN26..RHD..CBU;TGN16..(DCB,XTR)..GEN;KUN15,TGN16,26..GCC,TH;KUN26..(DCB,XTR)..5F..IV3;GGN15,KUN10,TGN10,11,15,36..ARL,GCC,GEN;KUN25,TGN26..LHD..(SCB,THDCB,XTR)..DLX..GEN;GGN25,KUN15,35..(DCB,THDCB,XTR)..DLX..(HDCR,HTWC)..(ARL,GEN,PHL); KUN26..(4FC,5FC)..IV3;KUN16,26..SCB..5F..ARL;KUN26..DCB..DLX..ARL..CBU; TGN26..DCB..5F..GEN;KUN15,25..DCB..DLX..GEN201107-201504
PAINT REQ.; PAINT REQ.,REAR BUMPER-FLAT TYPE(STEEL & PLATED); PAINT REQ.,WIRELESS DOOR LOCK-WITH
main52119-0K981iKUN25,35,TGN26..(THDCB,XTR)..DLX..GEN; KUN25..DCB..GEN;TGN26..DCB..5F..GEN; KUN35..LHD..SR;KUN25,35..IDN,TH;KUN26..THDCB..DLX;GGN25,KUN26,36,TGN26..(DCB,SMT,THDCB,XTR)..SR..(ARL,GEN,PHL,TH); TGN26..4FC..GEN;TGN26..SCB..GEN;KUN25..THDCB,XTR;KUN25,TGN26..GCC;GGN25,KUN35,TGN36..DLX..(ARL,GEN); TGN36..GEN;TGN26..4FC..GEN201107-201504
PAINT REQ.; PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&REAR BUMPER-FLAT TYPE(STEEL &PLATED); PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ; PAINT REQ.,TIRE & DISC WHEEL-255/70R15C 7JJ&REAR BUMPER-FLAT TYPE(STEEL & PLATED); PAINT REQ.,TIRE & DISC WHEEL-265/70R16 7J
PAINT REQ.
52119CCLIP, FRONT BUMPER COVER
WIRELESS DOOR LOCK-WITH
52125ABRACKET, FOG LAMP MOUNTING, RH
main81481-0K050iLAN25..LHD..DCB;KUN26..SADCB..SR;KUN26,36..SR..(CO,LA,SA);GGN25,35,KUN15,35,TGN26,36..SR..(CO,SA); TGN36..DLX..LA;KUN2#,36..DCB..DLX..LA;KUN36,TGN36..4FC..SR..(LA,TH);KUN35,LAN15,TGN26..LHD..DCB..(DEFI,HDCR,HTWCF)..(LA,SA)201107-201310
FRONT FOG LAMP-WITH(51W OR 55W)
52125BEXTENSION, FRONT BUMPER REINFORCEMENT, RH
52126ABRACKET, FOG LAMP MOUNTING, LH
main81482-0K040iLAN25..LHD..DCB;KUN26..SADCB..SR;KUN26,36..SR..(CO,LA,SA);GGN25,35,KUN15,35,TGN26,36..SR..(CO,SA); TGN36..DLX..LA;KUN2#,36..DCB..DLX..LA;KUN36,TGN36..4FC..SR..(LA,TH);KUN35,LAN15,TGN26..LHD..DCB..(DEFI,HDCR,HTWCF)..(LA,SA)201107-201310
FRONT FOG LAMP-WITH(51W OR 55W)
52126BEXTENSION, FRONT BUMPER REINFORCEMENT, LH
52127DCOVER, FRONT BUMPER HOLE, RH
WIRELESS DOOR LOCK-WITH
52128BCOVER, FRONT BUMPER HOLE, LH
WIRELESS DOOR LOCK-WITH
52147EBRACKET, FRONT BUMPER MOUNTING, RH
WIRELESS DOOR LOCK-WITH
52148EBRACKET, FRONT BUMPER MOUNTING, LH
WIRELESS DOOR LOCK-WITH
52161CPIECE, FRONT BUMPER
main52161-0K050×2iKUN26..4FC,5F;KUN26..5FC..DLX..ARL;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
52161TPIECE, FRONT BUMPER
52521ACLIP(FOR FRONT BUMPER RETAINER)
DK.GRAY; WIRELESS DOOR LOCK-WITH,DK.GRAY
52533BRACKET, FRONT BUMPER RETAINER, NO.1
main52533-0K050iKUN26..4FC,5F;KUN26..5FC..DLX..ARL;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
52534BRACKET, FRONT BUMPER RETAINER, NO.2
main52533-0K050iKUN26..4FC,5F;KUN26..5FC..DLX..ARL;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.; NO PAINT REQ.,WIRELESS DOOR LOCK-WITH
NO PAINT REQ.
NO PAINT REQ.
5353HOOD & FRONT FENDER
53879HRETAINER, FRONT FENDER LINER
main53879-0K010×2iKUN26..4FC,5F;KUN26..5FC..DLX..ARL;KUN26..5FC..(CO,GEN,LA,TH);GGN15,25,35,KUN1#,25,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
75392RETAINER, OUTSIDE MOULDING
main75392-0K010×16iKUN25,35,TGN26..(THDCB,XTR)..DLX..GEN; KUN25..DCB..GEN;TGN26..DCB..5F..GEN; KUN26..4FC..DLX;TGN26..(DCB,SCB)..(GCC,GEN);GGN25,KUN25,35,TGN36..DLX..(ARL,GCC,GEN); KUN35..LHD..SR;KUN25,35..IDN,TH;KUN26..(4FC,5F)..SR..ARL;GGN25,KUN36,TGN26..SR..(ARL,GEN,TH);KUN26..(DCB,SMT,THDCB)..(GEN,PHL,TH); TGN36..GEN;KUN25,TGN26..DCB..GEN201111-201504
TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&REAR BUMPER-FLAT TYPE(STEEL & PLATED); TIRE & DISC WHEEL-255/70R15C 7JJ; TIRE & DISC WHEEL-255/70R15C 7JJ&REAR BUMPER-FLAT TYPE(STEEL & PLATED); TIRE & DISC WHEEL-265/70R16 7J
main75392-35220×16iGGN25,KUN26..DCB..DLX..CBU; KUN25,35,TGN26..THDCB..DLX; KUN25,35..THDCB; KUN25,TGN26..DCB..GEN; KUN25..GCC; KUN25..SCB..GEN; KUN26..DCB..DLX..CBU; KUN26..DLX..ARL;GGN25,KUN25,35,TGN26,36..DLX..(ARL,GCC,GEN); KUN26..SCB..IV3;KUN26..DCB..DLX..CBU; KUN35..SR..PHL;KUN26..DLX..GEN;KUN25,3#..IDN,TH;GGN25,KUN26,TGN26..SR..(ARL,GEN,PHL,TH); TGN26..(DCB,SCB)..(GCC,GEN);KUN25,35,TGN36..(DCB,THDCB)..(GCC,GEN); TGN36..GEN;KUN25,TGN26..DCB..GEN201107-201110
JORDAN SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ; JORDAN SPEC&TIRE & DISC WHEEL-255/70R15C 7JJ&FRONT FOG LAMP-WITH(51W OR 55W); TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM; TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&FRONT FOG LAMP-WITH(51W OR 55W); TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&REAR BUMPER-FLAT TYPE(STEEL & PLATED); TIRE & DISC WHEEL-255/70R15C 7J ALUMINUM&REAR BUMPER-FLAT TYPE(STEEL & PLATED)&FRONT FOG LAMP-WITH(51W OR 55W); TIRE & DISC WHEEL-255/70R15C 7JJ; TIRE & DISC WHEEL-255/70R15C 7JJ&FRONT FOG LAMP-WITH(51W OR 55W); TIRE & DISC WHEEL-255/70R15C 7JJ&POWER DOOR LOCK-WITH; TIRE & DISC WHEEL-255/70R15C 7JJ&REAR BUMPER-FLAT TYPE(STEEL & PLATED); TIRE & DISC WHEEL-255/70R15C 7JJ&REAR BUMPER-FLAT TYPE(STEEL & PLATED)&FRONT FOG LAMP-WITH(51W OR 55W); TIRE & DISC WHEEL-255/70R15C 7JJ&WIRELESS DOOR LOCK-WITH; TIRE & DISC WHEEL-265/65R17 7.5J; TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM; TIRE & DISC WHEEL-265/65R17 7.5J ALUMINUM&WIRELESS DOOR LOCK-WITH; TIRE & DISC WHEEL-265/65R17 7.5J&WIRELESS DOOR LOCK-WITH; TIRE & DISC WHEEL-265/70R16 7J; TIRE & DISC WHEEL-265/70R16 7J&FRONT FOG LAMP-WITH(51W OR 55W)
8101HEADLAMP
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
90109T0027
main90109-T0027
90119T0146
main90119-T0146
90119T0229
main90119-T0229
90159T0009
main90159-T0009
90178T0011
main90178-T0011
9017906127
main90179-06127
34 parts on this diagram · 1 diagram in section
