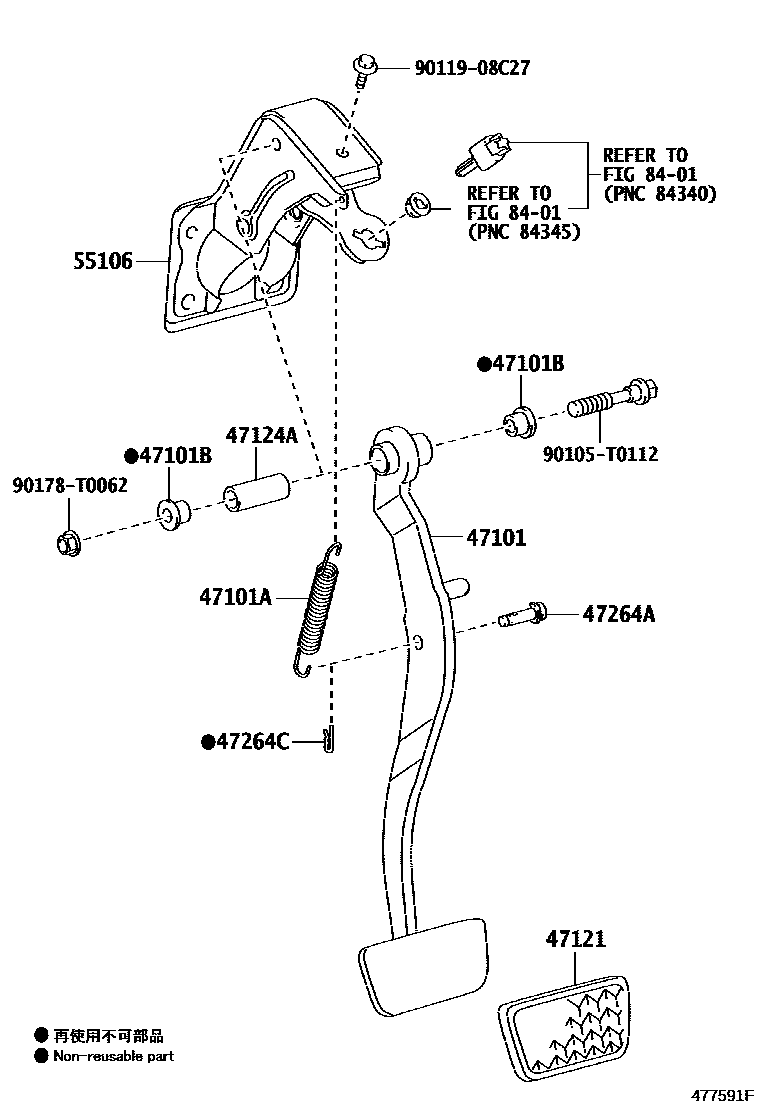

BRAKE PEDAL & BRACKET

0001 1W/O(VSC) 0002 1W(VSC)

47101PEDAL SUB-ASSY, BRAKE

main47101-0K010iKUN26..RHD..(DCB,SMT)..5F..(GEN,TH);GGN15,25,KUN1#,25,3#,TGN10,16..RHD..5F..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main47101-0K020iKUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..5F..(GCC,GEN,PHL)201107-201212

main47101-0K030iKUN26..5F..CO;KUN26..5F..SR..IART;KUN2#,3#..5F..DLX..(CO,LA);TGN26,36..5F..(ANCOM,CO,LA)201110-201410

main47101-0K040iKUN26..RHD..SADCB..5F;KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..5F..SA201108-201512

main47101-0K050iKUN26..LHD..SADCB..5F;KUN15,25,LAN15,25,TGN16,26..LHD..5F..SA201108-201410

main47101-0K060iKUN26..5FC..TH;GGN25..5FC..DLX;KUN26..RHD..(DCB,SCB)..4FC..(ARL,GEN,MA);GGN15,KUN16,25,3#,TGN16,26..(4FC,5FC)..(ARL,GEN,IDN,MA,PKN,TH)201107-201609

main47101-0K070iKUN26,35,TGN16,26..LHD..(DCB,THDCB)..4FC..(GCC,GEN,PHL)201107-201408

sub47101-0K350

main47101-0K090iKUN26..4FC..CO;GGN25,KUN26,TGN26,36..(4FC,5FC)..(HTWC,HTWCF,IART)..(ANCOM,LA)201110-201410

main47101-0K100iKUN26..RHD..SADCB..4FC;GGN25,KUN26,36..(4FC,5FC)..SA201108-201512

main47101-0K110iKUN25,TGN26..4FC..SA;KUN26..LHD..SADCB..4FC201204-201410

main47101-0K140iKUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..5F..(GCC,GEN,PHL)201301-201408

sub47101-0K380

main47101-0K350iKUN26,35,TGN16,26..LHD..(DCB,THDCB)..(4FC,5FC)..(GCC,GEN,PHL)201408-201504

main47101-0K360iKUN26..LHD..SADCB..5F;KUN15,25,LAN15,25,TGN16,26..LHD..5F..SA201410-201512

main47101-0K370iKUN25,TGN26..4FC..SA;KUN26..LHD..SADCB..4FC201410-201512

main47101-0K380iKUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..5F..(GCC,GEN,PHL)201408-201504

main47101-0K390iKUN26..5F..CO;KUN26..5F..SR..IART;KUN2#,3#..5F..DLX..(CO,LA);TGN26,36..5F..(ANCOM,CO,LA)201410

main47101-0K400iKUN26..5FC..CO;KUN26..4FC..LA;GGN25,KUN26,TGN26,36..(4FC,5FC)..(HTWC,HTWCF,IART)..(ANCOM,LA)201410

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iKUN15,25..PKN201107-201609

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iKUN15,25..PKN201107-201609

47121PAD, BRAKE PEDAL

main31321-02010iKUN26..5F..CO;KUN26..5F..SR..IART;KUN2#,3#..5F..DLX..(CO,LA);TGN26,36..5F..(ANCOM,CO,LA)201110

main31321-52010iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)201107-201609

main31321-52020iKUN26,36..5F..SR..DCR..LA201509-201510

main47121-02010iKUN26..4FC..LA201110

main47121-52010iGGN35,KUN26..5FC..(DCR,HTWC)..(LA,SA)201107-201609

main47121-52020iKUN26..5FC..SR..IART;GGN25,KUN26,36..(4FC,5FC)..SA201509-201512

VSC-WITH

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKUN26..4FC..LA201107-201609

main90387-10121iKUN26..4FC..LA201107-201512

main90387-10121iKUN26..5FC..DCR..(ARL,LA);KUN26,36..5F..SR..DCR..LA201107-201512

VSC-WITH

47264APIN(FOR PUSH ROD)

main47148-35010iKUN26..4FC..TH201107-201609

main90240-06025iKUN26..5FC..DCR..(ARL,LA);KUN26,36..5F..SR..DCR..LA201107-201512

VSC-WITH

main90240-06025iGGN35201107-201512

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iKUN15,25..PKN201107-201609

main90468-16142iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201512

VSC-WITH

main90468-16142iKUN26..4FC..TH201107-201512

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0K011iGGN35201107-201609

main55106-0K030iKUN26..CO;KUN26,36..DLX..DCR..LA;GGN25,KUN2#,35,TGN26,36..(HDCR,HTWC,HTWCF,IART)..(ANCOM,CO,LA)201110

main55106-71011iGGN35201107-201512

main55106-71011iKUN26..5F..ARL;GGN25..5FC..SR..ARL201107-201512

VSC-WITH

8401

90105T0112

main90105-T0112

9011908C27

main90119-08C27

90178T0062

main90178-T0062

12 parts on this diagram · 2 diagrams in section
