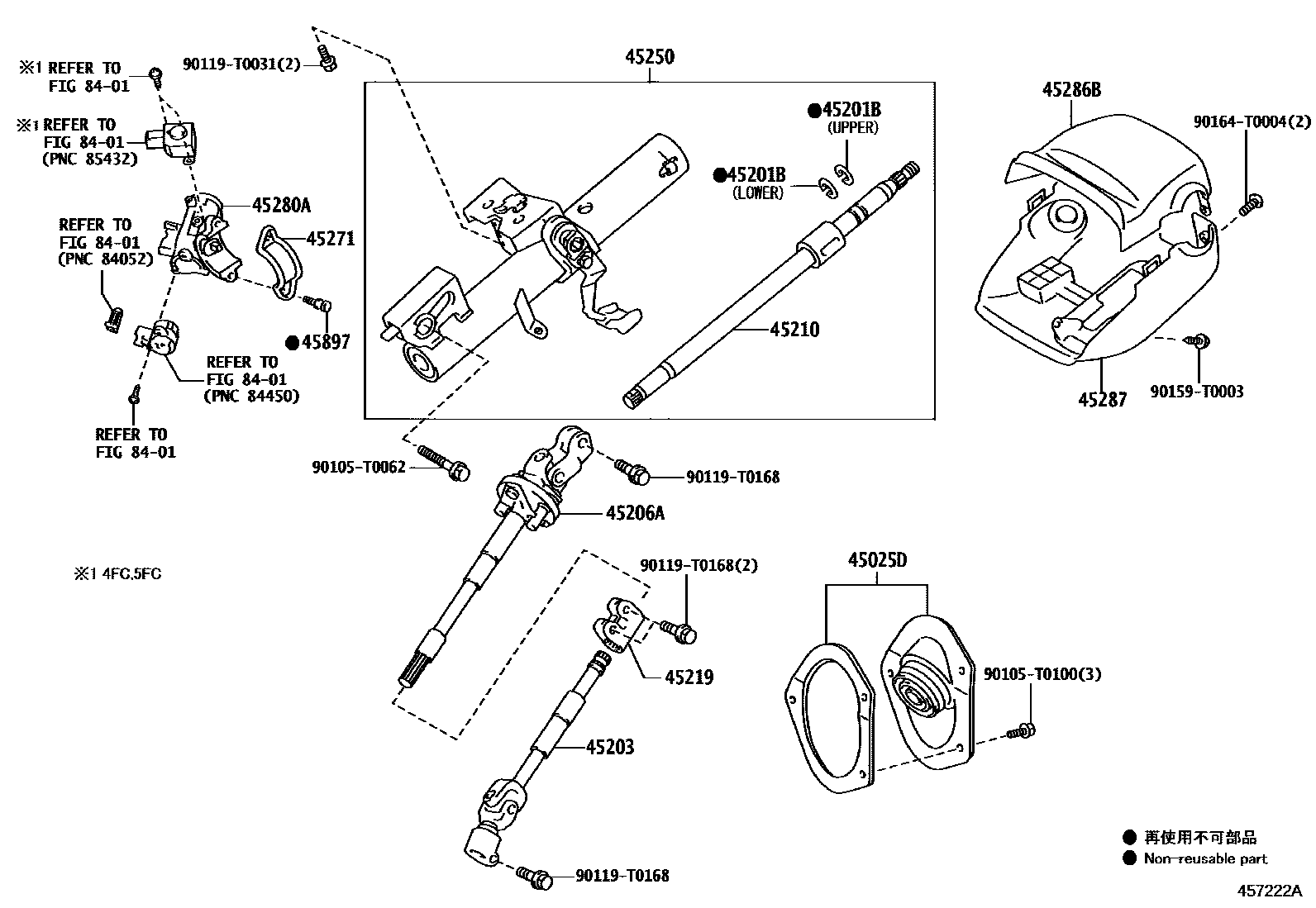

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
main90520-17042iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
T=1.20,LOWER
T=1.20,UPPER
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
main45203-0K080supersedes 45203-0K130iKUN15..RHD..(DCB,SMT,XTR);KUN15..RHD..SCB..(GEN,PKN,SA);GGN15,KUN10,16,LAN15,TGN10,15,16..RHD201107-201609
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
45210SHAFT ASSY, STEERING MAIN
45219YOKE, STEERING SLIDING
45250COLUMN ASSY, STEERING
main45250-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
45271CLAMP, STEERING COLUMN, UPPER
main45271-0K010iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-0K010iKUN15,TGN16..XTR..GEN;TGN26..DCB..5F..(GEN,SA);KUN15,25..LHD..5F..DLX..SA;KUN25..(DCB,SCB)..5F..(GEN,PKN);KUN10,LAN15,25,35,TGN10,16..IDN,SA;KUN15..(DLX,STD)..DCR..(GEN,PHL,PKN)201107-201609
main45280-0K020iKUN15,25..LHD..SR;KUN25..THDCB,THSCB,XTR;KUN15,25..RHD..5F..(IDN,MA,SA,TH);KUN15,25,TGN26..5F..(ANCOM,CO,GCC,LA);KUN15,TGN26..(SCB,THDCB)..(HDCR,HTWC)..GEN;TGN16..(DCB,SCB,SMT)..5F..(ARL,GCC,GEN,TH);GGN15,25,KUN10,16,26,3#,TGN10,11,15,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,PHL,SA,TH)201107
main45280-0K030iGGN15,25,35,KUN16,2#,3#,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107
45286BCOVER, STEERING COLUMN, UPR
main45286-0K010-B0iKUN10,15,25,TGN1#,26..GCC; KUN3#..TH;KUN26..PHL;KUN26..THDCB;KUN16..(4FC,5F)..(ARL,TH);KUN15,35..LHD..(DLX,STD)..(GEN,PHL);KUN15,26..RHD..(DCB,SCB,SMT,XTR)..(ARL,GEN,TH);GGN15,25,KUN10,25,TGN10,16,26,36..ARL,GEN,IDN,MA,TH201107-201308
DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,3#
main45286-0K010-C0iKUN10,15,25,TGN1#,26..GCC; KUN15,2#,35..SR..(IDN,PHL); KUN16,26,3#..TH;KUN15,TGN16..SR..TH;KUN25..5F..(IDN,TH);KUN25,TGN26..4FC..GEN201308-201504
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,3#; BLACK,TRIM2#,4#
main45286-0K010-E1iKUN25..IDN,TH;KUN15..SMT..SR;KUN35..SR..PHL;KUN15..DCB..HDCR;KUN16..(4FC,5F)..SR;KUN35..(DCB,SMT)..(GEN,TH);KUN15,26,36,TGN16..(DCB,SMT)..SR..(DCR,HTWC)..(GEN,PHL,TH)201107-201308
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#
ASH BROWN,TRIM4#
45287COVER, STEERING COLUMN, LWR
DK.GRAY,TRIM1#
main45287-0K010-C0iKUN15,16,26,3#..DCB..SR..GEN; KUN16..TH; KUN25..DCB..MA; KUN25..SCB..MA201308-201309
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,40; BLACK,TRIM2#,40
ASH BROWN,TRIM40
main45287-0K020-B0iKUN26..SADCB;LAN15,25..LHD;GGN25,35,KUN15,2#,3#,TGN15,16,26,36..ANCOM,CO,LA,SA201108-201310
DK.GRAY,TRIM1#
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#
ASH BROWN,TRIM4#
main45287-0K040-C0iKUN15,2#,35..SR..(IDN,PHL); KUN15,26,35..DCB..SR..GEN; KUN15..RHD..SCB..GEN; KUN16,26,3#..TH;KUN15,TGN16..SR..TH;KUN25..5F..(IDN,TH); KUN25..DCB..5F..GEN;KUN15..SCB..DCR..GEN;KUN15..LHD..DCB..DLX..GEN; KUN26..RHD..DCB..GEN201308-201504
ASEAN GENERAL SPEC,BLACK,TRIM1#,2#; ASEAN GENERAL SPEC,BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#; BRUNEI SPEC,BLACK,TRIM1#,2#; BRUNEI SPEC,BLACK,TRIM1#,2#,4#
45897BOLT, STEERING LOCK SET
main45897-0K010×2iGGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107
8401SWITCH & RELAY & COMPUTER
90105T0062
main90105-T0062
90105T0100
main90105-T0100
90119T0031
main90119-T0031
90119T0168
main90119-T0168
90159T0003
main90159-T0003
90164T0004
main90164-T0004
19 parts on this diagram · 1 diagram in section
