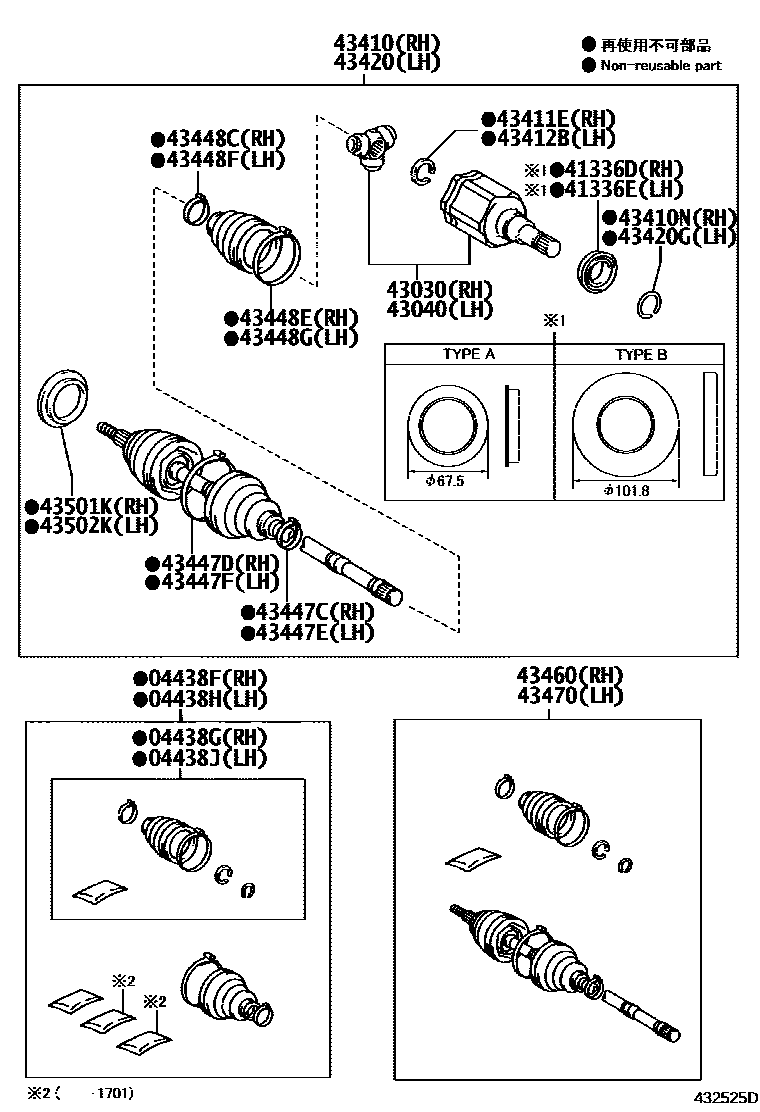

FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0K010iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110-201507

main04427-0K011iGGN25,KUN2#,TGN26..ANCOM,CO,LA201507

main04427-0K020iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201502

main04427-0K021iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201502-201609

sub04427-0K022

main04427-0K040iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201510

main04427-0K041iGGN25,KUN2#,LAN25,TGN26..GEN,SA201510-201512

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0K010iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main04437-0K020iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

sub04437-0K021

main04437-0K040iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0K010iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110-201507

main04427-0K011iGGN25,KUN2#,TGN26..ANCOM,CO,LA201507

main04427-0K020iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201502

main04427-0K021iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201502-201609

sub04427-0K022

main04427-0K040iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201510

main04427-0K041iGGN25,KUN2#,LAN25,TGN26..GEN,SA201510-201512

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0K010iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main04437-0K020iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

sub04437-0K021

main04437-0K040iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0K050iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110-201205

TYPE A:REFER ILLUST.

main41336-0K051iGGN25,KUN2#,TGN26..ANCOM,CO,LA201205

TYPE B:REFER ILLUST.

main41336-0K060iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201406

TYPE A:REFER ILLUST.

main41336-0K070iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201205

TYPE A:REFER ILLUST.

main41336-0K071iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201205-201512

TYPE B:REFER ILLUST.

main41336-0K080iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201406-201609

TYPE B:REFER ILLUST.

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-0K050iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110-201205

TYPE A:REFER ILLUST.

main41336-0K051iGGN25,KUN2#,TGN26..ANCOM,CO,LA201205

TYPE B:REFER ILLUST.

main41336-0K060iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201406

TYPE A:REFER ILLUST.

main41336-0K070iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201205

TYPE A:REFER ILLUST.

main41336-0K071iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201205-201512

TYPE B:REFER ILLUST.

main41336-0K080iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201406-201609

TYPE B:REFER ILLUST.

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-0K010iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main43040-0K030iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main43040-0K040iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0K010iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main43040-0K030iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main43040-0K040iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-0K022iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201406

PNC 41336D=TYPE A

main43430-0K023iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201406-201609

PNC 41336D=TYPE B

main43430-0K041iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110-201205

PNC 41336D=TYPE A

main43430-0K042iGGN25,KUN2#,TGN26..ANCOM,CO,LA201205

PNC 41336D=TYPE B

main43430-0K050iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201205

PNC 41336D=TYPE A

main43430-0K051iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201205-201512

PNC 41336D=TYPE B

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0K040iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main43425-0K080iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main43425-0K110iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0K010iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main43425-0K030iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main43425-0K100iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-0K010iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main43425-0K030iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main43425-0K100iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-0K022iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201406

PNC 41336E=TYPE A

main43430-0K023iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201406-201609

PNC 41336E=TYPE B

main43430-0K041iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110-201205

PNC 41336E=TYPE A

main43430-0K042iGGN25,KUN2#,TGN26..ANCOM,CO,LA201205

PNC 41336E=TYPE B

main43430-0K050iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201205

PNC 41336E=TYPE A

main43430-0K051iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201205-201512

PNC 41336E=TYPE B

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-0K040iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main43425-0K080iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main43425-0K110iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0K070iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K090iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K150iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0K100iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K120iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K160iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K070iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K090iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K150iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0K100iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K120iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K160iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0K040iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K060iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K140iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0K010iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K030iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K130iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K040iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K060iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K140iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0K010iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

main42345-0K030iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

main42345-0K130iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09V10iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

sub43460-09V11

main43460-09V20iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

main43460-80034iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-09V10iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH)201107-201609

sub43460-09V11

main43460-09V20iKUN26..SADCB;GGN25,KUN2#,LAN25,TGN26..SA201108-201512

main43460-80034iGGN25,KUN2#,TGN26..ANCOM,CO,LA201110

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-T0001iKUN25..PKN201107-201609

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-T0001iKUN25..PKN201107-201609

26 parts on this diagram · 1 diagram in section
