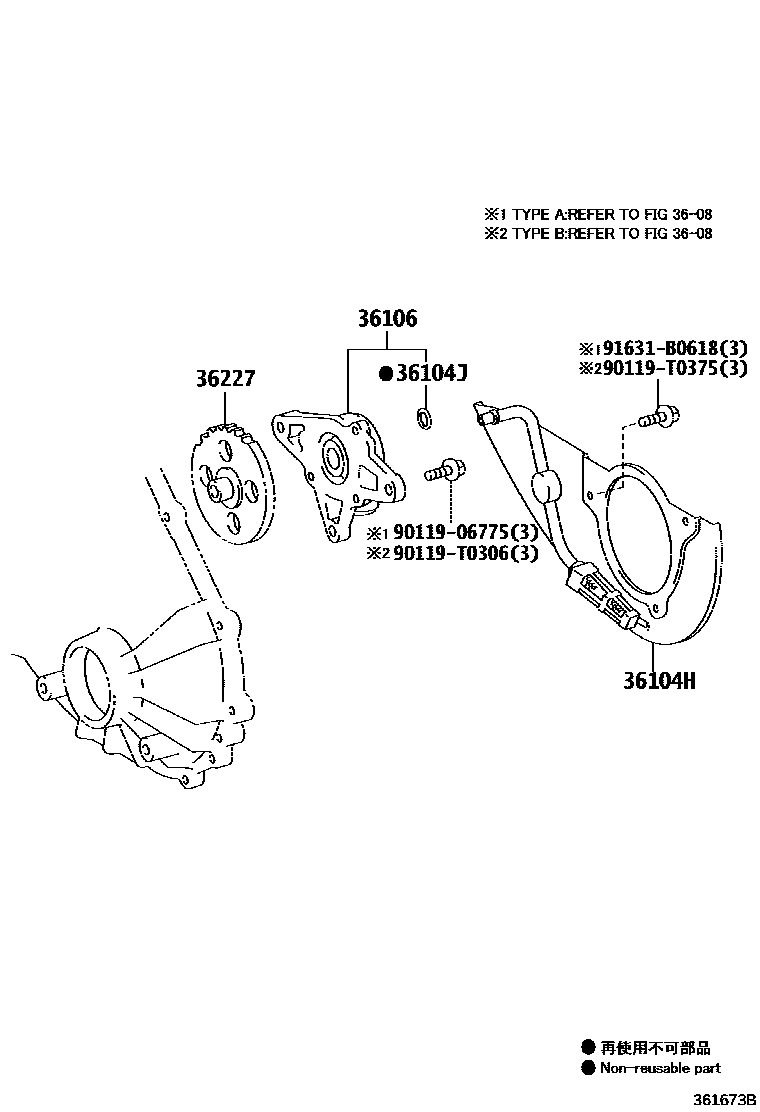

TRANSFER OIL PUMP

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iKUN25..PKN201107-201609

TYPE B:REFER 36-08,TYPE A:REFER 36-08

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iKUN25..PKN201107-201609

TYPE A:REFER 36-08

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-0K010supersedes 36106-35031iGGN25..5FC..SR;KUN26..SR..IART;KUN26..5F..DLX..IART;KUN2#,LAN25,TGN26..(DCR,DEFI,HDCR,HTWC,HTWCF)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201306

TYPE B:REFER 36-08

main36106-35031iGGN25..5FC..SR;KUN26..SR..IART;KUN26..5F..DLX..IART;KUN2#,LAN25,TGN26..DCR,DEFI,HDCR,HTWC,HTWCF201107-201306

TYPE B:REFER 36-08

36227GEAR, TRANSFER OIL PUMP

main36227-0K010iKUN25..PKN201303-201609

TYPE B:REFER 36-08

main36227-35020iGGN25..5F201107-201311

TYPE B:REFER 36-08

9011906775

main90119-06775

90119T0306

main90119-T0306

90119T0375

main90119-T0375

91631B0618

main91631-B0618

8 parts on this diagram · 1 diagram in section
