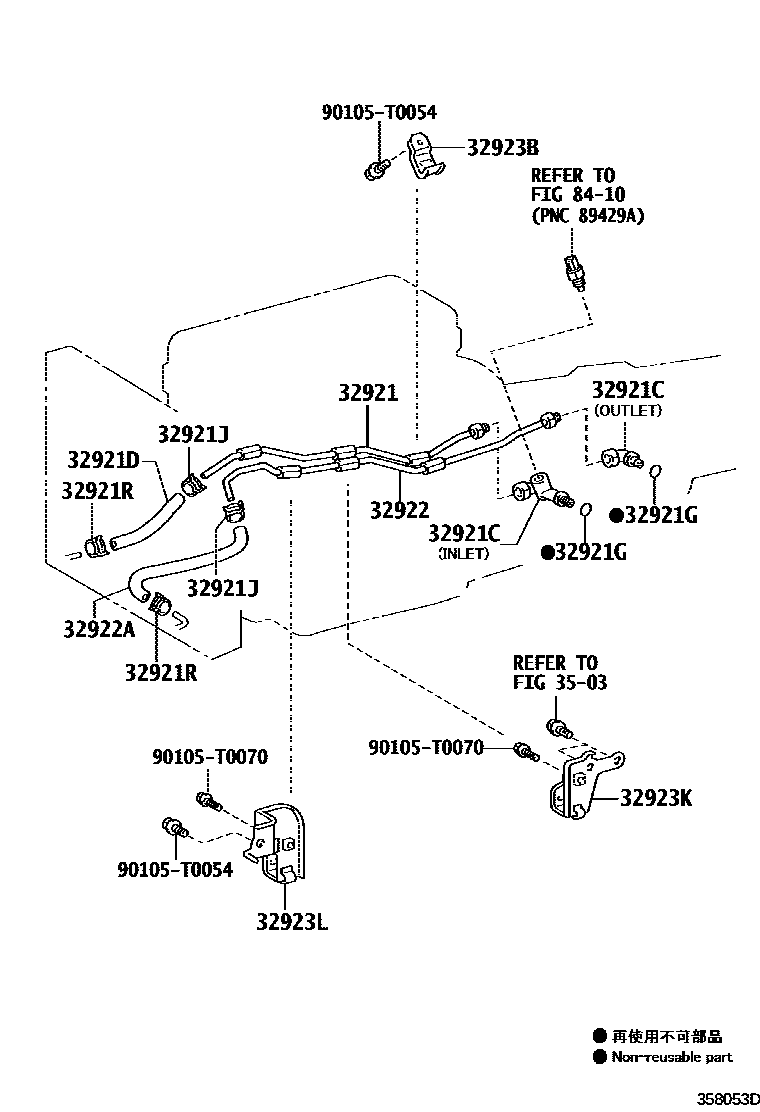

OIL COOLER & TUBE (ATM)

0001 1A340E,A340F 0002 1A343E,A343F 0003 1A750E,A750F 0004 1A750E,A750F

32921TUBE, OIL COOLER INLET, NO.1

main32921-0K020iTGN16,26,36..4FC201107

main32921-0K030iKUN16,2#,3#..4FC201107-201609

main32921-0K050iGGN15,25,35..5FC201107

main32921-0K071iKUN16,26,3#..5FC201204-201510

32921CUNION(FOR OIL COOLER TUBE)

main90407-14024iKUN16,2#,3#..(DCB,SCB,THDCB)..4FC201107-201609

INLET

main90407-16009iGGN15,25,35,KUN16,26,3#..5FC; KUN16,2#,3#,TGN16,26,36..(DCB,SCB,THDCB)..4FC..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

OUTLET

main90407-16012iTGN16,26,36..4FC201107

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-17117iTGN36201906-202110

main90445-17152iGGN25201906-202110

main90445-T0012iKUN16,2#,3#,TGN16,26,36..4FC201107-201905

main90445-T0013iGGN15,25,35,KUN16,26,3#..5FC201107-201905

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iKUN26..SADCB..4FC201204-201512

32921JCLIP(FOR OIL COOLER HOSE)

main90466-T0016×2iGGN15,25,35,KUN16,2#,3#,TGN16,26,36..4FC,5FC201107-202110

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-T0016×2iGGN15,25,35,KUN16,2#,3#,TGN16,26,36..(4FC,5FC)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-0K021iTGN16,26,36..4FC201107-202110

main32922-0K030iKUN16,2#,3#..4FC201107-201609

main32922-0K050iGGN15,25,35..5FC201107-202110

main32922-0K070iKUN16,26,3#..5FC201204-201510

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17117iGGN25201906

main90445-17152iTGN36201906

main90445-T0012iGGN15,25,35,KUN16,26,3#..5FC201107-201905

main90445-T0013iKUN16,2#,3#,TGN16,26,36..4FC201107-201906

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-0K080iGGN15,25,35..5FC201107

main32929-0K030iKUN25..4FC..PKN201107-201609

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32909-0K020iTGN16,26,36..4FC201107

main32909-0K040iKUN16,2#,3#..4FC,5FC201107-201609

main32909-0K090iGGN15,25,35..5FC201107

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32909-0K030iTGN16,26,36..4FC201107

main32909-0K050iKUN16,2#,3#..4FC,5FC201107-201609

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90105T0054

main90105-T0054

90105T0070

main90105-T0070

15 parts on this diagram · 4 diagrams in section
