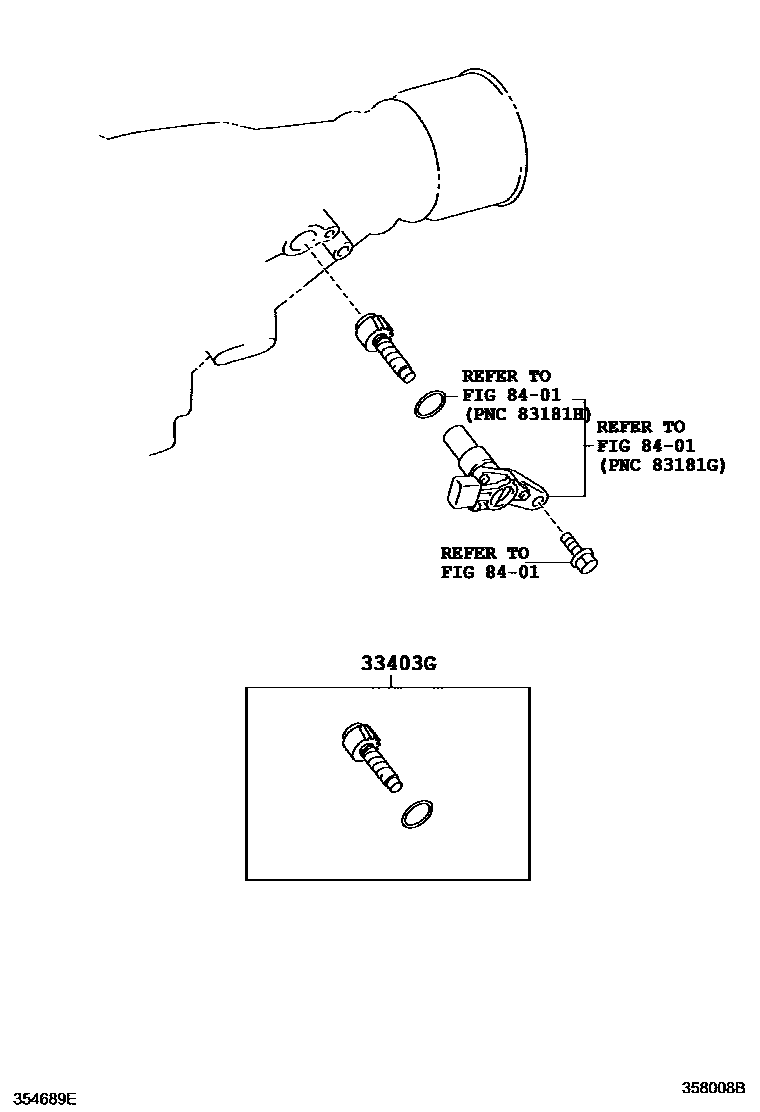

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A340E,A343E 0002 1A750E 0003 1A340F,A343F,A750F

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29315iTGN26..4FC..HTWC201107-201512

N=32,MARK 32:10

main33403-39355iTGN26..SR..HTWCF201110-201510

N=31,MARK 31:10

main33403-39365iKUN26..4FC..TH201107-201609

N=30,MARK 30:11

main33403-39515iKUN26..4FC..TH201107-201601

N=29,MARK 29:11

main33403-39575iGGN25..5FC..SR201107

N=27,MARK 27:11

main33403-39585iKUN26..4FC..DLX201107-201311

N=28,MARK 28:11

main33403-39585iGGN25..5FC..DLX;KUN26..4FC..SR..ARL201107-201311

N=28,MARK 28:11,TIRE & DISC WHEEL-255/70R15C 7JJ

main33482-29205iTGN16,36..4FC..HTWC201107

N=19,MARK 19:6

main33482-39405iKUN3#,TGN36..4FC..(DCR,HDCR,HTWCF)201107-201512

N=16,MARK 16:6

main33482-59015iKUN16..4FC201107-201504

N=17,MARK 17:6

main33482-79015iGGN15,KUN16..5FC201107-201504

N=19,MARK 19:7

main33482-79025iGGN35201108-201512

N=17,MARK 17:7

main33482-79035iKUN3#..5FC201208-201504

N=18,MARK 18:7

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2 parts on this diagram · 3 diagrams in section
