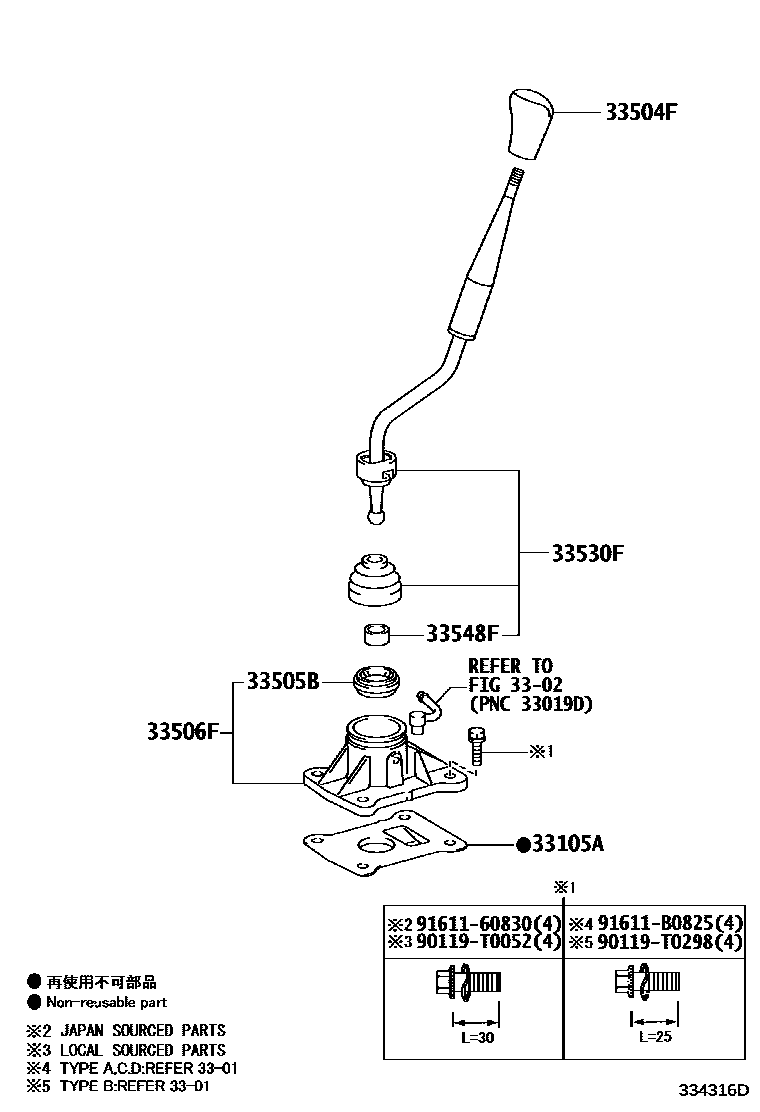

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33144-35030iKUN2#,TGN26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE D:REFER 33-01

main33144-35030iTGN26..DCB..ANCOM201107-201509

TYPE A:REFER 33-01

main33144-35030iTGN26..DCB..ANCOM201107-201504

TYPE B:REFER 33-01

main33144-35030iKUN2#,TGN26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE C:REFER 33-01

main33144-35060iKUN15..PKN201107-201609

TYPE A:REFER 33-01

main33144-35060iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33144-60050iLAN25201108-201512

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02070-B0iKUN35..DLX..SA;KUN26..LHD..SADCB..5F;KUN15,25,LAN15,25,35,TGN15,16,26..5F..SA201108-201310

DK.GRAY,TRIM1#

main33504-02070-C0iKUN26..LHD..SADCB..5F201310-201512

BLACK,TRIM1#,2#

main33504-02070-C0iKUN15..DCB..DLX..SA;KUN15..(SCB,XTR)..SA;KUN25,35,LAN15,25,TGN15,16,26..5F..DLX..SA201310-201512

BLACK,TRIM1#

main33504-0D050-B0iKUN10,15,25,TGN1#,26..5F..GCC201308-201504

DK.GRAY,TRIM10,30

main33504-0D050-B0iKUN16..5F..TH;GGN15,25,KUN15..5F..DLX..(DCR,HTWC)..(ARL,TH)201107-201311

DK.GRAY,TRIM1#

main33504-0D050-B0iKUN15,TGN16..SR..TH201308-201504

DK.GRAY,TRIM10,11

main33504-0D050-B0iKUN35..LHD..DLX;KUN26..THDCB..5F..SR;KUN25..SCB..(GEN,LA,MA);KUN26..5F..SR..DCR..(CO,LA);KUN10,16,36,TGN10..ARL,IDN,LA;TGN26,36..5F..(ANCOM,CO,GEN,LA);KUN25..(DCB,THDCB,THSCB,XTR)..5F..(CO,GEN,IDN,LA,MA,PKN);KUN15,26,TGN16..(DCB,SCB,SMT,THDCB,XTR)..5F..(DLX,STD)..(ARL,GEN,LA,PHL,PKN,TH)201308-201611

DK.GRAY,TRIM10

main33504-0D050-B0iKUN10,15,25,TGN1#,26..5F..GCC201107-201308

DK.GRAY,TRIM1#,3#

main33504-0D050-C0iKUN15,3#..SR..GEN;KUN26..LHD..DCB..5F..GEN201308-201504

BLACK,TRIM1#,2#

main33504-0D050-C0iKUN15,3#..SR..GEN;KUN26..LHD..DCB..5F..GEN201308-201504

BLACK,TRIM1#,2#,40

main33504-0D050-C0iKUN10,15,25,TGN1#,26..5F..GCC201308-201504

BLACK,TRIM10,30

main33504-0D050-C0iKUN10,15,25,TGN1#,26..5F..GCC201308-201504

BLACK,TRIM2#,40

main33504-0D050-C0iKUN10,15,25,TGN1#,26..5F..GCC201308-201504

BLACK,TRIM10,2#,40

main33504-0D050-C0iKUN35..LHD..DLX;KUN26..THDCB..5F..SR;KUN15..DLX..(GEN,PHL);KUN16,36..(ARL,LA)..CBU;KUN15..(DCB,SMT)..DLX..TH;TGN26,36..5F..(CO,GEN,LA);KUN2#,TGN16..SCB..(GEN,LA);KUN26..5F..SR..DCR..(CO,LA);KUN25..(DCB,THDCB,THSCB,XTR)..5F..(CO,GEN,LA,MA);KUN26,TGN16..(DCB,SMT,THDCB,XTR)..5F..DLX..(ARL,GEN,LA,TH)201308-201601

BLACK,TRIM10,2#

main33504-0D050-C0iTGN26201412-201609

BLACK,TRIM1#

main33504-0D050-C0iTGN26..ANCOM;KUN25..SCB..MA;KUN1#,26,TGN10,16,36..SCB..5F..(ANCOM,ARL,IDN,PHL,PKN,TH)201308-201611

BLACK,TRIM10

main33504-0D050-C0iKUN25..DCB..5F..PKN201308-201609

BLACK,TRIM10,40

main33504-0D050-E1iKUN3#..5F..SR..(GEN,PHL);KUN25..DCB..5F..(IDN,PKN);KUN15,TGN16..SR..(GEN,PHL,TH);KUN26..LHD..DCB..5F..(GEN,PHL)201308-201609

ASH BROWN,TRIM40

main33504-0D050-E1iKUN16..5F..SR;KUN15..DCB..DLX..HDCR201107-201504

ASH BROWN,TRIM4#

main33504-0D170-C0iKUN25..SR..IDN201310-201504

BLACK,TRIM2#,40

main33504-0D170-E0iKUN25..SR..IDN201208-201310

ASH BROWN,TRIM4#

main33504-0D170-E0iKUN25..SR..IDN201310-201504

ASH BROWN,TRIM40

main33504-0K010-B0iKUN16..TH201308-201504

DK.GRAY,TRIM11

main33504-0K010-B0iTGN16,26..4FC..GCC201107-201308

DK.GRAY,TRIM1#,3#

main33504-0K010-B0iKUN16..TH201308-201504

DK.GRAY,TRIM10,30

main33504-0K010-B0iKUN26..5FC..DCR..LA201308-201603

DK.GRAY,TRIM10

main33504-0K010-B0iKUN26..LHD..(SADCB,THDCB)..4FC;KUN26..(4FC,5FC)..DCR..(CO,LA);GGN25,KUN16,3#..5FC..(ANCOM,TH);GGN15,KUN26..(DCB,XTR)..5FC..DLX;KUN25,TGN16,26,36..4FC..(ANCOM,ARL,GEN,LA,MA,SA)201107-201603

DK.GRAY,TRIM1#

main33504-0K010-C0iKUN26..4FC..PHL201308-201504

BLACK,TRIM2#,40

main33504-0K010-C0iKUN26..4FC..PHL201308-201504

BLACK,TRIM10,30

main33504-0K010-C0iTGN16,26..4FC..GCC201308-201504

BLACK,TRIM1#,2#,40

main33504-0K010-C0iTGN16,26..4FC..GCC201308-201504

BLACK,TRIM2#,4#

main33504-0K010-C0iTGN16,26..4FC..GCC201308-201504

BLACK,TRIM10,2#,40

main33504-0K010-C0iTGN16..4FC..IV3;GGN25,KUN25,TGN26,36..LHD..(4FC,5FC)..(ANCOM,SA)201308-201603

BLACK,TRIM10

main33504-0K010-C0iKUN26..5FC..CO;KUN26..DCB..5FC..DLX..ARL201311-201510

BLACK,TRIM1#,2#

main33504-0K010-C0iKUN26..5FC..DCR..LA201308-201601

BLACK,TRIM10,2#

main33504-0K010-C0iKUN25..4FC..PKN201308-201601

BLACK,TRIM40

main33504-0K010-C0iGGN25,TGN36201308

BLACK,TRIM1#

main33504-0K010-C0iKUN25..4FC201601-201609

BLACK,TRIM4#

main33504-0K010-E1iKUN26..4FC..TH201107-201308

ASH BROWN,TRIM4#

main33504-0K010-E1iKUN16..SR;KUN25..4FC..PKN;KUN26..LHD..DCB..4FC..(GEN,PHL)201308-201601

ASH BROWN,TRIM40

main33504-0K040-B0iTGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201110-201311

DK.GRAY,TRIM1#,(L)

main33504-0K040-B0iKUN36..5F..SA;KUN26..5F..SR..IART;KUN26,35,TGN36..RHD..5F..SR..(ARL,GEN,SA)201110-201308

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,(L)

main33504-0K040-B0iTGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311

DK.GRAY,TRIM10,(L)

main33504-0K040-B0iTGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM10,(L)

main33504-0K040-C0iTGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311

BLACK,TRIM10,2#,40,(L)

main33504-0K040-C0iKUN26..RHD..DCB..5F..GEN201308-201311

BLACK,TRIM10,(L)

main33504-0K040-C0iKUN26..RHD..DCB..5F..GEN201308-201311

BLACK,TRIM10,2#,(L)

main33504-0K040-C0iKUN26..RHD..DCB..5F..GEN201308-201311

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM10,2#,(L)

main33504-0K040-C0iKUN26..DCB..5F..TH201308-201504

BLACK,TRIM1#,2#,40,(L)

main33504-0K040-C0iKUN26..DCB..5F..TH201308-201504

BLACK,TRIM1#,2#,4#,(L)

main33504-0K040-C0iKUN26..DCB..5F..TH201308-201504

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,40,(L)

main33504-0K040-C0iKUN26..DCB..5F..TH201308-201504

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,40,(L)

main33504-0K040-C0iKUN15,25..DCB..SR..SA201310-201512

BLACK,TRIM1#,(L)

main33504-0K040-C0iKUN26,3#,TGN36..5F..SR..SA201311-201512

BLACK,TRIM1#,2#,(L)

main33504-0K040-C0iKUN26,3#,TGN36..5F..SR..SA201311-201512

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,(L)

main33504-0K040-E0iKUN26..RHD..DCB..5F..GEN201110-201308

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#,(L)

main33504-0K040-E0iKUN26..RHD..DCB..5F..GEN201110-201308

ASH BROWN,TRIM4#,(L)

main33504-22140-B2iKUN26..LHD..5F..SR201107-201110

DK.GRAY,TRIM1#

main33504-22140-B2iGGN25,KUN26,3#,TGN36..RHD..5F..SR..(ARL,GEN,SA)201107-201110

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main33504-22140-B2iGGN25..5F..SR201110-201311

DK.GRAY,TRIM1#,(J)

main33504-22140-B2iGGN25..5F..SR201110-201311

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,(J)

main33504-22140-B2iTGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM10,(J)

main33504-22140-B2iTGN26..SR..HTWC..LA;KUN26..LHD..(SADCB,THDCB)..5F..SR;KUN26,36,TGN36..5F..SR..(DCR,HTWC)..(CO,LA)201308-201311

DK.GRAY,TRIM10,(J)

main33504-22140-C0iKUN15,25..DCB..SR..SA201310-201512

BLACK,TRIM1#,(J)

main33504-22140-C0iKUN26,3#,TGN36..5F..SR..SA201311-201512

BLACK,TRIM1#,2#,(J)

main33504-22140-C0iKUN26..5F..SR..IART;KUN26..DCB..5F..SR..ARL;KUN26..RHD..(SADCB,XTR)..5F..SR..(ARL,GEN)201308-201311

BLACK,TRIM10,2#,40,(J)

main33504-22140-C0iKUN26..5F..SR..IART;KUN26..DCB..5F..SR..ARL;KUN26..RHD..(SADCB,XTR)..5F..SR..(ARL,GEN)201308-201311

BLACK,TRIM10,2#,(J)

main33504-22140-C0iKUN26..5F..SR..IART;KUN26..DCB..5F..SR..ARL;KUN26..RHD..(SADCB,XTR)..5F..SR..(ARL,GEN)201308-201311

BLACK,TRIM10,(J)

main33504-22140-C0iKUN26,3#,TGN36..5F..SR..SA201308-201311

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM10,2#,(J)

main33504-22140-C0iKUN26..SMT;KUN25,3#..5F..TH201308-201504

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,40,(J)

main33504-22140-C0iKUN26..5F..PHL201308-201504

BLACK,TRIM1#,2#,4#,(J)

main33504-22140-C0iKUN26..5F..PHL201308-201504

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#,40,(J)

main33504-22140-C0iKUN26..LHD..DCB..5F..GEN201308-201504

BLACK,TRIM1#,2#,40,(J)

main33504-22140-C0iKUN26,3#,TGN36..5F..SR..SA201311-201512

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#,2#,(J)

main33504-22140-E4iKUN26..RHD..DCB..5F..GEN201110-201308

ASH BROWN,TRIM4#,(J)

main33504-22140-E4iKUN26..RHD..DCB..5F..GEN201110-201308

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#,(J)

main33504-22140-E4iKUN26..DCB..5F..GEN201107-201110

ASH BROWN,TRIM4#

main33504-22140-E4iKUN26..DCB..5F..GEN201107-201110

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

main33504-71010-B0iKUN26..5FC..TH;KUN26..5FC..SR..IART;KUN26..RHD..4FC..(GEN,SA);GGN15,25,35,KUN36..(4FC,5FC)..SR..(ARL,SA)201308-201311

DK.GRAY,TRIM10

main33504-71010-B0iKUN26..5FC..TH;KUN26..5FC..SR..IART;KUN26..RHD..4FC..(GEN,SA);GGN15,25,35,KUN36..(4FC,5FC)..SR..(ARL,SA)201308-201311

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM10

main33504-71010-B0iKUN26..5FC..SR..IART;KUN26,36..RHD..4FC..(GEN,SA);GGN15,25,35,KUN26..RHD..DCB..5FC..SR201107-201311

DK.GRAY,TRIM1#

main33504-71010-B0iKUN26..5FC..SR..IART;KUN26,36..RHD..4FC..(GEN,SA);GGN15,25,35,KUN26..RHD..DCB..5FC..SR201107-201311

SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#

main33504-71010-C1iGGN25,35,KUN26,36..(4FC,5FC)..SA201308-201311

BLACK & SILVER,TRIM10

main33504-71010-C1iKUN26..LHD..(SADCB,THDCB)..4FC;KUN26,TGN26,36..4FC..SR..(CO,LA)201308-201311

SEAT COVER MATERIAL-LEATHER,BLACK & SILVER,TRIM10,2#,4#

main33504-71010-C1iKUN26..LHD..(SADCB,THDCB)..4FC;KUN26,TGN26,36..4FC..SR..(CO,LA)201308-201311

BLACK & SILVER,TRIM10,2#

main33504-71010-C1iKUN26..LHD..(SADCB,THDCB)..4FC;KUN26,TGN26,36..4FC..SR..(CO,LA)201308-201311

BLACK & SILVER,TRIM10,2#,4#

main33504-71010-C1iKUN25,TGN26..4FC..GEN201308-201311

SEAT COVER MATERIAL-LEATHER,BLACK & SILVER,TRIM10,2#

main33504-71010-C1iKUN3#..5FC;KUN26..4FC..TH201308-201504

BLACK & SILVER,TRIM1#,2#,4#

main33504-71010-C1iKUN3#..5FC;KUN26..4FC..TH201308-201504

SEAT COVER MATERIAL-LEATHER,BLACK & SILVER,TRIM2#,4#

main33504-71010-C1iKUN3#..5FC;KUN26..4FC..TH201308-201504

SEAT COVER MATERIAL-LEATHER,BLACK & SILVER,TRIM1#,2#,4#

main33504-71010-C1iGGN25,35,KUN26,36..(4FC,5FC)..SA201311-201512

BLACK & SILVER,TRIM1#

main33504-71010-C1iGGN25,35,KUN26,36..(4FC,5FC)..SA201311-201512

SEAT COVER MATERIAL-LEATHER,BLACK & SILVER,TRIM1#,2#

main33504-71010-C1iKUN26..RHD..SADCB..4FC;KUN26..5FC..SR..(GEN,LA);GGN15,25,KUN26..(4FC,5FC)..SR..(ARL,MA)201311-201601

BLACK & SILVER,TRIM1#,2#

main33504-71010-E0iKUN26..5FC..TH;KUN26..RHD..DCB..4FC..GEN201107-201308

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

main33504-71010-E0iKUN26..5FC..TH;KUN26..RHD..DCB..4FC..GEN201107-201308

ASH BROWN,TRIM4#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iTGN16..XTR;TGN11,36..GCC,GEN;TGN16..5F..HTWC..(ARL,GCC,TH)201202-201504

TYPE A:SEE 33-01,(L)

main33505-0K010iTGN36..DCB..5F..HTWCF201107-201512

TYPE D:REFER 33-01

main33505-0K010iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main33505-35020iKUN15..PKN201107-201609

TYPE A:REFER 33-01

main33505-35020iLAN25201108-201512

main33505-35020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33505-35030iTGN26..DCB..ANCOM201107-201509

TYPE A:REFER 33-01

main33505-35030iTGN26..DCB..ANCOM201107-201504

TYPE A:SEE 33-01,(J)

main33505-35030iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE C:REFER 33-01

main33505-35030iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE D:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-0K010iKUN2#,TGN26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201911

TYPE C:REFER 33-01

main33506-0K011iTGN26201911

TYPE C:REFER 33-01

main33506-0K020iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main33506-60060iTGN26..5F..GCC;TGN26..(DCB,THDCB)..5F..GEN201107-201509

TYPE A:REFER 33-01

main33506-60060iGGN25,KUN2#,TGN26..5F201107-201812

TYPE D:REFER 33-01

main33506-60061iTGN26201812

TYPE D:REFER 33-01

main33506-60110iLAN25201108-201512

main33506-71020iKUN15..PKN201107-201609

TYPE A:REFER 33-01

main33506-71020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33570-0K030iKUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main33570-0K030iTGN36..SR..HTWC..LA201107-201504

TYPE A:REFER 33-01

main33570-0K030iTGN36..DCB..5F..HTWCF201107-201512

TYPE D:REFER 33-01

main33570-0K040iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201512

TYPE C:REFER 33-01

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K330iTGN10..IDN201107-201504

main33530-0K340iTGN10,15..GCC201107-201504

main33530-0K350iKUN15..RHD..DCR..SA201107-201609

main33530-0K360iKUN15..LHD..SA201107-201504

main33530-0K370iLAN15,35..RHD201108-201201

main33530-0K380iLAN15..LHD201108-201201

main33530-0K390iLAN25..RHD201108-201310

main33530-0K400iLAN25..LHD201108-201512

main33530-0K411iKUN15..HDCR..TH;KUN16,3#..RHD..5F..(ARL,GEN,TH)201107-201504

main33530-0K421iKUN15,35..LHD..5F..HDCR..(GEN,PHL)201107-201504

main33530-0K431iTGN36..SA201107-201504

main33530-0K441iTGN16,36..5F..DLX..(LA,SA)201107-201509

main33530-0K451iKUN2#..RHD..5F201107-201609

main33530-0K461iKUN2#..LHD..5F201107-201512

main33530-0K481iTGN26..5F201107-201908

main33530-0K482iTGN26201909

main33530-0K491iGGN15..5F201107-201311

main33530-0K501iGGN25..5F201107-201311

main33530-0K520iTGN15..SA201201-201512

main33530-0K530iKUN15..RHD..DCR..SA201201-201512

main33530-0K540iKUN15..LHD..SA201201-201512

main33530-0K550iLAN15,35..RHD201201-201310

main33530-0K560iLAN15..LHD201201-201512

main33530-0K570iKUN36..5F..SA;KUN15,35..HDCR..SA201201-201512

main33530-0K580iKUN3#..CO,LA201201-201510

main33530-0K590iTGN36..SA201201-201512

main33530-0K600iTGN16,36..LHD..5F..(LA,SA)201201-201512

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iGGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..5F201107

90119T0052

main90119-T0052

90119T0298

main90119-T0298

9161160830

main91611-60830

91611B0825

main91611-B0825

11 parts on this diagram · 5 diagrams in section
