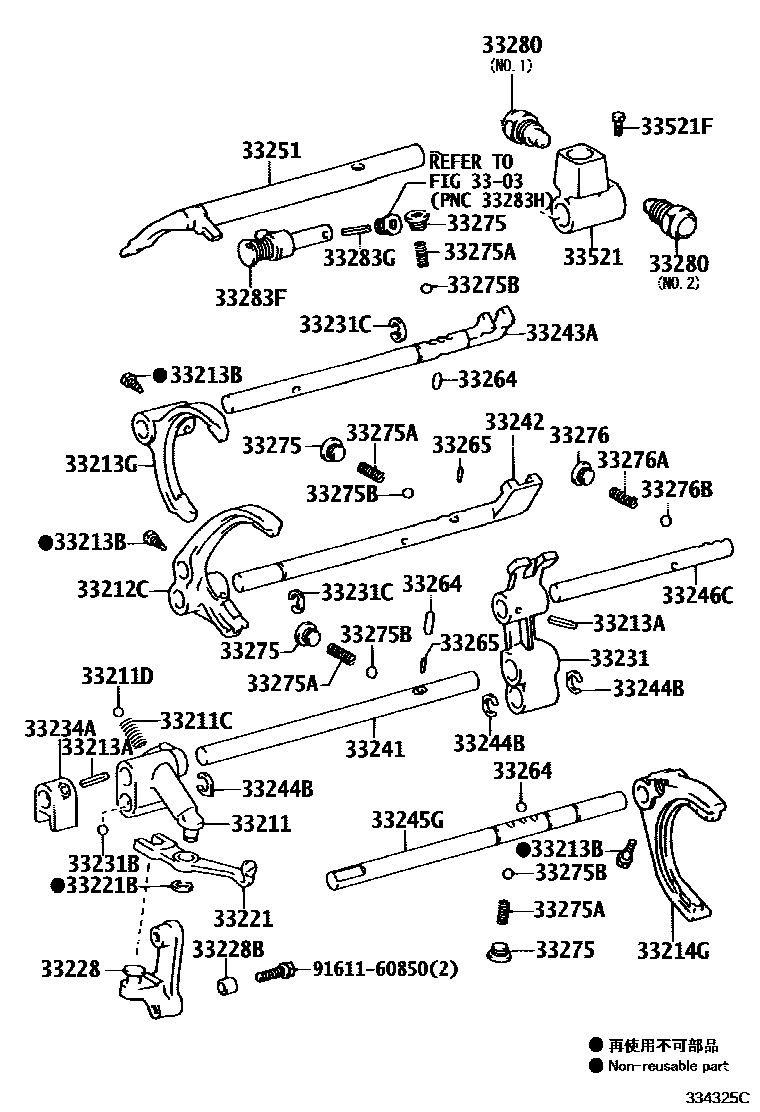

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G50,G55,G58 0002 1R150,R150F 0003 1R150,R151,R156,R150F,R151F,R10004 1R151,R156,R151F,R156F

3303

33211FORK, REVERSE SHIFT

main33211-0K010iTGN36..5F..HTWCF201308-201401

TYPE C:REFER 33-01

main33211-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33211-0K030iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201407

TYPE B:REFER 33-01

main33211-0K040iKUN26,36..5F..DCR;KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF);KUN16,25,TGN36..5F..(DCR,HDCR,HTWC)..(ANCOM,ARL,CO,GCC,GEN,LA,PKN,SA)201107-201404

TYPE D:REFER 33-01

main33211-0K050iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201407-201504

TYPE B:REFER 33-01

main33211-0K060iTGN36..5F..HTWCF201210-201308

TYPE C:REFER 33-01

main33211-0K061iTGN26202003

TYPE C:REFER 33-01

main33211-0K070iKUN16,26,36,TGN36..5F..(DCR,HTWC);KUN25..5F..(CO,GCC,GEN,LA,PKN,SA);KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)201404-202012

TYPE D:REFER 33-01

main33211-0K071iTGN26202012

TYPE D:REFER 33-01

main33211-35050iTGN26..DLX..HTWCF;KUN16,26,36..5F..TH;TGN16..(DCB,SCB)..GEN;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26,36..SR..HTWC..(ANCOM,LA);KUN15,25,35,TGN36..5F..(HD201107-201310

TYPE A:REFER 33-01

main33211-35060iTGN16,36..HTWC..(LA,SA)201310-201410

TYPE A:REFER 33-01

main33211-71010iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)

main90501-12166iKUN15..PKN201508-201609

TYPE A:REFER 33-01

main90501-T0022iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201407

TYPE B:REFER 33-01

33211DBALL(FOR REVERSE SHIFT FORK)

main90360-10003×2supersedes 90360-10003iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201407

OD=9.52,STEEL,TYPE B:SEE 33-01,(J)

main90360-T0008×2iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201304-201407

OD=9.53,STEEL,TYPE B:SEE 33-01,(L)

33212CFORK, GEAR SHIFT, NO.1

main33212-0K010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33212-35023iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001×2iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main90254-05016iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH)201107

TYPE C:REFER 33-01

main90254-T0004iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,PHL,TH)201304

TYPE B:SEE 33-01,(L)

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077×2iKUN35..CO201107-201410

TYPE C:REFER 33-01

main90105-06143×3iKUN15..PKN201508-201609

TYPE A:REFER 33-01

main90105-T0157×2iTGN26202105

TYPE D:REFER 33-01

33213GFORK, GEAR SHIFT, NO.2

main33213-0K010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201302

TYPE D:REFER 33-01

main33213-0K011iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN)201302-201508

TYPE D:REFER 33-01

main33213-0K030iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201407-201504

TYPE B:REFER 33-01

main33213-0K040iKUN25..5F..PKN201404-201609

TYPE D:REFER 33-01

main33213-35033iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201211

TYPE A:REFER 33-01

main33213-35034iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA)201211-201609

TYPE A:REFER 33-01

main33213-35040iTGN36..SR..HTWC..LA201107-201410

TYPE A:REFER 33-01

33214GFORK, GEAR SHIFT, NO.3

main33214-0K010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33214-35040iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main33230-0K030iKUN26,36..5F;KUN15,25,35,TGN16,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,LA,MA,SA)201506-201512

TYPE C:REFER 33-01

main33230-35011iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201501

TYPE C:REFER 33-01

main33230-35012iKUN26..SADCB..5F;KUN26,36..5F..(CO,LA,SA);KUN15,25,35,TGN16,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,LA,MA,SA)201501-201505

TYPE C:REFER 33-01

33221ARM, REVERSE SHIFT

main33221-0K010iTGN36..5F..HTWC;KUN25..5F..(IDN,MA,TH);KUN26,TGN11,16,26..5F..(HTWC,HTWCF,IART)..(ANCOM,ARL,CO,GCC,GEN,LA,SA)201107-201401

TYPE C:REFER 33-01

main33221-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33221-0K030iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201407

TYPE B:REFER 33-01

main33221-0K040iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33221-0K050iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201407-201504

TYPE B:REFER 33-01

main33221-0K060iTGN36..5F..HTWCF201210-201308

TYPE C:REFER 33-01

main33221-0K070iKUN26..5F..IART;KUN25..5F..(IDN,MA,TH)201407

TYPE D:REFER 33-01

main33221-0K080iKUN25,TGN26..5F..(ANCOM,MA)201512

TYPE C:REFER 33-01

main33221-35050iTGN26..DLX..HTWCF;KUN16,26,36..5F..TH;TGN16..(DCB,SCB)..GEN;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26,36..SR..HTWC..(ANCOM,LA);KUN15,25,35,TGN36..5F..(HD201107-201310

TYPE A:REFER 33-01

main33221-35060iTGN26..DCB..ANCOM201310-201504

TYPE A:REFER 33-01

main33221-71010iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33228BRACKET, REVERSE SHIFT ARM

main33228-0K010iTGN36..5F..HTWCF201107-201210

TYPE C:REFER 33-01

main33228-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33228-0K030iTGN36..5F..HTWC;KUN15,2#,3#..5F..TH;TGN11,16,26..5F..(HTWC,HTWCF)201305-201310

TYPE A:SEE 33-01,(L)

main33228-0K040iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33228-0K050iTGN26201711

TYPE C:REFER 33-01

main33228-0K060iTGN26201704

TYPE D:REFER 33-01

main33228-35030iTGN26..DLX..HTWCF;KUN16,26,36..5F..TH;TGN16..(DCB,SCB)..GEN;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26,36..SR..HTWC..(ANCOM,LA);KUN15,25,35,TGN36..5F..(HD201107-201310

TYPE A:REFER 33-01

main33228-35050iTGN16,36..HTWC..(LA,SA)201310-201410

TYPE A:REFER 33-01

main33228-71010iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001×2iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

33231HEAD, REVERSE SHIFT

main33231-0K010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33231-71010iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33231BBALL, REVERSE SHIFT RESTRICT

main90360-10003iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

33231CRING(FOR REVERSE SHIFT HEAD)

main90520-12006×2iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33234AHEAD, GEAR SHIFT, NO.3

main33234-0K010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33234-71010iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33241SHAFT, REVERSE SHIFT FORK

main33244-0K010iTGN36..5F..HTWCF201308-201401

TYPE C:REFER 33-01

main33244-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33244-0K030iTGN11,16,26,36..5F..(ARL,GCC,GEN,TH)201107-201407

TYPE B:SEE 33-01,(L)

main33244-0K040iGGN15..5F201107-201311

main33244-0K050iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201407-201504

TYPE B:SEE 33-01,(L)

main33244-0K060iKUN35..XTR201210-202003

TYPE C:REFER 33-01

main33244-0K061iTGN26202003-202108

TYPE C:REFER 33-01

main33244-0K062iTGN26202109

TYPE C:REFER 33-01

main33244-0K070iKUN16,26,36,TGN36..5F..(DCR,HTWC);KUN25..5F..(CO,GCC,GEN,LA,PKN,SA);KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)201404-202012

TYPE D:REFER 33-01

main33244-0K071iTGN26202012

TYPE D:REFER 33-01

sub33244-0K072

main33244-35090iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH201107-201201

TYPE A:REFER 33-01

main33244-35091iTGN16..XTR;TGN36..DCB..SA;TGN36..DCB..DLX..HTWC..LA;TGN26..(DCB,THDCB)..5F..(CO,GEN);TGN26..5F..DLX..HTWC..(GCC,LA,SA);TGN11,16..5F..HTWC..(ARL,GCC,SA,TH);TGN36..(S201204-201310

TYPE A:REFER 33-01

main33244-35110iTGN16,36..HTWC..(LA,SA)201310-201410

TYPE A:REFER 33-01

main33244-71010iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-0K010iTGN36..5F..HTWCF201107-201210

TYPE C:REFER 33-01

main33242-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33242-0K030iGGN15,25..5F201107-201112

TYPE B:REFER 33-01

main33242-0K040iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33242-0K050iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201407-201504

TYPE B:SEE 33-01,(L)

main33242-0K060iTGN36..5F..HTWCF201210-201308

TYPE C:REFER 33-01

main33242-0K070iKUN16,26,36,TGN36..5F..(DCR,HTWC);KUN25..5F..(CO,GCC,GEN,LA,PKN,SA);KUN15,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)201404-202012

TYPE D:REFER 33-01

main33242-0K071iTGN26202012

TYPE D:REFER 33-01

main33242-0K110iKUN26,36..5F;KUN15,25,35,TGN16,26,36..5F..(HDCR,HTWC)..(ANCOM,MA,SA)201511-202003

TYPE C:REFER 33-01

main33242-0K111iTGN26202003

TYPE C:REFER 33-01

main33242-35070iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201112-201407

TYPE B:SEE 33-01,(J)

main33242-35090iKUN15,2#,3#..5F..TH;TGN11,16,36..5F..HTWC..(ANCOM,ARL,GCC,GEN,TH)201310-201504

TYPE A:REFER 33-01

main33242-71010iKUN15..PKN201508-201609

TYPE A:REFER 33-01

main33242-71030iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201512

TYPE A:REFER 33-01

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-0K010iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201510

TYPE C:REFER 33-01

sub33243-0K070

main33243-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33243-0K030iGGN15,25..5F201112-201504

TYPE B:SEE 33-01,(L)

main33243-0K040iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33243-35100iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201112-201504

TYPE B:SEE 33-01,(J)

main33243-71010iKUN15..PKN201508-201609

TYPE A:REFER 33-01

main33243-71020iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201512

TYPE A:REFER 33-01

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12006×3iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-0K010iKUN15,35..5F..HDCR;KUN16,26,36..5F..DCR;KUN25..5F..(CO,GCC,GEN,LA,SA)201107-201405

TYPE C:REFER 33-01

main33245-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33245-0K030iTGN16..XTR;TGN26..(DCB,THDCB)..5F..GEN;TGN16,26..5F..HTWC..(ARL,GCC,TH);GGN15,25,TGN11,36..5F..(ARL,GCC,GEN)201112-201407

TYPE B:SEE 33-01,(L)

main33245-0K040iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33245-35090iTGN16..XTR;TGN36..DCB..SA;TGN36..DCB..DLX..HTWC..LA;TGN26..(DCB,THDCB)..5F..(CO,GEN);TGN26..5F..DLX..HTWC..(GCC,LA,SA);TGN11,16..5F..HTWC..(ARL,GCC,SA,TH);TGN36..(S201204-201310

TYPE A:REFER 33-01

main33245-71010iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33246CSHAFT, GEAR SHIFT FORK, NO.5

main33246-0K010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33246-71010iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33251LEVER, SHIFT & SELECT

main33251-0K010iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201512

TYPE C:REFER 33-01

sub33251-0K130

main33251-0K020iTGN26..5F201107-201504

TYPE C:REFER 33-01

main33251-0K030iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33251-0K070iKUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC)201107-201512

TYPE D:REFER 33-01

main33251-0K080iGGN25,TGN26..5F201107

TYPE D:REFER 33-01

main33251-0K090iKUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main33251-0K100iGGN25,TGN26..5F..(ARL,GCC,GEN)201107-201504

TYPE B:REFER 33-01

main33251-0K140iTGN26..5F201505

TYPE C:REFER 33-01

main33251-24012iTGN16..XTR;TGN11,36..GCC,GEN;TGN16..5F..HTWC..(ARL,GCC,TH)201204-201504

TYPE A:REFER 33-01

main33251-35152iTGN26..5F..(CO,LA,SA)201204-201410

TYPE A:REFER 33-01

main33251-71010iKUN10,15,LAN15,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main33251-71021iLAN25201108-201512

TYPE A:REFER 33-01

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05029supersedes 90250-05029iTGN26..(DCB,THDCB)..5F..(CO,GEN);TGN26..5F..DLX..HTWC..(GCC,LA,SA)201204-201310

L=11.5,OD=4.8,TYPE A:REFER 33-01

main90250-06032iTGN36..5F..HTWCF201210-201308

L=13.7,OD=6,TYPE C:REFER 33-01

main90250-T0022iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

L=11.5,OD=4.8,TYPE B:REFER 33-01

main90360-10003iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

OD=9.52,STEEL,TYPE A:REFER 33-01

main90361-10002iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

L=21.6,PIN,TYPE A:REFER 33-01

main90361-10003iKUN15..PKN201508-201609

L=13.6,OD=9.5,TYPE A:REFER 33-01

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020×2iKUN15..PKN201508-201609

L=11.1,OD=4.8,TYPE A:REFER 33-01

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008×4iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

OD=18,TYPE D:REFER 33-01

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14183×3iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

L=33.5,TYPE D:REFER 33-01

main90501-16143×3iKUN16,26,36..5F..TH;KUN15,25,35..HDCR..TH201107-201203

L=33.8,TYPE D:REFER 33-01

main90501-16196iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

L=19.1,TYPE A:REFER 33-01

main90501-16199×3iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201203-201411

L=35.09,TYPE C:REFER 33-01

main90501-18134×3iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201512

L=28.8,TYPE A:REFER 33-01

main90501-T0021×3iKUN15..HDCR..TH;GGN15,25,KUN16,2#,3#,TGN11,16,26,36..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201203

L=33.8,TYPE B:REFER 33-01

main90501-T0029×3iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201203-201504

L=35.09,TYPE B:REFER 33-01

main90501-T0052×3iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201412

L=35.09,TYPE C:REFER 33-01

main90501-T0062×3iTGN26201701

L=35.09,TYPE D:SEE 33-01,(L)

33275BBALL, SHAFT DETENT

main90360-10003×3supersedes 90360-10003iTGN26..DLX..HTWCF;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26..SR..HTWC..(ANCOM,LA)201107-201310

TYPE A:REFER 33-01

main90360-T0008×3iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201304-201504

TYPE B:SEE 33-01,(L)

main90360-T0013×3iTGN26201702

TYPE D:SEE 33-01,(L)

33276SEAT, SHIFT DETENT BALL SPRING, NO.2

main90341-12008iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)

main90501-12219iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33276BBALL, SHIFT DETENT, NO.2

main90360-10003iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33280PIN ASSY, REVERSE RESTRICT

main33280-0K050iKUN15..HDCR..(GEN,TH);KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201409-201504

T/P B:SEE 33-01,NO.1

main33280-0K060iKUN15..HDCR..(GEN,TH);KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201409-201504

T/P B:SEE 33-01,NO.2

main33280-0K070iKUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201409-201504

T/P B:SEE 33-01,NO.1

main33280-0K080iKUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201409-201504

T/P B:SEE 33-01,NO.2

main33280-35110iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201512

T/P C:SEE 33-01,NO.1

main33280-35120iGGN25,KUN2#,TGN26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

T/P C:SEE 33-01,NO.1

main33280-35130iTGN36..SR..HTWC..LA201107-201410

T/P A:SEE 33-01,NO.2

main33280-35140iKUN25..5F..PKN201107-201609

T/P D:SEE 33-01,NO.2

main33280-71010iKUN10,15,LAN15,25,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

T/P A:SEE 33-01,NO.1

main33280-71020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

T/P D:SEE 33-01,NO.2

33283FPIN, REVERSE RESTRICT

main33280-35040iKUN15..PKN201508-201609

TYPE A:REFER 33-01

main33280-35100iTGN36..5F..ANCOM;TGN26..DCB..ANCOM201107-201504

TYPE B:REFER 33-01

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05001iTGN26..DLX..HTWCF;TGN26,36..SR..HTWC..LA201107-201410

TYPE A:REFER 33-01

main90254-T0003iKUN15..HDCR..(GEN,TH);GGN15,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201304-201504

TYPE B:SEE 33-01,(L)

33521HOUSING, SHIFT LEVER

main33521-0K030iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201505

TYPE C:REFER 33-01

main33521-0K040iTGN26..5F201107-201604

TYPE C:REFER 33-01

main33521-0K050iKUN2#..5F..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201505

TYPE C:REFER 33-01

main33521-0K060iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33521-0K080iTGN16..SA;TGN36..DCB..SA;TGN36..SCB..HTWC..(LA,SA);TGN36..DCB..DLX..HTWC..LA201204-201410

TYPE A:SEE 33-01,(L)

main33521-0K090iKUN2#..5F201107-201609

TYPE D:SEE 33-01,(L)

main33521-0K100iGGN25,TGN26..5F..(ARL,GCC,GEN)201107-201504

TYPE B:REFER 33-01

main33521-0K110iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33521-0K120iGGN25,TGN26..5F201107

TYPE D:REFER 33-01

main33521-0K260iKUN36..5F;KUN15,35,TGN16,36..5F..(HDCR,HTWC,HTWCF)201505-201512

TYPE C:REFER 33-01

main33521-0K270iKUN2#..5F..(CO,GEN,LA,MA,SA)201505-201601

TYPE C:REFER 33-01

main33521-0K280iTGN26201605

TYPE C:REFER 33-01

main33521-35071iKUN10,15,LAN15,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main33521-35250iKUN16,36..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15,35,TGN36..5F..(HDCR,HTWC)..(ANCOM,TH)201202-201504

TYPE A:SEE 33-01,(J)

main33521-35260iTGN26..5F..(CO,LA,SA)201204-201410

TYPE A:REFER 33-01

main33521-35331iKUN2#..5F201107-201609

TYPE D:SEE 33-01,(J)

main33521-60090iLAN25201108-201512

TYPE A:REFER 33-01

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90109-08305iTGN16..XTR;TGN11,36..GCC,GEN;TGN26..(DCB,THDCB)..5F..GEN;TGN16,26..5F..HTWC..(ARL,GCC,TH)201204-201609

TYPE A:REFER 33-01

main90109-T0039iTGN10,15..GCC,IDN201107-201504

TYPE D:REFER 33-01

9161160850

main91611-60850

38 parts on this diagram · 4 diagrams in section
