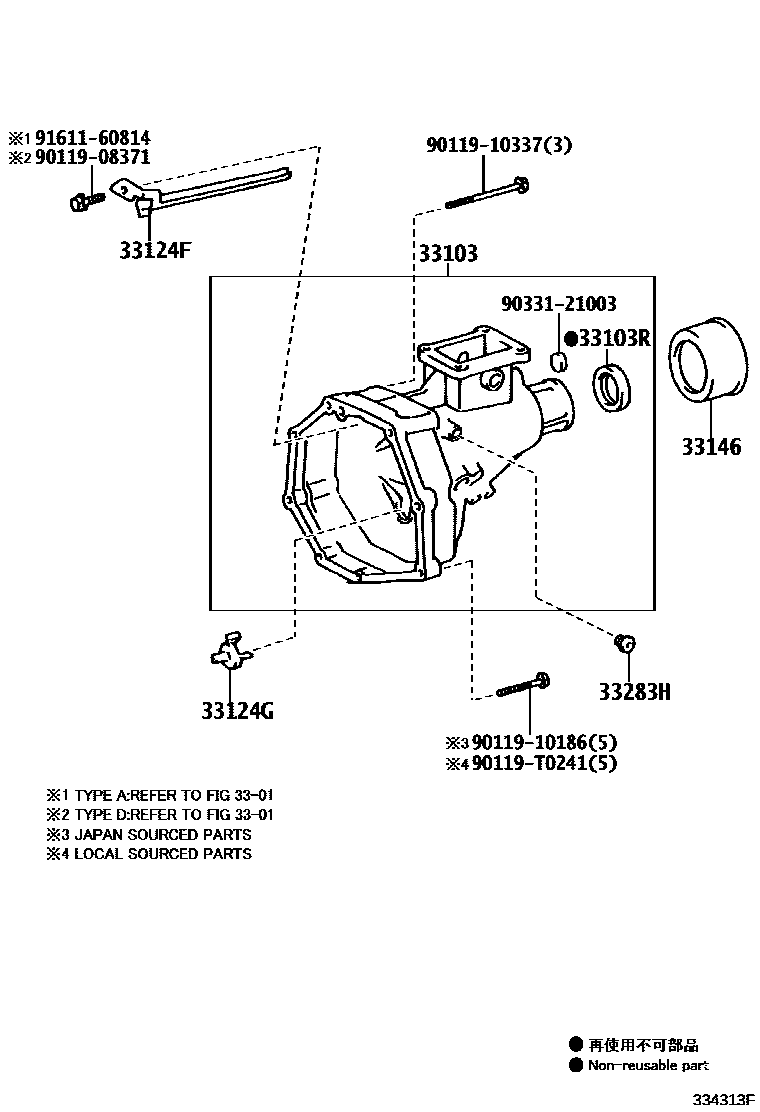

EXTENSION HOUSING (MTM)

0001 1G50,G55,G58 0002 1R150,R151,R156

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0K010iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201406

TYPE C:REFER 33-01

main33103-0K011iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201407-201512

TYPE C:REFER 33-01

main33103-0K020iTGN10,15..GCC,IDN201107-201504

TYPE D:REFER 33-01

main33103-0K030iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33103-0K031iKUN16,36..5F;KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC)201407-201512

TYPE D:REFER 33-01

main33103-0K040iKUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201107-201502

TYPE B:REFER 33-01

main33103-0K041iKUN15..HDCR..(GEN,TH);KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201503-201504

TYPE B:REFER 33-01

main33103-35180iTGN36..SR..HTWC..LA201107-201410

TYPE A:REFER 33-01

main33103-71010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38094iLAN15,35201108-201512

main90311-40032iKUN16,36..5F;TGN36..DCB..5F..HTWCF;GGN15,KUN15,35,TGN11,16,36..5F..(HDCR,HTWC)201107-201202

TYPE D:REFER 33-01

main90311-40035iTGN36..SR..HTWC..LA201107-201410

TYPE A:REFER 33-01

main90311-T0019iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201203

TYPE C:REFER 33-01

main90311-T0020iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH); TGN10,15..GCC,IDN201107-201211

TYPE D:REFER 33-01

main90311-T0029iKUN36..5F..(GEN,TH);KUN16,TGN11,36..DLX..(ARL,GCC,GEN);KUN15,35,TGN16..5F..(CNG,HDCR,HTWC)..(ARL,GCC,GEN,PHL,TH)201107-201302

TYPE B:REFER 33-01

main90311-T0050iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN)201211-201508

TYPE D:REFER 33-01

main90311-T0051iKUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201306-201504

TYPE B:REFER 33-01

main90311-T0052iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201203-201512

TYPE C:REFER 33-01

main90311-T0067iKUN16,36..5F;KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC)201307-201512

TYPE D:SEE 33-01,(L)

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-0K020iKUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201512

TYPE C:REFER 33-01

main33124-0K030iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33124-0K040iKUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC)201107-201512

TYPE D:REFER 33-01

main33124-0K050iKUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main33124-35011iLAN15,35201108-201512

main33124-35090iTGN16..XTR;TGN11,36..GCC,GEN;TGN16..5F..HTWC..(ARL,GCC,TH)201204-201504

TYPE A:REFER 33-01

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0K010iKUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC); KUN16,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,35,TGN11,36..5F..(HDCR,HTWC,HTWCF)201107-201512

TYPE C:REFER 33-01; TYPE D:REFER 33-01

main33124-0K060iKUN15..HDCR..(GEN,TH);GGN15,KUN16,3#,TGN11,16,36..5F..(ARL,GCC,GEN,PHL,TH)201304-201504

TYPE B:SEE 33-01,(L)

main33124-35100iTGN16..XTR;TGN11,36..GCC,GEN;TGN16..5F..HTWC..(ARL,GCC,TH)201204-201504

TYPE A:REFER 33-01

main33124-36010iKUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH); LAN15,35; TGN15..SA201107

TYPE A:REFER 33-01

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-04010iGGN15,KUN1#,3#,LAN15,35,TGN1#,36..5F201107-201609

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-12008iKUN15..DCR..TH201107-201208

TYPE D:REFER 33-01,TYPE A:REFER 33-01

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

90119T0241

main90119-T0241

9033121003

main90331-21003

9161160814

main91611-60814

12 parts on this diagram · 2 diagrams in section
