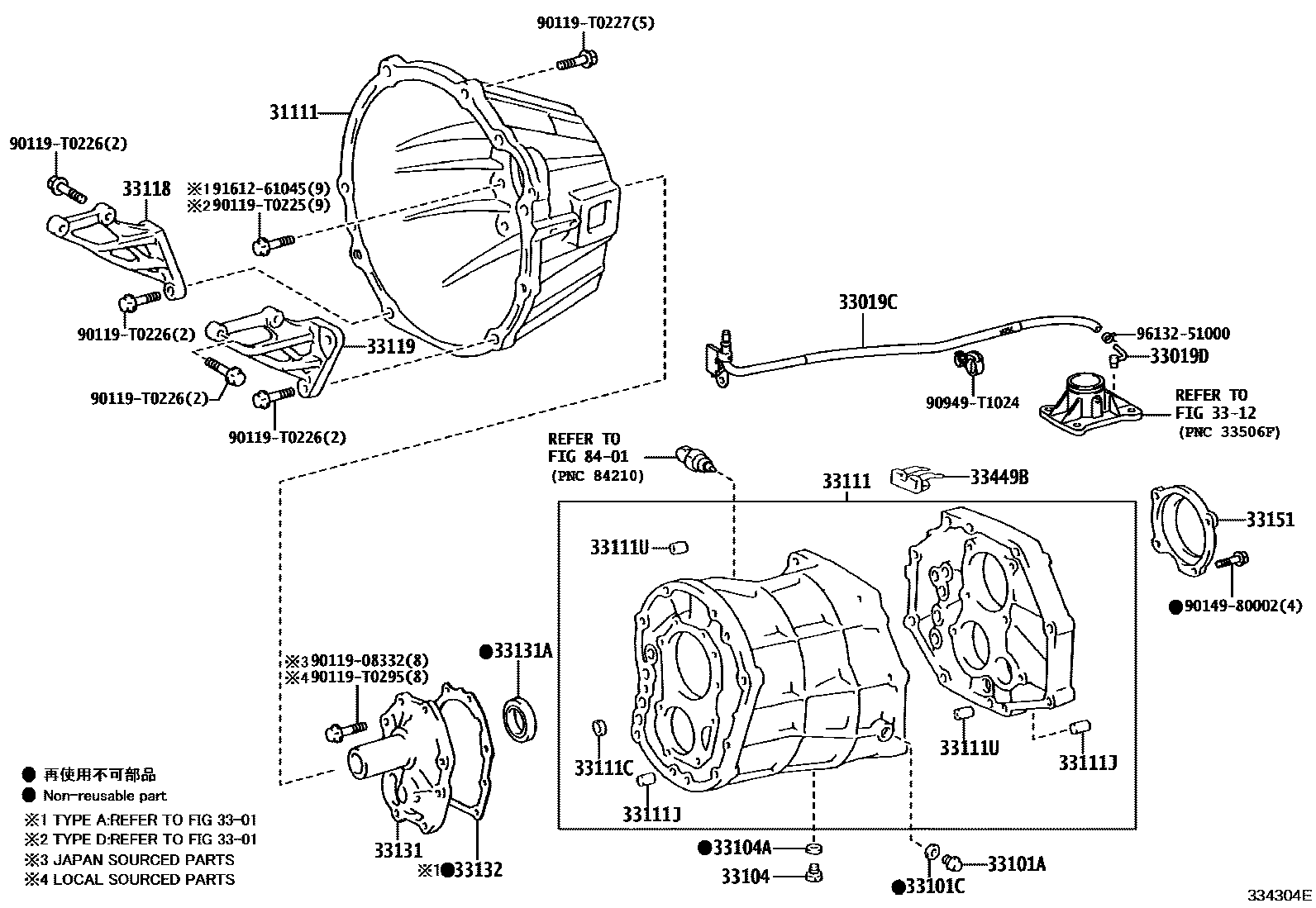

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1G50 0002 1R151,R156,R151F,R156F 0003 1G55 0004 1R150,R150F 0005 1R150,R150F 0006 1G58 0007 1G58

31111HOUSING, CLUTCH

main31111-0K010iKUN16,26,36..5F;KUN15,25,35..5F..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201601

TYPE C:REFER 33-01

main31111-0K020iTGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA)201107

TYPE C:REFER 33-01

main31111-0K030iTGN10,15..GCC,IDN201107-201504

TYPE D:REFER 33-01

main31111-0K050iGGN15,25..5F201107-201311

TYPE D:REFER 33-01

main31111-0K060iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201112-201408

TYPE B:SEE 33-01,(L)

main31111-0K061iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201409-201504

TYPE B:SEE 33-01,(L)

main31111-0K070iTGN11,16,26,36..5F..(ARL,GCC,GEN,TH)201107-201112

TYPE B:REFER 33-01

main31111-0K080iGGN15,25..5F201107-201311

TYPE B:REFER 33-01

main31111-0K090iKUN16,26,36..5F;KUN15,25,35..5F..HDCR201107-201609

TYPE D:REFER 33-01

main31111-0K100iTGN11,16,26..5F;TGN36..5F..HTWC201107

TYPE D:REFER 33-01

main31111-0W070iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main31111-25050iKUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main31111-26032iTGN10,15201107-201512

TYPE A:REFER 33-01

main31111-26073iTGN36..HTWC..(LA,SA);TGN16,26..5F..(CO,LA,SA)201204-201410

TYPE A:REFER 33-01

main31111-35101iKUN16,26,36..5F..TH;KUN15,25,35..5F..HDCR..TH201107-201403

TYPE A:REFER 33-01

main31111-35102iKUN15..HDCR..(GEN,TH);KUN16,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201409-201504

TYPE B:SEE 33-01,(J)

main31111-60281iLAN15,25,35201108-201512

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-71010iTGN11,16,36..5F201107-201512

main33019-71030iGGN25..5F201107-201311

main33019-71040iTGN10,15201107-201512

main33019-71050iTGN26..5F201107

main33019-71060iGGN15..5F201107-201311

main33019-71070iKUN10,15..DCR201107-201609

main33019-71080iLAN15,35201108-201512

main33019-71090iLAN25201108-201512

main33019-71110iKUN16,36..5F;KUN15,35..5F..HDCR201107-201512

main33019-71120iKUN2#..5F201107-201609

33019D2 WAY(FOR TRANSMISSION BREATHER HOSE)

main33191-71010iKUN15..HDCR..(GEN,TH);KUN16,3#..5F..(ARL,GEN,PHL,TH)201107-201504

TYPE A:REFER 33-01

main36149-60070iTGN11,16,26,36..5F..(ANCOM,ARL,CO,GCC,GEN,LA,SA)201107

TYPE C:REFER 33-01

main90412-07005iKUN2#..5F..TH201107-201504

TYPE A:REFER 33-01

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE C:REFER 33-01

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iTGN26..DLX..HTWCF;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26..SR..HTWC..(ANCOM,LA)201107-201310

TYPE A:REFER 33-01

main90430-T0011iTGN26201901

TYPE C:REFER 33-01

main90430-T0021iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201502-201504

TYPE B:REFER 33-01

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE C:REFER 33-01

main90341-18057iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iTGN26..DLX..HTWCF;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26..SR..HTWC..(ANCOM,LA)201107-201310

TYPE A:REFER 33-01

main90430-T0011iTGN26201901

TYPE C:REFER 33-01

main90430-T0021iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201502-201504

TYPE B:REFER 33-01

33111CASE, MANUAL TRANSMISSION

main33101-0K010iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201605

TYPE C:REFER 33-01

main33101-0K011iTGN26201605

TYPE C:REFER 33-01

main33101-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33101-0K030iTGN36..DCB..5F..HTWCF201107-201210

TYPE D:REFER 33-01

main33101-0K031iTGN26201612

TYPE D:REFER 33-01

main33101-0K040iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201203-201504

T/P B:SEE 33-01,*299

main33101-35051iLAN15,25,35201108-201501

main33101-60041iKUN16,26,36..5F..TH;TGN16..(DCB,SCB)..GEN;KUN15,25,35,TGN36..5F..(HDCR,HTWC)..(ANCOM,TH)201107-201504

TYPE A:REFER 33-01

main33101-71020iKUN15..PKN201508-201609

TYPE A:REFER 33-01

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iTGN16..SA;TGN36..DCB..SA;TGN36..SCB..HTWC..(LA,SA);TGN36..DCB..DLX..HTWC..LA201204-201410

OD=14,TYPE A:REFER 33-01

main96411-41800×3iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

OD=18,TYPE C:REFER 33-01

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iTGN36..DCB..5F..HTWCF201107-201210

L=16,OD=12,TYPE D:REFER 33-01

main90250-T0020×2iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

L=16,OD=12,TYPE B:SEE 33-01,(L)

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iTGN36..DCB..5F..HTWCF201107-201210

L=14,OD=15,TYPE D:REFER 33-01

main90253-T0011×2iTGN26201612

L=14,OD=15,TYPE D:SEE 33-01,(L)

33118PLATE, STIFFENER, RH(MTM)

main33118-04020iKUN1#,2#,3#..5F201107-201609

main33118-0K010iLAN15,25,35201108-201512

33119PLATE, STIFFENER, LH(MTM)

main33119-0K010iLAN15,25,35201108-201512

main33119-0K020iKUN1#,2#,3#..5F201107-201609

3312

33131RETAINER, BEARING, FRONT(MTM)

main33018-0K010supersedes 33018-0K070iKUN26,36..5F;TGN36..DCB..5F..HTWCF;KUN16,TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201208

TYPE C:REFER 33-01

main33018-0K011iTGN36..SCB..HTWCF201210-201812

TYPE C:REFER 33-01

main33018-0K012iTGN26201812

TYPE C:REFER 33-01

main33018-0K040iKUN15..HDCR..(GEN,TH);KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER 33-01

sub33018-0K041

main33018-0K050iGGN15,25..5F201107-201311

TYPE B:REFER 33-01

sub33018-0K051

main33018-0K070iKUN16,26,36,TGN36..5F..(DCR,HTWC,IART);KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)201107-201909

TYPE D:REFER 33-01

main33018-0K071iTGN26201909

TYPE D:REFER 33-01

main33018-0K080iGGN15,25..5F201107-201311

TYPE D:REFER 33-01

sub33018-0K081

main33131-0K030iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33131-26020iLAN15,25,35201108-201512

main33131-35031iTGN26..DLX..HTWCF;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26..SR..HTWC..(ANCOM,LA)201107-201310

TYPE A:REFER 33-01

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main90311-32022iTGN26..DLX..HTWCF;TGN26..DCB..DLX..ANCOM;TGN26..SCB..(ANCOM,GEN);TGN26..SR..HTWC..(ANCOM,LA)201107-201310

TYPE A:REFER 33-01

main90311-T0017iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201208

TYPE C:REFER 33-01

main90311-T0021iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main90311-T0027iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main90311-T0057iKUN16,26,36,TGN36..5F..(DCR,HTWC,IART);GGN15,25,KUN15,25,35,TGN11,16,26..5F..(CNG,HDCR,HTWC,HTWCF)201208-201710

TYPE C:REFER 33-01

main90311-T0094iTGN26201711

TYPE D:REFER 33-01,TYPE C:REFER 33-01

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-28010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-0K010iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE C:REFER 33-01

main33151-0K020iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

TYPE D:REFER 33-01

main33151-0K030iKUN15..HDCR..(GEN,TH);GGN15,25,KUN16,2#,3#,TGN11,16,26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER 33-01

main33151-0K040iKUN25..5F..PKN201107-201609

TYPE D:REFER 33-01

main33151-35020iTGN26..(DCB,THDCB)..5F..(CO,GEN);TGN26..5F..DLX..HTWC..(GCC,LA,SA)201204-201310

TYPE A:REFER 33-01

main33151-35030iLAN15,25,35201108-201512

33449BMAGNET, TRANSMISSION

main33449-26010iKUN10,15,TGN10,15..(DCR,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201609

TYPE A:REFER 33-01

main33449-35030iKUN16,26,36..5F;TGN16..5F..(ARL,GCC,GEN,SA);KUN15,25,35,TGN11,26,36..5F..(HDCR,HTWC,HTWCF)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107

TYPE C:REFER 33-01

8401

9011908332

main90119-08332

90119T0225

main90119-T0225

90119T0226

main90119-T0226

90119T0227

main90119-T0227

90119T0295

main90119-T0295

9014980002

main90149-80002

90949T1024

main90949-T1024

9161261045

main91612-61045

9613251000

main96132-51000

29 parts on this diagram · 7 diagrams in section
