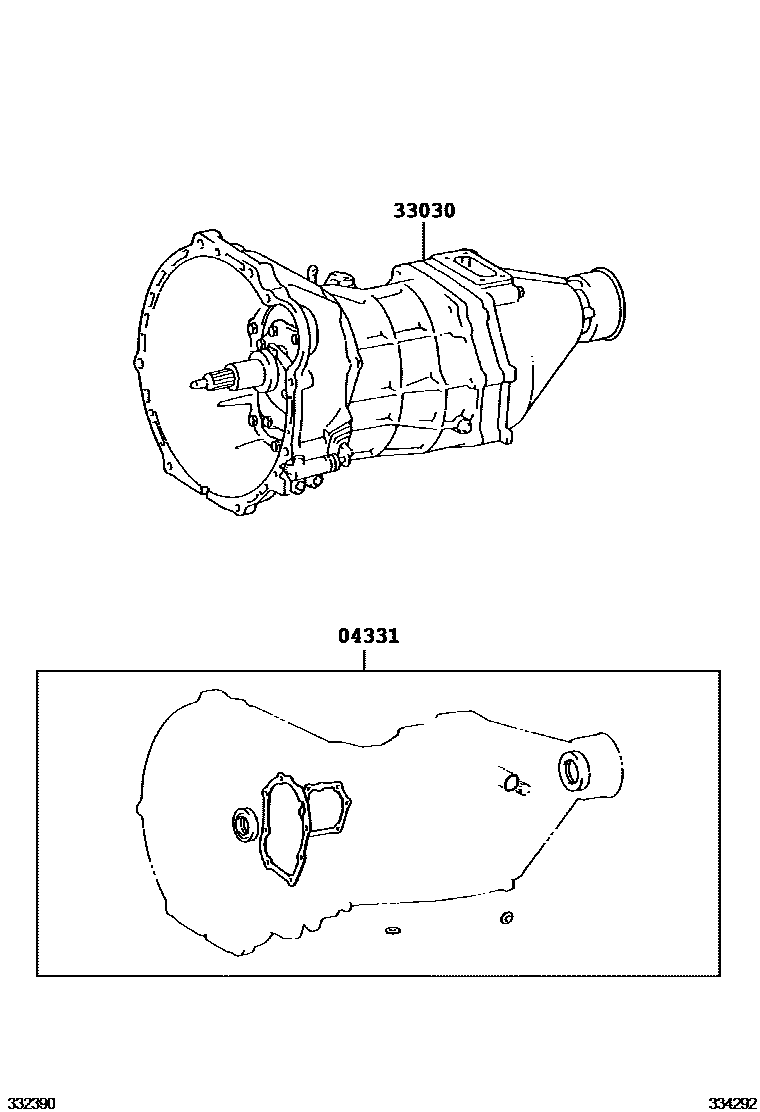

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1G50,G55,G58,G58F 0002 1G50,G55,G58,G58F 0003 1R150,R151,R156,R150F,R151F,R10004 1R150,R151,R156,R150F,R151F,R1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-0K390iGGN15,TGN11,16,36..5F..(ARL,GCC,GEN,TH)201107-201504

TYPE B:REFER ILLUST.

sub04331-0K391

main04331-0K410iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH)201107-201211

TYPE D:REFER ILLUST.

main04331-0K411iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN)201211-201508

TYPE D:REFER ILLUST.

sub90311-T0021

sub90311-T0050

sub90430-T0021

main04331-0K490iKUN2#,TGN26..5F..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH)201107-201511

TYPE D:REFER ILLUST.

main04331-0K491iKUN2#,TGN26..5F..(ANCOM,GEN,MA,SA)201511-201711

TYPE D:REFER ILLUST.

main04331-0K492iTGN26201711

TYPE C:REFER ILLUST.,TYPE D:REFER ILLUST.

main04331-0K510iKUN15..HDCR..(GEN,TH);KUN16,3#..5F..(ARL,GEN,PHL,TH)201107-201504

TYPE B:REFER ILLUST.

sub04331-0K550

main04331-0K520iGGN25,KUN2#,TGN26..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GCC,GEN,IDN,PHL,TH)201107-201504

TYPE B:REFER ILLUST.

main04331-0K540iKUN16,36..5F;GGN15,KUN15,35,TGN11,16,36..5F..(CNG,HDCR,HTWC)201107-201512

TYPE D:REFER ILLUST.

sub04331-0K541

main04331-26210supersedes 04331-26210iKUN35..THDCB201107-201503

CHILE SPEC(EURO 5 REGULATION),TYPE C:REFER ILLUST.

sub04331-26211

main04331-60320iLAN25201108-201512

main04331-71070iKUN10,15,LAN15,35,TGN10,15..(DCR,DEFI,HTWC)..(GCC,GEN,IDN,PHL,SA,TH)201107-201512

TYPE A:REFER ILLUST.

main04331-71071iKUN15..PKN201508-201609

TYPE A:REFER ILLUST.

main04331-71190iTGN11,16,36..5F..HTWC..(ANCOM,ARL,GCC,GEN,TH)201204-201504

TYPE A:REFER ILLUST.

main04331-71200iTGN26..DCB..ANCOM201107-201504

TYPE A:REFER ILLUST.

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-0K380iTGN11,16,36..5F..HTWC..(ANCOM,ARL,GCC,GEN,LA,SA)201107-201308

R150,TYPE C:REFER ILLUST.

main33030-0K382iTGN11,16,36..5F..(CNG,HTWC)201306-201404

R150,TYPE D:REFER ILLUST.

main33030-0K383iTGN11,16,36..5F..(CNG,HTWC)201404-201512

R150,TYPE D:REFER ILLUST.

main33030-0K390iTGN26..5F201107-201308

R150F,TYPE C:REFER ILLUST.

main33030-0K392iTGN26..5F201306-201404

R150F,TYPE D:REFER ILLUST.

main33030-0K393iTGN26..5F201404

R150F,TYPE D:REFER ILLUST.

main33030-0K400iGGN25..5F201107-201306

R150F,TYPE D:REFER ILLUST.

main33030-0K402iGGN25..5F201306-201311

R150F,TYPE D:REFER ILLUST.

sub33030-0K403

main33030-0K410iGGN15..5F201107-201311

R150,TYPE D:REFER ILLUST.

sub33030-0K412

main33030-0K472iTGN11,16,36..5F..HTWC..(ANCOM,ARL,GCC,GEN,LA,SA)201308-201401

R150,TYPE C:REFER ILLUST.

main33030-0K473iTGN11,16,36..5F..HTWC..(ANCOM,ARL,GCC,GEN,LA,SA)201401-201512

R150,TYPE C:REFER ILLUST.

main33030-0K482iTGN26..5F201308-201401

R150F,TYPE C:REFER ILLUST.

main33030-0K483iTGN26..5F201401-202002

R150F,TYPE C:REFER ILLUST.

sub33030-0K484

main33030-0K550iTGN11,16,36..5F..(ARL,GCC,GEN,TH)201107-201407

R150,TYPE B:REFER ILLUST.

sub33030-0K551

main33030-0K553iTGN11,16,36..5F..(ARL,GCC,GEN,TH)201407-201504

R150,TYPE B:REFER ILLUST.

main33030-0K560iTGN26..5F..(GCC,GEN)201107-201407

R150F,TYPE B:REFER ILLUST.

sub33030-0K561

main33030-0K563iTGN26..5F..(GCC,GEN)201407-201504

R150F,TYPE B:REFER ILLUST.

main33030-0K570iGGN15..5F201107-201311

R150,TYPE B:REFER ILLUST.

sub33030-0K571

main33030-0K580iGGN25..5F201107-201311

R150F,TYPE B:REFER ILLUST.

sub33030-0K581

main33030-0K590iKUN10,15..DCR..(GCC,GEN,IDN,PHL,PKN,TH)201107-201508

G50,TYPE D:REFER ILLUST.

main33030-0K600iTGN10,15..GCC,IDN201107-201504

G55,TYPE D:REFER ILLUST.

sub33030-71350

main33030-0K690iKUN35..SR..SA201107-201210

R151,TYPE C:REFER ILLUST.

main33030-0K692iKUN15..XTR;KUN35..LHD..GEN;KUN36..DCB..5F..TH;KUN16,35..DLX..(ARL,CO,LA,SA)201308-201405

R151,TYPE C:REFER ILLUST.

main33030-0K693iKUN35..CO201405-201410

R151,TYPE C:REFER ILLUST.

main33030-0K700iKUN36..SCB,SMT,XTR;KUN36..DCB..5F..(GEN,LA,SA)201107-201308

R151,TYPE C:REFER ILLUST.

main33030-0K702iKUN36..SCB,SMT,XTR;KUN36..DCB..5F..(GEN,LA,SA)201308-201405

R151,TYPE C:REFER ILLUST.

main33030-0K703iKUN36..SCB,SMT,XTR;KUN36..DCB..5F..(GEN,LA,SA)201405-201512

R151,TYPE C:REFER ILLUST.

main33030-0K720iKUN25..5F..MA201107-201210

R151F,TYPE C:REFER ILLUST.

main33030-0K722iKUN26..5F..DCR;KUN25..5F..(CO,GCC,GEN,LA,SA)201308-201405

R151F,TYPE C:REFER ILLUST.

main33030-0K723iKUN26..5F..DCR;KUN25..5F..(CO,GCC,GEN,LA,SA)201405-201512

R151F,TYPE C:REFER ILLUST.

main33030-0K730iKUN35..DLX..TH;KUN35..DCB..5F..SR..TH;KUN15..(DCB,SCB,SMT)..HDCR201107-201308

R156,CHILE SPEC(EURO 5 REGULATION),TYPE C:REFER ILLUST.

main33030-0K732iKUN15..(DCB,SCB,SMT)..HDCR;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH)201308-201405

R156,CHILE SPEC(EURO 5 REGULATION),TYPE C:REFER ILLUST.

main33030-0K733iKUN35..CO201410-201512

R156,TYPE C:REFER ILLUST.

main33030-0K750iKUN26..5F..IART;KUN25..5F..(IDN,TH)201107-201308

R156F,CHILE SPEC(EURO 5 REGULATION),TYPE C:REFER ILLUST.

main33030-0K752iKUN2#..THDCB..5F201308-201401

R156F,CHILE SPEC(EURO 5 REGULATION),TYPE C:REFER ILLUST.

main33030-0K753iKUN26..5F..IART;KUN25..5F..(IDN,MA,TH)201401-201601

R156F,TYPE C:REFER ILLUST.

main33030-0K760iKUN16..5F;KUN36..DCB..5F..TH;KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN201107-201407

R151,TYPE B:REFER ILLUST.

sub33030-0K761

main33030-0K763iKUN16,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN201407-201408

R151,TYPE B:REFER ILLUST.

main33030-0K764iKUN16,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN201409-201504

R151,TYPE B:REFER ILLUST.

main33030-0K770iKUN36..SMT;KUN36..GEN201107-201407

R151,TYPE B:REFER ILLUST.

sub33030-0K771

main33030-0K773iKUN36..SMT;KUN36..GEN201407-201408

R151,TYPE B:REFER ILLUST.

main33030-0K774iKUN36..SMT;KUN36..GEN201409-201504

R151,TYPE B:REFER ILLUST.

main33030-0K790iKUN25..5F..(GCC,GEN);KUN26..(DCB,SCB,SMT,THDCB,XTR)..5F..(ARL,GEN,PHL,TH)201107-201407

R151F,TYPE B:REFER ILLUST.

sub33030-0K791

main33030-0K793iKUN25..5F..(GCC,GEN);KUN26..(DCB,SCB,SMT,THDCB,XTR)..5F..(ARL,GEN,PHL,TH)201407-201408

R151F,TYPE B:REFER ILLUST.

main33030-0K794iKUN25..5F..(GCC,GEN);KUN26..(DCB,SCB,SMT,THDCB,XTR)..5F..(ARL,GEN,PHL,TH)201409-201504

R151F,TYPE B:REFER ILLUST.

main33030-0K800iKUN35..DCB..5F..SR..TH;KUN35..RHD..DLX..(GEN,TH);KUN15..(DCB,SCB,SMT)..HDCR201107-201407

R156,TYPE B:REFER ILLUST.

sub33030-0K321

sub33030-0K801

main33030-0K803iKUN15..(DCB,SCB,SMT)..HDCR;KUN35..DCB..5F..SR..(PHL,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH)201407-201408

R156,TYPE B:REFER ILLUST.

main33030-0K804iKUN15..(DCB,SCB,SMT)..HDCR;KUN35..DCB..5F..SR..(PHL,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH)201409-201504

R156,TYPE B:REFER ILLUST.

main33030-0K820iKUN2#..THDCB..5F201107-201407

R156F,TYPE B:REFER ILLUST.

sub33030-0K821

main33030-0K823iKUN2#..THDCB..5F201407-201408

R156F,TYPE B:REFER ILLUST.

main33030-0K824iKUN2#..THDCB..5F201409-201504

R156F,TYPE B:REFER ILLUST.

main33030-0K830iKUN16..5F;KUN35..SR..GEN;KUN15..XTR..HDCR;KUN36..DCB..5F..TH;KUN35..DLX..(CO,GEN,LA,SA)201107-201306

R151,TYPE D:REFER ILLUST.

sub33030-0K831

main33030-0K832iKUN15..XTR;KUN35..LHD..GEN;KUN36..DCB..5F..TH;KUN16,35..DLX..(ARL,CO,LA,SA)201306-201404

R151,TYPE D:REFER ILLUST.

main33030-0K833iKUN15..XTR;KUN35..LHD..GEN;KUN36..DCB..5F..TH;KUN16,35..DLX..(ARL,LA,SA)201404-201512

R151,TYPE D:REFER ILLUST.

main33030-0K840iKUN36..SCB,SMT,XTR;KUN36..DCB..5F..(GEN,LA,SA)201107-201306

R151,TYPE D:REFER ILLUST.

sub33030-0K841

main33030-0K842iKUN36..SCB,SMT,XTR;KUN36..DCB..5F..(GEN,LA,SA)201306-201404

R151,TYPE D:REFER ILLUST.

main33030-0K843iKUN36..SCB,SMT,XTR;KUN36..DCB..5F..(GEN,LA,SA)201404-201512

R151,TYPE D:REFER ILLUST.

main33030-0K860iKUN26..5F..DCR;KUN25..5F..(CO,GCC,GEN,LA,PKN,SA)201107-201306

R151F,TYPE D:REFER ILLUST.

main33030-0K862iKUN26..5F..DCR;KUN25..5F..(CO,GCC,GEN,LA,PKN,SA)201306-201404

R151F,TYPE D:REFER ILLUST.

main33030-0K863iKUN26..5F..DCR;KUN25..5F..(CO,GCC,GEN,LA,PKN,SA)201404-201609

R151F,TYPE D:REFER ILLUST.

main33030-0K870supersedes 33030-0K883iKUN35..DLX..TH;KUN35..DCB..5F..SR..TH;KUN15..(DCB,SCB,SMT)..HDCR201107-201306

R156,TYPE D:REFER ILLUST.

sub33030-0K871

main33030-0K872iKUN15..(DCB,SCB,SMT)..HDCR;KUN35..DCB..5F..SR..(PHL,SA,TH);KUN35..(DCB,SMT)..DLX..(GEN,PHL,TH)201306-201404

R156,TYPE D:REFER ILLUST.

main33030-0K873iKUN35..CO201410-201512

R156,TYPE D:REFER ILLUST.

main33030-0K890iKUN25..5F..MA201210-201306

R156F,TYPE D:REFER ILLUST.

main33030-0K892iKUN2#..THDCB..5F201306-201407

R156F,TYPE D:REFER ILLUST.

main33030-0K893iKUN26..5F..IART;KUN25..5F..(IDN,MA,TH)201407-201601

R156F,TYPE D:REFER ILLUST.

main33030-71200iKUN10,15..DCR..(GCC,GEN,IDN,PHL,SA,TH)201107-201512

G50,TYPE A:REFER ILLUST.

main33030-71210iTGN10,15201107-201512

G55,TYPE A:REFER ILLUST.

main33030-71221iLAN15,35201108-201512

G58,TYPE A:REFER ILLUST.

main33030-71231iLAN25201108-201512

G58F

main33030-71320iKUN15..PKN201508-201609

G50,TYPE A:REFER ILLUST.

2 parts on this diagram · 4 diagrams in section
