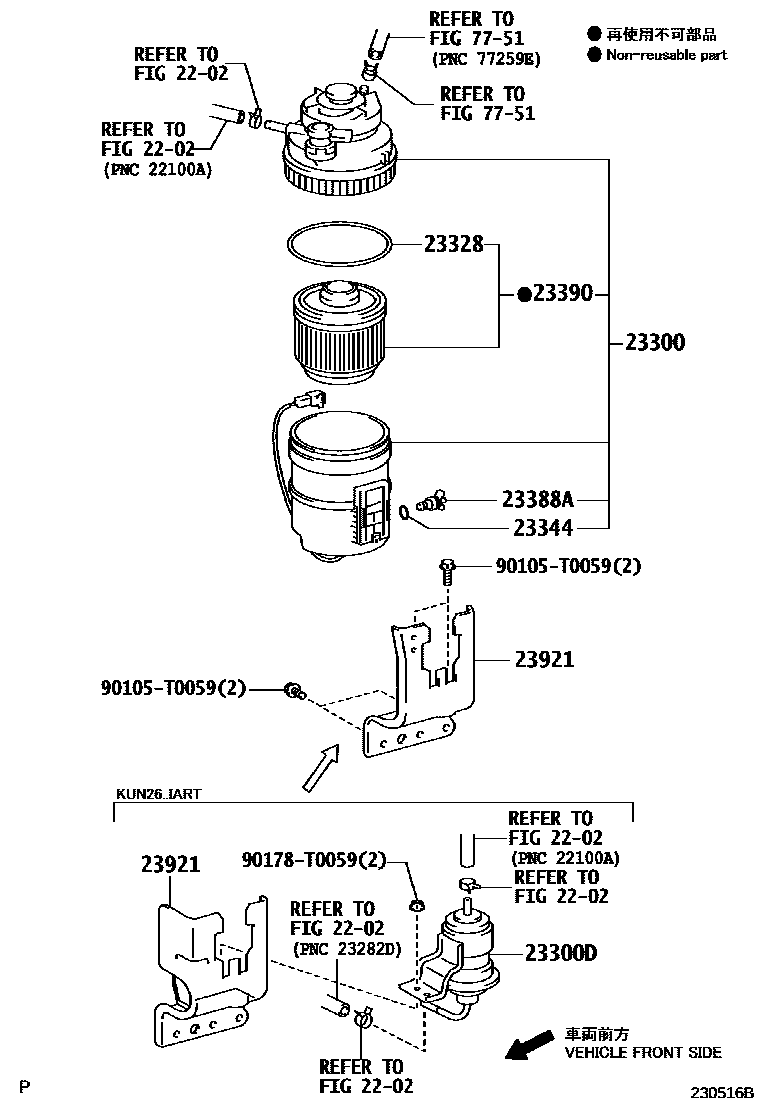

FUEL FILTER

0001 1 0002 1 0003 1

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23300FILTER ASSY, FUEL

main23300-0L041i5LE..LAN15,25,35201108-201205

main23300-0L042supersedes 23300-0L060i1KDFTV..KUN26..IART201206-201209

main23300-0L050i1KDFTV..KUN26..IART201210-201510

main23300-0L061i1KDFTV,2KDFTV..KUN2#,3#..(5F,5FC)..(DCR,HDCR)..LA201206-201404

main23300-0L120i1KDFTV,2KDFTV..KUN2#,3#..(5F,5FC)..(DCR,HDCR)..LA201404-201510

main23300-0L032i2KDFTV..KUN25..LHD..DCB..GEN201308-201504

KAZAKHSTAN SPEC

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-30450i1KDFTV..KUN26..IART201204-201510

23328GASKET(FOR FUEL FILTER)

main23344-0L010i5LE..LAN15,25,35201108-201512

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i5LE..LAN15,25,35201108-201512

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i5LE..LAN15,25,35201108-201512

23390ELEMENT ASSY, FUEL FILTER

main23390-0L041i1KDFTV..KUN26..IART201107-201210

main23390-0L050i1KDFTV..KUN16..ARL;1KDFTV..KUN26..ARL..CBU;1KDFTV..KUN26..SCB..5FC;1KDFTV..KUN26..5F..ARL..IV3201312-201510

main23390-0L030i2KDFTV..KUN25..LHD..DCB..GEN201308-201504

KAZAKHSTAN SPEC

23921SUPPORT, FUEL FILTER

main23921-0L010i2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,TH);1KDFTV,2KDFTV..KUN1#,2#,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,TH)201107-201601

main23921-0L040i1KDFTV..KUN26..SADCB;1KDFTV,2KDFTV..KUN15,2#,3#..SA; 5LE..LAN15,25,35201108-201512

main23921-0L050i1KDFTV,2KDFTV..KUN2#,3#..(DCR,HDCR)..(CO,LA)201110-201510

main23921-0L080i2KDFTV..KUN15,25..PKN201202-201609

main23921-0L090i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main23921-30130i1KDFTV..KUN26..IART201204-201510

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90105T0059

main90105-T0059

90178T0059

main90178-T0059

11 parts on this diagram · 3 diagrams in section
