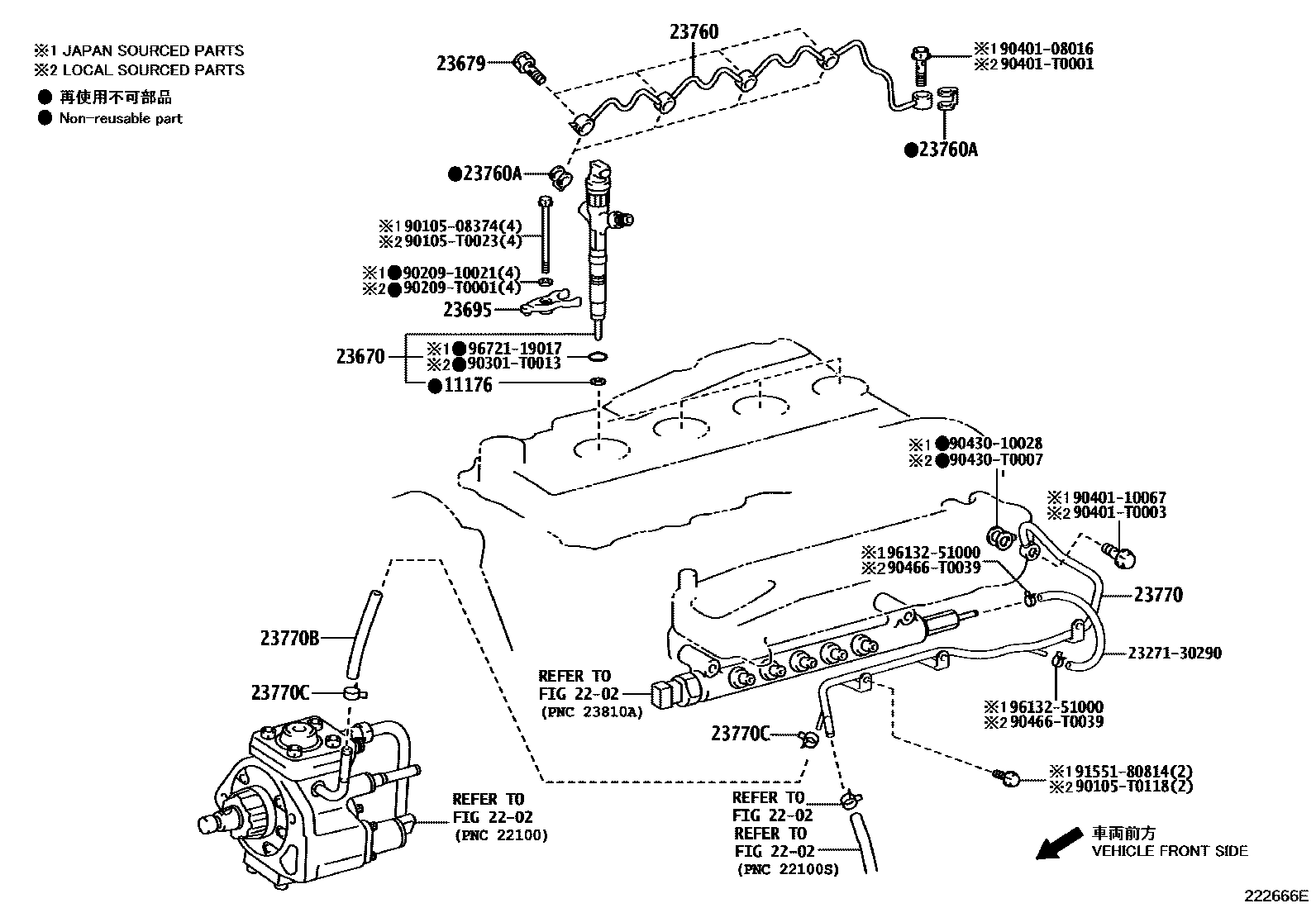

INJECTION NOZZLE

0001 1 0007 1EURO 4 REGULATION 0017 1EURO 5 REGULATION 0019 1 0020 1 0021 1

11176SEAT, INJECTION NOZZLE

main11176-0L011i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201609

*130 OR *593

main11176-0L011i1KDFTV..KUN26..IART201204-201510

main11176-30011i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201609

*594

main11176-30011i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main11176-64010i5LE..LAN15,25,35201108-201512

2202

23670INJECTOR ASSY

main23670-09340i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201110-201510

*130 OR *593

main23670-09350i2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4201107-201601

*130 OR *593

main23670-09380i2KDFTV..KUN35..SR..SA;2KDFTV..KUN25..DCB..MA201107-201210

*594

main23670-09380i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..SR..PHL;2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..(PHL,TH)201107-201410

*130 OR *593

main23670-09380i2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA201107-201609

*130 OR *593,*594

main23670-39355i2KDFTV..KUN15..SCB..HDCR..GEN201210-201504

*594

main23670-39365i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)201107-201601

*594

main23670-39455i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main23670-39475i1KDFTV..KUN26..IART201204-201510

23679SCREW, INJECTOR FOLLOW

main23679-0L010i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201609

*130 OR *593

main23679-0L010i1KDFTV..KUN26..IART201204-201510

main23679-30021i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201609

*594

main23679-30021i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201609

*130 OR *593

sub23695-30011

main23695-30011i1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1K201107-201609

*594

main23695-30020i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0L010i1KDFTV..KUN26..IART201204-201510

main23760-0L010i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201609

*130 OR *593

main23760-30020i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main23760-30020i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201609

*594

main23760-54030i5LE..LAN15,25,35201108-201512

23760AGASKET

main90430-T0008i1KDFTV..KUN26..IART201204-201510

main90430-T0008i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201609

*130 OR *593

main90904-30013i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201609

*594

main90904-30013i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0L030i2KDFTV..KUN15..SMT..SR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..TH201107-201601

*130 OR *593

main23770-0L030i1KDFTV..KUN26..ARL;2KDFTV..KUN35..SR..SA;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..(DCB,SCB,SMT)..HDCR;1KDFTV,2KDFTV..KUN16,25,35..(4FC,5F)..(ARL,IDN,MA,PHL,TH)201401-201601

*594

main23770-0L040i1KDFTV..KUN26..4FC..LA201107-201609

*130 OR *593,(L)

main23770-30070i1KDFTV,2KDFTV..KUN2#,35..THDCB201107-201401

CHILE SPEC(EURO 4 REGULATION),*594

sub23770-0L030

main23770-30070i1KDFTV..KUN16,26..ARL;2KDFTV..KUN15..SCB..HDCR..GEN;2KDFTV..KUN25,35..4FC..(IDN,PHL)201107-201401

*594

sub23770-0L030

main23770-30070i2KDFTV..KUN25..SCB..MA;2KDFTV..KUN35..DLX..PHL;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH);2KDFTV..KUN35..5F..SR..(PHL,TH)201208-201401

THAI SPEC(EURO 3 REGULATION)&ENGINE-2KD-FTV,*594

sub23770-0L030

main23770-30120i1KDFTV..KUN26..4FC..LA201107-201609

*130 OR *593,(J)

main23770-30120i2KDFTV..KUN25..MA;2KDFTV..KUN35..SR..SA201107-201609

*594

main23770-30140i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

23770BHOSE, FUEL

main23273-30330i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

main95333-04020i5LE..LAN15,25,35201108-201512

L=200(*H,L=120),ID=4

main95337-06020i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201609

L=200,*130 OR *593

main95337-06020i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201208

L=200,*130 OR *593,*594

main95337-06020i1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1K201107-201609

L=200,*594

23770CCLAMP OR CLIP(FOR FUEL HOSE SET)

main90466-T0022i2KDFTV..KUN25;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..CO,LA,PHL,SA;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GE201207-201609

*130 OR *593

main90466-T0022i1KDFTV..KUN26..IART201207-201510

main90466-T0043i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..DCR..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201107-201207

*130 OR *593

sub90466-T0022

main90466-T0043i1KDFTV..KUN26..IART201204-201207

sub90466-T0022

main96132-51000i5LE..LAN15,25,35201108-201512

main96135-51100i1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1K201107-201609

*594

main96135-51100i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

2327130290VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1

main23271-30290

9010508374

main90105-08374

90105T0023

main90105-T0023

90105T0118

main90105-T0118

9020910021

main90209-10021

90209T0001

main90209-T0001

90301T0013

main90301-T0013

9040108016

main90401-08016

9040110067

main90401-10067

90401T0001

main90401-T0001

90401T0003

main90401-T0003

9043010028

main90430-10028

90430T0007

main90430-T0007

90466T0039

main90466-T0039

9155180814

main91551-80814

9613251000

main96132-51000

9672119017

main96721-19017

27 parts on this diagram · 6 diagrams in section
