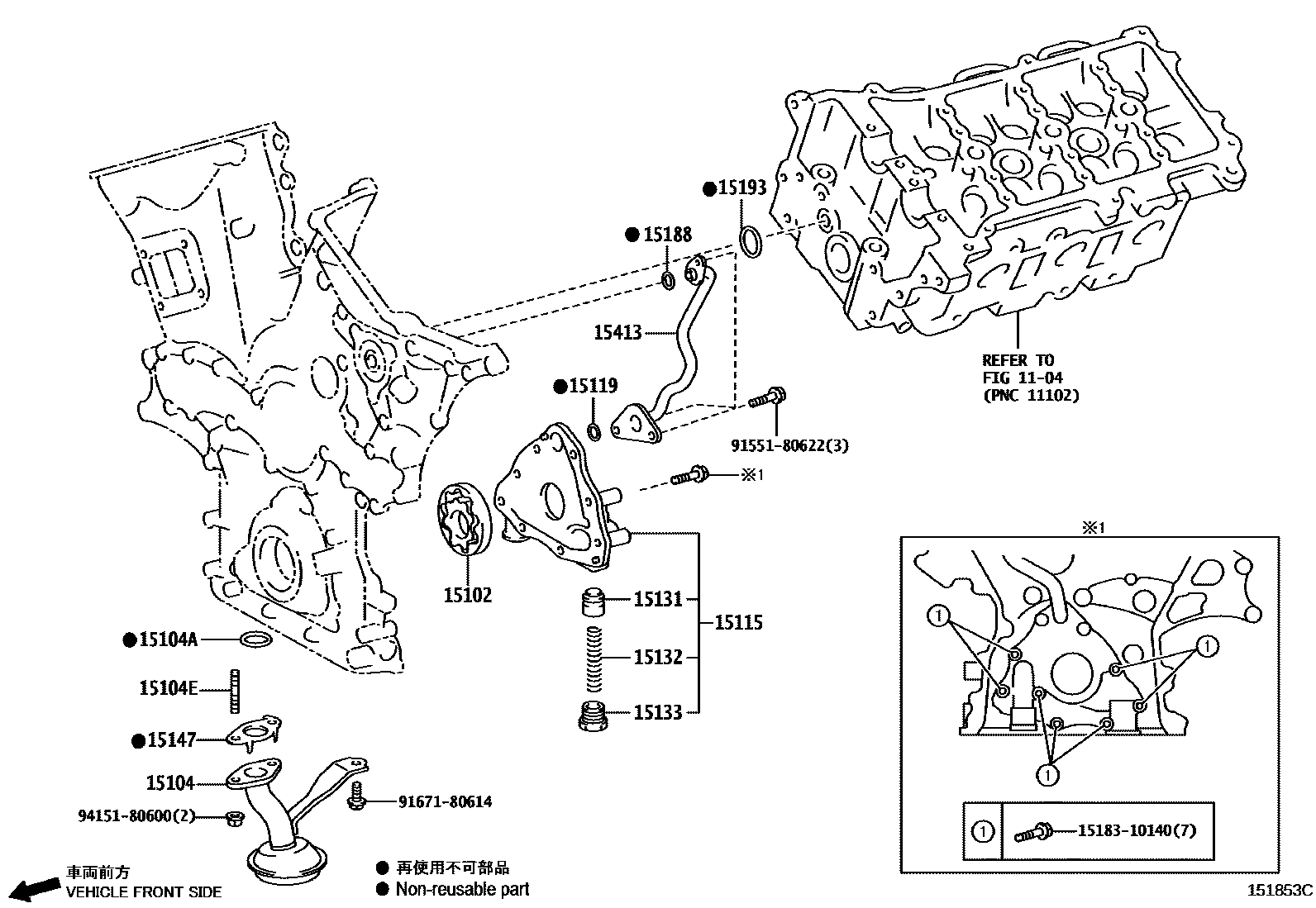

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0007 1

1104CYLINDER HEAD

→ Go to FIG 11-04

15102ROTOR SET, OIL PUMP

main15103-31050i1GRFE..GGN15,25,35201107

15104STRAINER SUB-ASSY, OIL

main15104-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108-201503

main15104-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201502

main15104-0C050i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201502

main15104-0L010i2KDFTV..KUN35..DLX..(SA,TH);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN2201110-201609

*130 TYPE A:REF ILL.

main15104-0L011i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH201107-201110

*130 TYPE B:REF ILL.

main15104-0L030i1KDFTV..KUN26..CO,LA;1KDFTV,2KDFTV..KUN25,3#..LA201110-201510

TYPE A:REFER ILLUST.

main15104-30050i2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH201110-201601

*130

main15104-30050i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main15104-30050i2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH201107-201110

*130 TYPE A:REF ILL.

main15104-31110i1GRFE..GGN15,25,35201107

main15104-54260i5LE..LAN15,25,35201108-201512

15104ARING, O(FOR OIL STRAINER)

main96722-24030i1GRFE..GGN15,25,35201107

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

*360

main90116-T0020i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

*130

main90116-T0020i2KDFTV..KUN25,35..CO201110-201510

main90126-06029i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201502

(J)

main90126-06029i1GRFE..GGN15,25,35201107

main90126-08037i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201107-201503

main90126-T0012i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201502

(L)

main92122-80816i5LE..LAN15,25,35201108-201512

15115COVER, OIL PUMP

main15115-0C010i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201503

main15115-0C011i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201502

main15115-31050i1GRFE..GGN15,25,35201107

main15115-54022i5LE..LAN15,25,35201108-201512

15119GASKET, OIL PUMP COVER

main15119-31050i1GRFE..GGN15,25,35201107

15131VALVE, OIL PUMP RELIEF

main15131-46040i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201107-201504

main15131-46040i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main15131-46040i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main15131-54010i5LE..LAN15,25,35201108-201512

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0C010i1TRFE,2TRFE..TGN1#,26,36201107

main15132-0L030i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130,(L)

main15132-17010i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201201-201206

*130,(J)

main15132-17010i1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFT201107-201610

*360

main15132-17010i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main15132-46020i1GRFE..GGN15,25,35201107

main15132-54010i5LE..LAN15,25,35201108-201512

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0C010i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130,(L)

main15133-0C010i1TRFE,2TRFE..TGN1#,26,36201107

main15133-17010i1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFT201107-201610

*360

main15133-17010i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201201-201206

*130,(J)

main15133-17010i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

main15133-28020i1GRFE..GGN15,25,35201107

main15133-54010i5LE..LAN15,25,35201108-201512

15147GASKET, OIL STRAINER

main15147-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201107-201503

main15147-0C020i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201502

main15147-46010i1GRFE..GGN15,25,35201107

15188GASKET, OIL PUMP

main15188-31050i1GRFE..GGN15,25,35201107

15193GASKET, OIL PUMP

main15193-0L010i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main15193-31010i1GRFE..GGN15,25,35201107

main15193-67011i1KDFTV..KUN26,36..5F..TH201107-201610

*360

main15193-67011i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201208-201504

15413PIPE, OIL PUMP OUTLET

main15413-31020i1GRFE..GGN15,25,35201107

1518310140BOLT, UNION(FOR OIL PUMP)

main15183-10140

9155180622

main91551-80622

9167180614

main91671-80614

9415180600

main94151-80600

18 parts on this diagram · 5 diagrams in section
