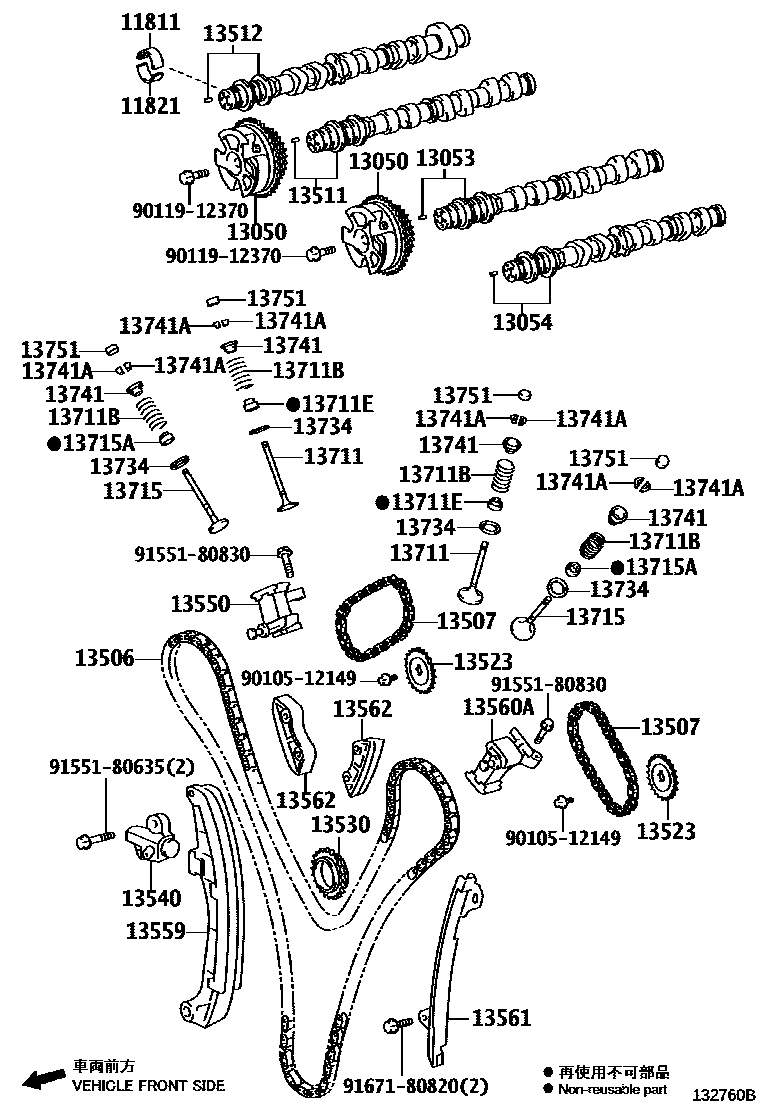

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11811BEARING, CAMSHAFT, NO.1

main11811-31021i1GRFE..GGN15,25,35201107

11821BEARING, CAMSHAFT, NO.2

main11821-28010-01i1GRFE..GGN15,25,35201107

MARK 1

main11821-28010-02i1GRFE..GGN15,25,35201107

MARK 2

main11821-28010-03i1GRFE..GGN15,25,35201107

MARK 3

13050GEAR ASSY, CAMSHAFT TIMING

main13050-31030×2i1GRFE..GGN15,25,35201107

main13050-75010i1TRFE,2TRFE..TGN1#,26,36201107-201205

MARK=13050-75010

main13050-75030i1TRFE,2TRFE..TGN1#,26,36201205-202110

MARK=13050-75030

13053CAMSHAFT SUB-ASSY, NO.3

main13053-31010i1GRFE..GGN15,25,35201107

13054CAMSHAFT SUB-ASSY, NO.4

main13054-31010i1GRFE..GGN15,25,35201107

13506CHAIN SUB-ASSY

main13506-0C010i1TRFE..TGN15..SA201107-201407

sub13506-75040

main13506-0C020i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201107-201405

sub13506-75050

main13506-0C030i1TRFE..TGN15..SA201407-201512

(L)

main13506-0C040i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201405

(L)

main13506-31010i1GRFE..GGN15,25,35201107

main13506-75060i1TRFE..TGN15..SA201407-201512

(J)

main13506-75070i2TRFE..TGN16,26,36..ANCOM,CO,LA,SA201407

(J)

13507CHAIN SUB-ASSY, NO.2

main13507-0C010i2TRFE..TGN11,16,26,36201407

(L)

main13507-31010×2i1GRFE..GGN15,25,35201107

main13507-75030i2TRFE..TGN11,16,26,36201407

(J)

13511CAMSHAFT

main13501-0C010i2TRFE..TGN16,26..ANCOM,CO,LA,SA;1TRFE,2TRFE..TGN10,15,36..DCB,SCB201107-201404

(L)

main13501-0C011i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201404-201504

KAZAKHSTAN SPEC

main13501-0L010i2KDFTV..KUN15,25,35..CO,MA,PKN,SA201508-201609

*130,(L)

main13501-0L020i1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201107-201508

*130

main13501-30040i2KDFTV..KUN25,35..LA201110-201510

sub13501-30030

main13501-30050supersedes 13501-30050i1KDFTV..KUN26,36..DCR..(CO,LA)201110-201510

sub13501-30020

main13501-30070i1KDFTV..KUN26..IART201204-201510

sub13501-30060

main13501-31040i1GRFE..GGN15,25,35201107

main13501-54090i5LE..LAN15,25,35201108-201512

main13501-75070i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201107-201401

(J)

main13501-75071i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201401-201504

(J)

13512CAMSHAFT, NO.2

main13502-0C010i2TRFE..TGN16,26..ANCOM,CO,LA,SA;1TRFE,2TRFE..TGN10,15,36..DCB,SCB201107

main13502-0L010i2KDFTV..KUN15,25,35..CO,MA,PKN,SA201508-201609

*130,(L)

main13502-0L020i1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201107-201508

*130

main13502-30030i2KDFTV..KUN25,35..LA201110-201510

sub13502-30020

main13502-30040supersedes 13502-30040i1KDFTV..KUN36..4FC;1KDFTV..KUN16..4FC,5F;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA201107-201601

*360

sub13502-30010

main13502-30060i1KDFTV..KUN26..IART201204-201510

sub13502-30050

main13502-31010i1GRFE..GGN15,25,35201107

main13502-75060i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201107-201504

(J)

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0C020i1TRFE,2TRFE..TGN1#,26,36201107

main13523-31030×2i1GRFE..GGN15,25,35201107

13530SPROCKET ASSY, IDLE

main13530-31011i1GRFE..GGN15,25,35201107

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0C010i1TRFE,2TRFE..TGN1#,26,36201107-201407

main13540-0C011i1TRFE,2TRFE..TGN1#,26,36201407-201504

(L)

main13540-0C020i1TRFE,2TRFE..TGN1#,26,36201505-201507

(L)

main13540-0C021i1TRFE,2TRFE..TGN1#,26,36201508

(L)

main13540-0L010i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main13540-31011i1GRFE..GGN15,25,35201107

main13540-67020supersedes 13540-67020i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

*360

main13540-75040i1TRFE,2TRFE..TGN1#,26,36201505-201507

(J)

main13540-75041i1TRFE,2TRFE..TGN1#,26,36201508

(J)

13550TENSIONER ASSY, CHAIN, NO.2

main13550-0C020i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201107-201407

main13550-31010i1GRFE..GGN15,25,35201107

main13550-75010i2TRFE..TGN16,26,36..ANCOM,CO,LA,SA201108-201407

13559SLIPPER, CHAIN TENSIONER

main13559-0C010i1TRFE..TGN15..SA201107-201407

main13559-0C020i2TRFE..TGN16,26,36..ANCOM,CO,LA,SA201107-201407

main13559-0C030i1TRFE..TGN10,15..GCC,IDN201405-201512

(L)

main13559-0C040i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201405

(L)

main13559-31010i1GRFE..GGN15,25,35201107

main13559-75050i1TRFE..TGN15..SA201407-201512

(J)

main13559-75060i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201405

(J)

13560ATENSIONER ASSY, CHAIN, NO.3

main13560-31010i1GRFE..GGN15,25,35201107

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0C010i1TRFE..TGN15..SA201107-201407

main13561-0C020i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201107-201405

main13561-0C030i1TRFE..TGN15..SA201407-201512

(L)

main13561-0C040i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201405

(L)

main13561-31010i1GRFE..GGN15,25,35201107

main13561-75050i1TRFE..TGN10,15..GCC,IDN201405-201512

(J)

main13561-75060i2TRFE..TGN11,16,26,36..ARL,GCC,GEN,TH201405

(J)

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-0C010i2TRFE..TGN11,16,26,36201107-201407

main13562-31010×2i1GRFE..GGN15,25,35201107

main13562-75010i2TRFE..TGN11,16,26,36201407

(J)

13711VALVE, INTAKE

main13711-0C010×8i1TRFE..TGN15..SA201108-201408

main13711-0C031×8i1TRFE..TGN10,15..GCC,IDN201408-201504

MARK=1T,T

main13711-0C040×8i2TRFE..TGN16,26,36..HTWC..(ANCOM,CO,LA,SA)201108

MARK N

main13711-0C051×8i2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH)201107-201408

main13711-0C060×8i2TRFE..TGN26..DCB..5F..GCC;2TRFE..TGN16..5F..DLX..GCC..CBU201107-201504

IRAQ SPEC

main13711-0C080×8i2TRFE..TGN26,36..HTWCF201110-201510

main13711-0L010×8i2KDFTV..KUN25,35..CO201410-201609

*130

main13711-0L020×8i1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201107-201601

*130

main13711-30030×8supersedes 13711-30030i1KDFTV..KUN36..4FC;1KDFTV..KUN16..4FC,5F;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA201107-201601

*360

main13711-30040×8i2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15201107-201610

*360

main13711-31070×12i1GRFE..GGN15,25,35201107-201305

main13711-31071×12i1GRFE..GGN15,25,35201305

main13711-54030×4i5LE..LAN15,25,35201108-201512

main13711-75100×8i1TRFE..TGN15..SA201408-201512

(J)

main13711-75110×8i2TRFE..TGN26..DCB..5F..GEN201408-201504

MARK=2T

13711BSPRING, COMPRESSION(FOR INNER)

main90080-50404×16i2KDFTV..KUN25,35..CO201410-201609

*130

main90501-28040×16i1KDFTV..KUN26..IART201204-201510

main90501-30032×16i1TRFE,2TRFE..TGN1#,26,36201407-201901

(J)

main90501-T0016×16i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108-201407

main90501-T0017×16i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201407

main90501-T0037×16i2TRFE..TGN26,36201902

(L),MADE IN THAILAND

main90501-T0038×16i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201407

(L),MADE IN IDN

main90504-49001×8i5LE..LAN15,25,35201108-201512

main90905-01077×16supersedes 90905-01077i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

*360

main90905-01087×24i1GRFE..GGN15,25,35201107

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31099×8i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

*130

main90913-02101×12i1GRFE..GGN15,25,35201107

main90913-02117×4i5LE..LAN15,25,35201108-201512

main90913-02121×8supersedes 90913-02121i1KDFTV..KUN26..CO,LA;1KDFTV,2KDFTV..KUN25,3#..LA201110-201510

13715VALVE, EXHAUST

main13715-0C010×8i1TRFE..TGN15..SA201408-201512

(L)

main13715-0C031×8i1TRFE..TGN10,15..GCC,IDN201107-201408

main13715-0C040×8i2TRFE..TGN16,26,36..HTWC..(ANCOM,CO,LA,SA)201108

MARK N

main13715-0C051×8i2TRFE..TGN26..GCC;2TRFE..TGN26..4FC..GEN;2TRFE..TGN26..(SCB,THDCB)..GEN;2TRFE..TGN11,16,36..(DCB,SCB,SMT,THDCB)..HTWC..(ARL,GCC,GEN,TH)201107-201408

main13715-0C060×8i2TRFE..TGN26..DCB..5F..GCC;2TRFE..TGN16..5F..DLX..GCC..CBU201107-201504

IRAQ SPEC

main13715-0L010×8i2KDFTV..KUN25,35..CO201410-201609

*130

main13715-0L020×8i1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201107-201601

*130

main13715-30030×8supersedes 13715-30030i1KDFTV..KUN36..4FC;1KDFTV..KUN16..4FC,5F;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA201107-201601

*360

main13715-30040×8i2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15201107-201610

*360

main13715-31090×12i1GRFE..GGN15,25,35201107-201301

main13715-31091×12i1GRFE..GGN15,25,35201301

main13715-54050×4i5LE..LAN15,25,35201108-201512

main13715-75090×8i1TRFE..TGN10,15..GCC,IDN201408-201504

MARK=1

main13715-75110×8i2TRFE..TGN16..CNG201205-201504

main13715-75130×8i2TRFE..TGN26,36..HTWCF201110-201510

main13715-75140×8i2TRFE..TGN26..DCB..5F..GEN201408-201504

MARK=8

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31099×8i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

*130

main90913-02112×12i1GRFE..GGN15,25,35201107

main90913-02117×4i5LE..LAN15,25,35201108-201512

main90913-02121×8supersedes 90913-02121i2KDFTV..KUN25,35..CO201110-201410

13734SEAT, VALVE SPRING

main13734-0C010×16i1TRFE,2TRFE..TGN1#,26,36201407

(L)

main13734-62020×16i1TRFE,2TRFE..TGN1#,26,36201407

(J)

13741RETAINER, VALVE SPRING

main13741-0C020×16i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201407

main13741-0C030×16i2TRFE..TGN26..DCB..5F..GEN201407-201504

KAZAKHSTAN SPEC,MADE IN THAILAND

main13741-0L010×16i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

*130

main13741-0Y010×16i2TRFE..TGN26,36201804

MADE IN INDONESIA

main13741-15020×16supersedes 13741-15020i1KDFTV..KUN26..CO,LA;1KDFTV,2KDFTV..KUN25,3#..LA201110-201510

main13741-20021×24i1GRFE..GGN15,25,35201107

main13741-36010×16i2TRFE..TGN26..DCB..5F..GEN201407-201504

KAZAKHSTAN SPEC,MADE IN JAPAN

main13741-54020×8i5LE..LAN15,25,35201108-201512

13741ALOCK, VALVE SPRING RETAINER

main90913-03014×16i5LE..LAN15,25,35201108-201512

main90913-03021×32supersedes 90913-03021i1KDFTV..KUN26..CO,LA;1KDFTV,2KDFTV..KUN25,3#..LA201110-201510

main90913-03028×32i1TRFE,2TRFE..TGN1#,26,36201107

13751LIFTER, VALVE

main13751-46030×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.06,*360

main13751-46040×24i1GRFE..GGN15,25,35201107

T=5.08

main13751-46050×24i1GRFE..GGN15,25,35201107

T=5.10

main13751-46060×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.12,*130

main13751-46070×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.14,*130

main13751-46080×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.16,*360

main13751-46090×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.18,*360

main13751-46100×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.20,*130

main13751-46110×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.22,*130

main13751-46120×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.24,*360

main13751-46130×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.26,*360

main13751-46140×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.28,*360

main13751-46150×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.30,*130

main13751-46160×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.32,*360

main13751-46170×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.34,*360

main13751-46180×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.36,*360

main13751-46190×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.38,*360

main13751-46200×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.40,*130

main13751-46210×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.42,*130

main13751-46220×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.44,*360

main13751-46230×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.46,*130

main13751-46240×24i1GRFE..GGN15,25,35201107

T=5.48

main13751-46250×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.50,*360

main13751-46260×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.52,*360

main13751-46270×24i1GRFE..GGN15,25,35201107

T=5.54

main13751-46280×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.56,*360

main13751-46290×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.58,*360

main13751-46300×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.60,*360

main13751-46310×16i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.62,*360

main13751-46320×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.64,*360

main13751-46330×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.66,*360

main13751-46340×16i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

T=5.68,*130

main13751-46350×16i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201610

T=5.70,*360

main13751-46360×24i1GRFE..GGN15,25,35201107

T=5.72

main13751-46370×16supersedes 13751-46370i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

T=5.74,*360

main13751-54010×8i5LE..LAN15,25,35201108-201512

9010512149

main90105-12149

9011912370

main90119-12370

9155180635

main91551-80635

9155180830

main91551-80830

9167180820

main91671-80820

31 parts on this diagram · 6 diagrams in section
