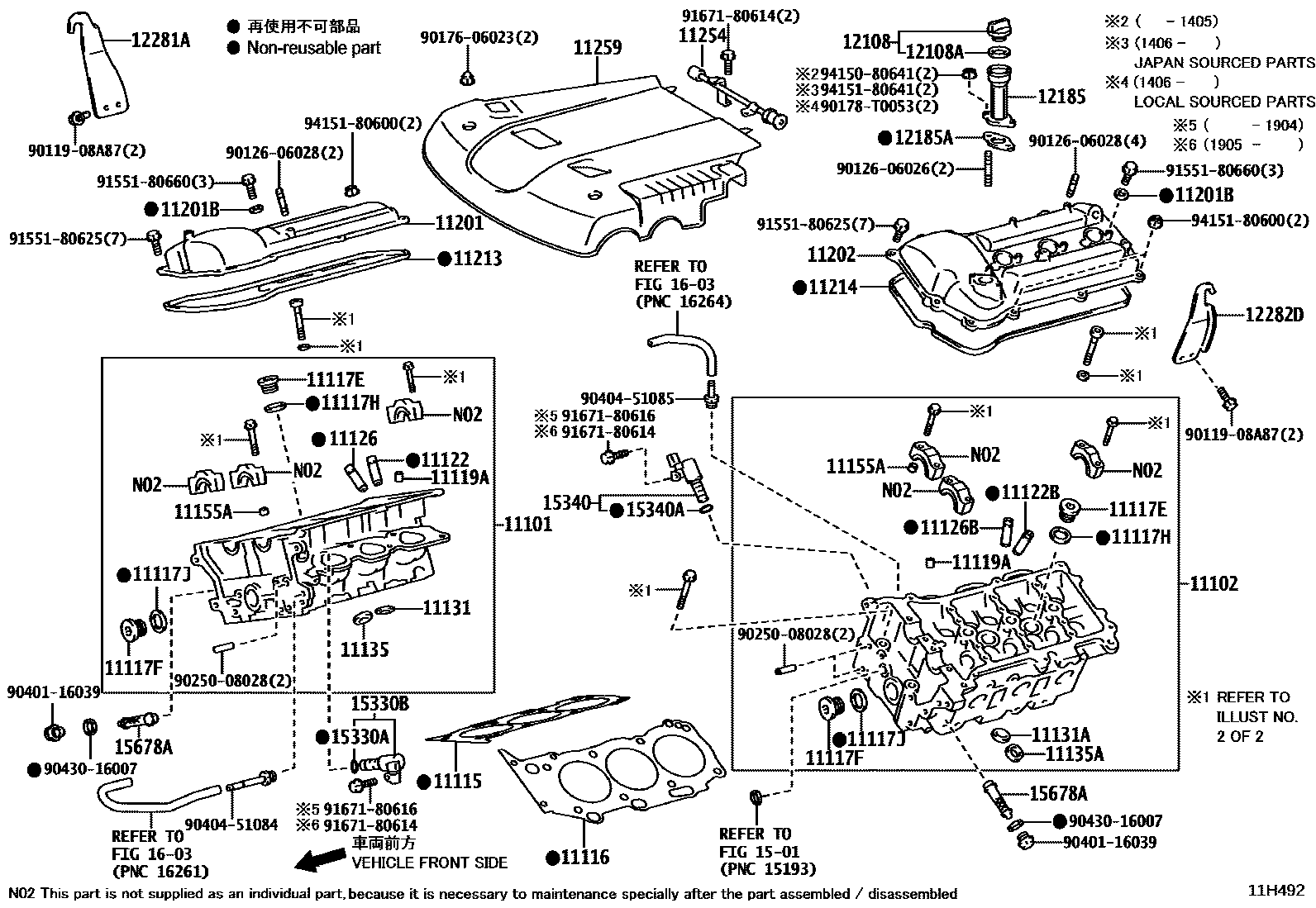

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0006 1CHILE SPEC 0007 1 0008 1 0009 1

11101HEAD SUB-ASSY, CYLINDER

main11101-0C010i1TRFE..TGN10,15..GCC,IDN201107-201407

sub11101-0C011

main11101-0C011i1TRFE..TGN15..SA201405-201512

sub11101-0C012

main11101-0C030i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201407

(L)

sub11101-0C031

main11101-0C030i2TRFE..TGN26..THDCB..DLX201107-201407

ECUADOR SPEC,(L)

sub11101-0C031

main11101-0C030i2TRFE..TGN26..THDCB..DLX201107-201407

COLOMBIA SPEC,(L)

sub11101-0C031

main11101-0C030i2TRFE..TGN16,26,36..ANCOM,CO,SA201108-201404

sub11101-0C031

main11101-0C031i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201408-201504

COLOMBIA SPEC,(L)

sub11101-0C032

main11101-0C031i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201408-201504

(L)

sub11101-0C032

main11101-0C031i2TRFE..TGN16,26,36..ANCOM,CO,SA201405

sub11101-0C032

main11101-0C040i2TRFE..TGN16..RHD..HTWC;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(SCB,THDCB)..GEN201107-201407

EGYPT SPEC

sub11101-0C041

main11101-0C040i2TRFE..TGN26,36..HTWC..LA201107-201404

sub11101-0C041

main11101-0C041i2TRFE..TGN16..RHD..HTWC;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(SCB,THDCB)..GEN201405-201510

sub11101-0C042

main11101-0C070i2TRFE..TGN26,36..HTWCF201110-201404

sub11101-0C071

main11101-0C071i2TRFE..TGN26,36..HTWCF201405-201510

main11101-0L051i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

*360,(L)

sub11101-30071

main11101-0L051i2KDFTV..KUN15..RHD;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN201107-201503

*130

sub11101-30071

main11101-0L051i2KDFTV..KUN25,35..CO201110-201510

(L)

sub11101-30071

main11101-0L051i2KDFTV..KUN15..RHD;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(CO,PHL,SA,TH);2KDFTV..KUN10,25..CO,G201503-201609

*130,(L)

sub11101-30071

main11101-0L060i1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201503-201601

*130,(L)

sub11101-30081

main11101-0L060i1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201107-201503

*130

sub11101-30081

main11101-30071i2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15201107-201610

*360,(J)

main11101-30071i2KDFTV..KUN25,35..LA201110-201510

(J)

main11101-30071i2KDFTV..KUN15..RHD;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(CO,PHL,SA,TH);2KDFTV..KUN10,25..CO,G201503-201609

*130,(J)

main11101-30081i1KDFTV..KUN26,36..5F..TH201107-201601

*360

main11101-30081i1KDFTV..KUN16,26,36..MA,PHL,SA,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN201503-201601

*130,(J)

main11101-30081i1KDFTV..KUN26,36..CO,LA201110-201510

main11101-39755i1GRFE..GGN15,25,35201107

main11101-54150i5LE..LAN15,25,35201108-201512

main11101-75170i2TRFE..TGN26..THDCB..DLX201107-201407

(J)

sub11101-75171

main11101-75170i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201407

ECUADOR SPEC,(J)

sub11101-75171

main11101-75170i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201407

COLOMBIA SPEC,(J)

sub11101-75171

main11101-75171i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201408-201504

COLOMBIA SPEC,(J)

sub11101-75172

main11101-75171i2TRFE..TGN26..THDCB..DLX201408-201504

(J)

sub11101-75172

main11101-75180i2TRFE..TGN16..CNG201205-201407

sub11101-75181

main11101-75181i2TRFE..TGN16..CNG201408-201504

sub11101-75182

11102HEAD, CYLINDER, LH

main11102-39235i1GRFE..GGN15,25,35201107-201611

sub11102-39236

main11102-39236i1GRFE..GGN25201611

11115GASKET, CYLINDER HEAD

main11115-0C011i1TRFE..TGN10,15201107-201109

sub11115-0C030

main11115-0C021i2TRFE..TGN11,16,26,36..CNG,HTWC201107

main11115-0C030i1TRFE..TGN10,15201109-201111

main11115-0C030i1TRFE..TGN10,15201111-201512

(L)

main11115-0L010-A0i2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH)201107-201201

MARK A,*130:REFER R/M

sub11115-0L011

main11115-0L010-A0i2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201201

MARK A,*360,(L):REFER R/M

sub11115-0L011

main11115-0L010-A0i2KDFTV..KUN25,35..CO201111-201201

MARK A,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-B0i2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH)201107-201201

MARK B,*130:REFER R/M

sub11115-0L011

main11115-0L010-B0i2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH)201107-201201

MARK B,*360,(L):REFER R/M

sub11115-0L011

main11115-0L010-B0i2KDFTV..KUN25,35..CO201111-201201

MARK B,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-C0i2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201201

MARK C,*130:REFER R/M

sub11115-0L011

main11115-0L010-C0i2KDFTV..KUN25,35..CO201111-201201

MARK C,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-C0i2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201201

MARK C,*360,(L):REFER R/M

sub11115-0L011

main11115-0L010-D0i2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201201

MARK D,*360,(L):REFER R/M

sub11115-0L011

main11115-0L010-D0i2KDFTV..KUN25,35..CO201111-201201

MARK D,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-D0i2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH)201107-201201

MARK D,*130:REFER R/M

sub11115-0L011

main11115-0L010-E0i2KDFTV..KUN25,35..CO201111-201201

MARK E,REFER REPAIR MANUAL

sub11115-0L011

main11115-0L010-E0i2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH)201107-201201

MARK E,*360,(L):REFER R/M

sub11115-0L011

main11115-0L010-E0i2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH)201107-201201

MARK E,*130:REFER R/M

sub11115-0L011

main11115-0L011-A0i2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA)201201-201610

MARK A,*360,(L):REFER R/M

main11115-0L011-A0i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201201-201208

MARK A,*360,(L):REFER R/M,*130:REFER R/M

main11115-0L011-A0i2KDFTV..KUN25,35..CO201201-201410

MARK A,REFER REPAIR MANUAL

main11115-0L011-A0i2KDFTV..KUN25,35..CO201201-201609

MARK A,*130:REFER R/M

main11115-0L011-B0i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201201-201610

MARK B,*360,(L):REFER R/M

main11115-0L011-B0i2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..LA,PHL,SA;2KDFTV..KUN35..5F..SR..(GEN,TH);2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);2KDFTV..K201201-201609

MARK B,*130:REFER R/M

main11115-0L011-B0i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201201-201208

MARK B,*360,(L):REFER R/M,*130:REFER R/M

main11115-0L011-B0i2KDFTV..KUN25,35..CO201201-201410

MARK B,REFER REPAIR MANUAL

main11115-0L011-C0i2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..LA,PHL,SA;2KDFTV..KUN35..5F..SR..(GEN,TH);2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);2KDFTV..K201201-201609

MARK C,*130:REFER R/M

main11115-0L011-C0i2KDFTV..KUN25,35..CO201201-201410

MARK C,REFER REPAIR MANUAL

main11115-0L011-C0i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201201-201610

MARK C,*360,(L):REFER R/M

main11115-0L011-C0i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201201-201208

MARK C,*360,(L):REFER R/M,*130:REFER R/M

main11115-0L011-D0i2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA)201201-201610

MARK D,*360,(L):REFER R/M

main11115-0L011-D0i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201201-201208

MARK D,*360,(L):REFER R/M,*130:REFER R/M

main11115-0L011-D0i2KDFTV..KUN25,35..CO201201-201609

MARK D,*130:REFER R/M

main11115-0L011-D0i2KDFTV..KUN25,35..CO201201-201410

MARK D,REFER REPAIR MANUAL

main11115-0L011-E0i2KDFTV..KUN25,35..CO201201-201410

MARK E,REFER REPAIR MANUAL

main11115-0L011-E0i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201201-201610

MARK E,*360,(L):REFER R/M

main11115-0L011-E0i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201201-201208

MARK E,*360,(L):REFER R/M,*130:REFER R/M

main11115-0L011-E0i2KDFTV..KUN25,35..CO201201-201609

MARK E,*130:REFER R/M

main11115-0L020-A0i1KDFTV..KUN26..THDCB;1KDFTV..KUN16,26,36..PHL,SA,TH201107-201201

MARKA,*130:REFER R/M

sub11115-0L021

main11115-0L020-A0i1KDFTV..KUN26,36..CO,LA201110-201201

MARKA,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-B0i1KDFTV..KUN26,36..CO,LA201110-201201

MARKB,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-B0i1KDFTV..KUN26..THDCB;1KDFTV..KUN16,26,36..PHL,SA,TH201107-201201

MARKB,*130:REFER R/M

sub11115-0L021

main11115-0L020-C0i1KDFTV..KUN26,36..CO,LA201110-201201

MARKC,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-C0i1KDFTV..KUN26..THDCB;1KDFTV..KUN16,26,36..PHL,SA,TH201107-201201

MARKC,*130:REFER R/M

sub11115-0L021

main11115-0L020-D0i1KDFTV..KUN26,36..CO,LA201110-201201

MARKD,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-D0i1KDFTV..KUN26..THDCB;1KDFTV..KUN16,26,36..PHL,SA,TH201107-201201

MARKD,*130:REFER R/M

sub11115-0L021

main11115-0L020-E0i1KDFTV..KUN26,36..CO,LA201110-201201

MARKE,REFER REPAIR MANUAL

sub11115-0L021

main11115-0L020-E0i1KDFTV..KUN26..THDCB;1KDFTV..KUN16,26,36..PHL,SA,TH201107-201201

MARKE,*130:REFER R/M

sub11115-0L021

main11115-0L021-A0i1KDFTV..KUN26,36..5F..TH201201-201510

MARK A,REFER REPAIR MANUAL

main11115-0L021-A0i1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN26..MA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26201201-201601

MARK A,*130:REFER R/M

main11115-0L021-B0i1KDFTV..KUN26,36..5F..TH201201-201510

MARK B,REFER REPAIR MANUAL

main11115-0L021-B0i1KDFTV..KUN26,36..5F..TH201201-201601

MARK B,*130:REFER R/M

main11115-0L021-C0i1KDFTV..KUN26,36..(4FC,5F)..(CO,LA);1KDFTV..KUN16,26,36..5FC..(CO,LA,TH)201201-201510

MARK C,REFER REPAIR MANUAL

main11115-0L021-C0i1KDFTV..KUN26,36..5F..TH201201-201601

MARK C,*130:REFER R/M

main11115-0L021-D0i1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN26..MA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26201201-201601

MARK D,*130:REFER R/M

main11115-0L021-D0i1KDFTV..KUN26,36..(4FC,5F)..(CO,LA);1KDFTV..KUN16,26,36..5FC..(CO,LA,TH)201201-201510

MARK D,REFER REPAIR MANUAL

main11115-0L021-E0i1KDFTV..KUN26,36..(4FC,5F)..(CO,LA);1KDFTV..KUN16,26,36..5FC..(CO,LA,TH)201201-201510

MARK E,REFER REPAIR MANUAL

main11115-0L021-E0i1KDFTV..KUN26,36..5F..TH201201-201601

MARK E,*130:REFER R/M

main11115-30032-A0i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN201107-201504

CHILE SPEC(EURO 5 REGULATION),MARK A,REFER R/M

main11115-30032-A0i1KDFTV..KUN26..THDCB..5F201107-201504

MARK A,REFER R/M

main11115-30032-A0i1KDFTV..KUN26,36..5F..TH201107-201601

MARK A,*360:REFER R/M

main11115-30032-B0i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN201107-201504

CHILE SPEC(EURO 5 REGULATION),MARK B,REFER R/M

main11115-30032-B0i1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA)201107-201601

MARK B,*360:REFER R/M

main11115-30032-B0i1KDFTV..KUN26..THDCB..5F201107-201504

MARK B,REFER R/M

main11115-30032-C0i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN201107-201504

MARK C,REFER R/M

main11115-30032-C0i1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA)201107-201601

MARK C,*360:REFER R/M

main11115-30032-C0i1KDFTV..KUN26..THDCB..5F201107-201504

CHILE SPEC(EURO 5 REGULATION),MARK C,REFER R/M

main11115-30032-D0i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN201107-201504

CHILE SPEC(EURO 5 REGULATION),MARK D,REFER R/M

main11115-30032-D0i1KDFTV..KUN26..THDCB..5F201107-201504

MARK D,REFER R/M

main11115-30032-D0i1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA)201107-201601

MARK D,*360:REFER R/M

main11115-30032-E0i1KDFTV..KUN26,36..5F..TH201107-201601

MARK E,*360:REFER R/M

main11115-30032-E0i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN201107-201504

MARK E,REFER R/M

main11115-30032-E0i1KDFTV..KUN16,26..ARL;1KDFTV..KUN26..5FC..GEN201107-201504

CHILE SPEC(EURO 5 REGULATION),MARK E,REFER R/M

main11115-30041-A0i2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA)201107-201610

MARKA,*360,(J):REFER R/M

main11115-30041-B0i2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA)201107-201610

MARKB,*360,(J):REFER R/M

main11115-30041-C0i2KDFTV..KUN15..SMT..HDCR;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201610

MARKC,*360,(J):REFER R/M

main11115-30041-D0i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

MARKD,*360,(J):REFER R/M

main11115-30041-E0i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

MARKE,*360,(J):REFER R/M

main11115-31031i1GRFE..GGN15,25,35201107

main11115-54130-B0i5LE..LAN15,25,35201108-201512

MARK B,REFER REPAIR MANUAL

sub11115-54130

main11115-54130-D0i5LE..LAN15,25,35201108-201512

MARK D,REFER REPAIR MANUAL

sub11115-54130

main11115-54130-F0i5LE..LAN15,25,35201108-201512

MARK F,REFER REPAIR MANUAL

sub11115-54130

main11115-75060i2TRFE..TGN26,36..HTWCF201110-201510

main11115-75070i1TRFE..TGN10,15201111-201512

(J)

11116GASKET, CYLINDER HEAD, NO.2

main11116-31011i1GRFE..GGN15,25,35201107

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-14015i1KDFTV..KUN26,36..5F..TH201107-201601

*360

main90341-14015i2KDFTV..KUN25,35..CO201110-201510

main90341-14015i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201503-201609

*130,(J)

main90341-14015i2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15201107-201610

*360,(J)

main90341-20002i1TRFE,2TRFE..TGN1#,26,36201107

main90341-24011i1GRFE..GGN15,25,35201107

main90341-T0005i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201503

*130

main90341-T0005i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

*360,(L)

main90341-T0005i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201503-201609

*130,(L)

11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90341-27006i1GRFE..GGN15,25,35201107

main90341-32002i2TRFE..TGN16..CNG;2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

COLOMBIA SPEC,(J)

main90341-32002i2TRFE..TGN26..THDCB..DLX201107-201504

(J)

main90341-T0009i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

COLOMBIA SPEC,(L)

main90341-T0009i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

(L)

main90341-T0009i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

EGYPT SPEC

main90341-T0009i2TRFE..TGN16..SCB..GEN;1TRFE,2TRFE..TGN10,15,36;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..(HTWC,HTWCF)..(ANCOM,ARL,CO,LA,SA,TH)201107

11117HGASKET(FOR WATER HOLE)

main90430-20004i2TRFE..TGN26..THDCB..DLX201107-201504

COLOMBIA SPEC,(J)

main90430-20004i2TRFE..TGN16..CNG;2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

(J)

main90430-24013i1GRFE..GGN15,25,35201107

main90430-T0010i2TRFE..TGN16,26..DCB..5F..DLX..GCC201107-201504

COLOMBIA SPEC,(L)

main90430-T0010i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

(L)

main90430-T0010i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

EGYPT SPEC

main90430-T0010i2TRFE..TGN16..SCB..GEN;1TRFE,2TRFE..TGN10,15,36;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,26..(HTWC,HTWCF)..(ANCOM,ARL,CO,LA,SA,TH)201107

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-27005i1GRFE..GGN15,25,35201107

main90430-32004i1TRFE,2TRFE..TGN1#,26,36201107

11119APIN, STRAIGHT, NO.1

main90250-05021i1GRFE..GGN15,25,35201107

L=13.8,OD=5.0

11122BUSH, INTAKE VALVE GUIDE

main11122-20020i1GRFE..GGN15,25,35201107

STD

sub11122-22040

main11122-30020i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

O/S 0.05,*360

main11122-30020i2KDFTV..KUN25,35..CO201110-201510

O/S 0.05

main11122-30020i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

O/S 0.05,*130

main11122-54020i5LE..LAN15,25,35201108-201512

STD

sub11122-17020

main11122-75020i1TRFE,2TRFE..TGN1#,26,36201107

STD

main11123-20020i1GRFE..GGN15,25,35201107

O/S 0.05

main11123-30020i1KDFTV..KUN26..CO,LA;1KDFTV,2KDFTV..KUN25,3#..LA201110-201510

STD

main11123-30020i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

STD,*360

main11123-30020i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

STD,*130

main11123-54020i5LE..LAN15,25,35201108-201512

O/S 0.05

sub11123-17020

main11123-75020i1TRFE,2TRFE..TGN1#,26,36201107

O/S 0.05

11122BBUSH, INTAKE VALVE GUIDE, NO.2

main11122-20020i1GRFE..GGN15,25,35201107

STD

sub11122-22040

main11123-20020i1GRFE..GGN15,25,35201107

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-30020i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201610

O/S 0.05,*360

main11122-30020i2KDFTV..KUN25,35..CO201110-201510

O/S 0.05

main11122-30020i2KDFTV..KUN25,35..CO201107-201609

O/S 0.05,*130

main11122-54020i5LE..LAN15,25,35201108-201512

STD

sub11122-17020

main11122-75020i1TRFE,2TRFE..TGN1#,26,36201107

STD

main11123-30020i1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,T201107-201610

STD,*360

main11123-30020i2KDFTV..KUN25,35..CO201110-201510

STD

main11123-30020i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201107-201609

STD,*130

main11123-54020i5LE..LAN15,25,35201108-201512

O/S 0.05

sub11123-17020

main11123-75020i1TRFE,2TRFE..TGN1#,26,36201107

O/S 0.05

main11126-20020i1GRFE..GGN15,25,35201107

STD

main11127-20020i1GRFE..GGN15,25,35201107

O/S 0.05

11126BBUSH, EXHAUST VALVE GUIDE, NO.2

main11126-20020i1GRFE..GGN15,25,35201107

STD

main11127-20020i1GRFE..GGN15,25,35201107

O/S 0.05

11131SEAT, INTAKE VALVE

main11131-0C010i1TRFE..TGN10,15..GCC,IDN201107-201408

STD

main11131-0C011i1TRFE..TGN10,15..GCC,IDN201405-201512

STD

main11131-0C020i2TRFE..TGN16,26..DCB..5F..DLX..GCC201107-201408

STD

main11131-0C020i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201408

STD,(L)

main11131-0C020i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201408

STD,EGYPT SPEC

main11131-0C020i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201408

STD,ECUADOR SPEC,(L)

main11131-0C020i2TRFE..TGN26..THDCB..DLX201107-201408

STD,COLOMBIA SPEC,(L)

main11131-0C021i2TRFE..TGN16,26,36..HTWC..(ANCOM,CO,LA,SA)201405

STD

main11131-0C021i2TRFE..TGN11,16,26,36..HTWC..(ARL,GCC,GEN,TH)201408-201504

STD,(L)

main11131-31010i1GRFE..GGN15,25,35201107

STD

main11131-75070i2TRFE..TGN16..CNG201205-201408

STD

main11131-75071i2TRFE..TGN16..CNG201408-201504

STD

main11131-75080i2TRFE..TGN26..THDCB..DLX201107-201408

STD,COLOMBIA SPEC,(J)

main11131-75080i2TRFE..TGN26..THDCB..DLX201107-201408

STD,ECUADOR SPEC,(J)

main11131-75080i2TRFE..TGN26..THDCB..DLX201107-201408

STD,(J)

main11131-75081i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201408-201504

STD,COLOMBIA SPEC,(J)

main11131-75081i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201408-201504

STD,(J)

main11131-75110i2TRFE..TGN26,36..HTWCF201110-201405

STD

main11131-75111i2TRFE..TGN26,36..HTWCF201405-201510

STD

main11132-31010i1GRFE..GGN15,25,35201107

O/S 0.03

main11132-75070i2TRFE..TGN16..CNG201205-201504

O/S 0.03

main11132-75080i2TRFE..TGN16,26,36..HTWC..(ANCOM,CO,LA,SA)201107-201408

O/S 0.03

main11132-75081i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201405

O/S 0.03

main11132-75090i1TRFE..TGN15..SA201107-201408

O/S 0.03

main11132-75091i1TRFE..TGN15..SA201405-201512

O/S 0.03

main11132-75110i2TRFE..TGN26,36..HTWCF201110-201405

O/S 0.03

main11132-75111i2TRFE..TGN26,36..HTWCF201405-201510

O/S 0.03

11131ASEAT, INTAKE VALVE, NO.2

main11131-31010i1GRFE..GGN15,25,35201107

STD

main11132-31010i1GRFE..GGN15,25,35201107

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-0C010i1TRFE..TGN10,15201107-201512

STD

main11135-0C020i2TRFE..TGN26..THDCB..DLX201107-201408

STD

main11135-0C020i2TRFE..TGN16..RHD..HTWC;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(SCB,THDCB)..GEN201107-201408

STD,EGYPT SPEC

main11135-0C020i2TRFE..TGN16..RHD..HTWC;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(SCB,THDCB)..GEN201107-201408

STD,ECUADOR SPEC,(L)

main11135-0C020i2TRFE..TGN16..RHD..HTWC;2TRFE..TGN26..THDCB..DLX;2TRFE..TGN16,36..(SCB,THDCB)..GEN201107-201408

STD,COLOMBIA SPEC,(L)

main11135-0C020i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

STD,(L)

main11135-31030i1GRFE..GGN15,25,35201107

STD

main11135-75090i2TRFE..TGN16..CNG201205-201504

STD

main11135-75100i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

STD,(J)

sub11135-75160

main11135-75100i2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN)201107-201504

STD,COLOMBIA SPEC,(J)

sub11135-75160

main11135-75130i2TRFE..TGN26,36..HTWCF201110-201510

STD

main11136-31030i1GRFE..GGN15,25,35201107

O/S 0.03

main11136-75080i1TRFE..TGN10,15201107-201512

O/S 0.03

sub11136-75150

main11136-75090i2TRFE..TGN16..CNG201205-201504

O/S 0.03

main11136-75100i2TRFE..TGN11,16,26,36..HTWC201107-201708

O/S 0.03

sub11136-75160

main11136-75130i2TRFE..TGN26,36..HTWCF201110-201510

O/S 0.03

main11136-75160i2TRFE..TGN26,36201708

O/S 0.03

11135ASEAT, EXHAUST VALVE, NO.2

main11135-31030i1GRFE..GGN15,25,35201107

STD

main11136-31030i1GRFE..GGN15,25,35201107

O/S 0.03

11155APIN, RING W/HEAD

main90253-10004i2KDFTV..KUN25,35..CO201110-201510

(J)

main90253-10004i1KDFTV..KUN26,36..5F..TH201107-201601

*360

main90253-10004i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201503-201609

*130,(J)

main90253-10004i2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15201107-201610

*360,(J)

main90253-11021i1GRFE..GGN15,25,35201107

main90253-T0001i2KDFTV..KUN25,35..LA201110-201510

(L)

main90253-T0001i2KDFTV..KUN25,35..CO201107-201503

*130

main90253-T0001i2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15201107-201610

*360,(L)

main90253-T0001i2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4F201503-201609

*130,(L)

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0C011i1TRFE,2TRFE..TGN1#,26,36201107-201205

sub11201-0C012

main11201-0C030i2TRFE..TGN16..CNG201205-201408

sub11201-0C031

main11201-0C031i2TRFE..TGN16..CNG201408-201504

main11201-0C040i1TRFE,2TRFE..TGN1#,26,36..HTWC,HTWCF201205-201408

sub11201-0C041

main11201-0C041i1TRFE,2TRFE..TGN1#,26,36..HTWC,HTWCF201408

main11201-31220i1GRFE..GGN15,25,35201107-201506

sub11201-31310

main11201-31310i1GRFE..GGN25,35201507

main11210-0L020i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201112-201609

*130,(L)

main11210-0L020i1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH201107-201112

*130

main11210-30100i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

main11210-30110i1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFT201107-201610

*360

main11210-30110i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..DCR..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201112-201206

*130,(J)

main11210-54051i5LE..LAN15,25,35201108-201512

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-06013i1GRFE..GGN15,25,35201107

11202COVER SUB-ASSY, CYLINDER HEAD, LH

main11202-31010i1GRFE..GGN15,25,35201107

11213GASKET, CYLINDER HEAD COVER

main11213-0C010i1TRFE,2TRFE..TGN1#,26,36201107-201407

sub11213-0C011

main11213-0C011i1TRFE,2TRFE..TGN1#,26,36201407

main11213-0L010i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130,(L)

main11213-0L010i1KDFTV..KUN26,36..5F..TH201107-201610

*360,(L)

main11213-30040i1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..DCR..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH201112-201206

*130,(J)

main11213-30040i1KDFTV..KUN26,36..5F..TH201107-201610

*360,(J)

main11213-30040i2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN201204-201510

main11213-31030i1GRFE..GGN15,25,35201107

main11213-54050i5LE..LAN15,25,35201108-201512

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-0C010i1TRFE,2TRFE..TGN1#,26,36201107-201406

sub11214-0C011

main11214-0C011i1TRFE,2TRFE..TGN1#,26,36201406

main11214-31010i1GRFE..GGN15,25,35201107

11254BRACKET, V-BANK COVER, NO.1

main11254-31010i1GRFE..GGN15,25,35201107

11259COVER, V-BANK

main11259-0P020i1GRFE..GGN15,25,35201107

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201402

(L)

main12180-0H020i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main12180-0H020i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201107-201510

main12180-21010i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201107-201304

*360

main12180-21010i2KDFTV..KUN35..5FC201208-201304

THAI SPEC(EURO 3 REGULATION),*360

main12180-21010i1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15,25,35..DCB..SR..(GE201107-201304

CHILE SPEC(EURO 5 REGULATION)

main12180-28010i1GRFE..GGN15,25,35201107

main12180-38010i1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN26,36..ARL,GEN,MA,PHL,SA;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25..(4FC,5F)..(ARL,GCC,201304-201610

*360

main12180-38010i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201304-201504

CHILE SPEC(EURO 5 REGULATION)

main12180-38010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201402

(J)

main12180-73011i5LE..LAN15,25,35201108-201512

12108AGASKET(FOR OIL FILLER CAP)

main12195-73010i5LE..LAN15,25,35201108-201512

main90080-43027i2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDF201107-201609

*130

main90080-43027i1KDFTV..KUN26..IART201204-201510

main90080-43027i1TRFE,2TRFE..TGN1#,26,36201107

(L)

main90430-35001i1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN26,36..ARL,GEN,MA,PHL,SA;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25..(4FC,5F)..(ARL,GCC,201304-201610

*360

main90430-35001i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201402

(J)

main90430-35001i2KDFTV..KUN35..5FC;2KDFTV..KUN35..DCB..DLX..GEN201304-201504

CHILE SPEC(EURO 5 REGULATION)

main90430-37004i1GRFE..GGN15,25,35201107

main90430-37140i1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15,25,35..DCB..SR..(GE201107-201304

*360

main90430-37140i1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15,25,35..DCB..SR..(GE201107-201304

CHILE SPEC(EURO 5 REGULATION)

main90430-37140i2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN25..5F..(IDN,TH)201208-201304

THAI SPEC(EURO 3 REGULATION),*360

12185HOUSING, OIL FILLER CAP

main12185-0P010i1GRFE..GGN15,25,35201107-201612

(L)

main12185-50020i1GRFE..GGN15,25,35201107

(J)

12185AGASKET, OIL FILLER CAP HOUSING

main12196-50010i1GRFE..GGN15,25,35201107

12281AHANGER, ENGINE, NO.1

main12281-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108

main12281-0C030i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main12281-31060i1GRFE..GGN15,25,35201107

12282DHANGER, ENGINE, NO.2

main12281-0C010i1TRFE,2TRFE..TGN15,16,26,36..ANCOM,CO,LA,SA201108

main12281-0C030i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201107-201504

main12282-31040i1GRFE..GGN15,25,35201107

main12282-67030i2KDFTV..KUN15..SMT..SR;2KDFTV..KUN15,35..DLX..TH201107-201610

*360

main12282-67030i1KDFTV..KUN26..4FC..(CO,LA);1KDFTV,2KDFTV..KUN2#,35..5F..CO;1KDFTV..KUN16,26,36..(5F,5FC)..(LA,TH)201107-201609

*130

main12282-67030i2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,35..DLX..HDCR..TH201107-201208

*360,*130

main12282-67030i1KDFTV..KUN26,36..5F..TH201107-201510

1501

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14041i1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH201503

main90099-14137i1GRFE..GGN15,25,35201107-201505

15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH

main15330-31010i1GRFE..GGN15,25,35201107

15340VALVE ASSY, CAM TIMING OIL CONTROL, LH

main15340-31010i1GRFE..GGN15,25,35201107

15340ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90099-14137i1GRFE..GGN15,25,35201107

15678AFILTER, OIL CONTROL VALVE

main15678-0C010i1TRFE,2TRFE..TGN1#,26,36201107

main15678-31010i1GRFE..GGN15,25,35201107

1603

9011908A87

main90119-08A87

9012606026

main90126-06026

9012606028

main90126-06028

9017606023

main90176-06023

90178T0053

main90178-T0053

9025008028

main90250-08028

9040116039

main90401-16039

9040451084

main90404-51084

9040451085

main90404-51085

9043016007

main90430-16007

9155180625

main91551-80625

9155180660

main91551-80660

9167180614

main91671-80614

9167180616

main91671-80616

9415080641

main94150-80641

9415180600

main94151-80600

9415180641

main94151-80641

55 parts on this diagram · 8 diagrams in section
