HEATING & AIR CONDITIONING - COMPRESSOR
1601WATER PUMP
88320COMPRESSOR ASSY, COOLER
main88320-0K080iKUN16..4FC;KUN2#,3#..MA,PHL,TH;KUN16..(SCB,SMT)..CBU;KUN15..(DCB,SMT,XTR)..(PHL,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA)200808-201109
WITHOUT(COOLER)
AIR CONDITIONER-SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER-COOLER SINGLE(DOP)
AIR CONDITIONER-AIR CONDITIONER(DOP)
AIR CONDITIONER(DEALER OPTION)
88330AWASHER (FOR MAGNET CLUTCH)
main88335-14020iKUN26,36..SR..LA;TGN36..4FC..ANCOM; TGN36..5F..DLX;TGN26..ANCOM,GCC;TGN26..DCB..DLX..LA;KUN25..(ANCOM,LA)..CBU;KUN35,TGN16..5F..(ANCOM,GCC);KUN26,3#,TGN10,11,15..DLX..(GCC,LA)..CBU200501-200812
SINGLE AIR CONDITIONER
88410CLUTCH ASSY, MAGNET
main88410-0K080iKUN15..XTR..DLX; KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)200408-200801
WITHOUT(COOLER)
main88410-0K310iKUN26,36..SR..LA; KUN26..DLX..GEN; KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU200810
AIR CONDITIONER-AIR CONDITIONER(DOP); AIR CONDITIONER-SINGLE AIR CONDITIONER
main88410-0K320iTGN26,36..DCB..DLX..LA; TGN26,36..SR..LA;TGN36..4FC..ANCOM; TGN36..5F..DLX;TGN26..SR..ANCOM;TGN36..4FC..DLX..LA;TGN26..DLX..(ANCOM,LA)..CBU200810
AIR CONDITIONER-AIR CONDITIONER(DOP); AIR CONDITIONER-SINGLE AIR CONDITIONER
main88410-0K390iKUN15,2#,35..DLX..GEN; KUN15..SCB..TH..CBU; KUN15..XTR..DCR; KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)200801-200804
COOLER SINGLE; SINGLE AIR CONDITIONER; WITHOUT(COOLER)
COOLER SINGLE; SINGLE AIR CONDITIONER
COOLER SINGLE; SINGLE AIR CONDITIONER
AIR CONDITIONER(DEALER OPTION)
SINGLE AIR CONDITIONER
AIR CONDITIONER(DEALER OPTION)
SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-AIR CONDITIONER(DOP)
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER(DEALER OPTION)
88420PULLEY ASSY, IDLE, W/BRACKET
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER-SINGLE AIR CONDITIONER,NO.1
AIR CONDITIONER-SINGLE AIR CONDITIONER,NO.2
88431BRACKET, COMPRESSOR MOUNTING, NO.1
main88431-0K020iKUN10,15,25..GCC; KUN15..SCB..TH; KUN16..ARL..CBU; KUN26..DCB..GEN;KUN10,15,2#,35..DLX..(GCC,GEN); KUN26..IDN;KUN16..DCB..5F..TH200808-201107
AIR CONDITIONER-AIR CONDITIONER(DOP); AIR CONDITIONER-COOLER SINGLE; AIR CONDITIONER-SINGLE AIR CONDITIONER; SINGAPORE SPEC&AIR CONDITIONER-AIR CONDITIONER(DOP)
main88431-0K040iKUN26,36..SR..LA; KUN26..DLX..GEN; KUN35..ANCOM;KUN35..LA..CBU;KUN2#,36..DLX..(ANCOM,LA)..CBU200810
AIR CONDITIONER-AIR CONDITIONER(DOP); AIR CONDITIONER-SINGLE AIR CONDITIONER
main88431-0K060iKUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA; KUN26,36..SA;KUN35..SCB..SA200504-200810
SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER(DEALER OPTION)
88440BPULLEY ASSY, IDLE
main88440-0K060iKUN15..PHL..CBU;KUN16,2#,3#..IDN,MA,PHL,TH;KUN15..RHD..(DCB,SMT,XTR)..(SA,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA)200808-201109
AIR CONDITIONER-SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER; WITHOUT(COOLER)
AIR CONDITIONER-SINGLE AIR CONDITIONER
main88440-0K250iKUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA; KUN26,36..SA;KUN35..SCB..SA200504-200810
SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
CHILE SPEC&AIR CONDITIONER-AIR CONDITIONER(DOP)
SINGLE AIR CONDITIONER
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-AIR CONDITIONER(DOP)
88440DPULLEY ASSY, IDLE NO.2
main88440-0K010iKUN16..4FC;KUN15..PHL..CBU;KUN2#,3#..PHL,TH;KUN16..(SCB,SMT)..CBU;KUN15..RHD..(DCB,SMT,XTR)..(SA,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA)200808-201108
main88440-0K030iKUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA; KUN26,36..SA;KUN35..SCB..SA200504-200810
SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
AIR CONDITIONER-SINGLE AIR CONDITIONER
SINGLE AIR CONDITIONER
AIR CONDITIONER-AIR CONDITIONER(DOP)
CHILE SPEC&AIR CONDITIONER-AIR CONDITIONER(DOP)
SINGLE AIR CONDITIONER
AIR CONDITIONER-SINGLE AIR CONDITIONER
88688KBRACKET, COOLER COMPRESSOR
main88688-0K100iKUN15..XTR..DLX; KUN16,25,36..TH;KUN26..SR..(GEN,PHL,TH);KUN15..(DCB,XTR)..(PHL,TH)200408-200808
WITHOUT(COOLER)
AIR CONDITIONER-SINGLE AIR CONDITIONER
main88688-0K140iKUN15,25..DLX..SA;KUN35..DCB..DLX..SA; KUN35..SCB..SA;KUN26,3#..(DCB,SCB)..SR..SA200810-201108
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER(DEALER OPTION)
AIR CONDITIONER-SINGLE AIR CONDITIONER
AIR CONDITIONER-AIR CONDITIONER(DOP)
88688NBRACKET, COOLER
AIR CONDITIONER-SINGLE AIR CONDITIONER
8856960070CLAMP (FOR COOLER RELAY)
main88569-60070
9009904349
main90099-04349
9009907065
main90099-07065
9009907114
main90099-07114
90105T0040
main90105-T0040
90105T0066
main90105-T0066
9011908B42
main90119-08B42
90119T0186
main90119-T0186
9151281040
main91512-81040
9331915008
main93319-15008

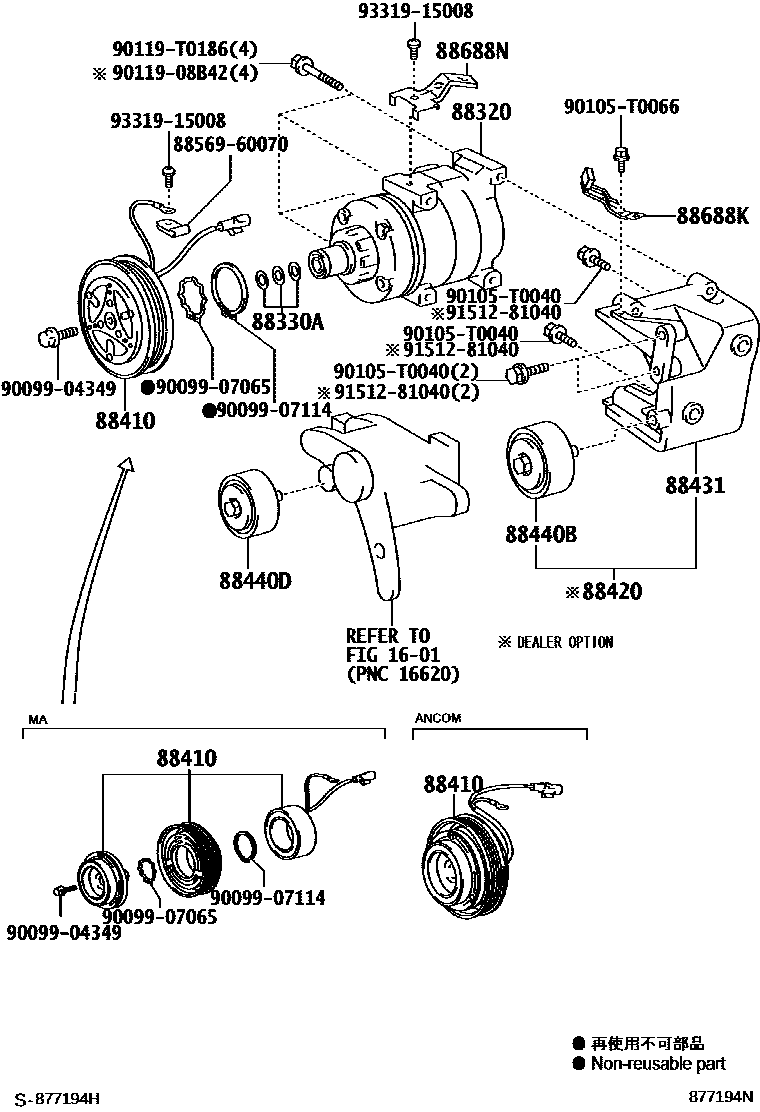

20 parts on this diagram · 13 diagrams in section
