WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0K010iKUN16..DCB,SCB;TGN16..5F..ARL;KUN16,TGN16..XTR..TH;GGN15,25,KUN15,2#,36,LAN15,TGN10,26..RHD..(ARL,GEN,IDN,MA,PKN,TH)200408-200809

main85110-0K011iKUN26,36..XTR..SA;GGN15,KUN16..DCB..DLX;KUN26..RHD..(ARL,GEN,TH);GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,3#,TGN10,16..RHD..(ARL,GEN,IDN,TH);GGN25,KUN25..RHD..(DCB,SCB,SMT)..(ARL,GEN,MA,PKN,TH)..CBU200808

main85110-0K020iTGN36..DLX;TGN36..PHL;TGN26..DCB..DLX..LA;TGN26..LHD..(ANCOM,GCC,GEN,SA);KUN35,TGN16..LHD..5F..(ANCOM,GCC,GEN,LA,SA);GGN25,KUN10,15,2#,36,LAN15,25,TGN10,11,15..LHD200411-200812

main85110-0K021iTGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD200808

main85110-0K030iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

85160LINK ASSY, WINDSHIELD WIPER

main85150-0K011iKUN26,36..XTR..SA;GGN15,KUN16..DCB..DLX;KUN26..RHD..(ARL,GEN,TH);GGN15,KUN16..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,3#,TGN10,16..RHD..(ARL,GEN,IDN,TH);GGN25,KUN25..RHD..(DCB,SCB,SMT)..(ARL,GEN,MA,PKN,TH)..CBU200808

main85150-0K021iTGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD200808

main85150-0K030iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

85211BARM, FRONT WIPER, RH

main85211-0K010iKUN26..IDN;GGN25..SCB,XTR;GGN15,KUN16..DCB..5F..SR200808-201107

main85211-0K020iTGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD200808

85212ABLADE, FR WIPER, RH

main85212-0K010iKUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25,TGN16..RHD..5F..(ARL,GEN);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)200408-201202

main85212-0K020iTGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD200808

main85212-0K090iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200605

main85212-0K091iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..(DCB,SCB)..SA200810-201108

85214ARUBBER, WIPER, RH

main85214-0D070iKUN25..SCB..MA;KUN25..(DCB,XTR)..SR;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25,TGN16..RHD..5F..(ARL,GEN);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)200408-201202

main85214-0K040iTGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD200808

main85214-0K050iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200605

main85214-0K051iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..(DCB,SCB)..SA200810-201108

85214BRUBBER, WIPER, LH

main85214-06030iGGN25,35,KUN15,2#,3#,LAN15,25,35,TGN15,36..RHD..(DCB,SCB)..SA200810-201108

main85214-0D070iTGN16..(DCB,SCB)..GEN200808-201107

main85214-0K040iKUN15..SR..SA200808-201108

85221BARM, FRONT WIPER, LH

main85221-0K010iGGN25..ARL;GGN25..5FC..SA;KUN15,LAN15..RHD..(DLX,SR);GGN15,35,KUN16,2#,3#,LAN25,35,TGN10,15,16,36..RHD200808-201202

main85221-0K020iTGN36..DLX;TGN36..PHL;TGN26..DCB..DLX..LA;TGN26..LHD..(ANCOM,GCC,GEN,SA);KUN35,TGN16..LHD..5F..(ANCOM,GCC,GEN,LA,SA);GGN25,KUN10,15,2#,36,LAN15,25,TGN10,11,15..LHD200411-200812

85222ABLADE, FR WIPER, LH

main85222-0K010iKUN15..SR..SA200808-201108

main85222-0K020iTGN16..(DCB,SCB)..GEN200808-201107

main85222-0K090iGGN25,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..RHD..SA200504-200810

85292BCAP, FRONT WIPER ARM HEAD

main85292-0K030×2iGGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)200808

90119T0145

main90119-T0145

90179T0008

main90179-T0008

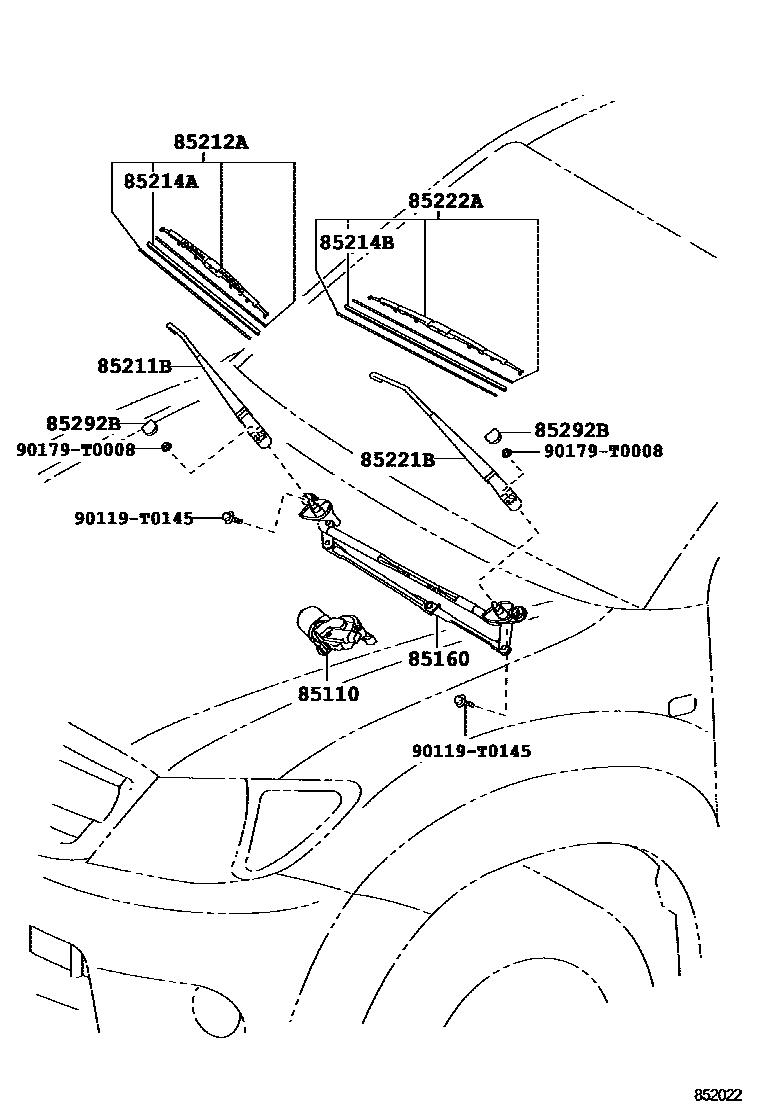

11 parts on this diagram · 2 diagrams in section
