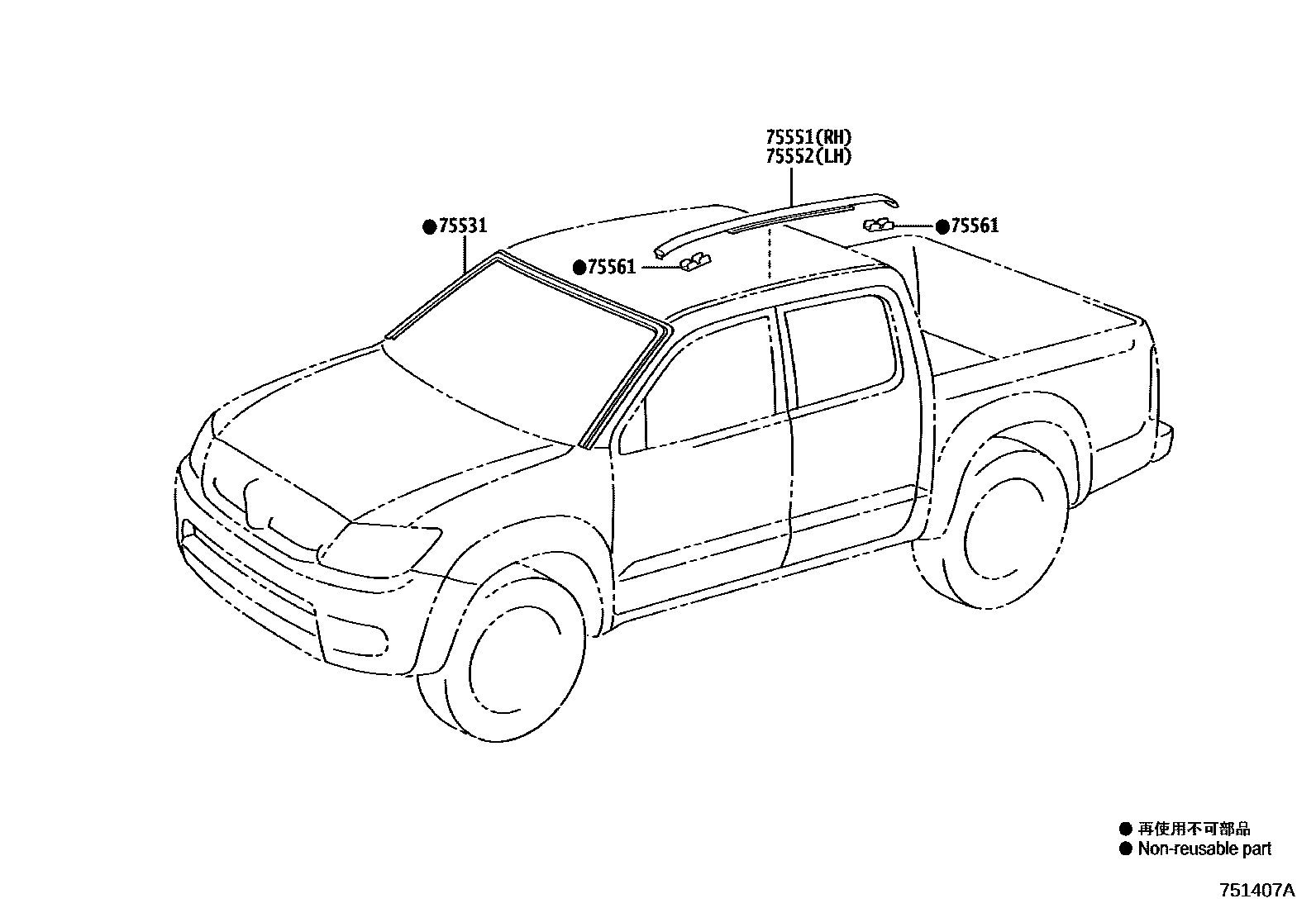

MOULDING

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-0K010iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-0K010iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB200408-200607

NO PAINT REQ.

main75551-0K011iKUN26..IDN;TGN16..DCB..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

NO PAINT REQ.

main75551-0K030iKUN25..DLX..MA200801-200809

NO PAINT REQ.

main75551-0K031iKUN25..DLX..MA200608-200801

NO PAINT REQ.

main75551-0K040iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200408-200611

NO PAINT REQ.

main75551-0K041iGGN25..XTR200808-201107

NO PAINT REQ.

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-0K010iGGN15,25,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..DCB200408-200607

NO PAINT REQ.

main75552-0K011iKUN25..DCB..SR;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN36,TGN16..DCB..5F;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN25,35,TGN36..(DCB,THDCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN15,16,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,PHL,SA,TH)200608-200812

NO PAINT REQ.

main75552-0K030iKUN36..SCB..SA;GGN15,25,KUN1#,2#,35,LAN15,25,TGN1#,26,36..SCB200409-200607

NO PAINT REQ.

main75552-0K031iTGN15..IV3200808-201108

NO PAINT REQ.

main75552-0K040iGGN15,25,KUN15,16,2#,36,TGN16,26..XTR200408-200611

NO PAINT REQ.

main75552-0K041iGGN25..XTR200808-201107

NO PAINT REQ.

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-52020×4iTGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)200408-201202

4 parts on this diagram · 1 diagram in section
