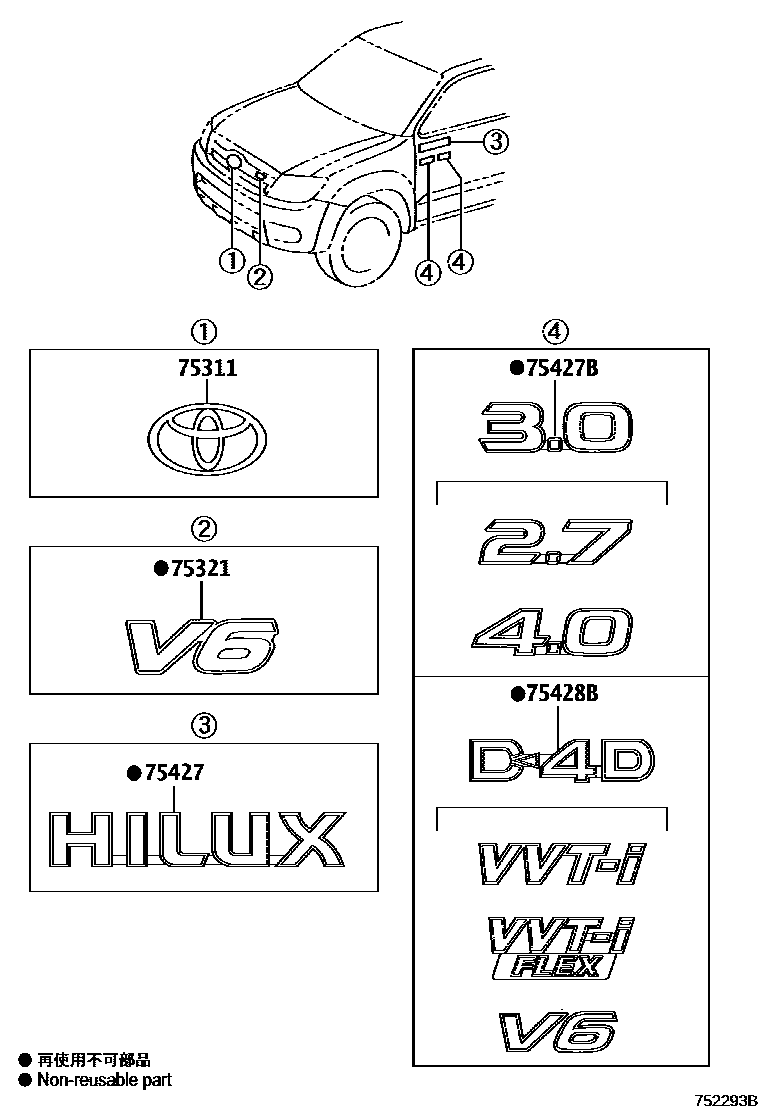

EMBLEM & NAME PLATE

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-0K010iGGN25..ANCOM200408-200708

main75311-0K050iTGN16..4FC..TH;TGN10,16..ARL,GCC,GEN,IDN;GGN15,25,KUN1#,2#,3#,TGN11,15,26..ARL,GCC,GEN,MA,PHL,TH200812-200906

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-0K010iGGN25..SA200502-200710

V6

main75321-0K030iGGN15..SCB,XTR;GGN25..5FC..SA;GGN15..DCB..DLX;GGN15,35..DCB..5FC..SR;GGN25..DCB..(ANCOM,ARL,LA)200808

V6

75427PLATE, FRONT DOOR NAME

main75427-0K010×2iGGN15,25,KUN16,26,36,LAN15,25,35200408-200607

main75427-0K011×2iKUN26..IDN;GGN25..SCB,XTR;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR200808-201107

main75427-0K020×2iLAN15..PKN200710-201008

75427BPLATE, FRONT DOOR NAME, NO.1

main75473-0K010×2iTGN11,16,26,36200501-200606

main75473-0K011×2iTGN16..(DCB,SCB)..GEN200808-201107

main75473-0K020×2iKUN16,26,36200408-200607

main75473-0K021×2iKUN16..4FC;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN26,36..ARL,GEN,LA,PHL,SA,TH200808

main75473-0K030×2iGGN15,25200502-200607

main75473-0K031×2iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

75428BPLATE, FRONT DOOR NAME, NO.2

main75428-0K010×2iTGN1#,26,36200501-200606

main75428-0K011×2iTGN16..XTR;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN10,11,15,36..CBU;TGN16..ARL,GCC,SA,TH;TGN26..LHD..(GCC,GEN,LA,SA)200808

main75428-0K020×2iKUN16,26,36200408-200607

main75428-0K021×2iLAN15..PKN201008-201202

main75428-0K030×2iGGN15,25200502-200607

main75428-0K031×2iGGN15..5F..SR;GGN25..SCB,XTR200808-201107

5 parts on this diagram · 2 diagrams in section
