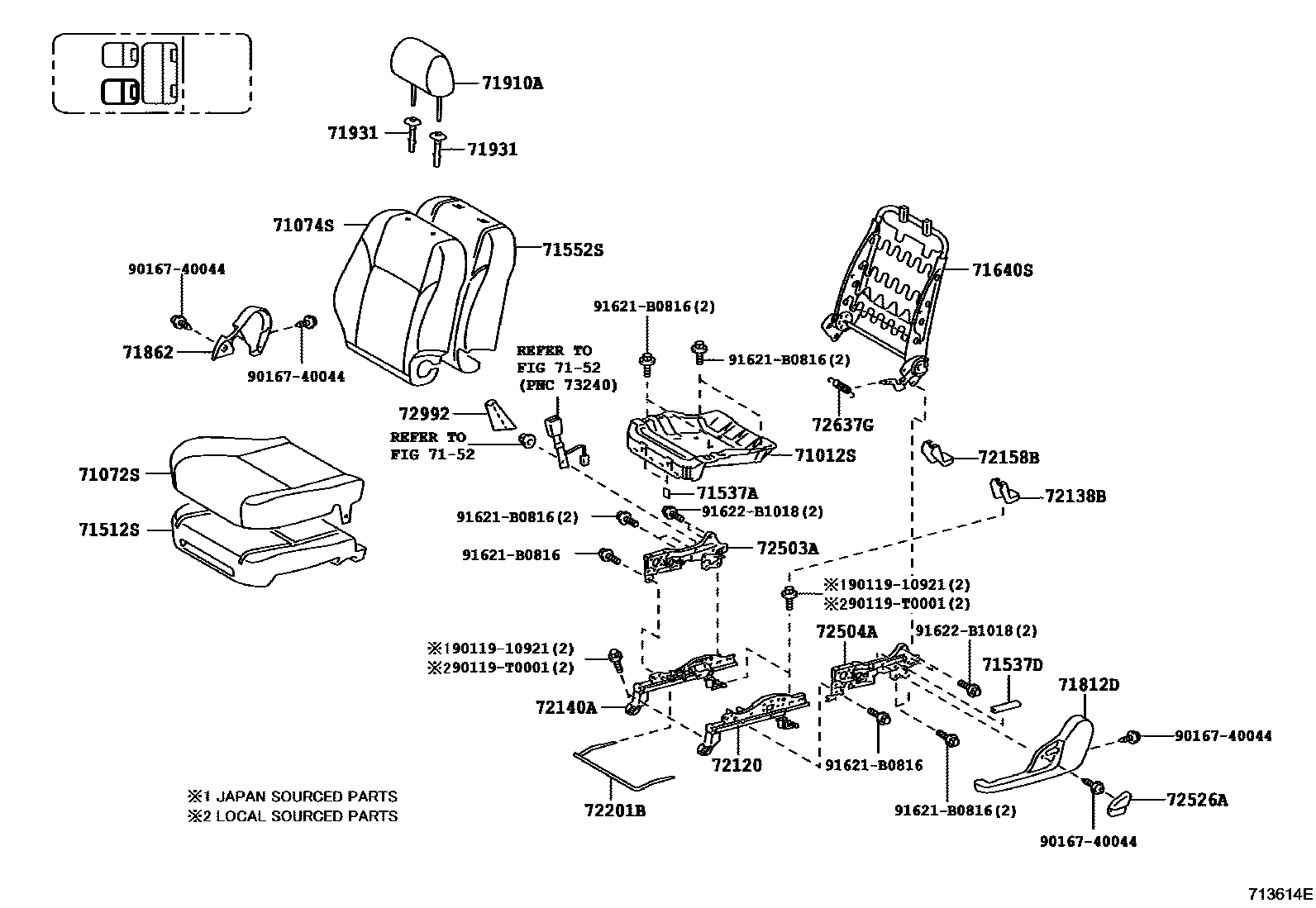

SEAT & SEAT TRACK
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-0K030iKUN15..LHD..SCB;KUN15..XTR..DLX;KUN16,2#..THSCB,XTR;GGN15,25,KUN26..(SCB,XTR)..(4FC,5FC);KUN15,TGN16..(SCB,XTR)..(HDCR,HTWC)..(GCC,GEN,TH);GGN25,KUN10,36,TGN10,11,15,26..(SCB,XTR)..(ARL,GCC,GEN,TH)..CBU200408-200709
main71011-0K050supersedes 71011-0K030iKUN15,25,LAN15,25,TGN15..RHD..SCB..SA; KUN15,25,TGN15..RHD..SCB..SA; KUN3#,TGN16,26,36..SCB..SA;KUN15,25,LAN15,25..LHD..SCB..SA200805-200810
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON); FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER); POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main71012-0K010iKUN35..DCB..DLX..SA;KUN15,25..SCB..(MA,TH);KUN25,TGN16..RHD..5F..(ARL,GEN);GGN15,25,KUN16,26,LAN15,TGN15..RHD..SCB..5F..(DLX,STD);KUN15,LAN25,35,TGN10..RHD..(DLX,STD)..(GEN,IDN,PKN,SA)..CBU200409-201202
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
MID.GRAY,TRIM1#
MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#
MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#
MID. GRAY,TRIM1#
MID.GRAY,TRIM1#
IVORY,TRIM0#
MID.GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
MID. GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
main71072-0K120-B0iKUN15..XTR..TH;KUN15..PHL..IV3;TGN16..4FC..ARL;KUN15,25,TGN15,16,26..LHD..(DCB,SCB,THSCB)..GEN; TGN16..5F..ARL200808-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID.GRAY,TRIM1#; MID.GRAY,TRIM1#
MID.GRAY,TRIM1#
RED,TRIM3#
main71072-0K151-B0iGGN25..5FC..IV3;TGN16..SMT..DLX;GGN15,KUN26..(4FC,5FC)..DLX;GGN15,KUN15..(DCB,SMT)..5F..DLX..(ARL,PHL,TH);GGN25,KUN16,26,35..(DCB,XTR)..(5F,5FC)..DLX..(ARL,PHL); KUN15,25,TGN15,16,26..(DCB,SCB)..GEN; KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN; KUN15..SCB..TH; KUN15..XTR..TH;TGN16..4FC..ARL;KUN15,25,TGN15,16,26..LHD..DCB..GEN; TGN16..5F..ARL;KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN200908-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID.GRAY,TRIM1#; MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#
IVORY,TRIM0#
MID.GRAY,TRIM1#
RED,TRIM3#
MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
main71072-0K171-B0iKUN26..4FC..TH; KUN35..TH;KUN26..DCB..4FC..SR..(ARL,GEN);KUN26..RHD..5F..SR..(ARL,GEN,TH);GGN15,25,KUN15,16,25,36,TGN16..SR..(ARL,TH)201010-201103
MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,MID. GRAY,TRIM1#; MID. GRAY,TRIM1#
main71072-0K171-E0supersedes 71072-0KA40-E2iKUN26,35..5F..(IDN,TH);KUN15,16,25,36,TGN16..SR..TH; KUN26..4FC..TH201010-201103
MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
MID.GRAY,TRIM1#
MID.GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
MID. GRAY,TRIM1#
SAND BEIGE,TRIM4#
MID. GRAY,TRIM1#
GRAY,TRIM1#; POWER DOOR LOCK-WITH,GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
MID.GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
MID.GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
RED,TRIM3#
RED,TRIM3#
MID.GRAY,TRIM1#
RED,TRIM3#
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#
SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID. GRAY,TRIM1#
main71072-0K191-B2iKUN15,25,LAN15,25,TGN16,26..LHD..DCB..SA; KUN15..RHD..SA;KUN25,LAN35,TGN15,16,26..SA;KUN15,35,LAN15,25..DCB..DLX..SA; KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..SA; KUN35..SCB..SA200903-200910
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#
main71072-0K192-B4iKUN15,25,LAN15,25,TGN16,26..LHD..DCB..SA; KUN25..LHD..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15,16,26..DLX..SA; KUN35..SCB..SA; TGN15,16..SA;KUN25..LHD..SA;KUN15..RHD..DLX..SA;KUN15,35,LAN15,25,35,TGN26..DCB..DLX..SA200910-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
MEXICO SPEC,GRAY,TRIM1#
MEXICO SPEC,MID.GRAY,TRIM1#
EXPORT FROM ARGENTINA&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; HIGH ALTITUDE COUNTRY SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; PERU SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
CHILE SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID GRAY,TRIM1#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-0K070-B0iGGN25..5FC..IV3;GGN15,KUN26..(4FC,5FC)..DLX;KUN25,TGN16,26..(THDCB,XTR)..DLX;KUN15,25,TGN15,16,26..DLX..(GCC,PHL);GGN15,KUN26..(DCB,THDCB,XTR)..5F..DLX..(ARL,GEN);GGN25,KUN10,16,35,TGN10,11..DLX..(ARL,GCC,GEN)..CBU200411-200808
MID.GRAY,TRIM1#
RED,TRIM3#
main71073-0K071-B0iGGN25..5FC..IV3;KUN25,TGN26..THDCB..DLX;KUN15,TGN16..SCB..DLX..GCC;GGN15,KUN26..(4FC,5FC)..DLX;TGN16..(DCB,SMT)..DLX..(GCC,TH);KUN26,35..(DCB,THDCB,XTR)..5F..DLX..(ARL,GEN,PHL);GGN15,KUN15..(DCB,SMT)..5F..DLX..(ARL,GCC,PHL,TH);GGN25,KUN10,16,25,TGN10,11,15,26..DLX..(ARL,GCC)..CBU; KUN15,25,TGN15,16,26..(DCB,SCB)..GEN; KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN; KUN15..SCB..TH; KUN15..XTR..TH;TGN16..4FC..ARL;KUN15,25,TGN15,16,26..LHD..DCB..GEN; TGN16..5F..ARL;KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN200908-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID.GRAY,TRIM1#; MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#
RED,TRIM3#
main71073-0K080-A0iKUN26..XTR..ARL..CBU;GGN15,25,TGN36..SR..(ARL,PHL);KUN15,16,2#,36,TGN26..DCB..SR..(ARL,PHL,TH)200408-200808
IVORY,TRIM0#
main71073-0K080-B0iKUN16..SMT;KUN15,26,TGN16..5F..SR..TH; KUN26,TGN16..(DCB,THDCB,XTR)..SR..(ARL,GCC,GEN);GGN15,25,KUN16,TGN26..(DCB,THDCB,XTR)..SR..(ARL,GEN,TH)200808-201009
MID.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
main71073-0K081-B0iKUN26..4FC..TH; KUN35..TH;KUN26..4FC..SR..(ARL,GEN);KUN26..5F..SR..(ARL,GEN,TH);GGN15,25,KUN15,16,25,36,TGN16,26..(DCB,SMT,THDCB,XTR)..SR..(ARL,GCC,GEN,TH)201010-201103
MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,MID. GRAY,TRIM1#; MID. GRAY,TRIM1#
RED,TRIM3#
main71073-0K081-E0supersedes 71073-0KA80-E2iKUN26..4FC..TH; KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,36,TGN16..SR..(PHL,TH)201010-201103
MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
MID.GRAY,TRIM1#
MID.GRAY,TRIM1#
MID. GRAY,TRIM1#
MID.GRAY,TRIM1#
MID. GRAY,TRIM1#
MEXICO SPEC,MID. GRAY,TRIM1#; MID. GRAY,TRIM1#
MEXICO SPEC,MID. GRAY,TRIM1#; MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
MID. GRAY,TRIM1#
SAND BEIGE,TRIM4#
MID. GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
RED,TRIM3#
MID. GRAY,TRIM1#
RED,TRIM3#
MID.GRAY,TRIM1#
MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1#
MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#
main71074-0K030-B0supersedes 71074-0K030-B1iKUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15..RHD..DLX..SA200810-201108
MID. GRAY,TRIM1#
MID.GRAY,TRIM1#
GRAY,TRIM1#
MID.GRAY,TRIM1#
GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#
main71073-0K201-B3iKUN15,25,LAN15,25,TGN16,26..LHD..DCB..SA; KUN15..RHD..SA;KUN25,LAN35,TGN15,16,26..SA;KUN15,35,LAN15,25..DCB..DLX..SA; KUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15,16,26..SA; KUN35..SCB..SA200903-200910
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM1#; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#
main71073-0K202-B5iKUN15,25,LAN15,25,TGN16,26..LHD..DCB..SA; KUN25..LHD..SA;KUN35..DCB..DLX..SA;KUN15,LAN15,25,35,TGN15,16,26..DLX..SA; KUN35..SCB..SA; TGN15,16..SA;KUN25..LHD..SA;KUN15..RHD..DLX..SA;KUN15,35,LAN15,25,35,TGN26..DCB..DLX..SA200910-201108
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
EXPORT FROM ARGENTINA&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; HIGH ALTITUDE COUNTRY SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; PERU SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID. GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID GRAY,TRIM1#
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#
SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),MID. GRAY,TRIM1#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71051-0K020iGGN15..DCB..5F;GGN25..5FC..SA;KUN26..4FC..TH;GGN25..ARL..CBU;GGN35,KUN16..DCB,XTR;KUN26..(DCB,XTR)..IV3;GGN25,KUN26..(4FC,5FC)..IV3;GGN15,TGN16..RHD..(4FC,5FC);KUN26..RHD..(ARL,GEN,SA)..CBU;KUN15,25,3#,TGN36..SR..(MA,SA)200808-201109
POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER); POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER); SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER); SRS AIR BAG-WITH(DRIVER & PASSENGER)
main71511-0K050iKUN16..SMT;KUN15..XTR..TH;KUN25..SCB..LA;KUN26..4FC..PHL;TGN36..LHD..CBU;KUN26..THDCB..SR;TGN36..ANCOM..IV3;TGN16..LHD..SCB..DLX;TGN26..SCB..ANCOM..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN15..LHD..SCB..(GCC,PHL,SA);KUN25,LAN15,25..LHD..(GEN,SA);KUN15,26,36..LHD..DLX..(GEN,LA);KUN15..(DCB,SMT)..(GCC,PHL,SA,TH);KUN25..DCB..DLX..(ANCOM,GCC,LA,MA);TGN16..(DCB,SMT)..DLX..(GCC,GEN,SA,TH);KUN2#,36,TGN16,26..5F..SR..(ANCOM,GCC,IDN,PHL,TH);GGN25,KUN10,35,TGN10,11,15..ANCOM,GCC,GEN,LA,PHL,TH200808-201204
main71512-0K010iKUN35..DCB..DLX..SA;KUN25..RHD..(GEN,PKN);KUN15,16,25..SCB..(MA,TH);KUN15,LAN15,25,35,TGN10,15..RHD..(DLX,STD)..(GEN,IDN,SA)200808-201202
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
7152SEAT BELT
71537APROTECTOR, FRONT SEAT CUSHION
main71537-0K020×4iTGN16..XTR;TGN26..RHD;KUN25,TGN26..THDCB;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);GGN15,TGN26..(4FC,5FC)..(ARL,GCC);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN15,KUN15..(DCB,XTR)..5F..(ARL,PHL,TH);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,25,35,TGN26,36..DCB..DLX..(ANCOM,ARL,LA);KUN16,25,TGN36..(DCB,SCB,XTR)..SR..(MA,PHL,SA,TH)200408-200812
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-71010iKUN15,25..RHD..GEN; KUN26..IDN;GGN25..XTR;GGN25..5FC..IV3;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR; TGN16..5F..ARL200808-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER); FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY); POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER); POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-0K020supersedes 71551-0K040iGGN15..5FC;TGN26..RHD;TGN26..GCC;GGN25,KUN26..(4FC,5FC)..IV3;KUN35..(SCB,THDCB)..(GEN,SA);TGN26,36..DCB..DLX..(ANCOM,LA);KUN25,TGN16,26..(THDCB,XTR)..GEN;KUN10,15,TGN1#..5F..DLX..(GCC,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN16,25,35..DCB..5F..(ANCOM,ARL,GCC,LA);KUN15,16,25,TGN16,36..(DCB,SCB,XTR)..SR..(GCC,MA,PHL,SA,TH)200408-200812
main71551-0K050iTGN16..SA;KUN15..XTR..TH;TGN26..SCB..LA;TGN16..4FC..ARL;TGN36..ANCOM..IV3;TGN36..SCB..DLX..CBU;TGN26..SCB..ANCOM..CBU;KUN15,25,35..SCB..(ANCOM,LA,PHL);KUN15,25,LAN15,25,TGN15,26..LHD..(DCB,SCB,THSCB)..(GEN,SA)200808-201204
SEAT COVER MATERIAL-LEATHER
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN); SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71812DSHIELD, FRONT SEAT CUSHION, LH
main71811-0K010-B0iKUN35..DCB..DLX..SA;KUN15,25..SCB..(MA,TH);KUN25,TGN16..RHD..5F..(ARL,GEN);GGN15,25,KUN16,26,LAN15,TGN15..RHD..SCB..5F..(DLX,STD);KUN15,LAN25,35,TGN10..RHD..(DLX,STD)..(GEN,IDN,PKN,SA)..CBU200409-201202
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
GRAY,TRIM1#
IVORY,TRIM0#
main71812-0K040-B0iTGN16..SCB..DLX..GCC;KUN15,TGN16..DCB..5F..GCC;KUN10,25,TGN10,11,15,26..5F..GCC200708-200812
GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71861-0K010-B0iKUN35..DCB..DLX..SA;KUN25..RHD..(GEN,PKN);KUN15,25..SCB..(MA,TH);KUN15,LAN25,35,TGN16..RHD..5F..DLX..(ARL,GEN,SA);GGN15,25,KUN16,26,LAN15,TGN10,15..RHD..SCB..5F..(DLX,STD)..(ARL,IDN,SA,TH)200808-201202
GRAY,TRIM1#
IVORY,TRIM0#
main71862-0K020-B0iGGN15..5FC;KUN25..SR..MA;KUN25..SCB..LA;KUN15..XTR..DLX;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN26..(DCB,XTR)..ARL;GGN25,KUN26..(4FC,5FC)..IV3;GGN25,KUN36..(5F,5FC)..(ARL,SA)..CBU;TGN26..(DCB,SCB)..DLX..(ANCOM,GEN,SA);GGN15,KUN16,TGN36..DCB..(4FC,5F)..(ANCOM,ARL,SA);KUN15,25,LAN15,25,TGN15,16..LHD..(DCB,SCB,THSCB,XTR)..DLX..(GEN,PHL,SA)200408-200812
GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
IVORY,TRIM0#
main71862-0K040-B0iTGN16..SCB..SR;KUN15..SCB..GCC;TGN26..4FC..GCC;TGN26..SR..ANCOM;KUN25,TGN26..THDCB;TGN26..DCB..DLX..LA;KUN25,TGN36..DCB..5F..DLX..(ANCOM,LA);GGN25,KUN26,3#..(DCB,THDCB)..(ANCOM,GEN,LA)200501-200812
GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
GRAY,TRIM1#; GRAY,TRIM10
GRAY,TRIM1#
MID. GRAY,TRIM1#
MID. GRAY,TRIM1#
main71910-0K040-B1×2iKUN15,25..RHD..DCB..GEN; TGN16..4FC..DLX..CBU;TGN16..(DCB,XTR)..5F..DLX..(GCC,GEN);GGN15,25,KUN15,16,2#,35,TGN15,26..(DCB,THDCB,XTR)..DLX..(ARL,GCC,GEN,PHL,TH); TGN16..5F..ARL..CBU200808-200903
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#; GRAY,TRIM1#,RH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,RH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,RH
main71910-0K040-B5×2supersedes 71910-0K520-B1iKUN15,25..RHD..DCB..GEN; TGN16..4FC..DLX..CBU;KUN35..DLX..(GEN,PHL);TGN16..(DCB,SMT)..5F..DLX..(GCC,GEN,TH);GGN15,25,KUN15,16,2#,TGN15,26..(DCB,SMT,THDCB,XTR)..DLX..(ARL,GCC,GEN,PHL,TH); TGN16..5F..ARL..CBU200903-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,GRAY,TRIM1#; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),GRAY,TRIM1#; GRAY,TRIM1#; GRAY,TRIM1#,RH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,RH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,RH
RED,TRIM3#
RED,TRIM3#
IVORY,TRIM0#
main71910-0K050-B0×2iKUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH)200408-200808
MID.GRAY,TRIM1#
main71910-0K050-B2×2iKUN16..SMT;KUN15,26,TGN16..5F..SR..TH; KUN26..DCB..SR..(ARL,GEN);GGN15,25,KUN16..DCB..SR..(ARL,TH); KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..THDCB..SR;TGN16..(DCB,SMT)..SR;KUN16,TGN26..(SMT,THDCB)..SR;KUN15,2#,36..5F..SR..(IDN,PHL,TH)200903-201009
GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
RED,TRIM3#
RED,TRIM3#
main71910-0K050-E0×2iKUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,3#,TGN16..SR..(PHL,TH)200808-200903
SAND BEIGE,TRIM4#
main71910-0K050-E1×2iKUN26..4FC..TH; KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,36,TGN16..SR..(PHL,TH)201103-201107
MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
main71910-0K051-B0×2iKUN26..4FC..TH; KUN35..TH;KUN26..4FC..SR..(ARL,GEN);KUN26..5F..SR..(ARL,GEN,TH);GGN15,25,KUN15,16,25,36,TGN16,26..(DCB,SMT,THDCB,XTR)..SR..(ARL,GCC,GEN,TH)201010-201103
GRAY,TRIM1#; MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,GRAY,TRIM1#
RED,TRIM3#
main71910-0K051-E0×2supersedes 71910-0K680-E3iKUN26..4FC..TH; KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,36,TGN16..SR..(PHL,TH)201010-201103
MALAYSIA SPEC&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
MED. GRAY,TRIM1#
MID.GRAY,TRIM1#
MID. GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
IVORY,TRIM0#
GRAY,TRIM1#
GRAY,TRIM1#
SAND BEIGE,TRIM4#
GRAY,TRIM1#
main71910-0K250-B1×2iKUN15,25..RHD..SCB..GEN; KUN25..THSCB;KUN16,TGN10..RHD..SCB..CBU; TGN16..4FC..IV3;TGN16..SCB..GEN;KUN15,25,TGN15..SCB..(GEN,TH); TGN16..5F..ARL..IV3200808-200903
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM10; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID.GRAY,TRIM10; MID.GRAY,TRIM1#; MID.GRAY,TRIM10; MID.GRAY,TRIM10,RH; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM10,RH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM10,RH; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM10,RH; SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM10,RH
GRAY,TRIM10
RED,TRIM3#
RED,TRIM3#
MID. GRAY,TRIM10; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MID. GRAY,TRIM1#
MID.GRAY,TRIM10
MID.GRAY,TRIM10
MED. GRAY,TRIM1#; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),MED. GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MED. GRAY,TRIM1#
main71910-0K280-B7×2iKUN25..LHD..SCB..SA;KUN15,LAN15,25,TGN15,16..SCB..SA; KUN35..SCB..SA200910-201108
MID.GRAY,TRIM1#; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#; SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#; POWER DOOR LOCK-WITH,GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM10,LH; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM10,LH
main71910-0K530-B1iGGN15,25,KUN16,26..SCB..5F..ARL; KUN15,25..RHD..SCB..GEN; TGN16..5F..ARL..IV3200808-200903
GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH
GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH
GRAY,TRIM1#
GRAY,TRIM1#
RED,TRIM3#
RED,TRIM3#
GRAY,TRIM1#
RED,TRIM3#
MID.GRAY,TRIM1#
RED,TRIM3#
SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,GRAY,TRIM10
main71910-0K140-B3×2supersedes 71910-0K140-B5iKUN15,25,35,LAN15,25,35,TGN16,26..DCB..SA200504-200810
SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID. GRAY,TRIM10
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),GRAY,TRIM1#
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON),MID. GRAY,TRIM10
GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH
GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM10,LH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM10,LH
GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH
GRAY,TRIM1#,LH; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH; SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#,LH
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
EXPORT FROM ARGENTINA&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; HIGH ALTITUDE COUNTRY SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; PERU SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-FULL FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),IVORY,TRIM0#
W(LOCK),GRAY,TRIM1#
W(LOCK),RED,TRIM3#
W(LOCK),SAND BEIGE,TRIM4#
main71930-02070-B2×2iTGN26..LA;TGN26..SR..ANCOM;TGN26..SCB..ANCOM..CBU;GGN25,KUN2#,3#,TGN36..ANCOM,LA200810-201204
W(LOCK),GRAY,TRIM1#
main71930-02080-B3×2iKUN25,35..DCB..SA;KUN25..LHD..SCB..SA;GGN25,35,KUN15,26,36,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA; KUN35..SCB..SA200810-201108
W(LOCK),GRAY,TRIM1#; W(LOCK),POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; W(LOCK),SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
W/O(LOCK),IVORY,TRIM0#
main71931-02030-B3×2iTGN16..SMT..DLX;TGN36..LHD..CBU;TGN26..SR..ANCOM;TGN36..ANCOM..IV3;KUN15,26,36..XTR..SA;TGN26..SCB..ANCOM..CBU;KUN2#,36..ANCOM,ARL,GCC,GEN,LA,MA,PKN;TGN16,26..(DCB,SCB,THDCB)..(ARL,GCC,GEN,LA);KUN15,35..(DLX,STD)..(ANCOM,GCC,GEN,LA,PHL,TH);GGN15,25,KUN10,16,TGN10,11,15..(DCB,SCB,XTR)..(ANCOM,ARL,GCC,GEN,IDN,LA,TH)200808-201204
W/O(LOCK),GRAY,TRIM1#
W/O(LOCK),RED,TRIM3#
W/O(LOCK),SAND BEIGE,TRIM4#
main71931-02060-B1×2iKUN25,35..DCB..SA;KUN25..LHD..SCB..SA;GGN25,35,KUN15,26,36,LAN15,25,35,TGN15,16,26,36..(DCB,SCB)..SA; KUN35..SCB..SA200810-201108
W/O(LOCK),GRAY,TRIM1#; W/O(LOCK),POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#; W/O(LOCK),SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-0K020iKUN15,TGN15,16..GCC;TGN26,36..DCB..(GCC,LA);KUN25..DCB..(ANCOM,GCC,LA);GGN25,KUN10,26,36,TGN10,11..LHD;KUN15,35,TGN26..SR..(ANCOM,PHL);KUN35..(DCB,THDCB)..(ANCOM,GEN,LA);KUN25,TGN26..LHD..(SCB,THDCB)..(GCC,GEN)200808-201204
72138BCOVER, SEAT TRACK, LH
IVORY,TRIM0#
main72137-0K010-B0supersedes 72137-0K020-B0iKUN25..DCB..SR;KUN15..XTR..DCR;KUN26..XTR..ARL;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);TGN26..(DCB,THDCB)..(ANCOM,GCC,GEN,SA,TH);KUN25,LAN25,TGN16..LHD..(DCB,THDCB,XTR)..5F;KUN15,16,TGN36..DCB..(ANCOM,ARL,GCC,PHL,SA,TH);KUN15,35,TGN36..LHD..(DCB,THDCB)..5F..DLX..(ANCOM,GEN,LA);GGN15,25,KUN36,LAN15,TGN15..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,GCC,GEN,LA,SA)200408-200812
GRAY,TRIM1#
RED,TRIM3#
main72137-0K010-E0iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201107
SAND BEIGE,TRIM4#
main72137-0K020-B0×2iKUN25..RHD..DCB..(GEN,PKN);KUN15,35,LAN25,35,TGN16..RHD..DCB..5F..DLX..(ARL,GEN,SA)200808-201202
GRAY,TRIM1#
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-0K020iKUN15,TGN15,16..GCC;TGN26,36..DCB..(GCC,LA);KUN25..DCB..(ANCOM,GCC,LA);GGN25,KUN10,26,36,TGN10,11..LHD;KUN15,35,TGN26..SR..(ANCOM,PHL);KUN35..(DCB,THDCB)..(ANCOM,GEN,LA);KUN25,TGN26..LHD..(SCB,THDCB)..(GCC,GEN)200808-201204
72158BCOVER, SEAT TRACK BRACKET, INNER LH
IVORY,TRIM0#
GRAY,TRIM1#
RED,TRIM3#
main72158-0K010-E0iKUN35..SR..PHL;KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,26,36,TGN16..SR..(IDN,PHL,TH)200808-201107
SAND BEIGE,TRIM4#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-0K010iGGN15..5FC;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;KUN15..LHD..SCB..(GCC,SA);TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN16,25,TGN16..(DCB,SCB,XTR)..SR;KUN10,25,LAN15,25,TGN1#..LHD..5F..DLX;GGN25,KUN36..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN16,35,TGN36..DCB..5F..DLX..(ANCOM,ARL,LA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,GCC,PHL,SA,TH)200408-200812
72503ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K010iKUN35..TH;KUN26..DCB..4FC..SR..(ARL,GEN);KUN26..RHD..5F..SR..(ARL,GEN,IDN,TH);GGN15,25,KUN15,16,25,36,TGN16..SR..(ARL,MA,TH)200808-201109
main72503-0K030iKUN26..DLX;KUN25..SCB..MA;TGN16..5F..ARL;KUN26..LHD..4FC;KUN35..DLX..(GEN,SA);KUN26..THDCB..5F..SR;TGN26,36..4FC..(ANCOM,GCC);TGN26..(SCB,THDCB)..(GEN,SA);TGN26,36..SR..(ANCOM,PHL,SA);KUN25,TGN16..(THDCB,XTR)..GEN;KUN36..(DCB,SCB)..5F..(LA,SA);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..DCB..5F..SR..(LA,PHL,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN16,25..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN15,25,35,TGN15..RHD..(DCB,SCB,XTR)..(DLX,STD)200408-201202
72503AARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
main72503-0K020iKUN15,TGN15,16..GCC;TGN26,36..DCB..(GCC,LA);KUN25..DCB..(ANCOM,GCC,LA);GGN25,KUN10,26,36,TGN10,11..LHD;KUN15,35,TGN26..SR..(ANCOM,PHL);KUN35..(DCB,THDCB)..(ANCOM,GEN,LA);KUN25,TGN26..LHD..(SCB,THDCB)..(GCC,GEN)200808-201204
72504ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
main72504-0K010iKUN35..TH;KUN26..DCB..4FC..SR..(ARL,GEN);KUN26..RHD..5F..SR..(ARL,GEN,IDN,TH);GGN15,25,KUN15,16,25,36,TGN16..SR..(ARL,MA,TH)200808-201109
main72504-0K040iKUN26..DLX;TGN16..ARL..IV3;TGN36..DCB..DLX;TGN26..SR..ANCOM;KUN26..THDCB..SR;GGN35,KUN36..LA,SA;TGN26..DCB..5F..LA;KUN15..RHD..(DLX,SR)..DCR;KUN26,TGN36..SR..(LA,PHL,SA);KUN15,25..DCB..(ANCOM,LA,PHL);KUN25,TGN16..RHD..(DCB,SMT)..DLX;KUN25,TGN26..(SCB,THDCB)..(GEN,MA);KUN35..(DCB,THDCB)..(ANCOM,GEN,LA,PHL,SA);GGN25,TGN16,26..(4FC,5FC)..(ANCOM,GCC,LA,SA);GGN15,25,KUN16,LAN15,25,35,TGN10,15..RHD..(DLX,STD)..(ARL,IDN,SA,TH)200808-201204
72504AARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
main72504-0K020iTGN16..SCB..DLX..GCC;KUN15,TGN16..DCB..5F..GCC;KUN10,25,TGN10,11,15,26..5F..GCC200708-200812
main72504-0K030iGGN15..5FC;KUN25..SCB..LA;KUN35,TGN36..SCB;KUN26..DCB..5F..SA;KUN15..LHD..SCB..SA;KUN16,25..(DCB,XTR)..SR;TGN26..DCB..(GEN,SA,TH);KUN26..(DCB,XTR)..(ARL,TH);GGN25,KUN26..(4FC,5FC)..IV3;TGN16..(DCB,SCB,XTR)..(SA,TH);TGN26..(SCB,XTR)..(ANCOM,SA,TH);KUN16,TGN26..DCB..DLX..(ANCOM,ARL);KUN15,TGN16..LHD..(DCB,SCB)..DLX..(GEN,PHL);GGN25,KUN36..RHD..(DCB,SCB,XTR)..(5F,5FC)..CBU;KUN25,LAN15,25,TGN15..LHD..(DCB,SCB,THSCB)..(GEN,SA);GGN15,KUN15,TGN36..(DCB,XTR)..(4FC,5F)..(ANCOM,ARL,SA,TH)200408-200812
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
GRAY,TRIM1#
IVORY,TRIM0#
main72526-0K040-B0iGGN15..5FC;KUN25..SR..MA;KUN15..LHD..GEN;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN35,TGN36..SCB,THDCB;TGN36..DCB..(ANCOM,SA);TGN26..ANCOM,GCC,GEN,SA;KUN15..LHD..SCB..(GCC,SA);GGN25,KUN26..(4FC,5FC)..IV3;KUN10,25,LAN15,25,TGN1#..LHD..5F;KUN26..(DCB,THDCB,XTR)..(ARL,GEN,LA);GGN15,KUN16,35..DCB..5F..(ANCOM,ARL,LA);GGN25,KUN36..(5F,5FC)..(ANCOM,ARL,LA,SA)..CBU;KUN15,TGN36..(DCB,XTR)..DLX..(GCC,LA,PHL,SA,TH)200408-200812
GRAY,TRIM1#
RED,TRIM3#
SAND BEIGE,TRIM4#
72637GSPRING, SEATBACK, LH
main72637-0K010iKUN15,25..RHD..GEN; KUN26..IDN;GGN25..XTR;GGN25..5FC..IV3;TGN16..(DCB,SCB)..GEN;GGN15,KUN16..DCB..5F..SR; TGN16..5F..ARL200808-201107
FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER); FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY); POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP; POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER); POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY)
72992COVER, FRONT SEAT CUSHION, LH
main72991-0K020iTGN16..SR;KUN26..CBU;GGN25..5FC..SA;KUN25..SCB..LA;KUN15..LHD..GEN;TGN36..ANCOM..IV3;TGN16..LHD..SCB..DLX;KUN25..LHD..(GEN,SA);KUN26..(DCB,XTR)..IV3;TGN26..SCB..ANCOM..CBU;KUN35..ANCOM,GEN,LA,PHL,TH;GGN25,KUN26..(4FC,5FC)..IV3;KUN35,TGN26..SR..(ANCOM,SA);KUN15..LHD..SCB..(GCC,PHL,SA);GGN15,TGN16..(4FC,5FC)..(ARL,GCC);LAN15,25,TGN15,26..LHD..(GCC,GEN,LA,SA);TGN16..(DCB,SMT)..5F..DLX..(GCC,GEN,SA,TH);GGN25,KUN25..(DCB,SMT,XTR)..(ANCOM,ARL,GCC,LA,MA,TH);GGN35,KUN10,36,TGN10,11,36..(ANCOM,GCC,LA,SA,TH)..CBU;GGN15,KUN15,16..(DCB,SMT,XTR)..(4FC,5F)..(ARL,GCC,PHL,SA,TH)200808-201204
FOR MANUAL SEAT
main72991-0K060iKUN35..DCB..DLX..SA;KUN15,25,LAN15,25,35,TGN15..RHD..SA; KUN35..SCB..SA; KUN35..SR..SA;GGN25..5FC..SA;GGN35,KUN26,36,TGN16,36..SA;KUN15,25,LAN15,25,TGN26..LHD..SA200808-201007
FOR POWER SEAT; FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SRS AIR BAG-WITH(DRIVER & PASSENGER),FORPOWER SEAT; POWER DOOR LOCK-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR POWER SEAT; SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR POWER SEAT
main72991-0K061supersedes 72991-0K020iKUN35..SR..SA;KUN15,25,LAN15,25..LHD..SA;GGN25,35,KUN26,36,TGN16,26,36..(DCB,SCB)..SA201007-201204
FOR POWER SEAT
9011910921
main90119-10921
90119T0001
main90119-T0001
9016740044
main90167-40044
91621B0816
main91621-B0816
91622B1018
main91622-B1018
30 parts on this diagram · 15 diagrams in section
